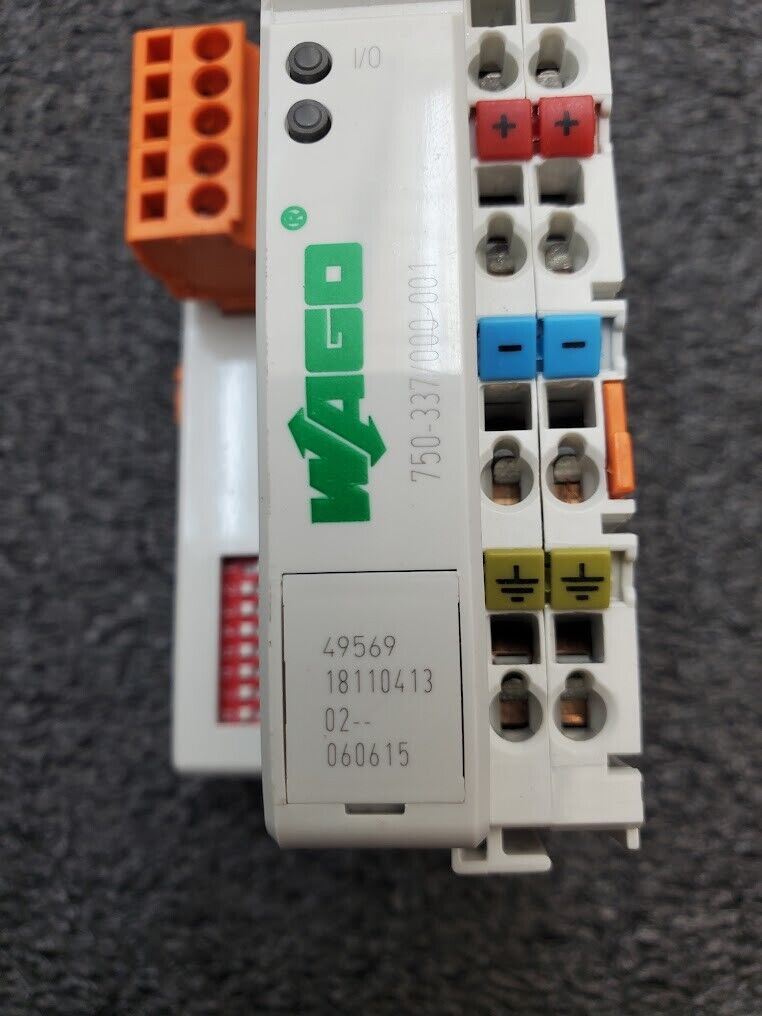

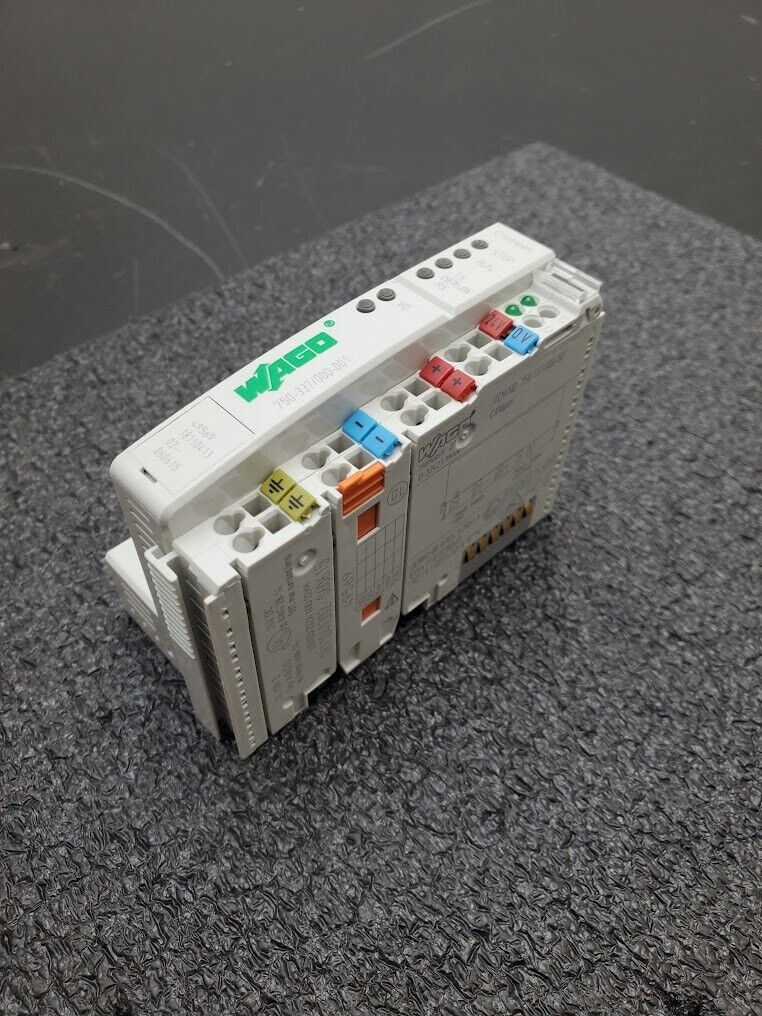

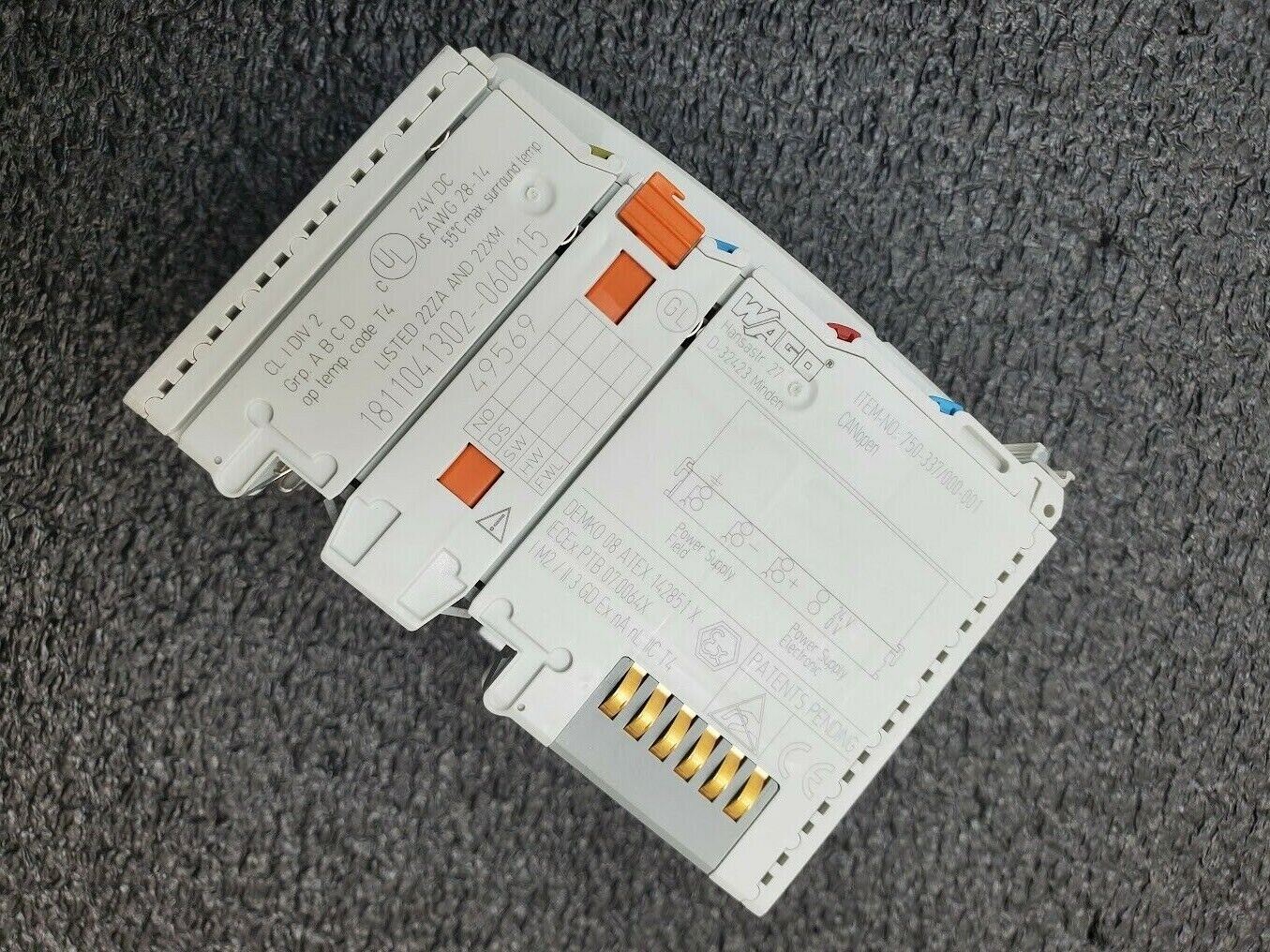

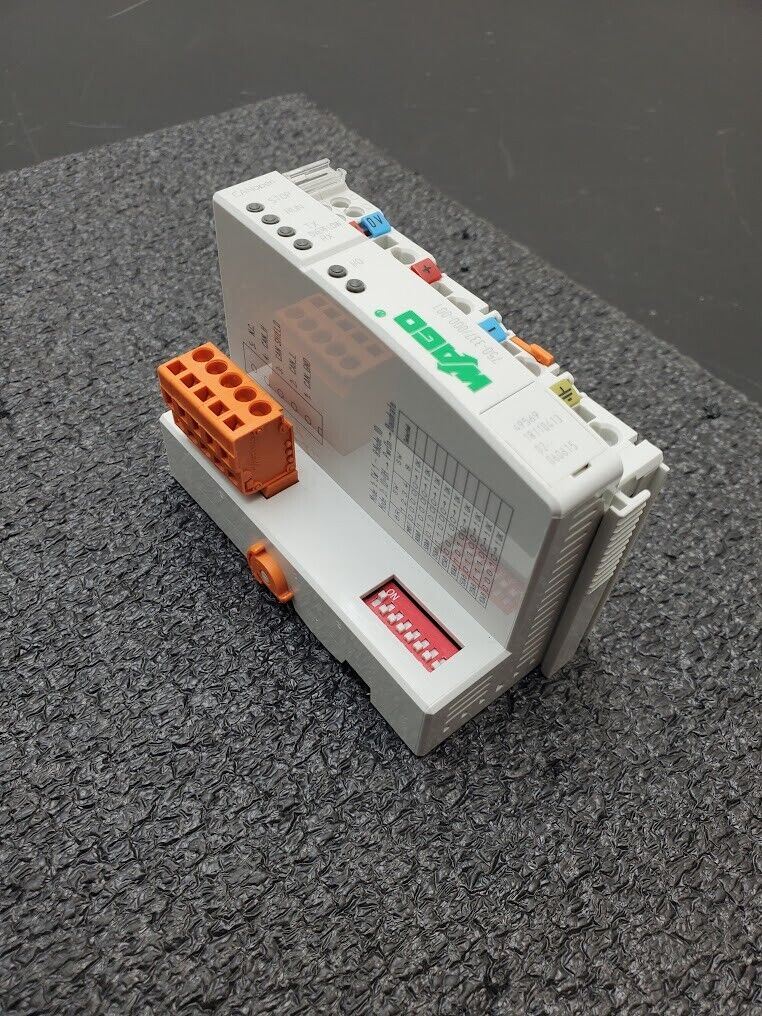

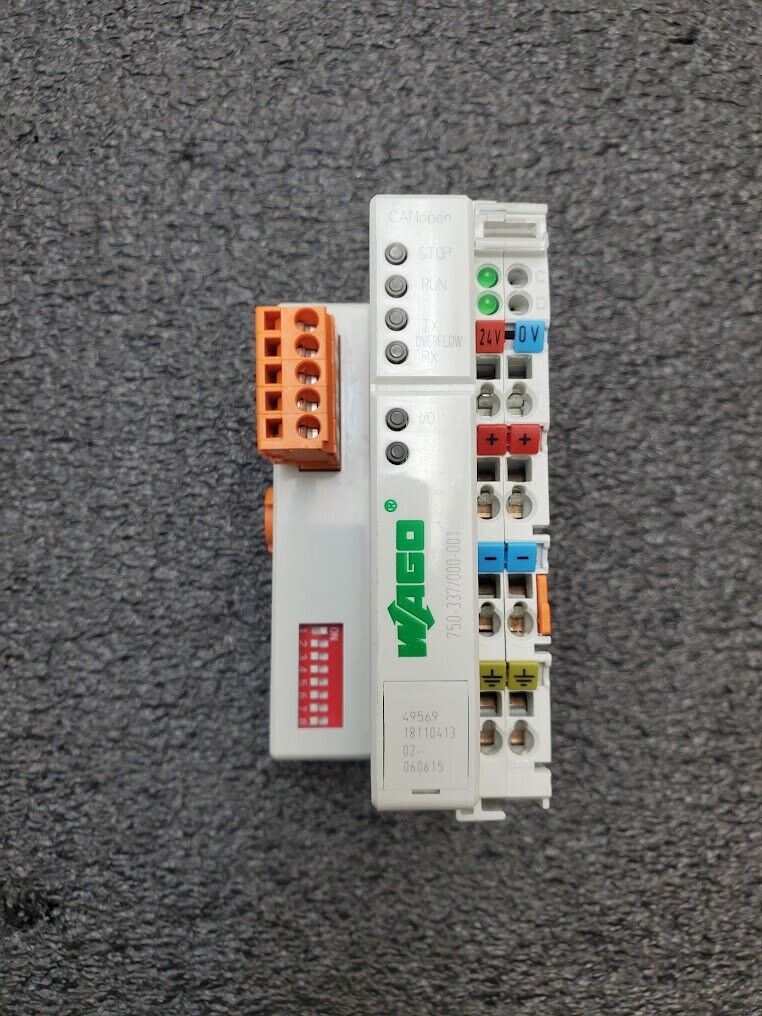

WAGO CANopen Fieldbus Coupler 750-337 MCS DIN Rail 750-337/000-001
Excellent used condition, pulled from working machinery that was only used for a couple years before being put into storage.
This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel Free to contact us with any questions
Thank you for your interest and have a great day!
This fieldbus coupler connects the WAGO I/O System as a slave to the CANopen fieldbus. Data is transmitted via PDOs and SDOs.
The fieldbus coupler detects all connected I/O modules and creates a local process image. Analog and specialty module data is sent via words and/or bytes, digital data is sent bit by bit.
The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the CANopen bus to a control system for further processing. The process output data is sent via the CANopen bus.
The data of the analog modules is stored in the PDOs according to the order in which the modules are connected to the coupler. The bits from the digital modules are sent byte by byte and also mapped in the PDOs. If the amount of digital I/O information exceeds eight bits, the coupler automatically starts with a new byte.
All entries of the object directory can be mapped as required in the 32 Rx PDOs and 32 Tx PDOs.
The complete input and output process image can be transmitted using SDOs.
Spacer modules can be set via software.
Technical data
| Communication |
CANopen |
| Number of fieldbus nodes on master (max.) |
110 |
| Baud rate |
10 kBd … 1 MBd |
| Bus segment length (max.) |
1000 m |
| Transmission medium |
Shielded Cu cable 3 x 0.25 mm² |
| Number of modules per node (max.) |
64 |
| Other CANopen features |
NMT slave
Minimum boot-up
Variable PDO mapping
Emergency message
Life guarding
Virtual module configuration
|
| Number of PDOs |
32 Tx / 32 Rx |
| Number of SDOs |
2 SDO servers |
| COB ID distribution |
SDO, standard |

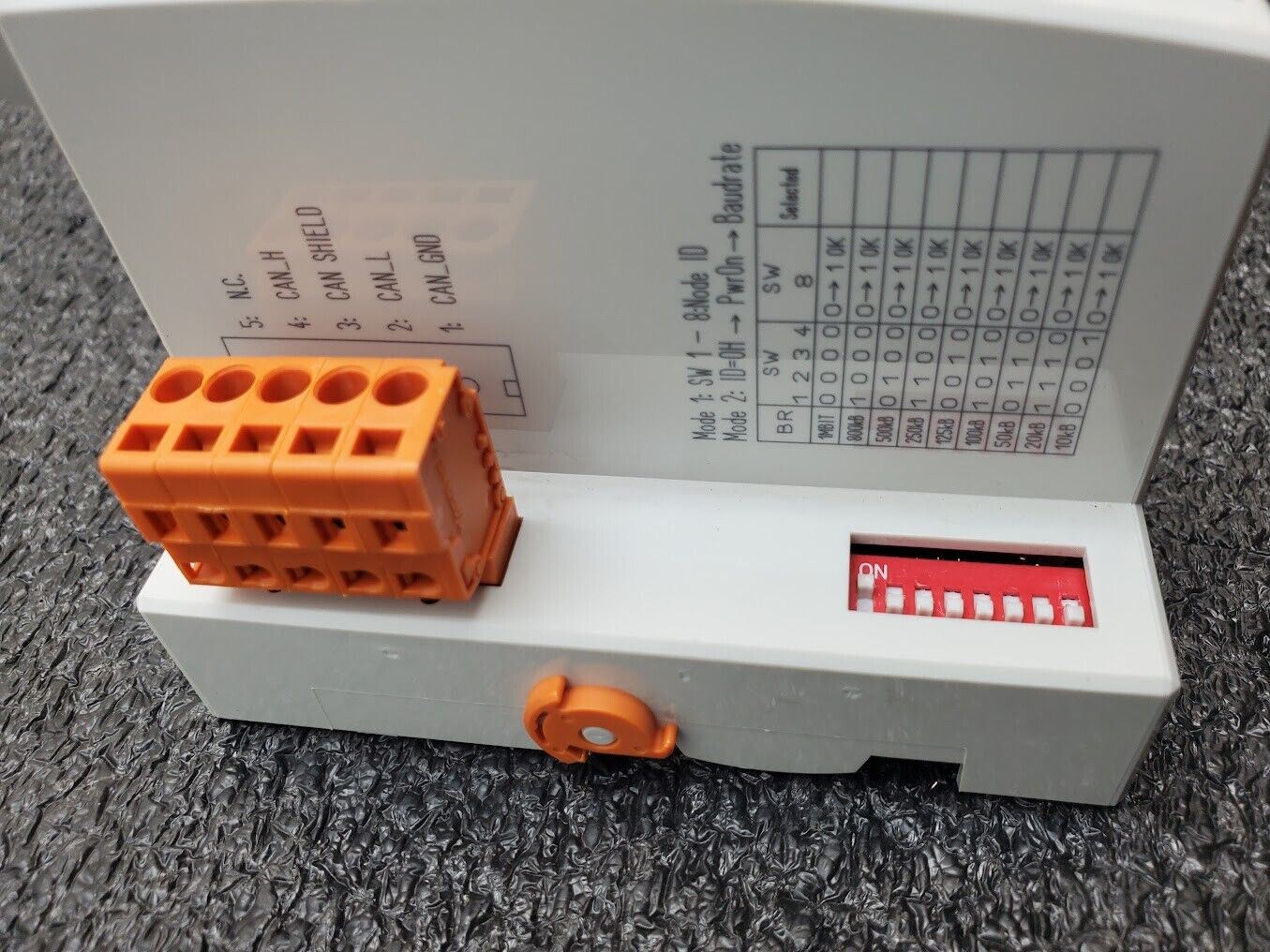

| Node ID distribution |
DIP switch |
| Communication profile |
DS-301 V4.1 |
| Device profile |
DS-401 V2.0
Limit value monitoring
Edge-triggered PDOs
Configurable response in the event of an error
|
| Input and output (fieldbus) process image (max.) |
512 Byte/512 Byte |

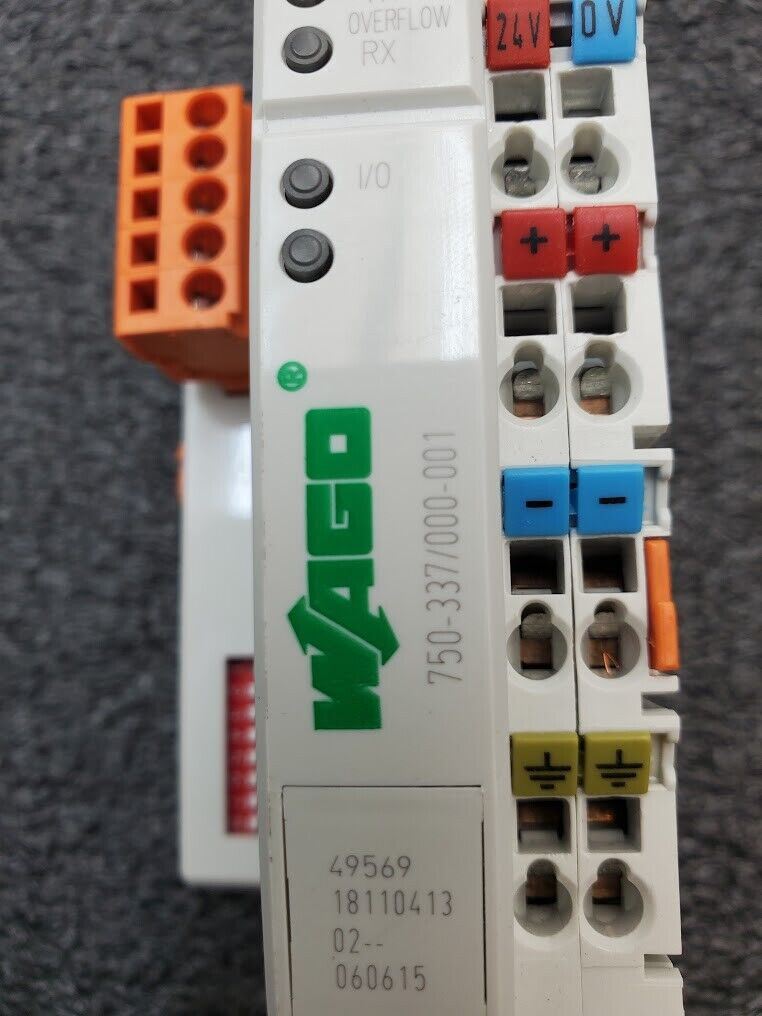

| Supply voltage (system) |
24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
| Power consumption (5 V system supply) |
350 mA |
| Total current (system supply) |
1,650 mA |

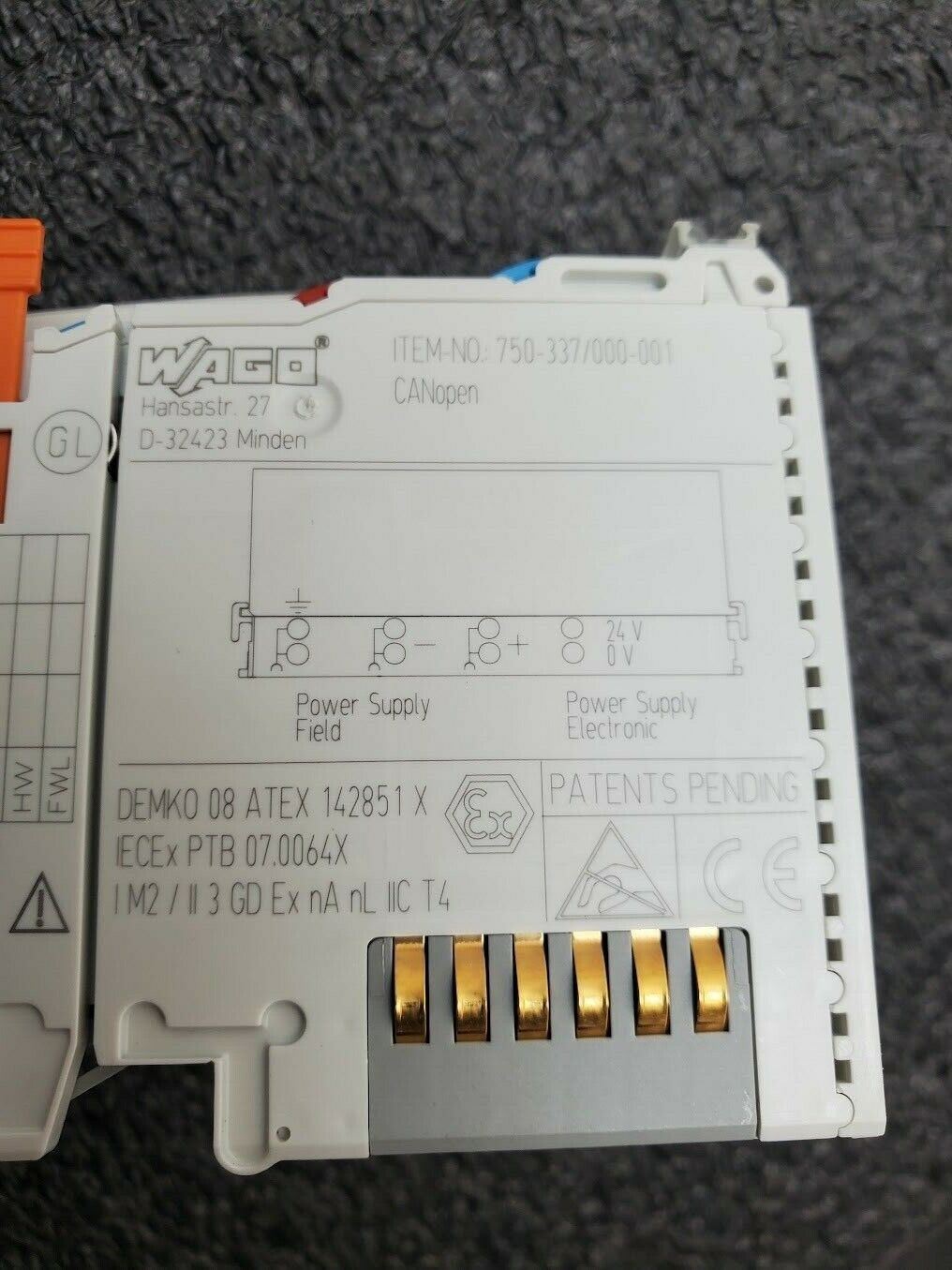

| Supply voltage (field) |
24 VDC (-25 … +30 %); via power jumper contacts |
| Input current (typ.) at nominal load (24 V) |
500 mA |
| Power supply efficiency (typ.) at nominal load (24 V) |
87 % |
| Isolation |
500 V system/field |
| Number of outgoing power jumper contacts |
3 |
| Current carrying capacity (power jumper contacts) |
10 A |
Connection data
| Connection technology: communication/fieldbus |
CANopen: 1 x Male connector; 5-pole |
| Connection technology: field supply |
6 x CAGE CLAMP® |
| Connection technology: system supply |
2 x CAGE CLAMP® |
| Connection technology: device configuration |
1 x Male connector; 4-pole |
| Connection type (1) |
System/field supply |
| Solid conductor |
0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor |
0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length |
8 … 9 mm / 0.31 … 0.35 inch |
Physical data
| Width |
50.5 mm / 1.988 inch |
| Height |
100 mm / 3.937 inch |
| Depth |
71.1 mm / 2.799 inch |
| Depth from upper edge of DIN-rail |
63.9 mm / 2.516 inch |
Mechanical data
| Mounting type |
DIN-35 rail |
Material data
| Color |
light gray |
| Housing material |
Polycarbonate; polyamide 6.6 |
| Fire load |
3.014 MJ |
| Weight |
184 g |
| Conformity marking |
CE |
Environmental requirements
| Surrounding air temperature (operation) |
0 … 55 °C |
| Surrounding air temperature (storage) |
-40 … 85 °C |
| Protection type |
IP20 |
| Pollution degree (5) |
2 per IEC 61131-2 |
| Operating altitude |
0 … 2000 m |
| Mounting position |
horizontal (standing/lying); vertical |
| Relative humidity (without condensation) |
95 % |
| Vibration resistance |
4g per IEC 60068-2-6 |
| Shock resistance |
15g per IEC 60068-2-27 |
| EMC immunity to interference |
per EN 61000-6-2, marine applications |
| EMC emission of interference |
per EN 61000-6-4, marine applications |
| Exposure to pollutants |
Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible pollutant concentration H2S at a relative humidity < 75% |
10 ppm |
| Permissible pollutant concentration SO 2 at a relative humidity < 75% |
25 ppm |
Commercial data
| Product Group |
15 (Remote I/O) |
| Packaging type |
box |
| Country of origin |
DE |
| GTIN |
4045454526900 |
| Customs tariff number |
8517620090 |
