Schneider Electric Servo Motor SH30701P02A2000 for PacDrive 3 Drives Lexium 52

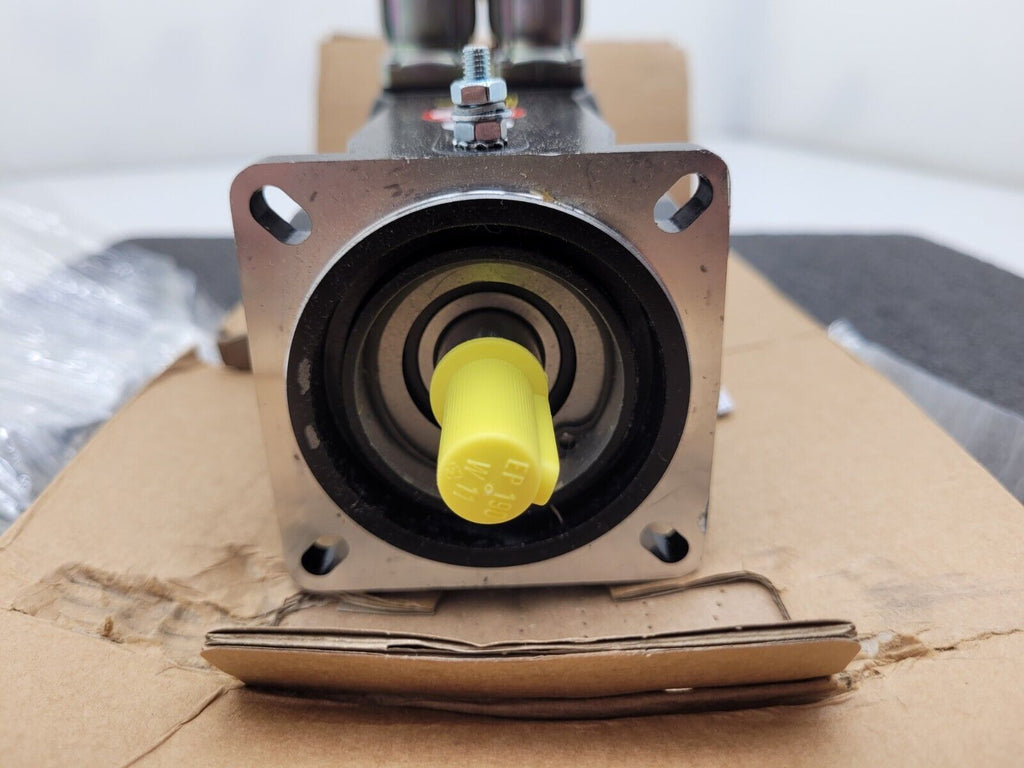

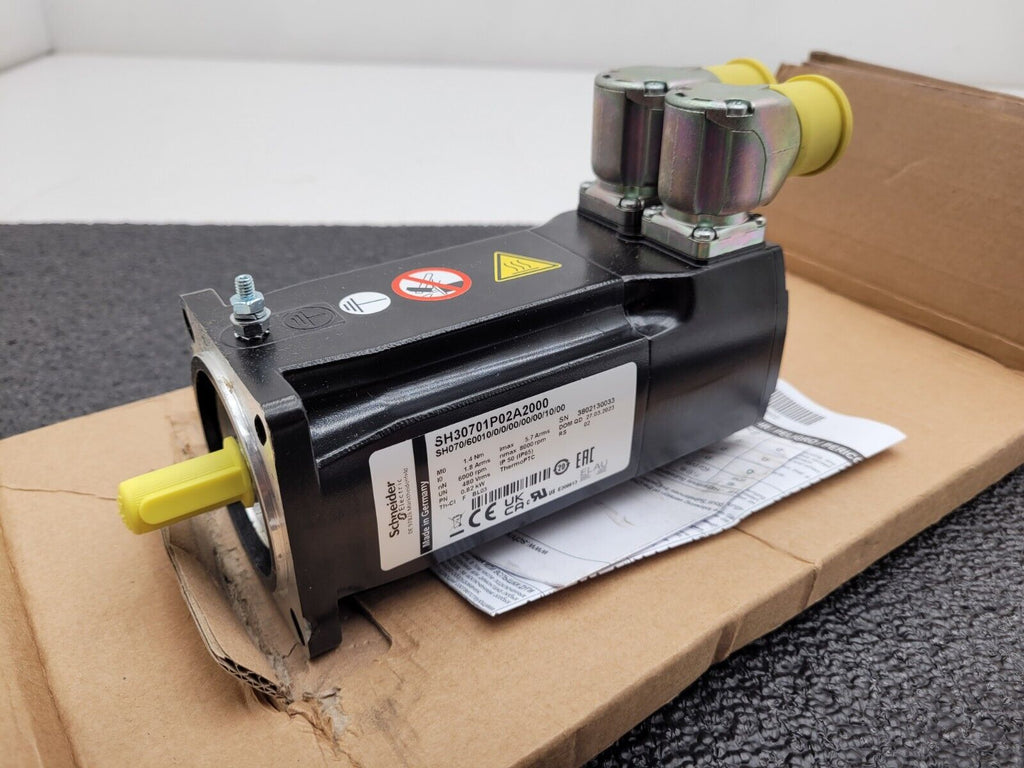

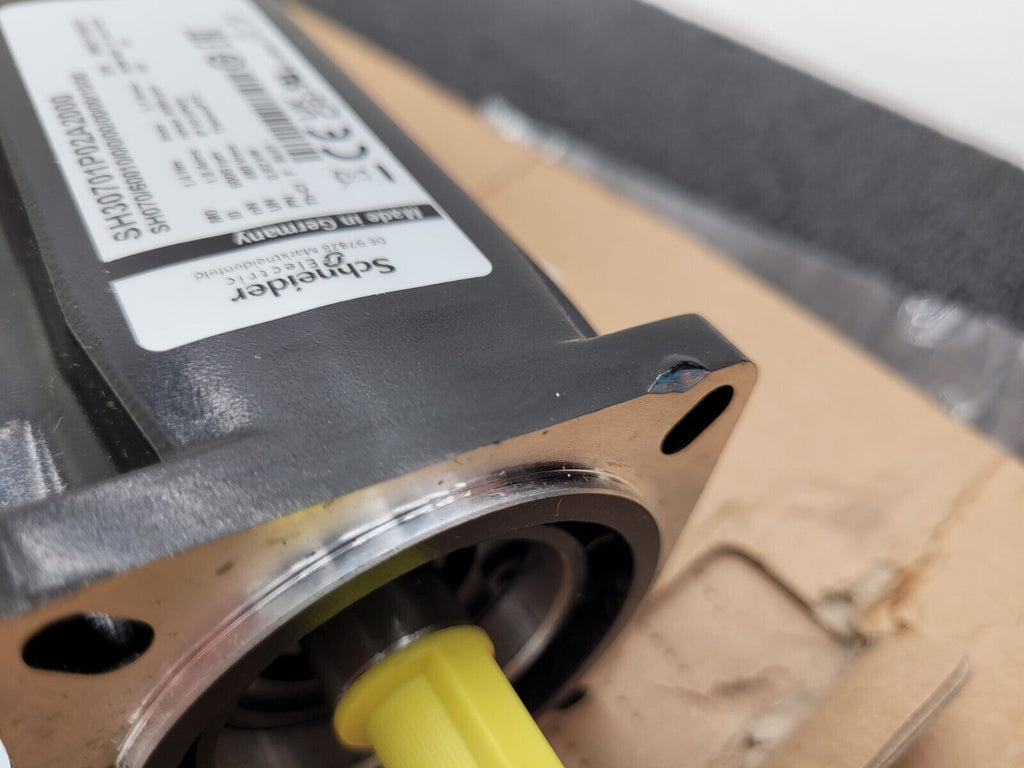

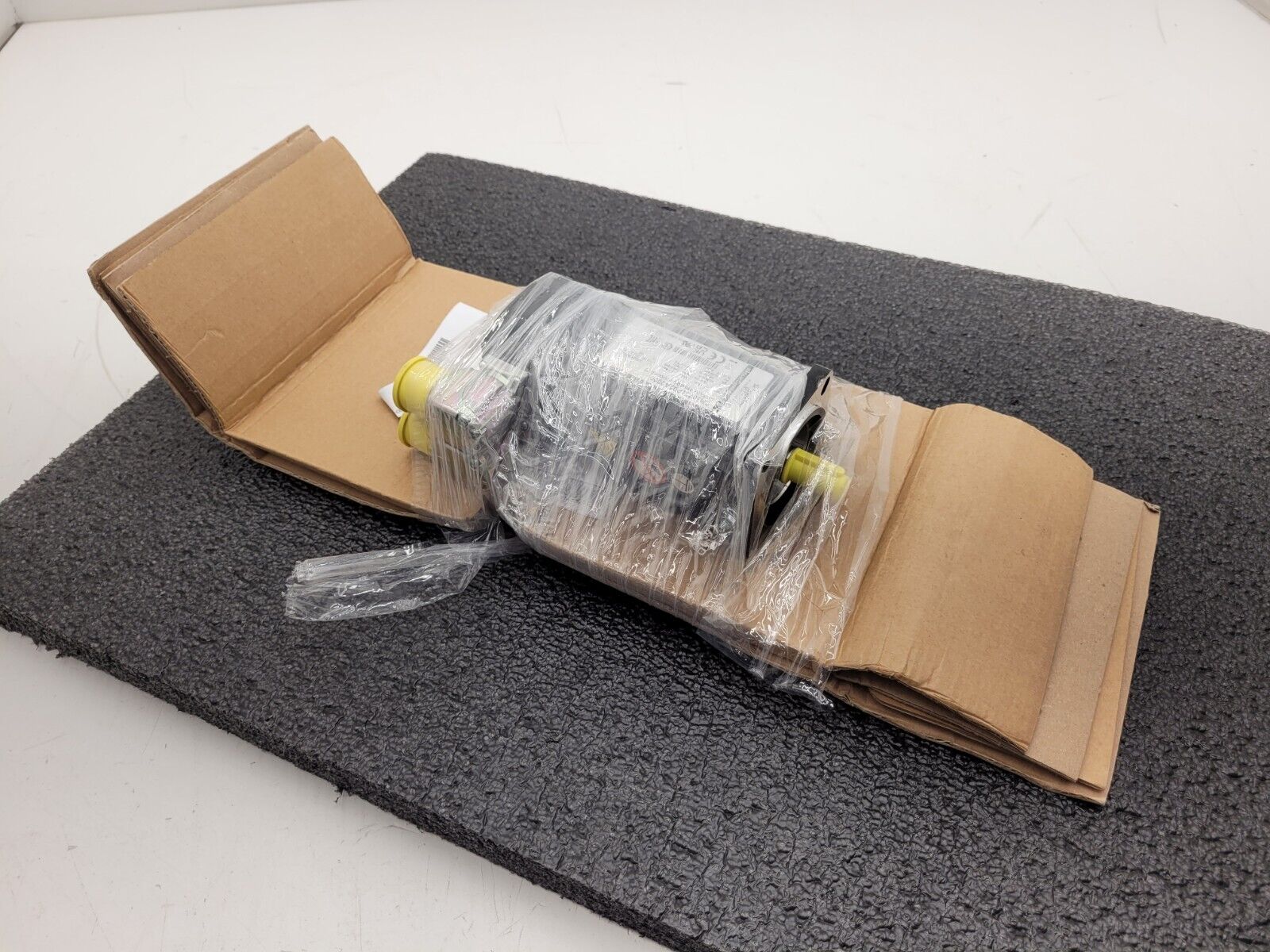

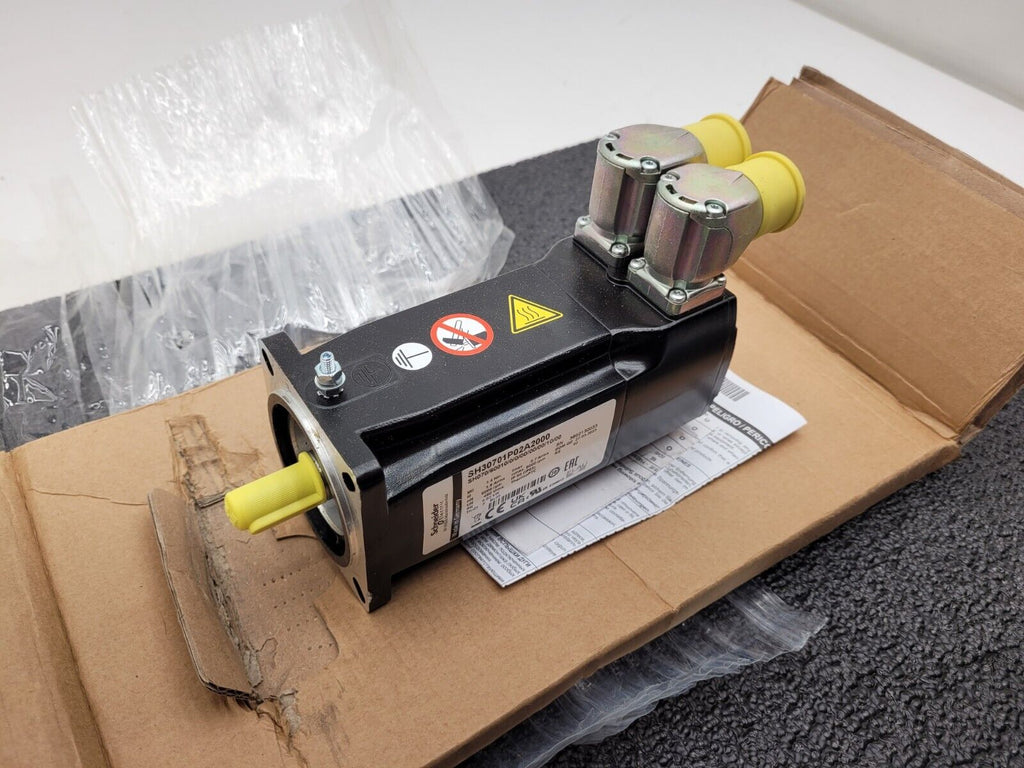

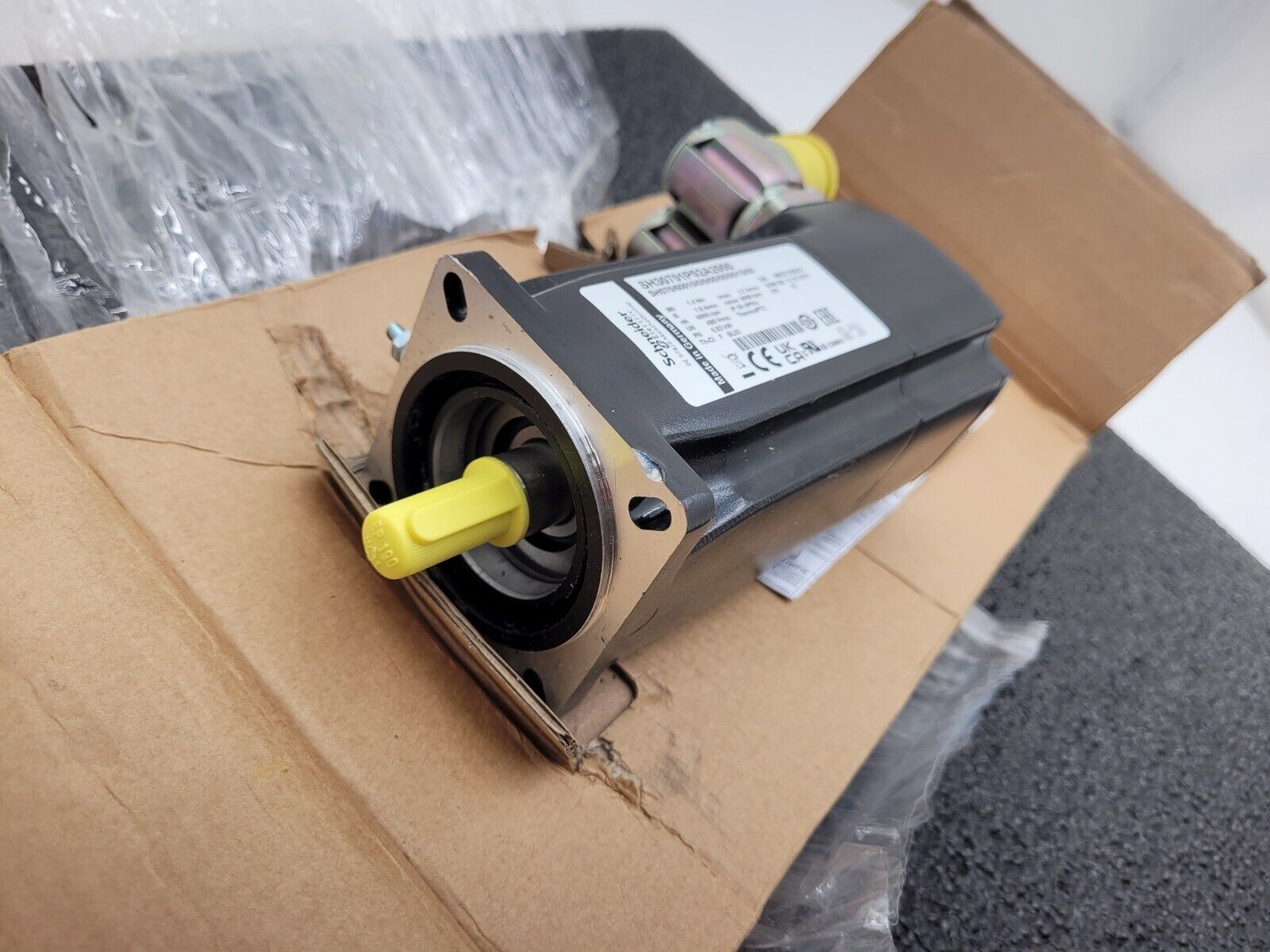

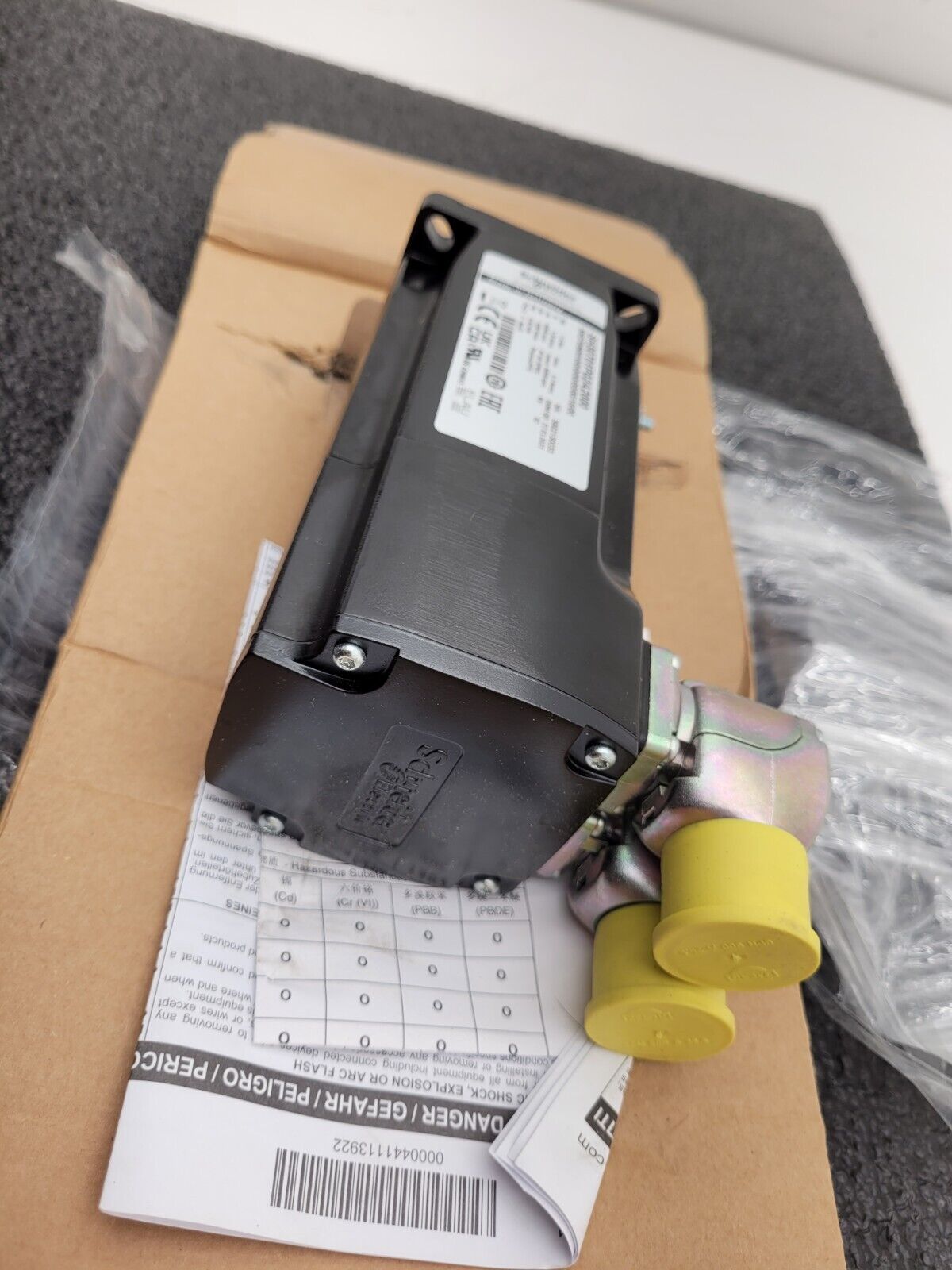

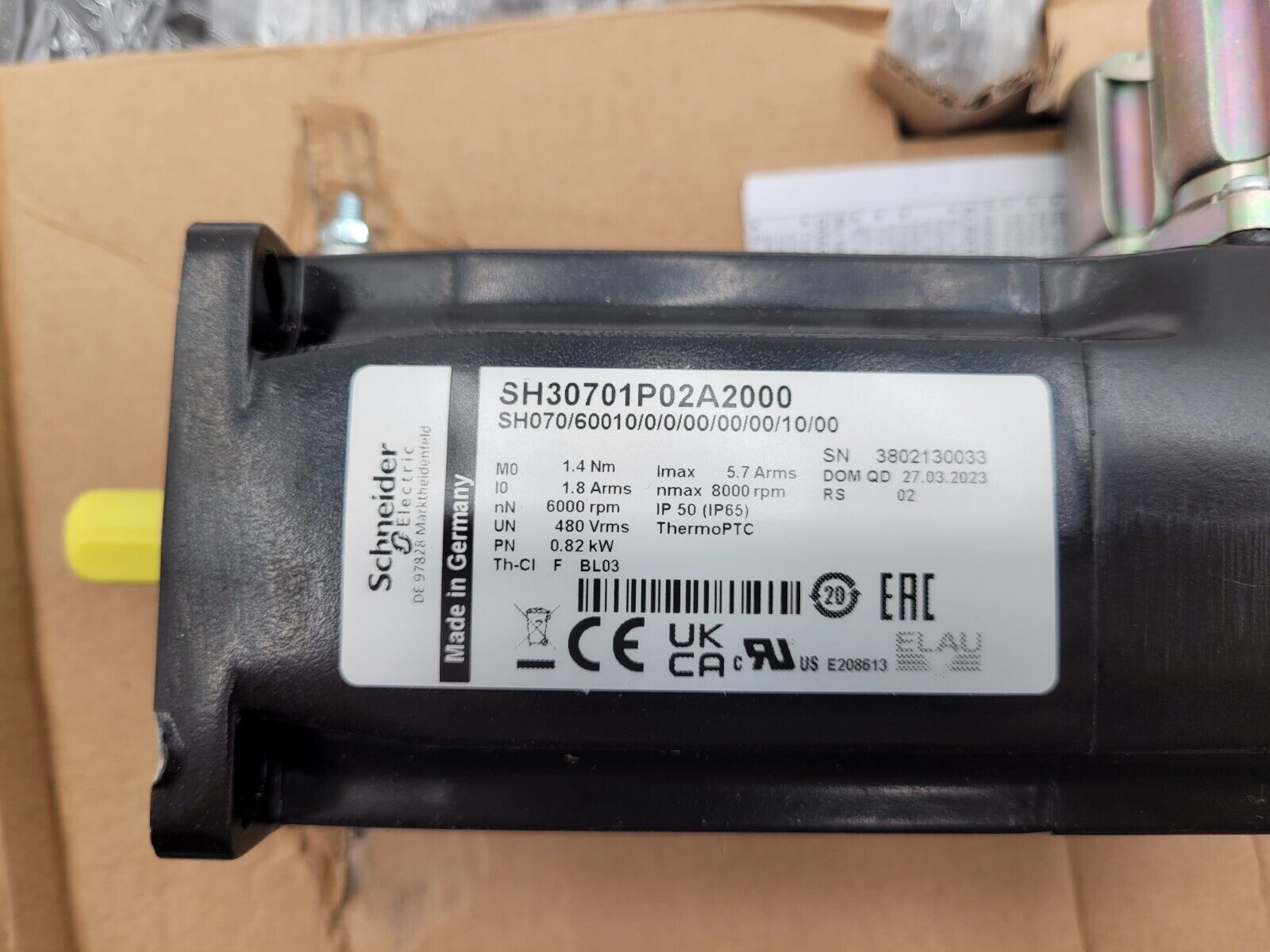

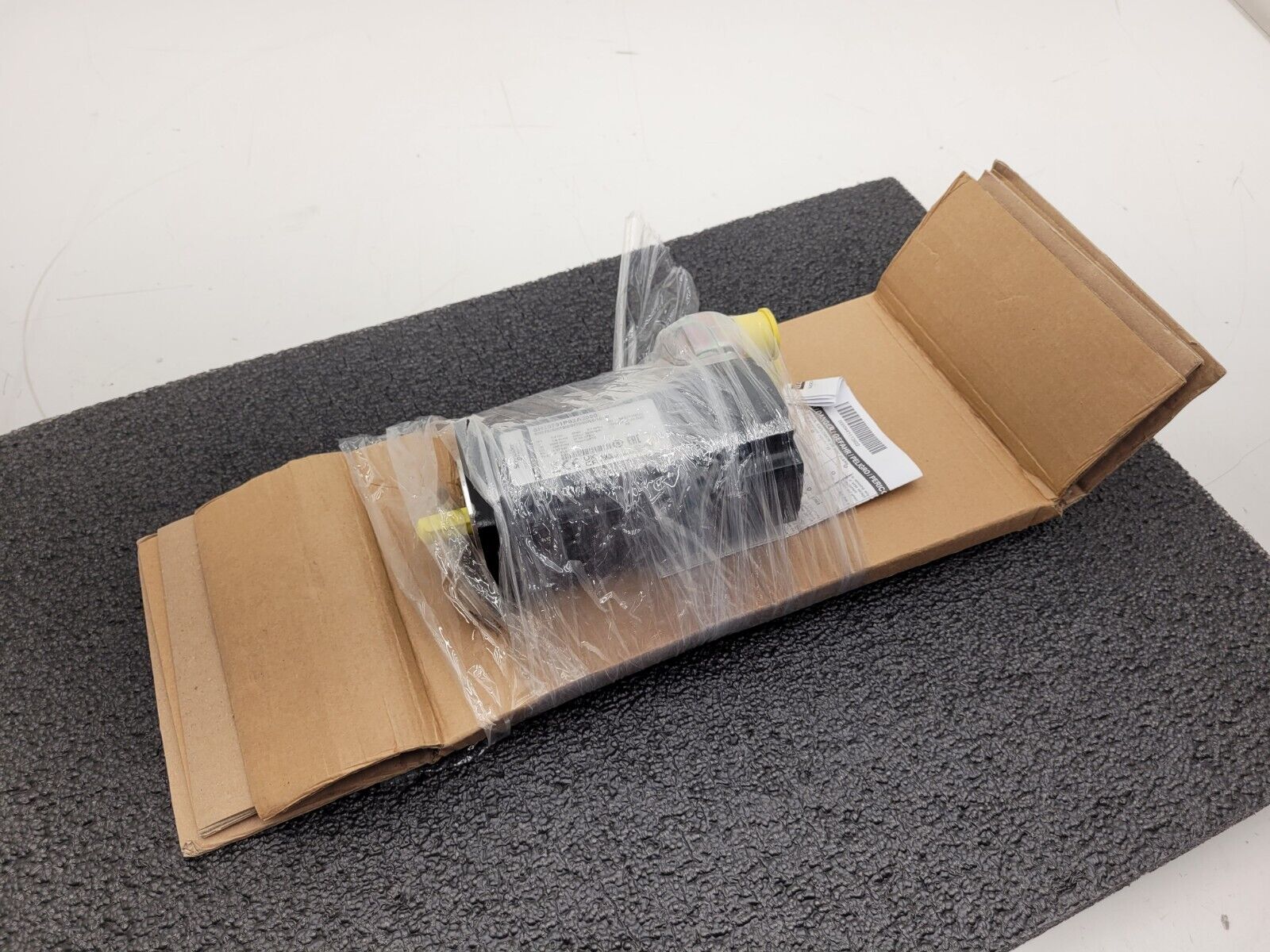

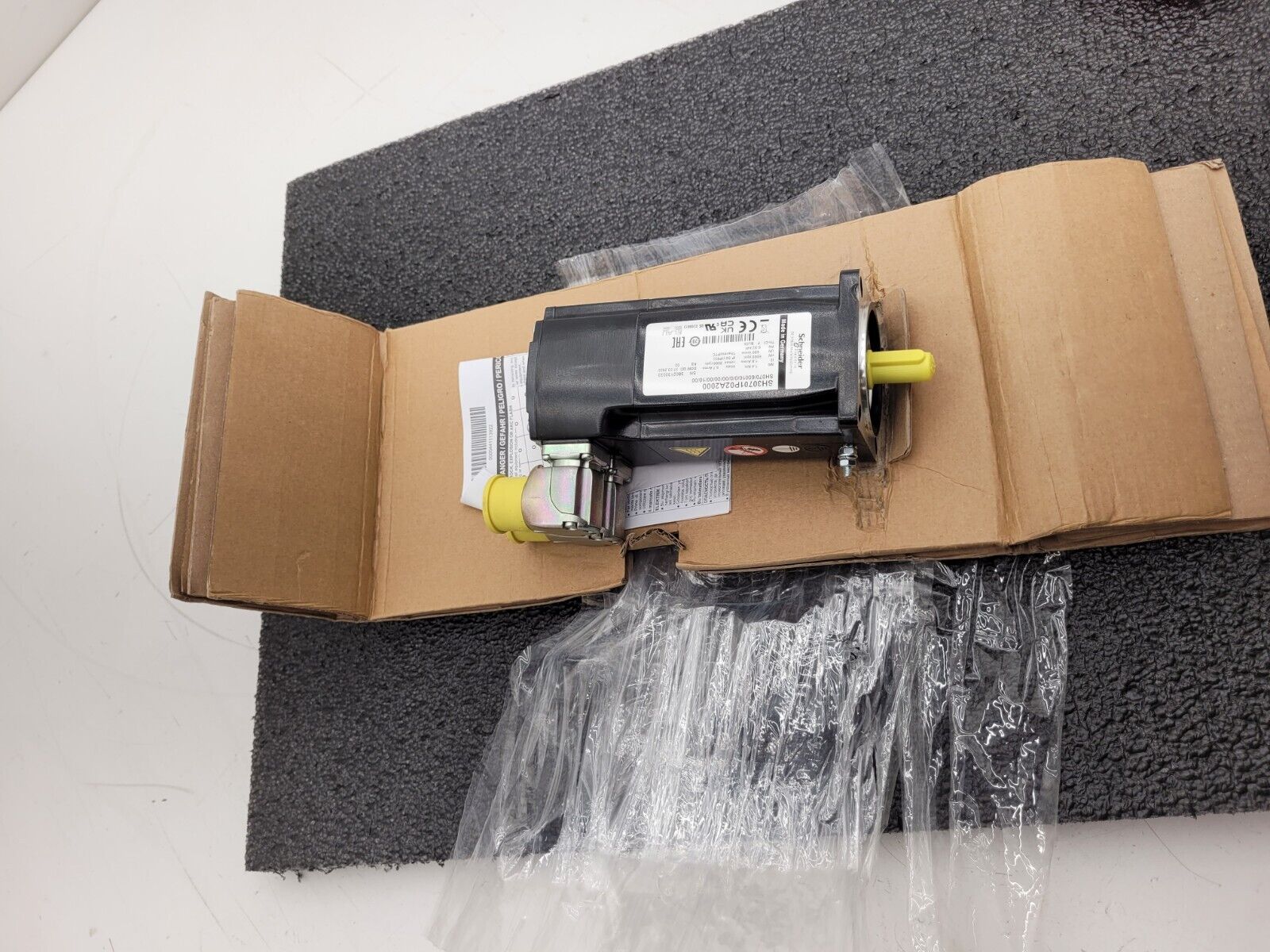

Comes as pictured, was cut out of plastic to photo, has one dent on mounting flange, mounting surface is still perfectly flat.
| Range Compatibility | PacDrive 3 |
|---|---|
| Product or Component Type | Servo motor |
| Device short name | SH3.....P |
| Maximum mechanical speed | 8000 rpm |
|---|---|
| [Us] rated supply voltage | 115...480 V |
| Phase | Three phase |
| Continuous stall current | 1.8 A |
| Continuous stall torque | 11.06 lbf.in (1.25 N.m) 115...480 V three phase |
| Continuous power | 690 W |
| Peak stall torque | 30.98 lbf.in (3.5 N.m) 115...480 V three phase |
| Nominal output power | 220 W 115 V single phase 440 W 230 V single phase 820 W 400 V three phase 950 W 480 V three phase |
| Nominal torque | 12.39 lbf.in (1.4 N.m) 115 V single phase 12.39 lbf.in (1.4 N.m) 230 V single phase 9.74 lbf.in (1.1 N.m) 400 V three phase 9.74 lbf.in (1.1 N.m) 480 V three phase |
| Nominal speed | 1500 rpm 115 V single phase 3000 rpm 230 V single phase 6000 rpm 400 V three phase 7200 rpm 480 V three phase |
| Maximum current Irms | 5.7 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 0.43 in (11 mm) |
| Shaft length | 0.91 in (23 mm) |
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5 IP65 motor: conforming to EN/IEC 60034-5 IP65 shaft bushing: conforming to EN/IEC 60034-5 |
| encoder type | Absolute multiturn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Motor flange size | 2.76 in (70 mm) |

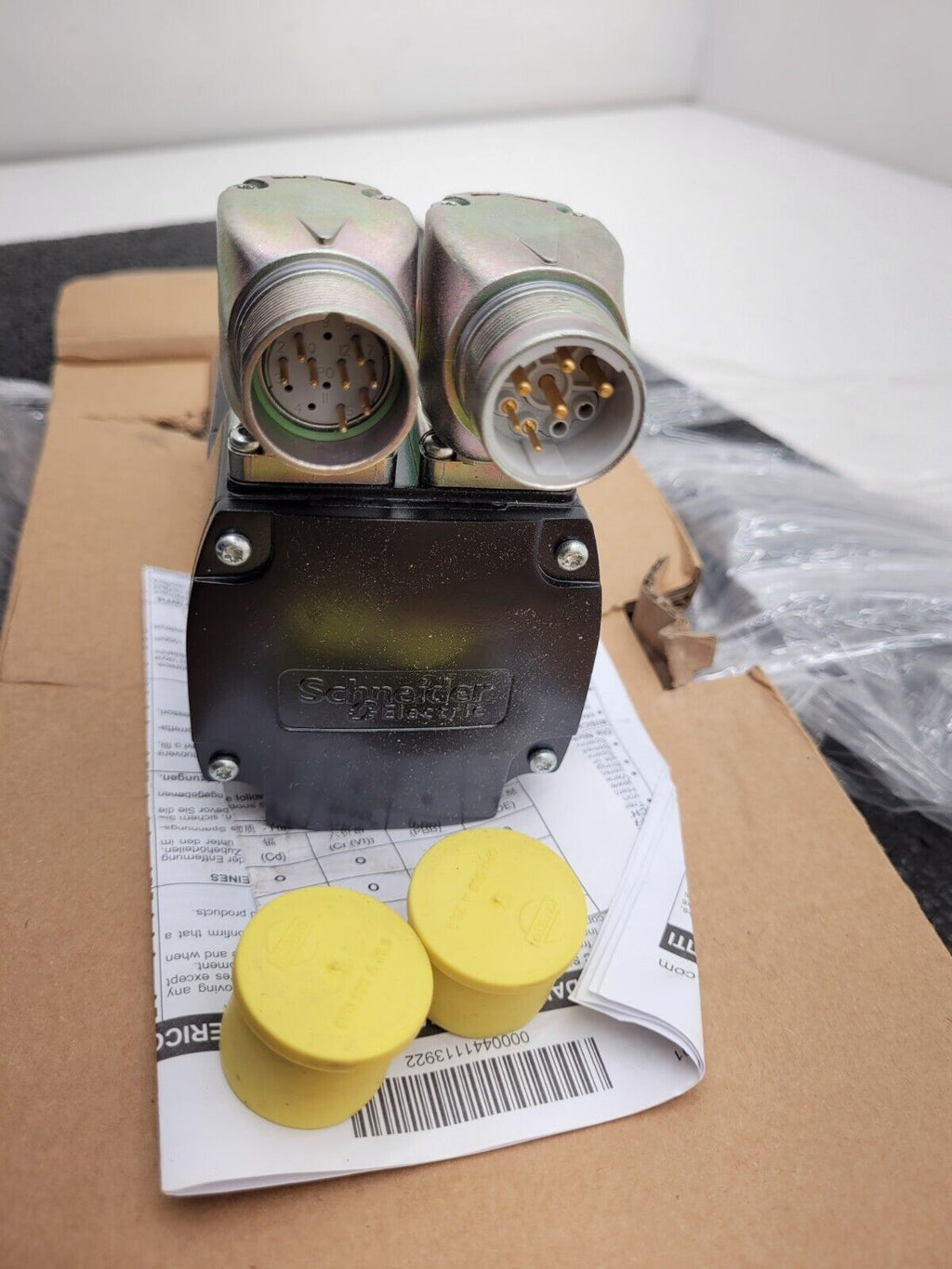

| Electrical Connection | Straight connector |
| Torque constant | 0.69 N.m/A 248 °F (120 °C) |
| Back emf constant | 46 V/krpm 68 °F (20 °C) |
| Number of motor poles | 3 |
| Rotor inertia | 0.25 kg.cm² |
| Stator resistance | 10.4 Ohm |
| Stator inductance | 60.25 mH |
| Maximum radial force Fr | 660 N 1000 rpm 520 N 2000 rpm 460 N 3000 rpm 410 N 4000 rpm 380 N 5000 rpm 360 N 6000 rpm |
| Maximum axial force Fa | 80 N |
| Type of cooling | Natural convection |
| Length | 6.06 in (154 mm) |
| Centring collar diameter | 2.36 in (60 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.22 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.23 in (82 mm) |
| Net Weight | 4.63 lb(US) (2.1 kg) |
