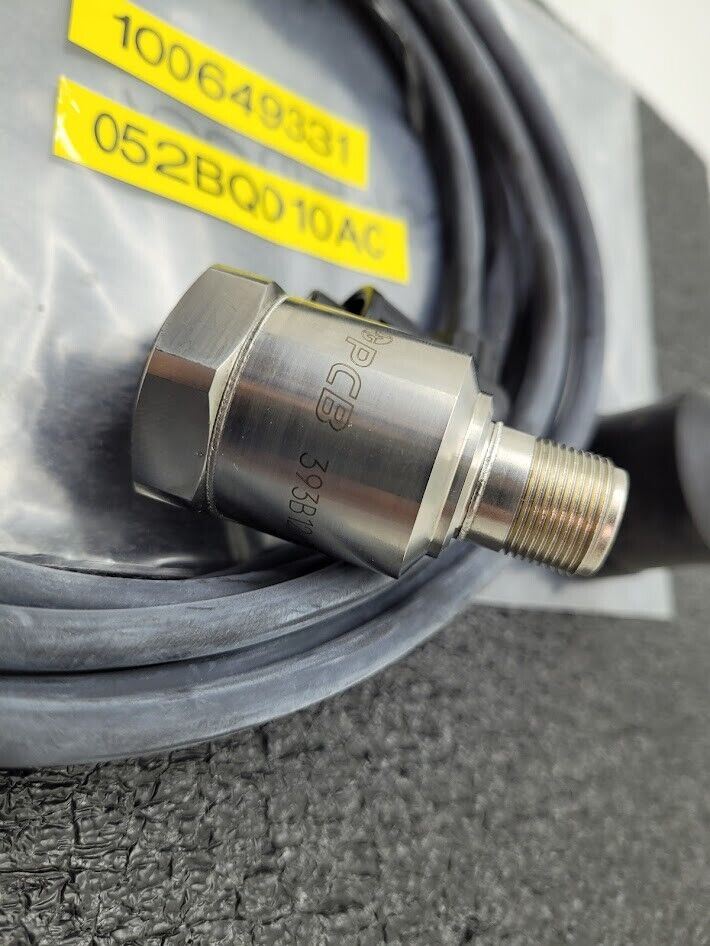

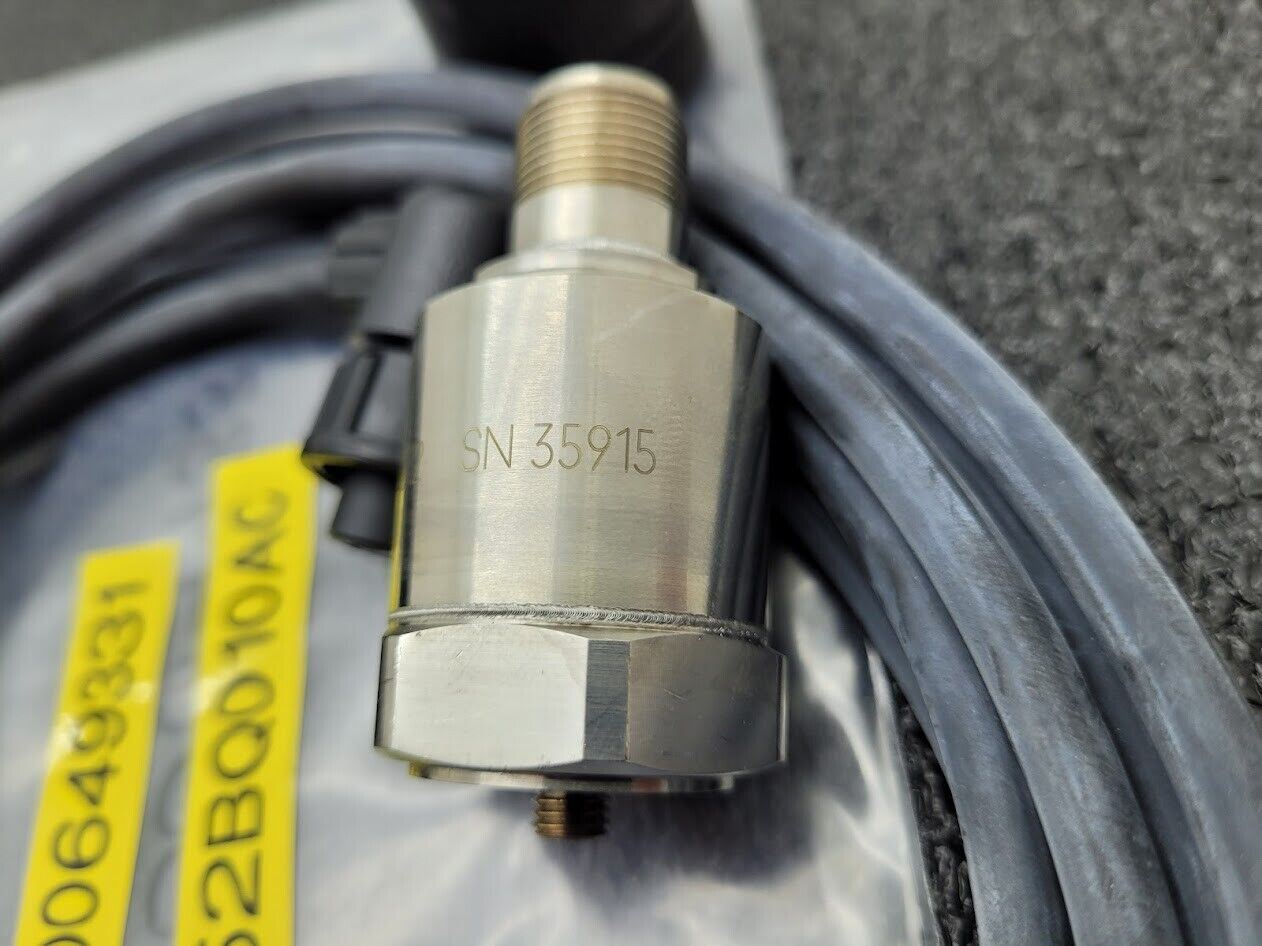

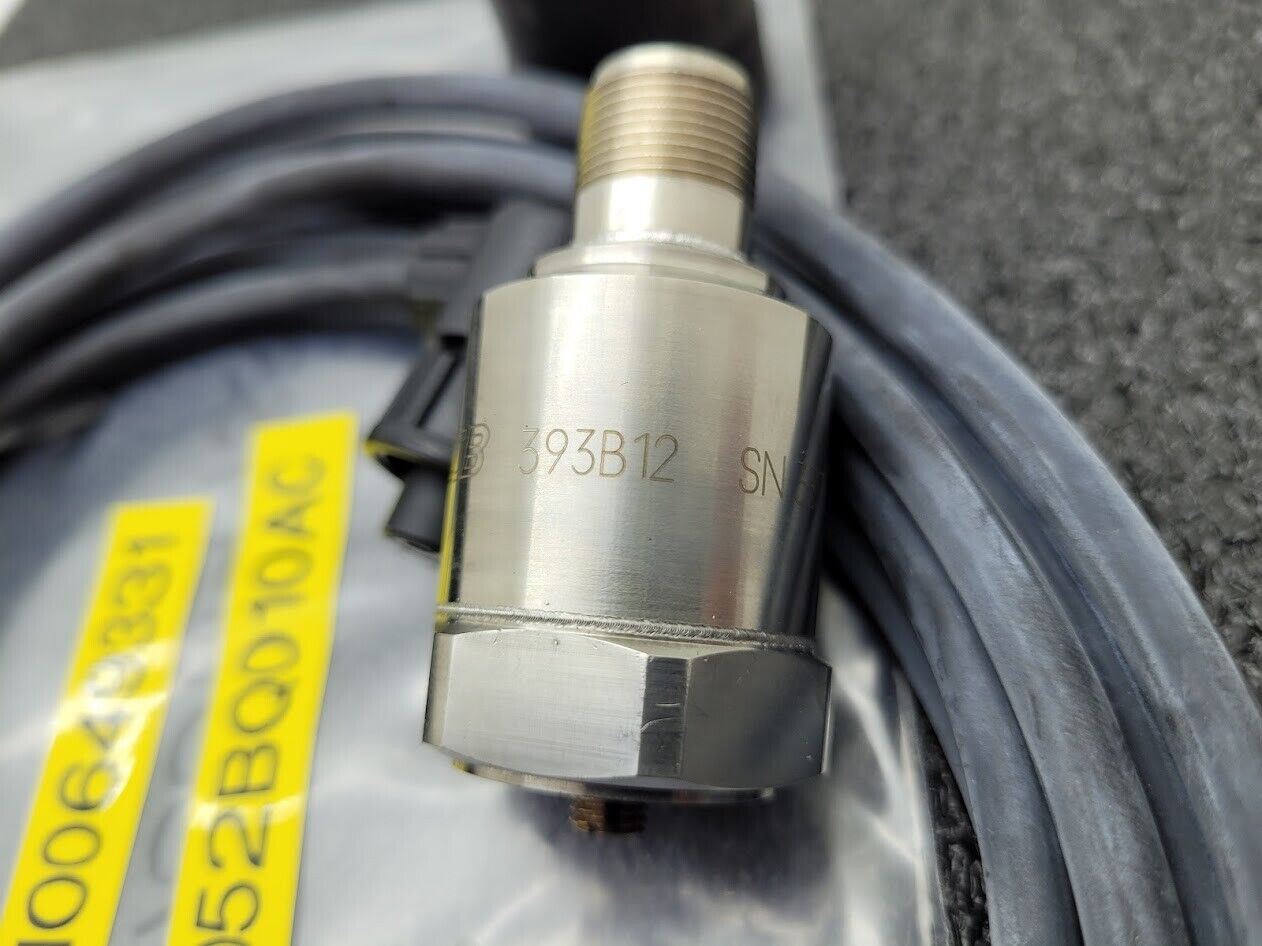

PCB Piezotronics Load Cell Force Sensor ICP 393B12 Accelerometer Seismic w/Cable
$499.99
PCB Piezotronics Load Cell Force Sensor ICP 393B12 Accelerometer Seismic w/Cable
Unit may be export controlled according to ebay which can cause problems/delays in shipping outside of the United States.
Excellent used condition, pulled from working surplus equipment.

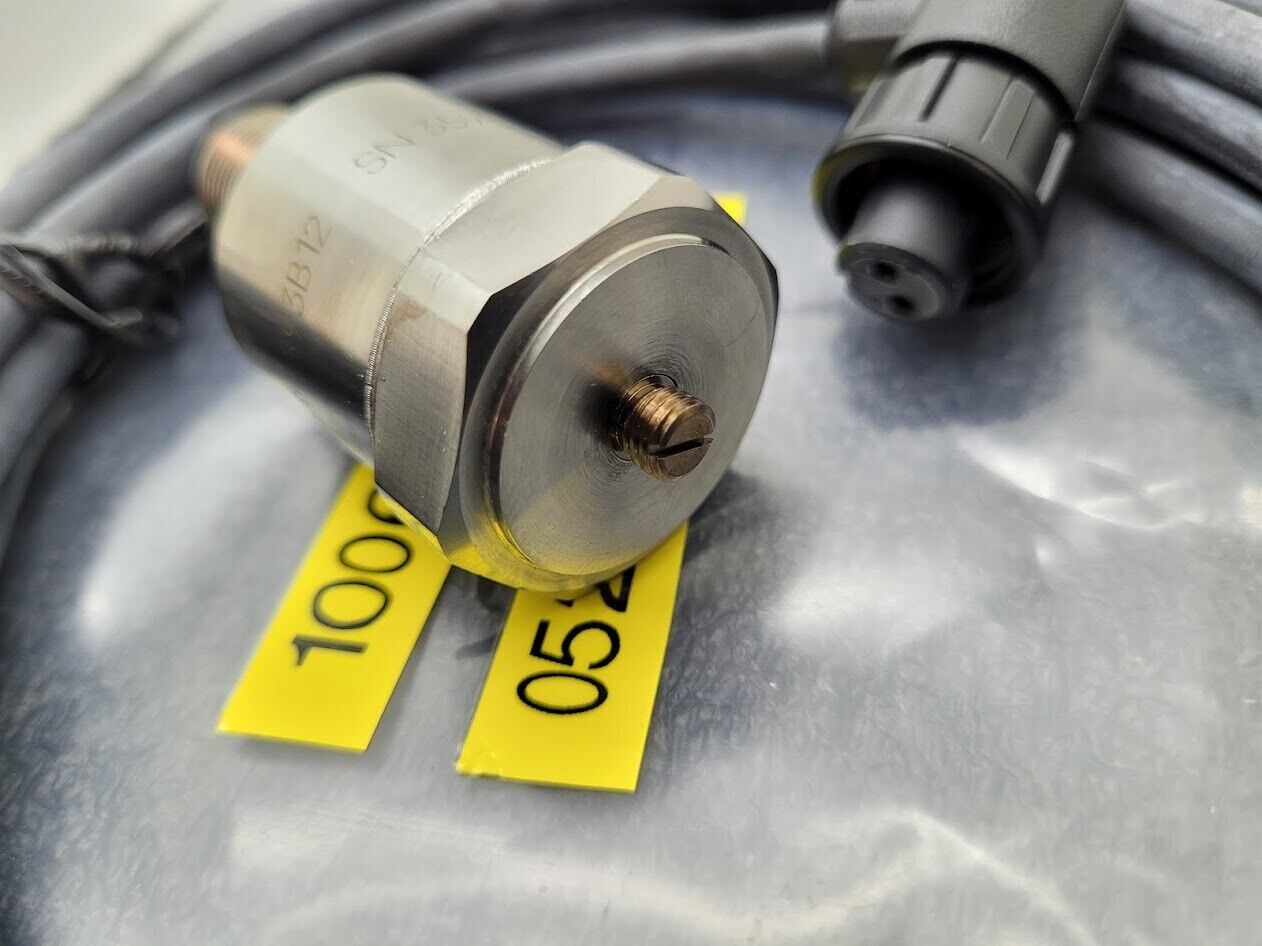

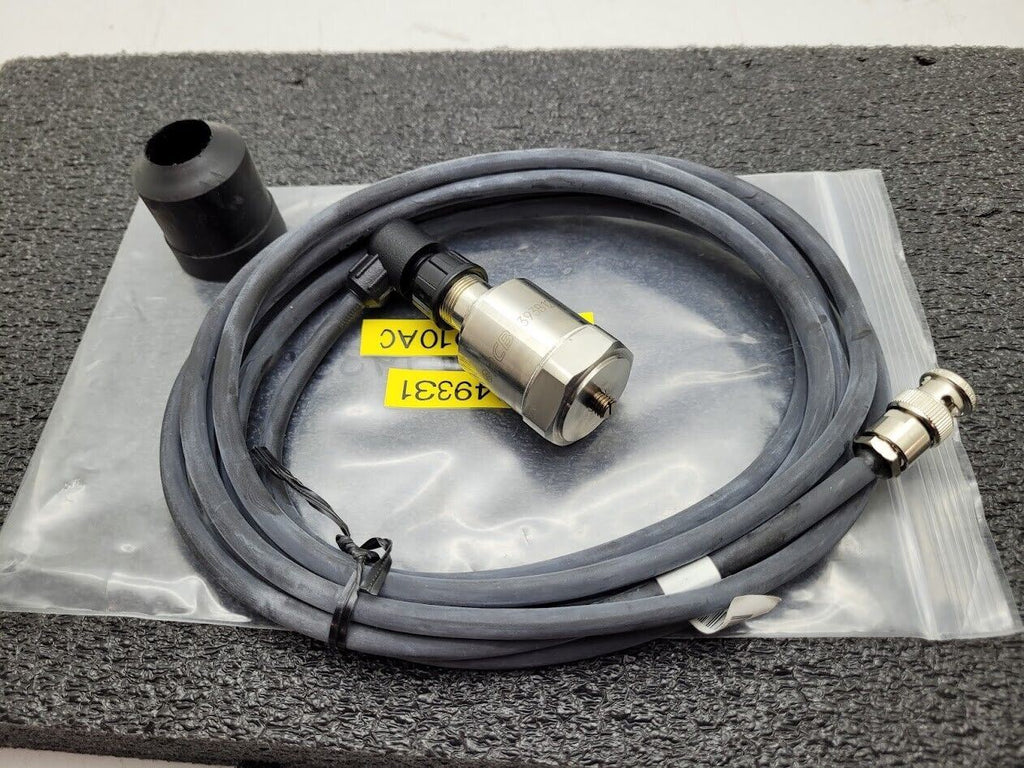

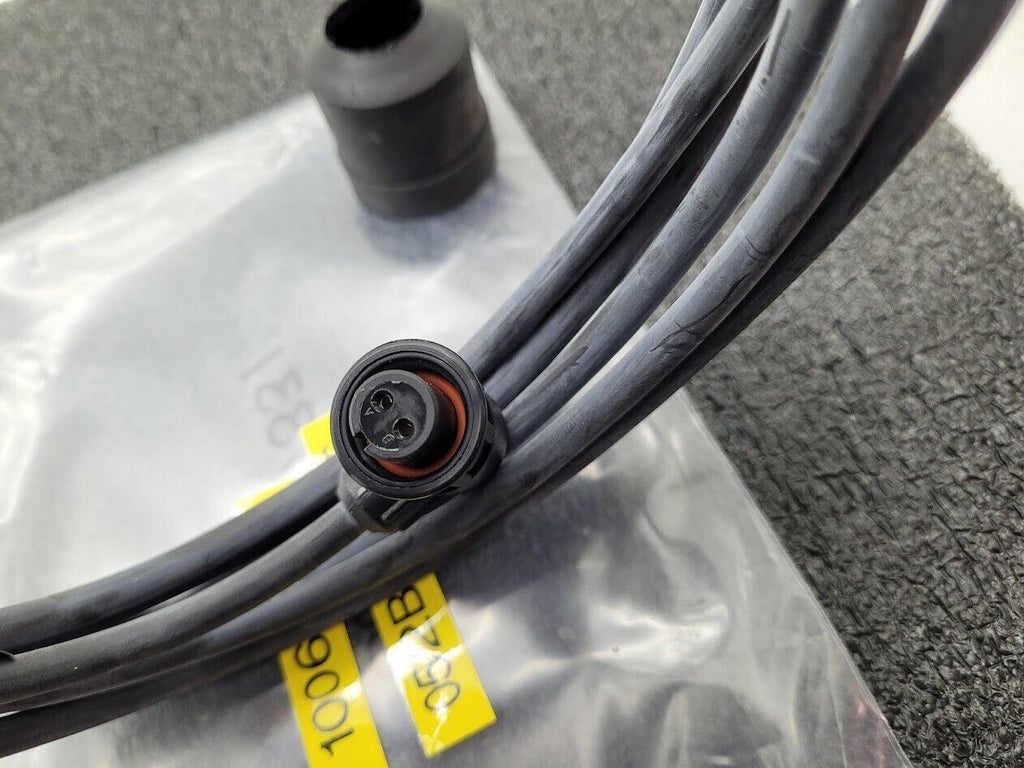

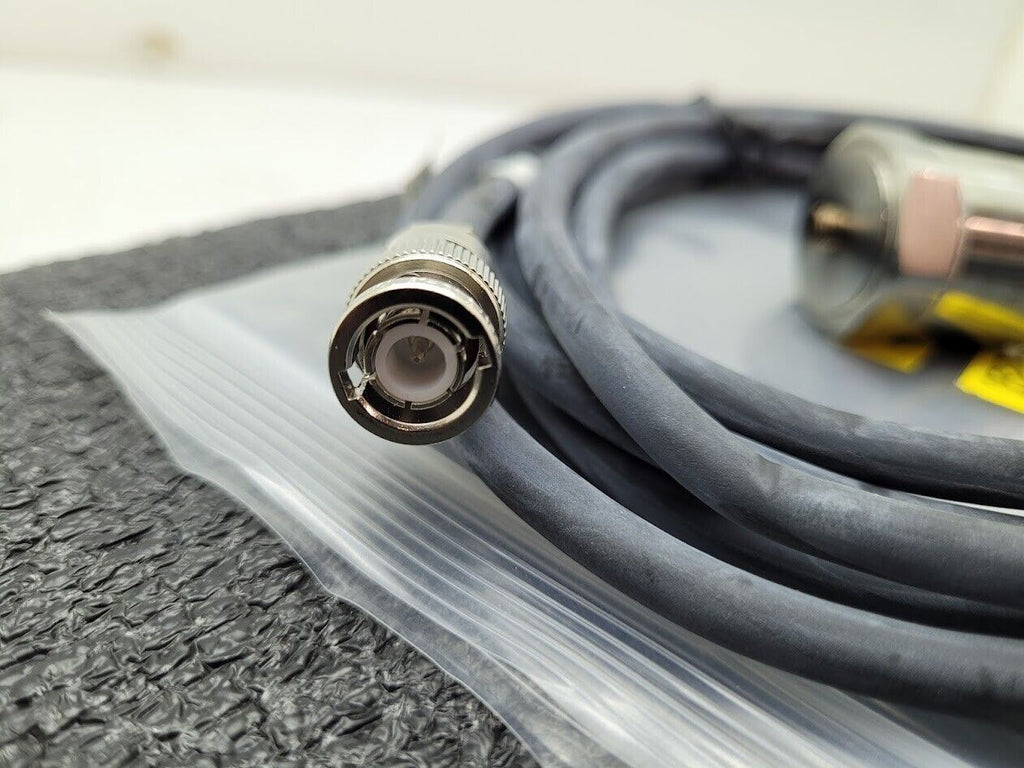

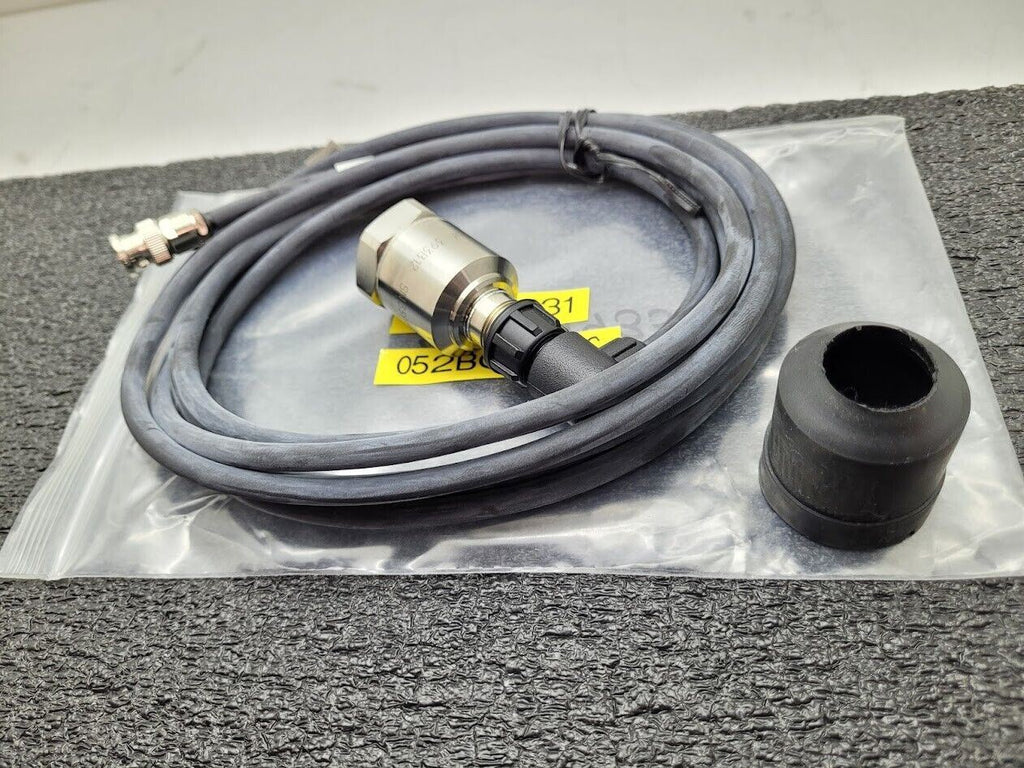

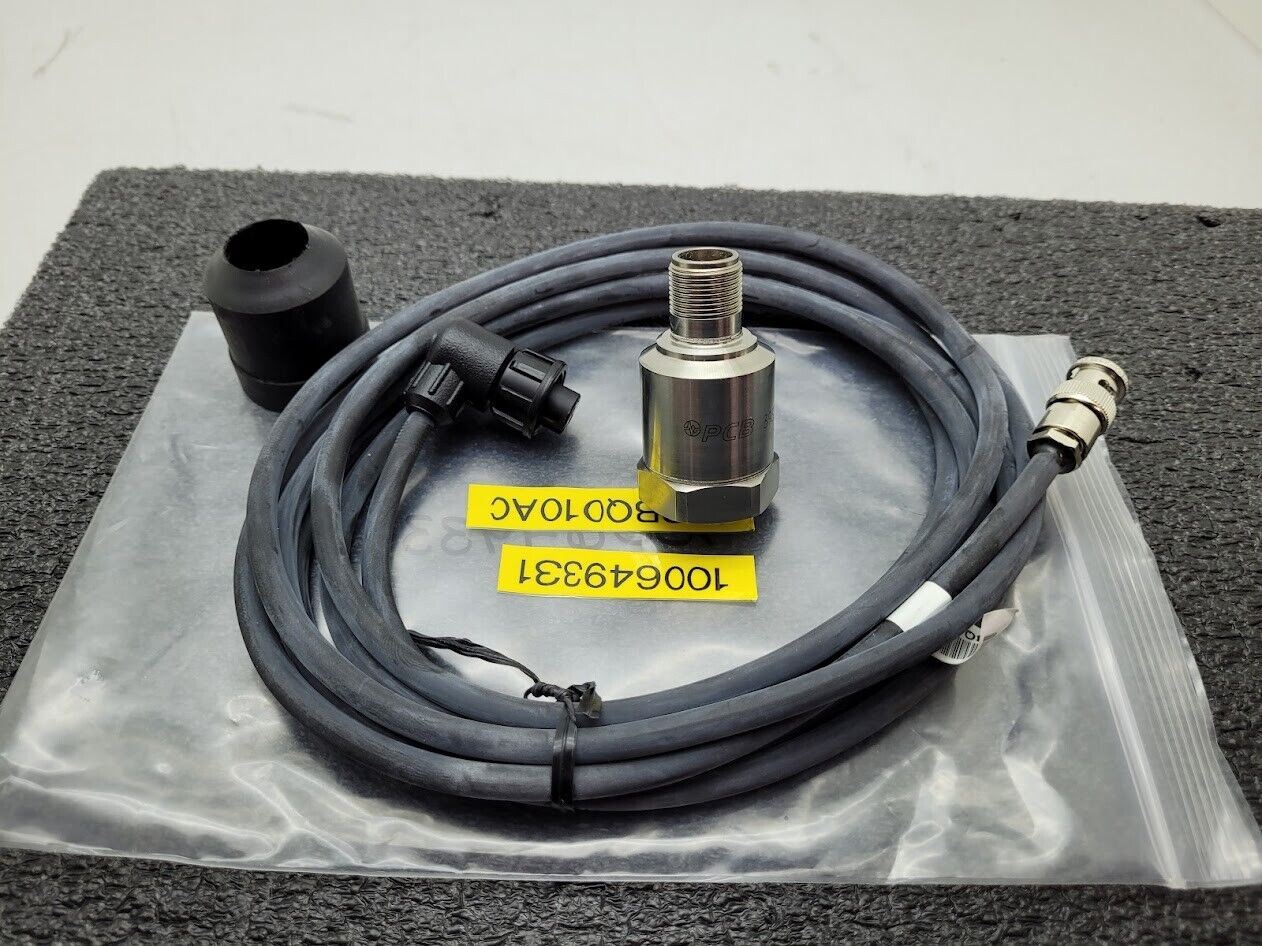

Unit comes with the pictured new cable, 052BQ010AV BNC to two pin
Manufactures Page: pcb.com/products?model=393b12
- Sensitivity: (±10%)10000 mV/g ( 1019.4 mV/(m/s²))
- Broadband Resolution: 0.000008 g rms ( 0.00008 m/s² rms)
- Measurement Range: 0.5 g pk ( 4.9 m/s² pk)
- Frequency Range: (±5%)0.15 to 1000 Hz
- Electrical Connector: 2-Pin MIL-C-5015
- Weight: 7.4 oz ( 210 gm)
| PERFORMANCE | |||
| Sensitivity (±10 %) | 10000 mV/g | 1019.4 mV/(m/s²) | |
| Measurement Range | 0.5 g pk | 4.9 m/s² pk | |
| Frequency Range (±5 %) | 0.15 to 1000 Hz | 0.15 to 1000 Hz | |
| Frequency Range (±10 %) | 0.10 to 2000 Hz | 0.10 to 2000 Hz | |
| Frequency Range (±3 dB) | 0.05 to 4000 Hz | 0.05 to 4000 Hz | |
| Resonant Frequency | ≥10000 Hz | ≥10000 Hz | |
| Phase Response (±5 °) | 1 to 1000 Hz | 1 to 1000 Hz | |
| Broadband Resolution (1) | 0.000008 g rms | 0.00008 m/s² rms | [ 2] |
| Non-Linearity | ≤1 % | ≤1 % | [ 1] |
| Transverse Sensitivity | ≤7.0 % | ≤7.0 % | |
| ENVIRONMENTAL | |||
| Overload Limit (Shock) | ±5000 g pk | ±49050 m/s² pk | |
| Temperature Range | -50 to +180 °F | -45 to +82 °C | |
| Temperature Response | See Graph %/°F | See Graph %/°F | |
| Base Strain Sensitivity | ≤0.0005 g/µε | ≤0.005 (m/s²)/µε | [ 2] |
| ELECTRICAL | |||
| Excitation Voltage | 18 to 30 VDC | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
| Output Impedance | <1500 Ohm | <1500 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC | |
| Discharge Time Constant | ≥3.5 sec | ≥3.5 sec | |
| Settling Time | <60 sec | <60 sec | |
| Spectral Noise (1 Hz) | 1.30 µg/√Hz | 12.7 (µm/sec2)/√Hz | [ 2] |
| Spectral Noise (10 Hz) | 0.32 µg/√Hz | 3.1 (µm/sec2)/√Hz | [ 2] |
| Spectral Noise (100 Hz) | 0.13 µg/√Hz | 1.3 (µm/sec2)/√Hz | [ 2] |
| Spectral Noise (1 kHz) | 0.10 µg/√Hz | 1.0 (µm/sec2)/√Hz | [ 2] |
| Electrical Isolation (Case) | ≥100000000 Ohm | ≥100000000 Ohm | |
| PHYSICAL | |||
| Sensing Element | Ceramic | Ceramic | |
| Sensing Geometry | Shear | Shear | |
| Housing Material | Stainless Steel | Stainless Steel | |
| Sealing | Hermetic | Hermetic | |
| Size - Hex | 1 3/16 in | 30.2 mm | |
| Size - Height | 2 3/16 in | 55.6 mm | |
| Weight | 7.4 oz | 210 gm | [ 2] |

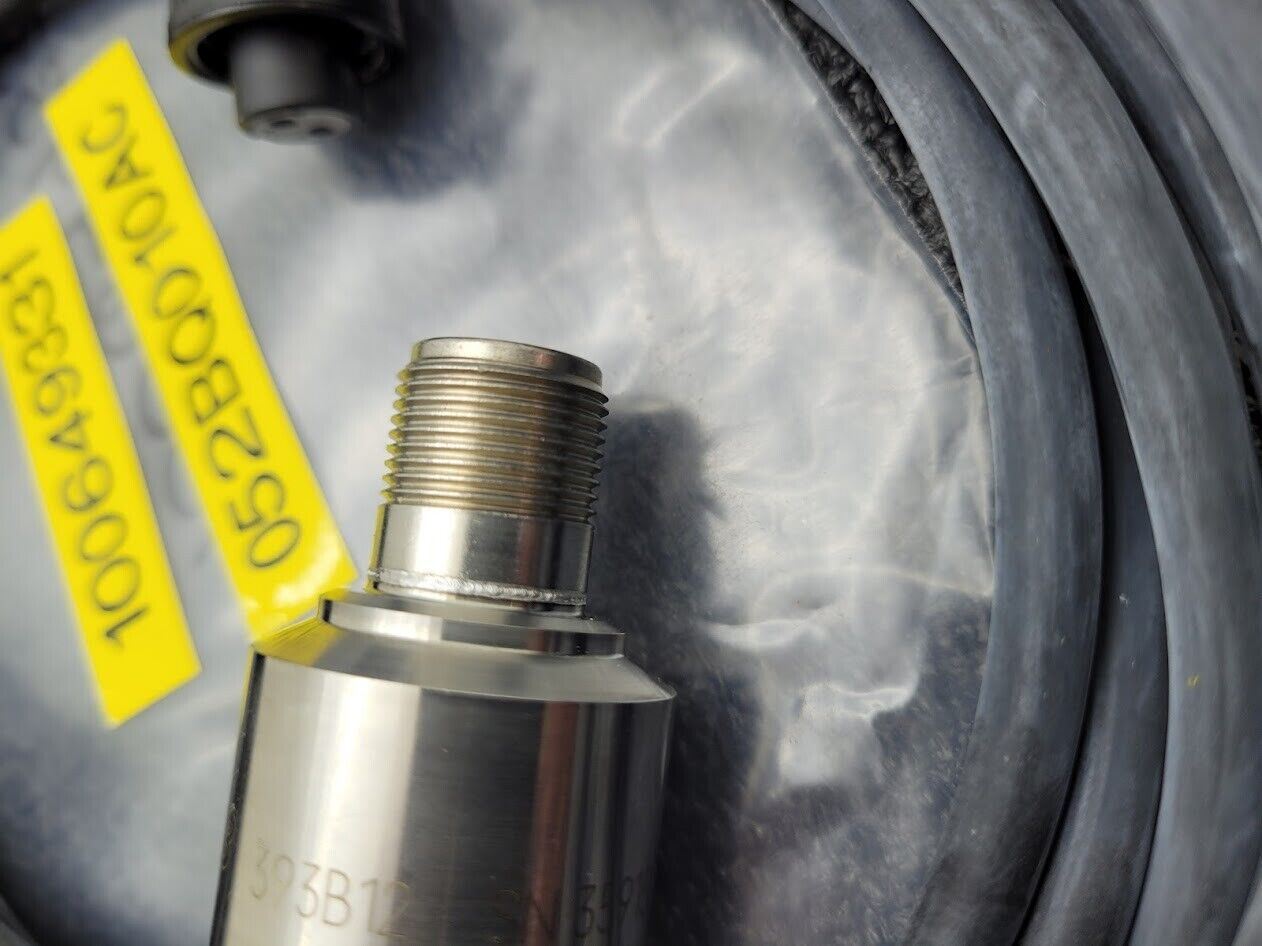

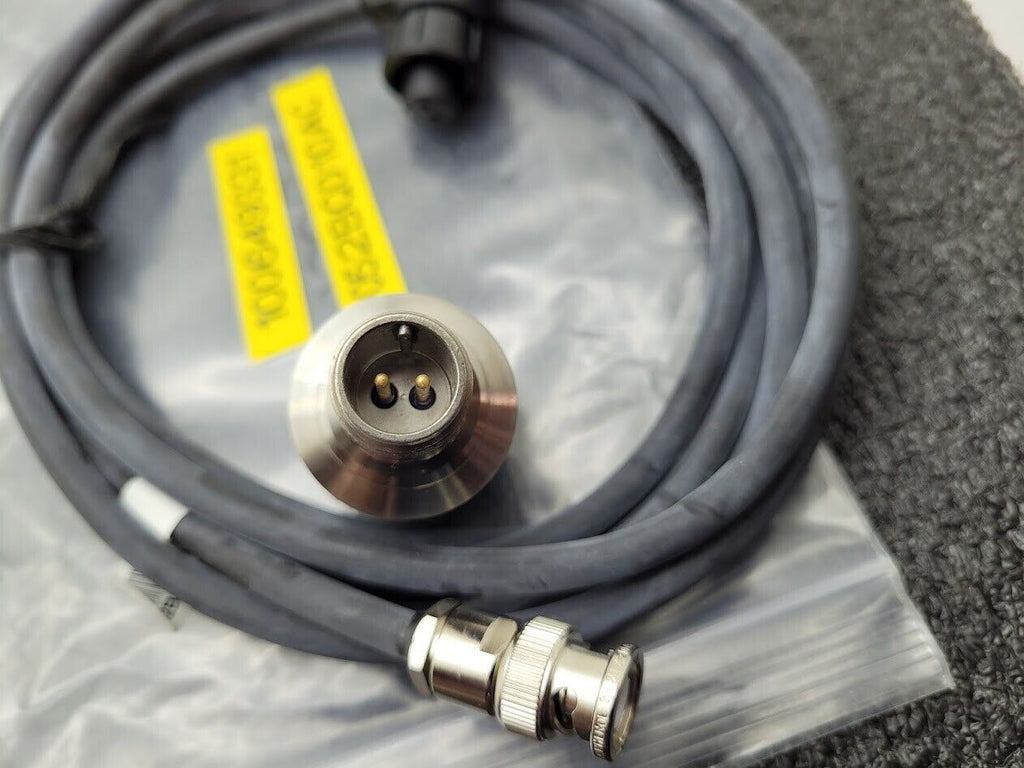

| Electrical Connector | 2-Pin MIL-C-5015 | 2-Pin MIL-C-5015 | |
| Electrical Connection Position | Top | Top | |
| Mounting Thread | 1/4-28 Female | 1/4-28 Female | |
| Mounting Torque | 2 to 5 ft-lb | 2.7 to 6.8 Nm | |
This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel free to contact us with any questions
Thank you for your interest and have a great day!
