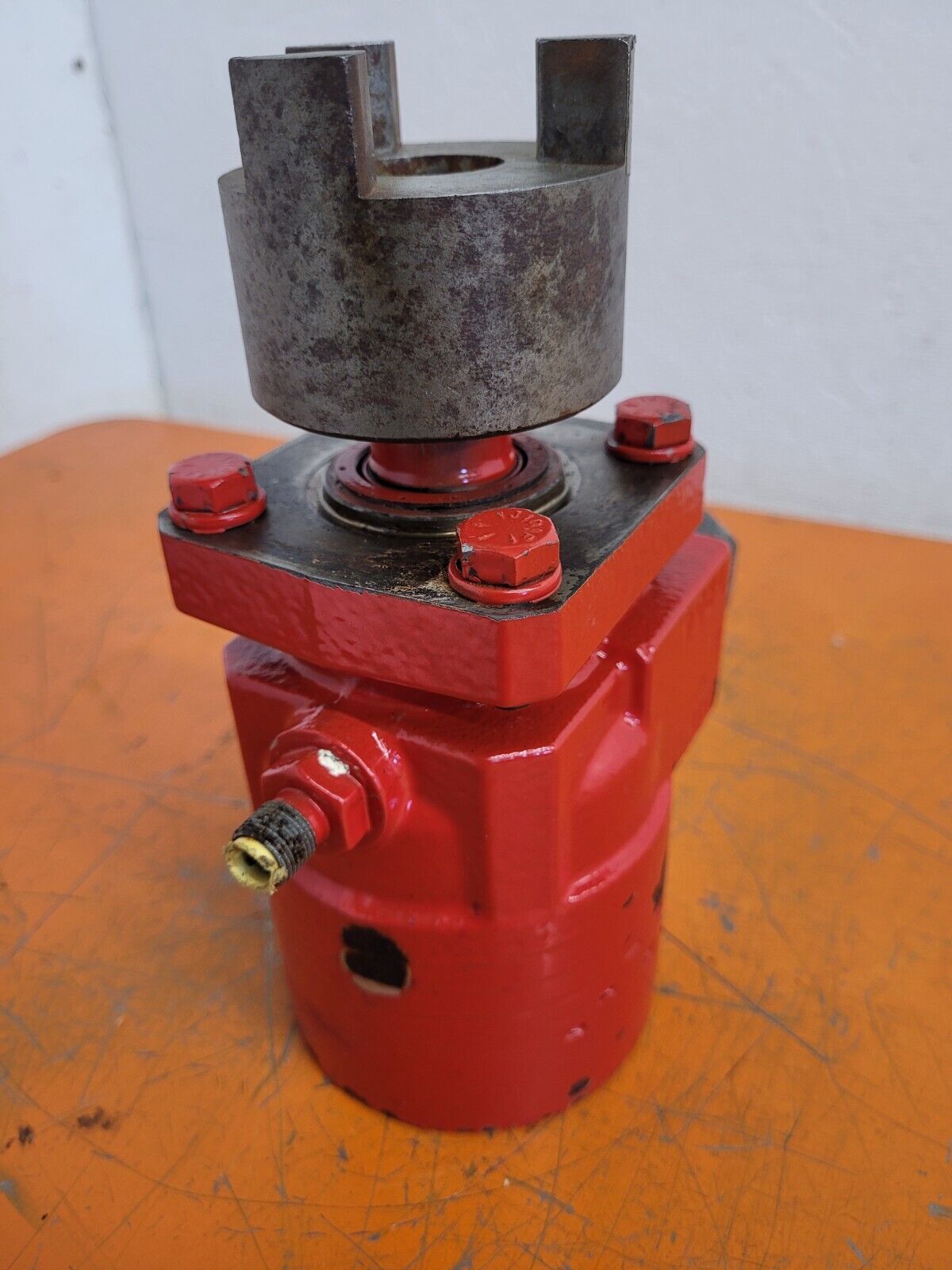

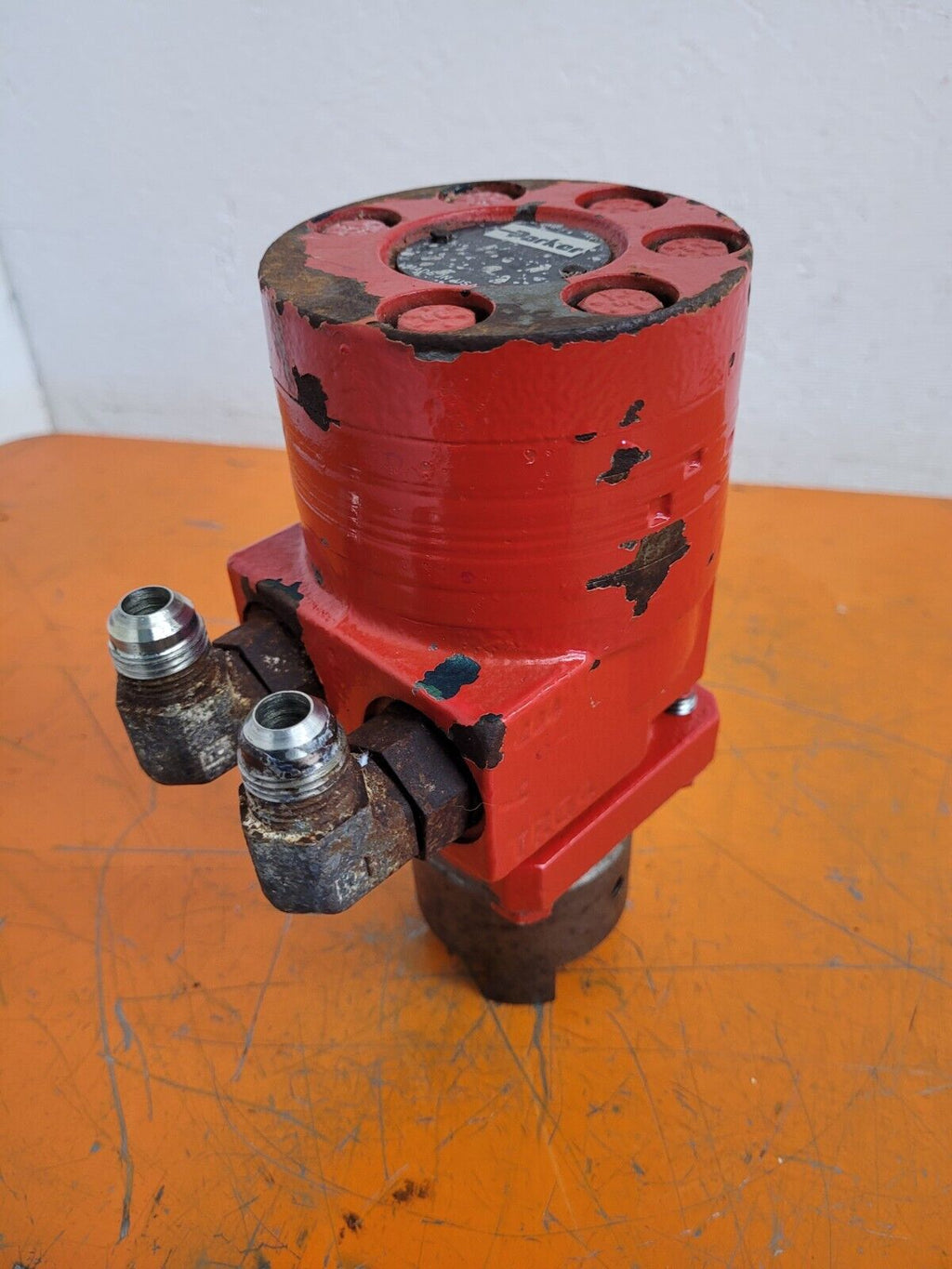

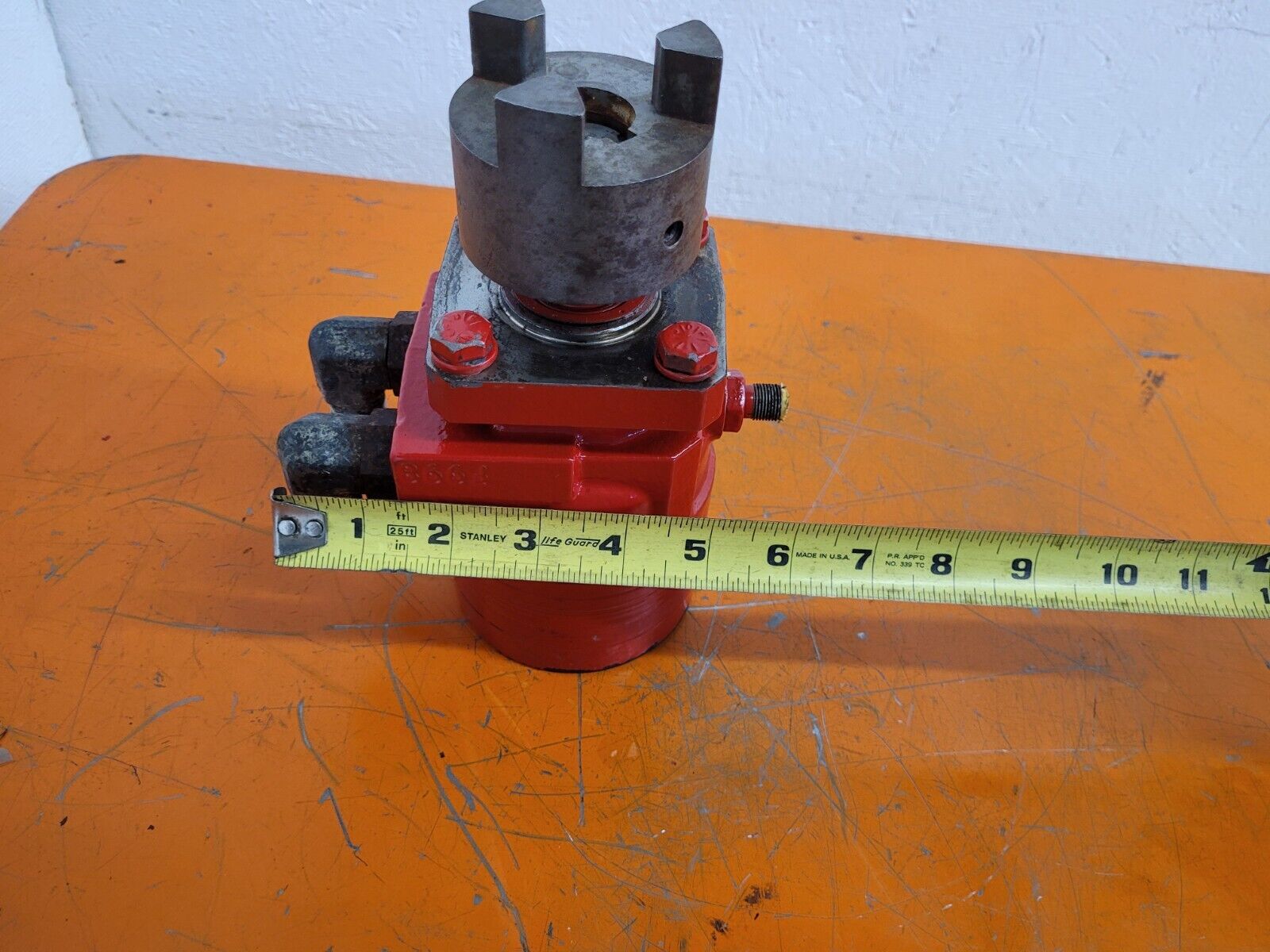

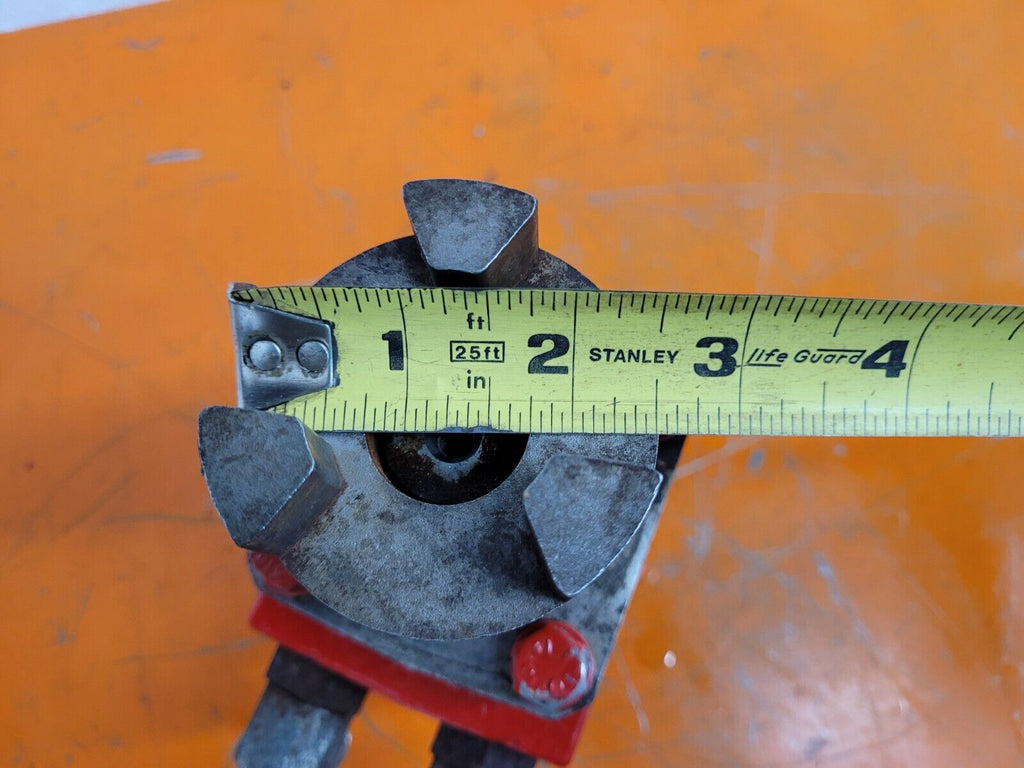

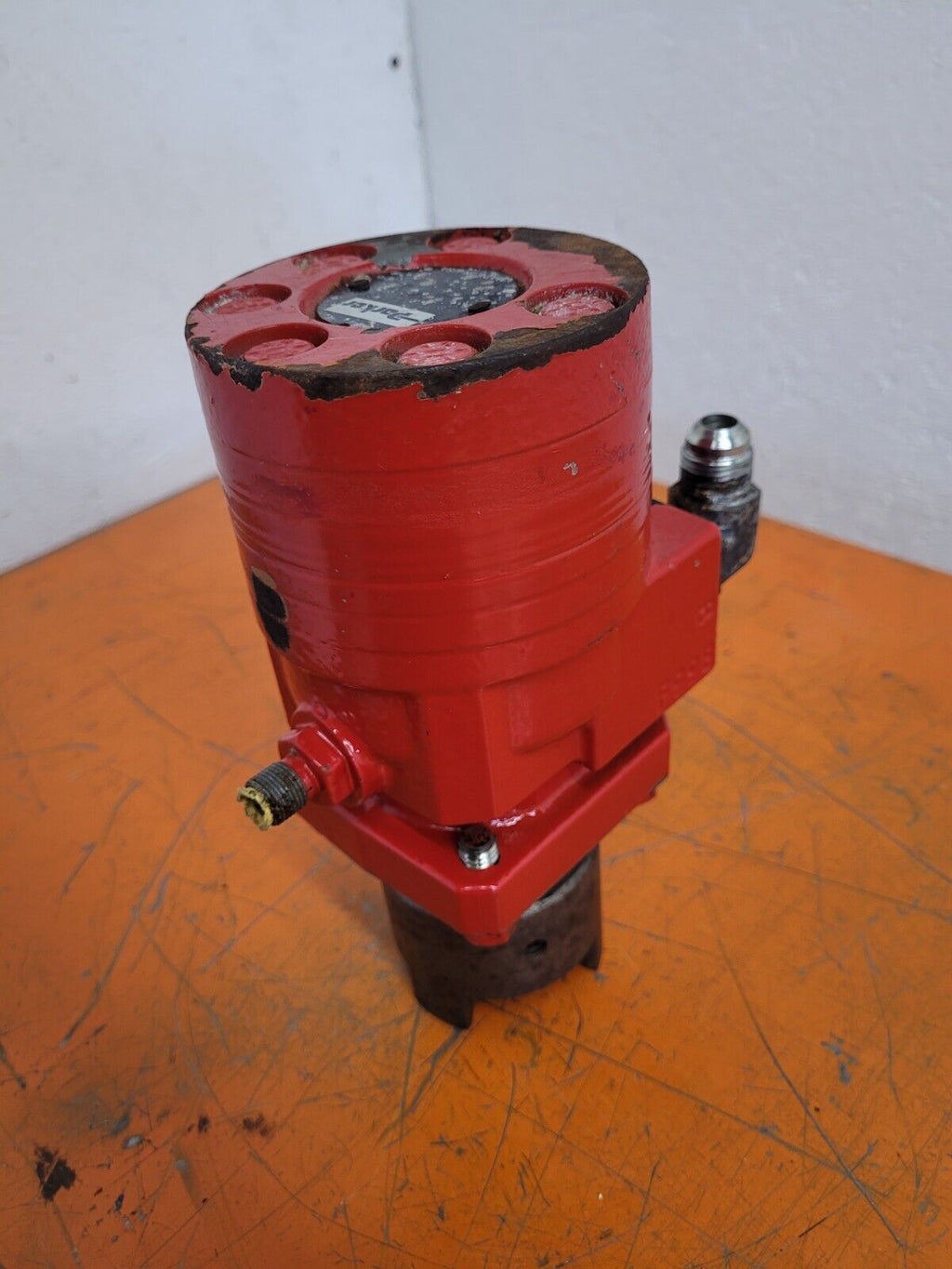

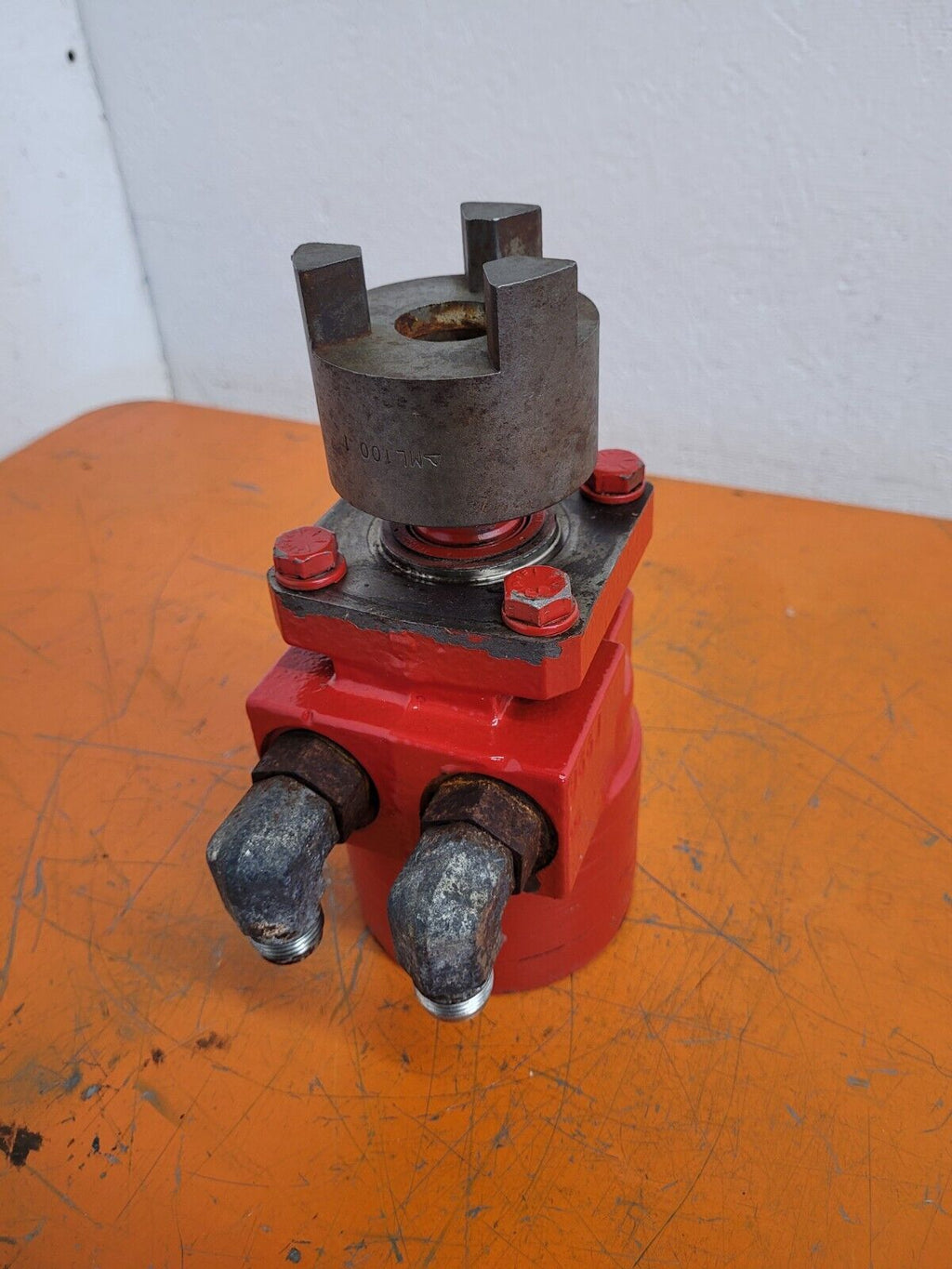

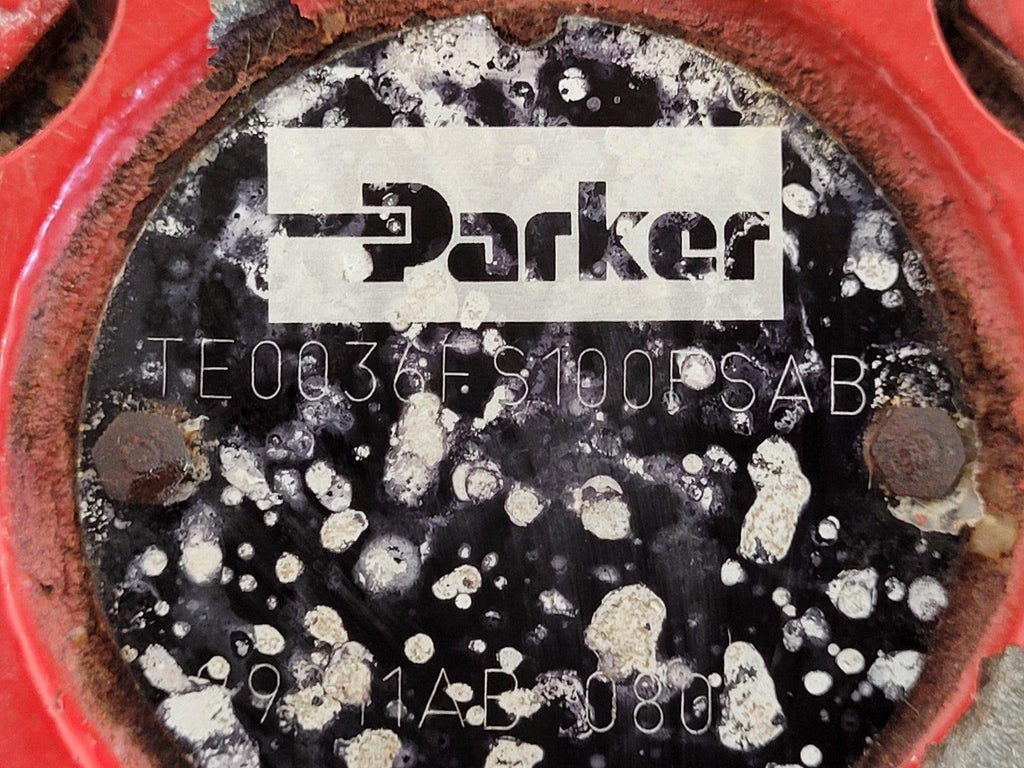

Parker TE0036FS100FSAB Hydraulic Gear Motor TE Series Torqmotor B1

Series: TE

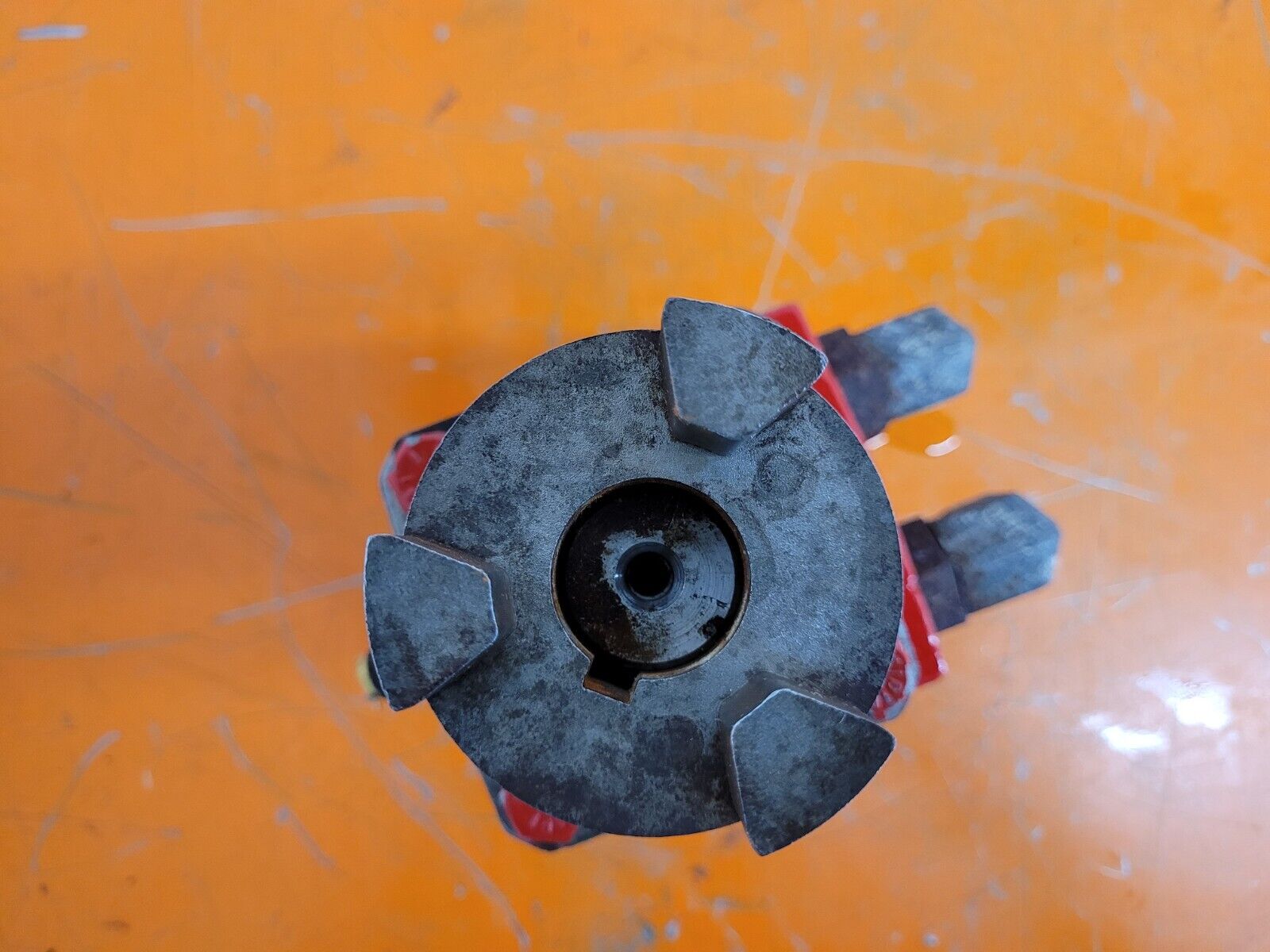

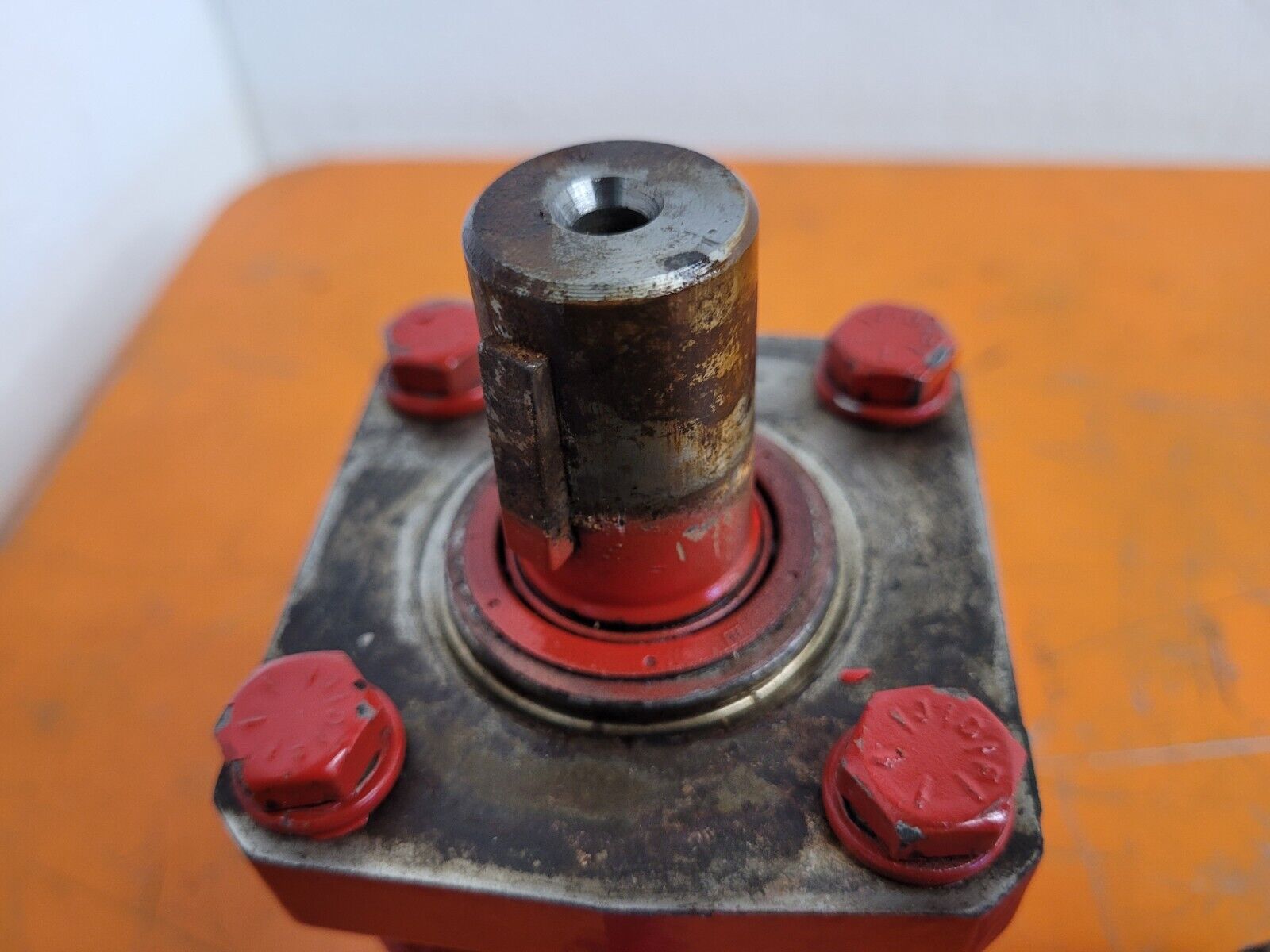

Shaft: 1" Keyed

Rotation: Standard

Ports code: S

Maximum Oil Flow (continuous / intermittent): 34 lpm (9 gpm) / 42 lpm (11 gpm)

Displacement (cm3/rev): 0036

Option: Speed Sensor, No Paint

Maximum Speed: 1141 rev/min

Maximum Side Load at Key: 6650 N (1500 lb)

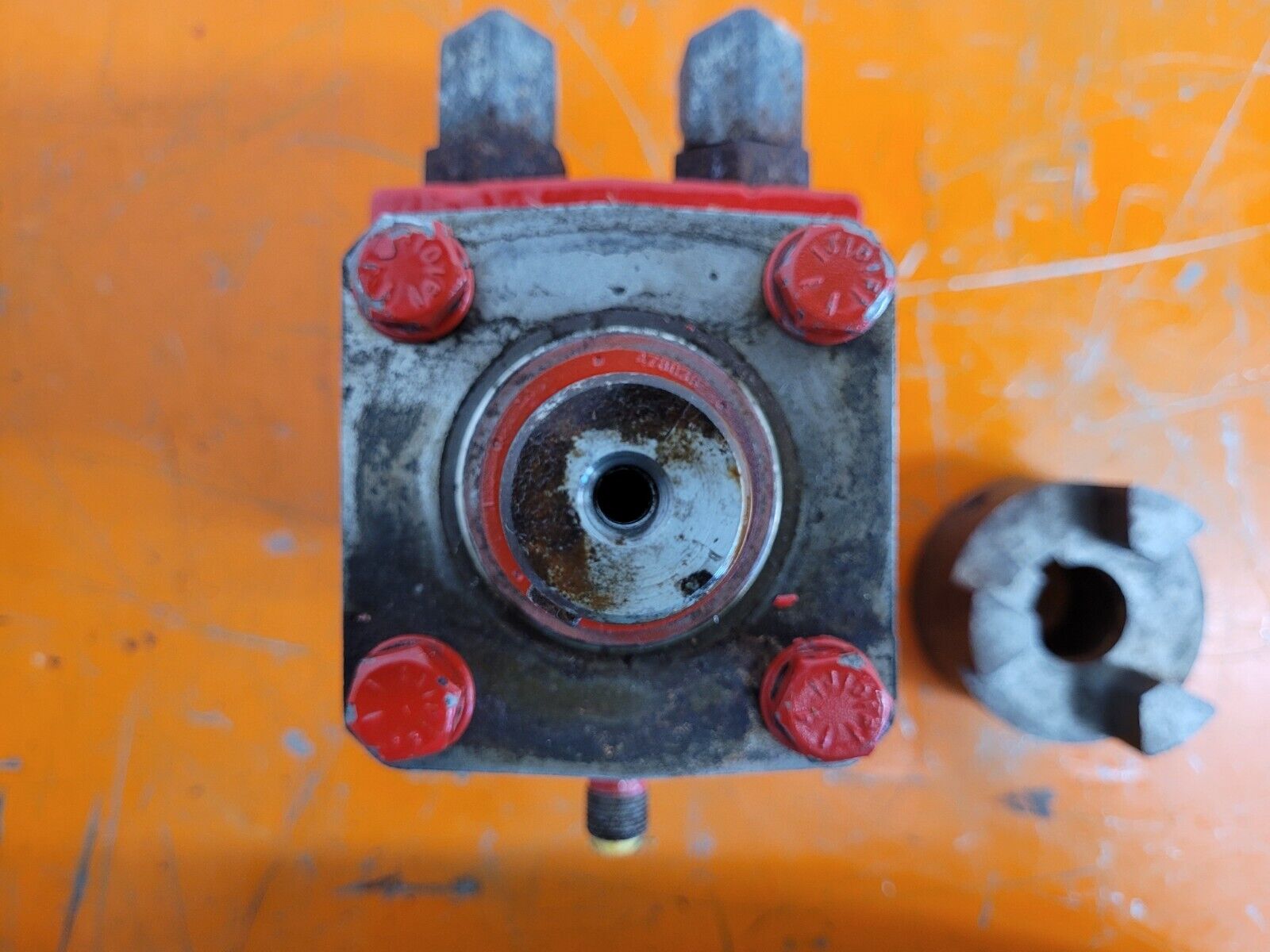

Mounting: 4 Bolt with 3/8-16 UNC

Maximum Performance: 8.5 KW (11.4 HP)

Max. Differential Pressure (continuous / intermittent): 140 bar (2030 PSID) / 190 bar (2750 PSID)

Shaft Code: 10

Options code: FSAB

Minimum Starting Torque - Continuous / Intermittent: 44 Nm (389 lb in) / 52 Nm (460 lb in)

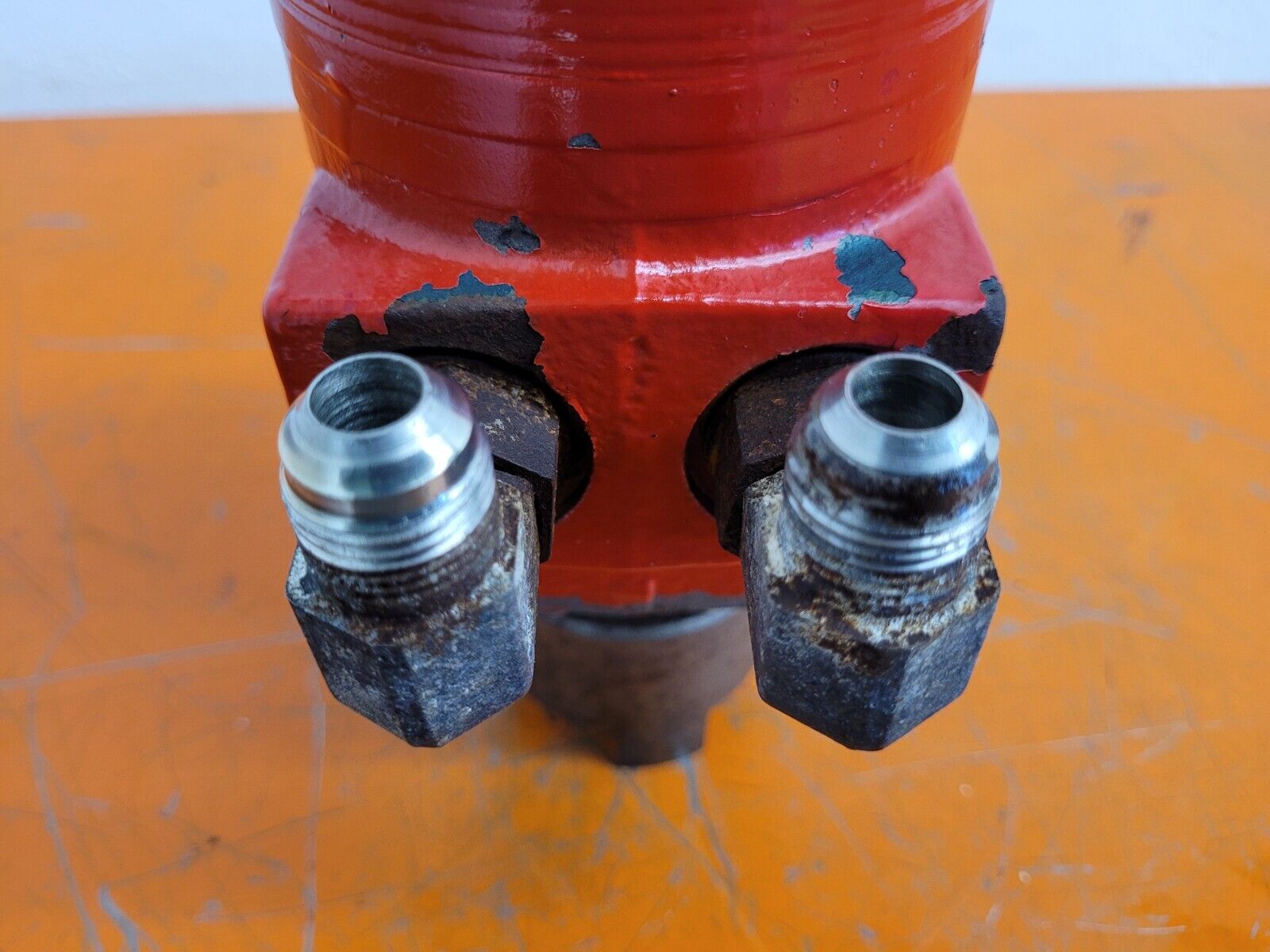

Ports: 7/8-14 SAE

Maximum Supply Pressure: 200 bar (2900 PSID)

Mounting code: F

Rotation Code: 0

Geometric Displacement: 36 cm3/rev (2.2 in3/rev)

Maximum Torque - Continuous / Intermittent: 54.6 Nm (483 lb in) / 71.1 Nm (630 lb in)
