| Power supply voltage | No D in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC |
||
|---|---|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage | ||
| Power consumption |
E5CN | 100 to 240 VAC: 7.5 VA (max.) (E5CN-R2T at 100 VAC: 3.0 VA) 24 VAC/VDC: 5 VA/3 W (max.) (E5CN-R2TD at 24 VAC: 2.7 VA) |
|
| E5CN-U | 100 to 240 VAC: 6 VA (max.) 24 VAC/VDC: 3 VA/2 W (max.) (models with current output: 4 VA/2 W) |
||
| Sensor input | Models with temperature inputs Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C Voltage input: 0 to 50 mV |
||
| Models with analog inputs Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V | |||
| Input impedance | Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB.) | ||
| Control method | ON/OFF control or 2-PID control (with auto-tuning) | ||
| Control outputs |
Relay output | E5CN | SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA |
| E5CN-U | SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA |
||
| Voltage output (for driving SSR) |
E5CN E5CN-U |
Output voltage: 12 VDC ± 15% (PNP), max. load current: 21 mA, with short-circuit protection circuit |
|
| Current output | E5CN | 4 to 20 mA DC/0 to 20 mA DC, load: 600 Ω max., resolution: approx. 10,000 | |
| Long-life relay output |
E5CN | SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 1,000,000 operations, load power supply voltage: 75 to 250 VAC (DC loads cannot be connected.), minimum applicable load: 5 V, 10 mA, leakage current: 5 mA max. (250 VAC, 60 Hz) |
|
| Auxiliary outputs |
Number of outputs | 1 or 2 max. (Depends on the model.) | |
| Output specifications |
Relay output: SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA |
||
| Event inputs |
Number of inputs | 2 | |
| External contact input specifications |
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min. | ||
| Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max. | |||
| Current flow: Approx. 7 mA per contact | |||
| External power supply for ES1B | 12 VDC ± 10%, 20 mA, short-circuit protection circuit provided | ||
| Setting method | Digital setting using front panel keys | ||
| Indication method | 11-segment digital display and individual indicators (7-segment display also possible) Character height: PV: 11 mm, SV: 6.5 mm |
||
| Multi SP | Up to four set points (SP0 to SP3) can be saved and selected using event inputs, key operations, or serial communications. |
||
| Bank switching | Not supported | ||
| Other functions | Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout detection (including SSR failure and heater overcurrent detection), 40% AT, 100% AT, MV limiter, input digital filter, self-tuning, temperature input shift, run/stop, protection functions, control output ON/OFF counter, extraction of square root, MV change rate limit, logic operations, PV/SV status display, simple program, automatic cooling coefficient adjustment |
||
| Ambient operating temperature | -10 to 55 ° C (with no condensation or icing), for 3-year warranty: -10 to 50 ° C | ||
| Ambient operating humidity | 25% to 85% | ||
| Storage temperature | -25 to 65 ° C (with no condensation or icing) | ||
Omron E5CN-Q2TDU Temperature Controller With Omron P2CF-11 Din Mount
$99.99
Skip to product information

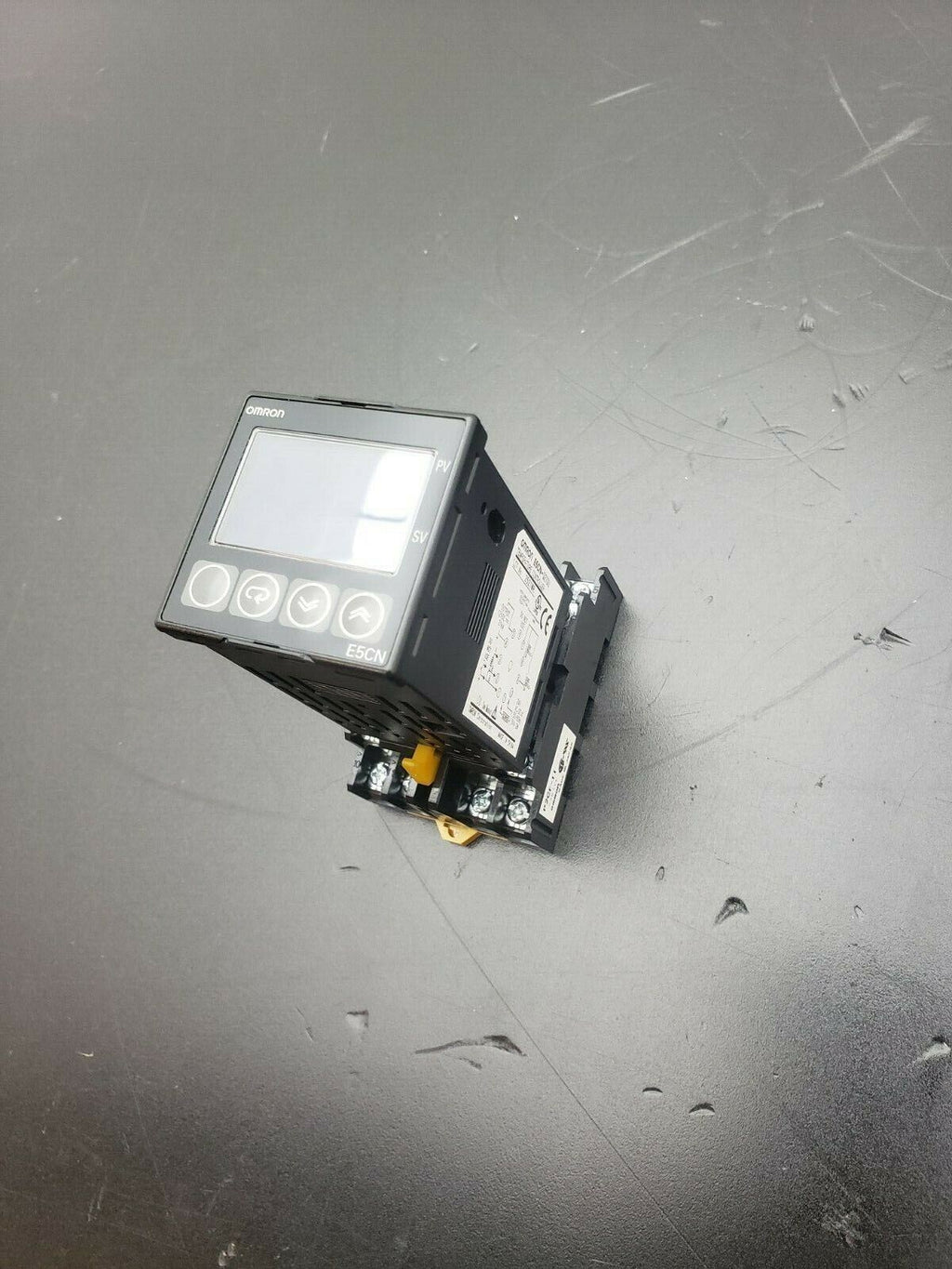

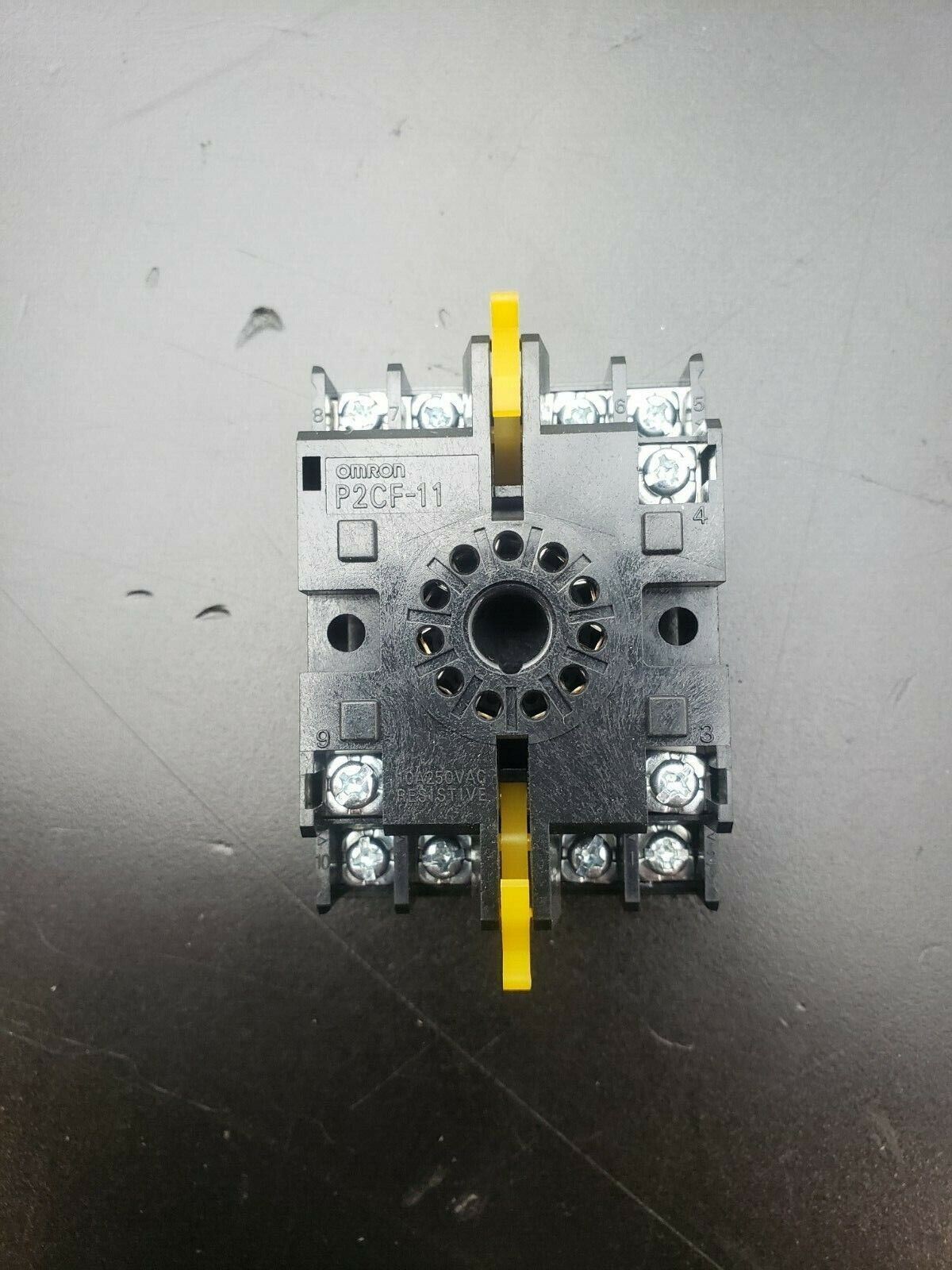

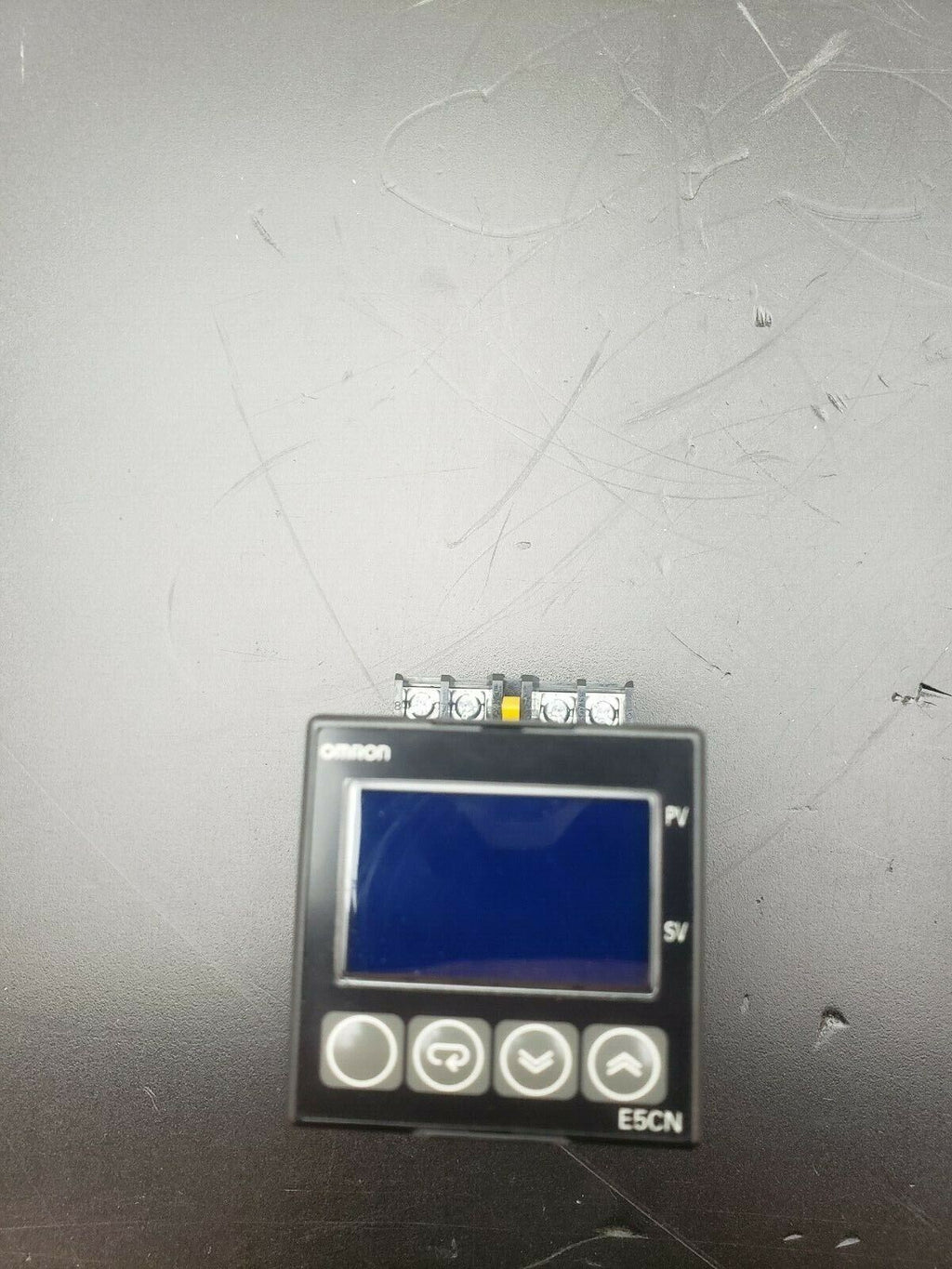

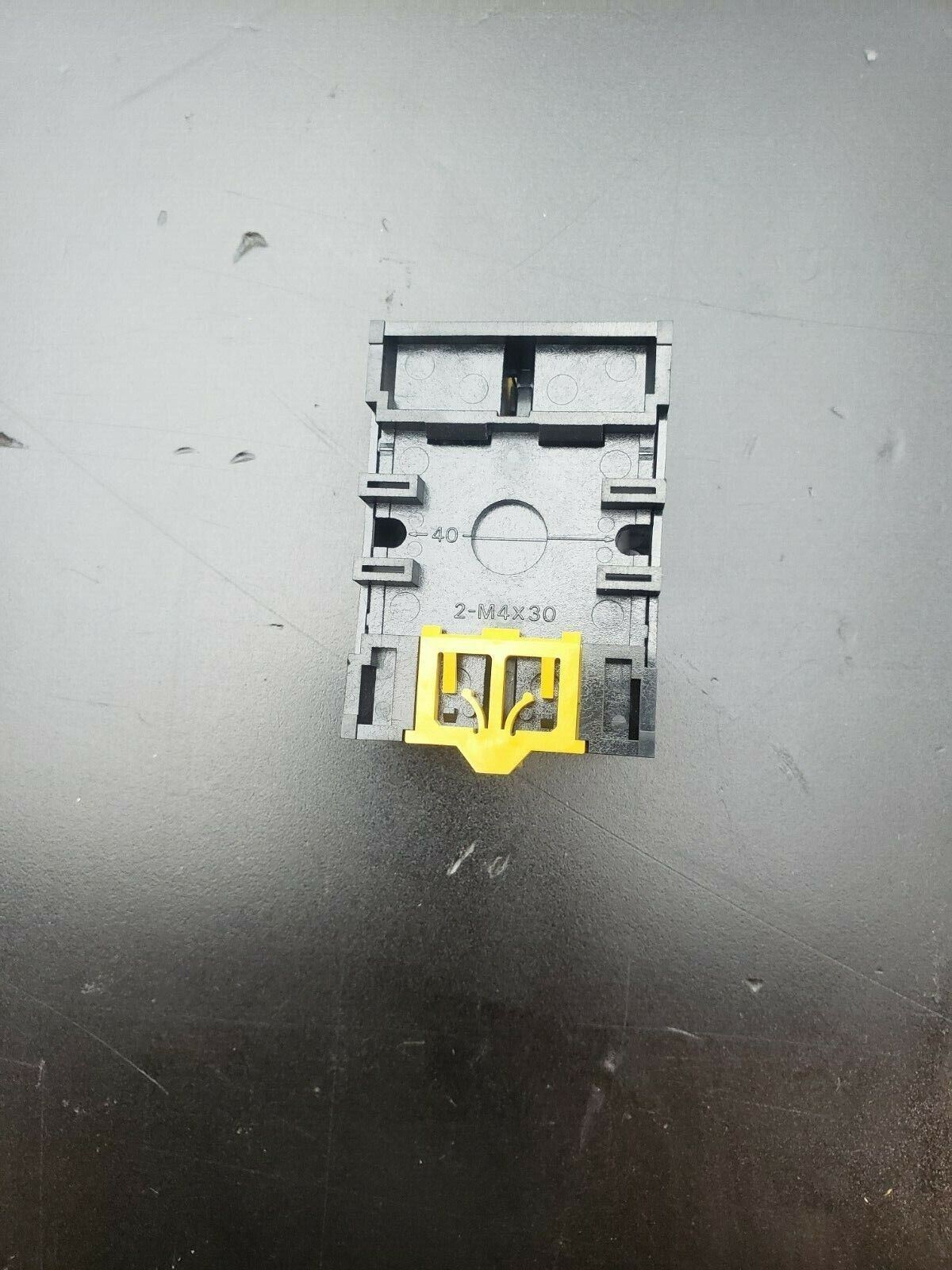

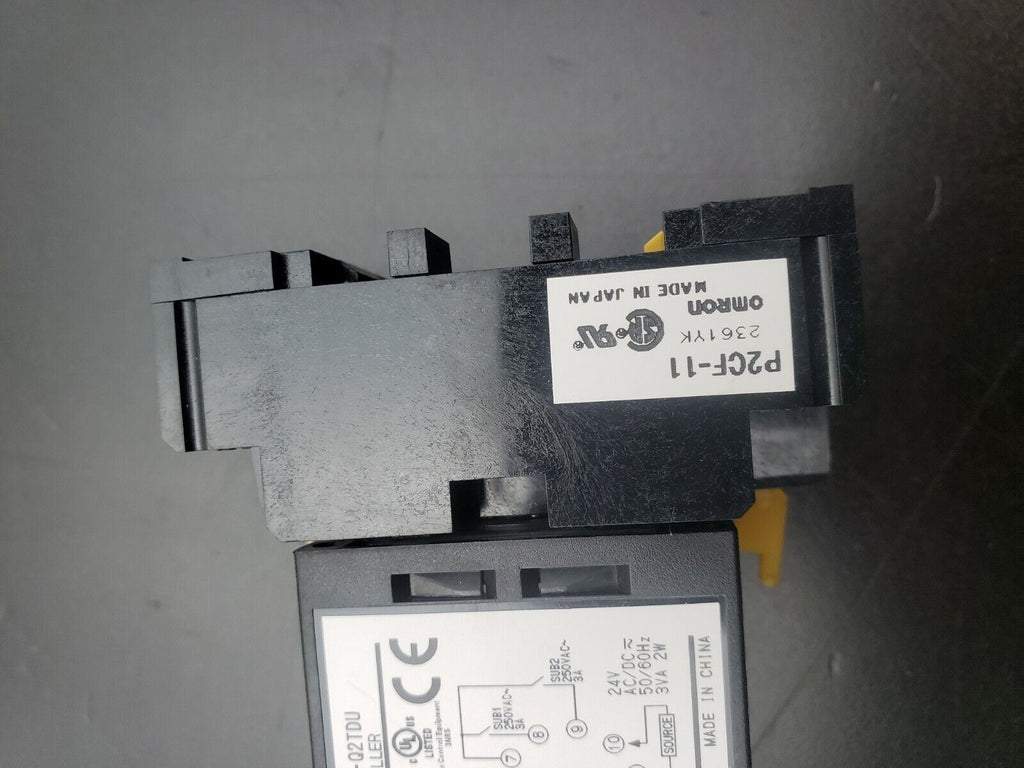

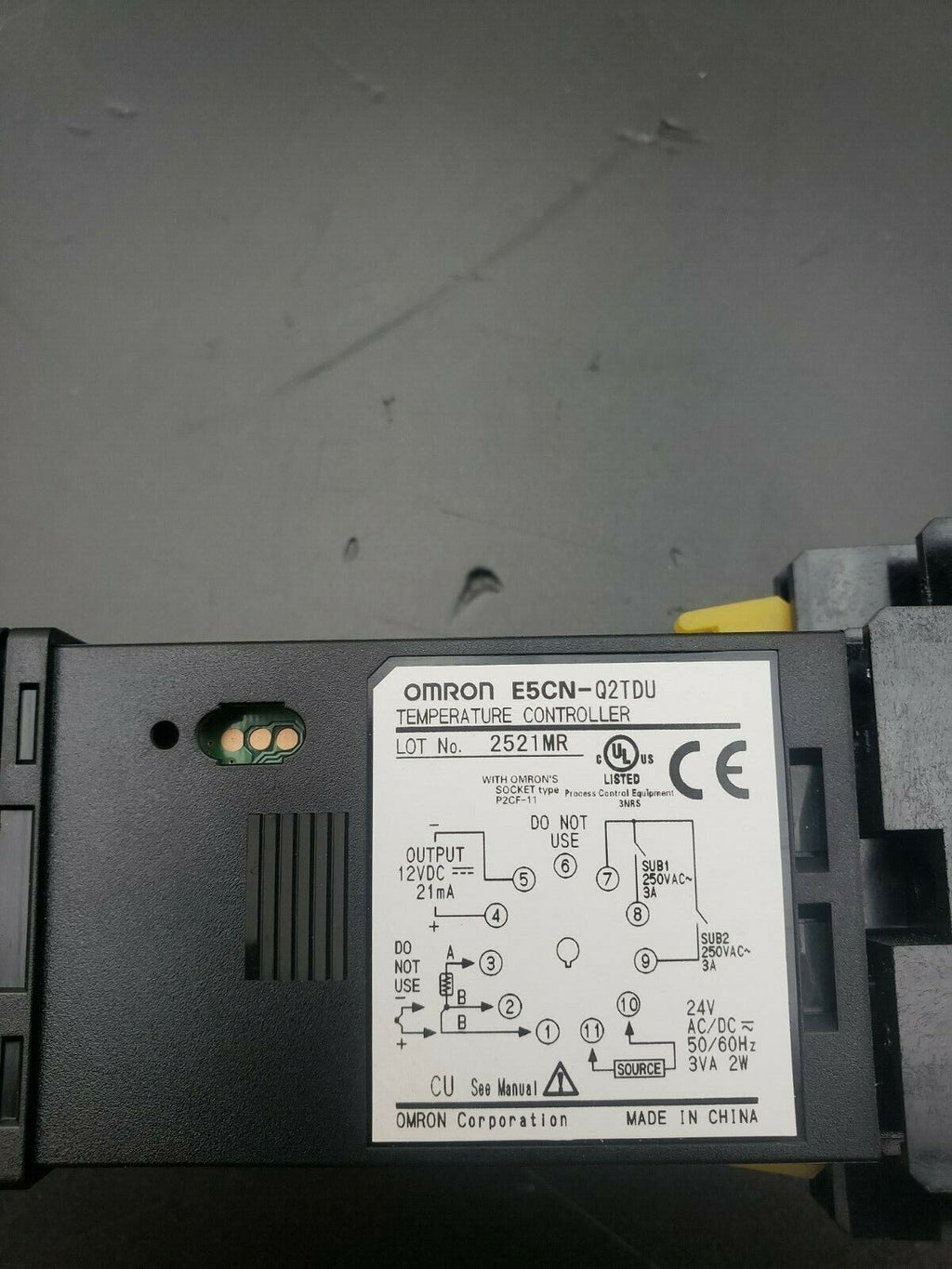

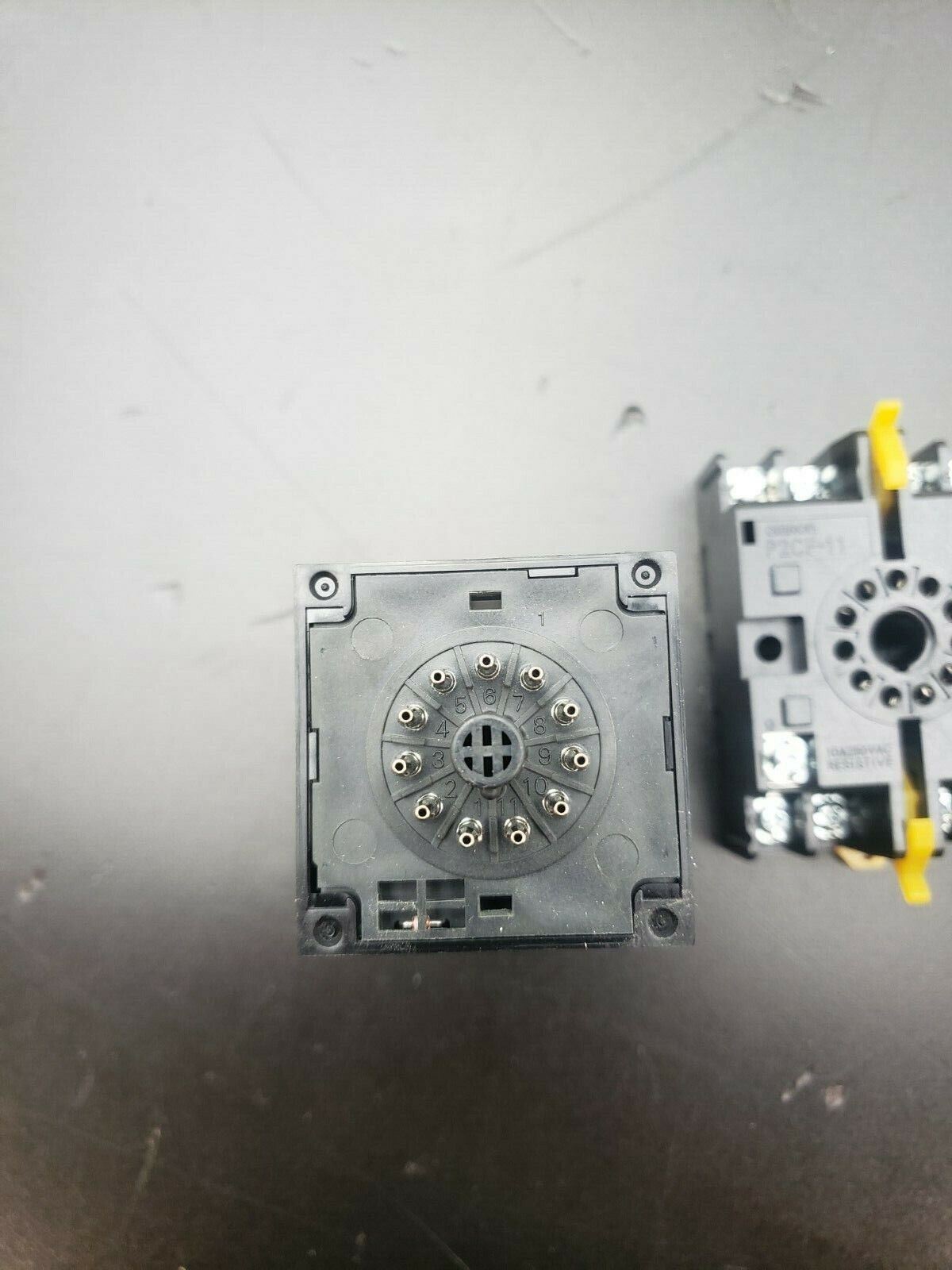

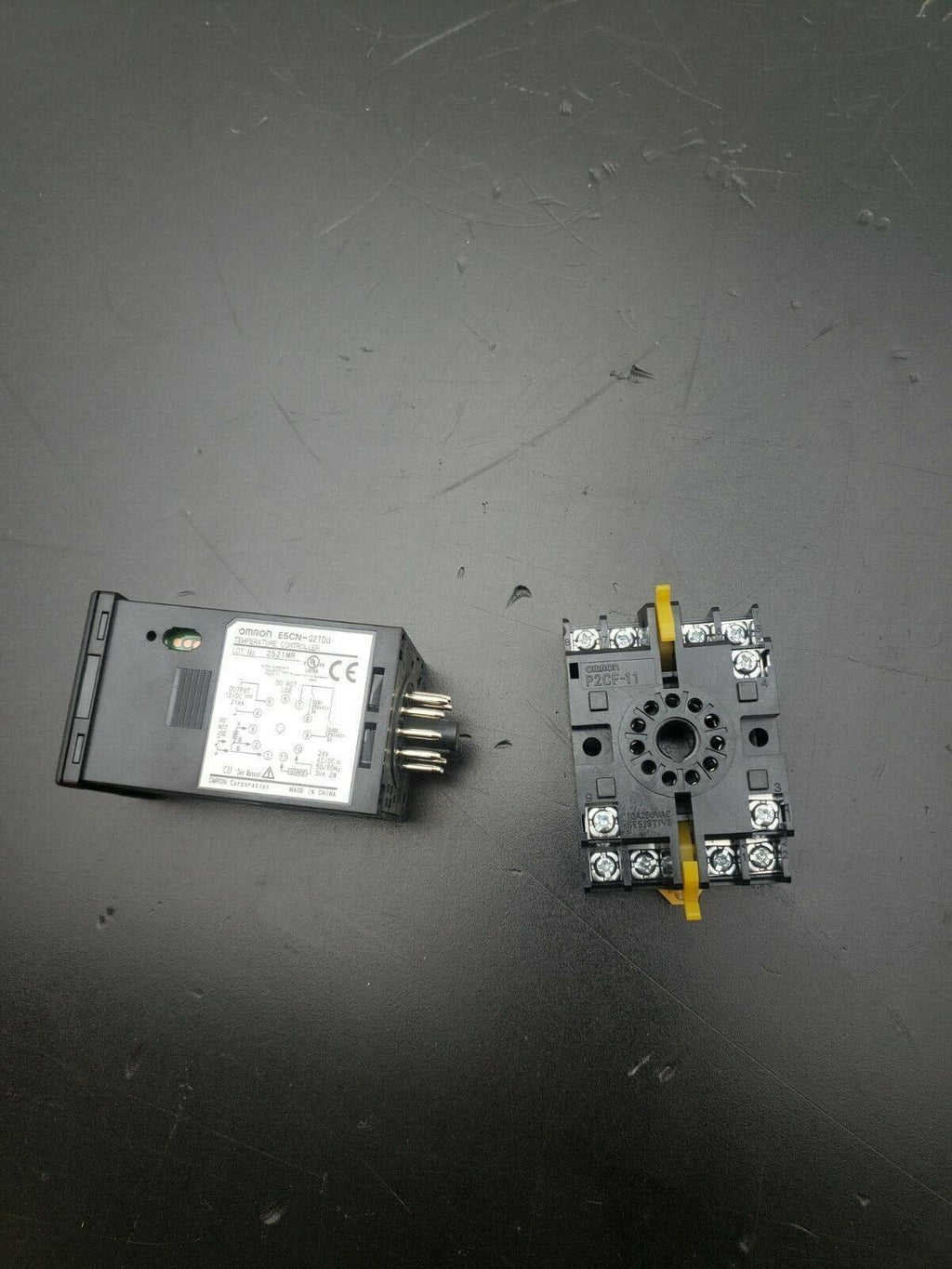

Up For sale is one Omron E5CN-Q2TDU Temperature Controller With Omron P2CF-11 Din Mount
Omron E5CN-Q2TDU Temperature Controller With Omron P2CF-11 Din Mount
$99.99
Indication Accuracy
Thermocouple input: ±0.3% of PV (previous models: ±0.5%)
Pt input: ±0.2% of PV (previous models: ±0.5%)
Analog input: ±0.2% FS (previous models: ±0.5%)
New E5CN-U Models (Plug-in Models) with analog inputs and current outputs.
A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV.
Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter.
Ratings
This item is free shipping to the lower 48 States
Feel Free to contact us with any questions
Thank you for your interest and have a great day!
