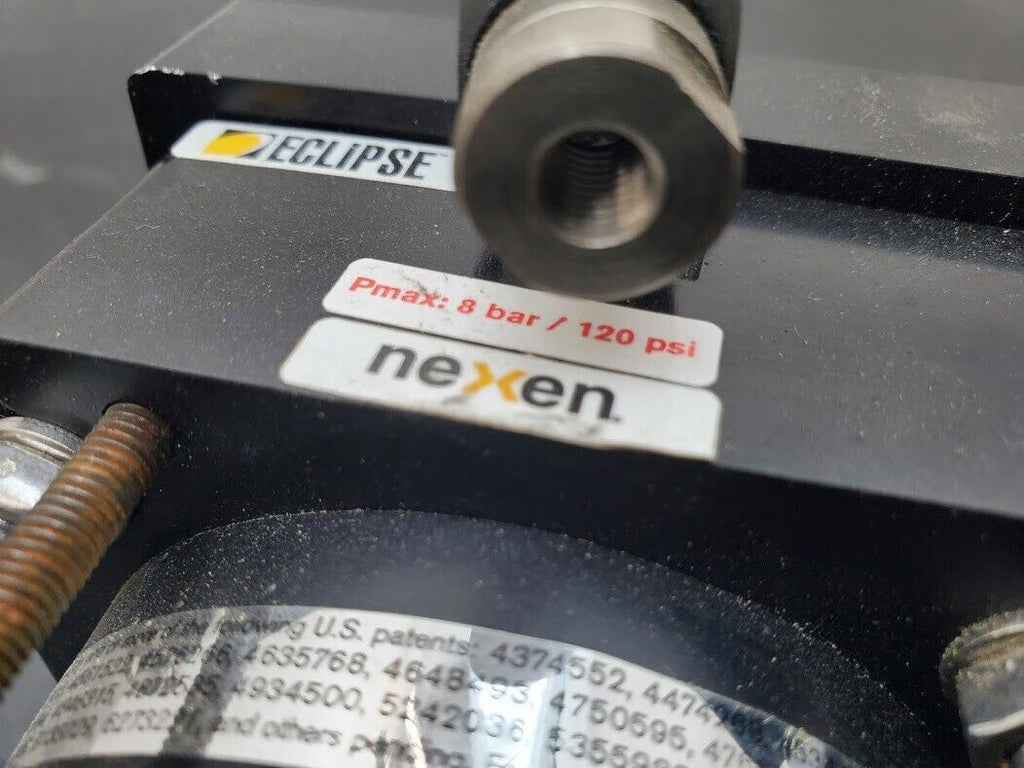

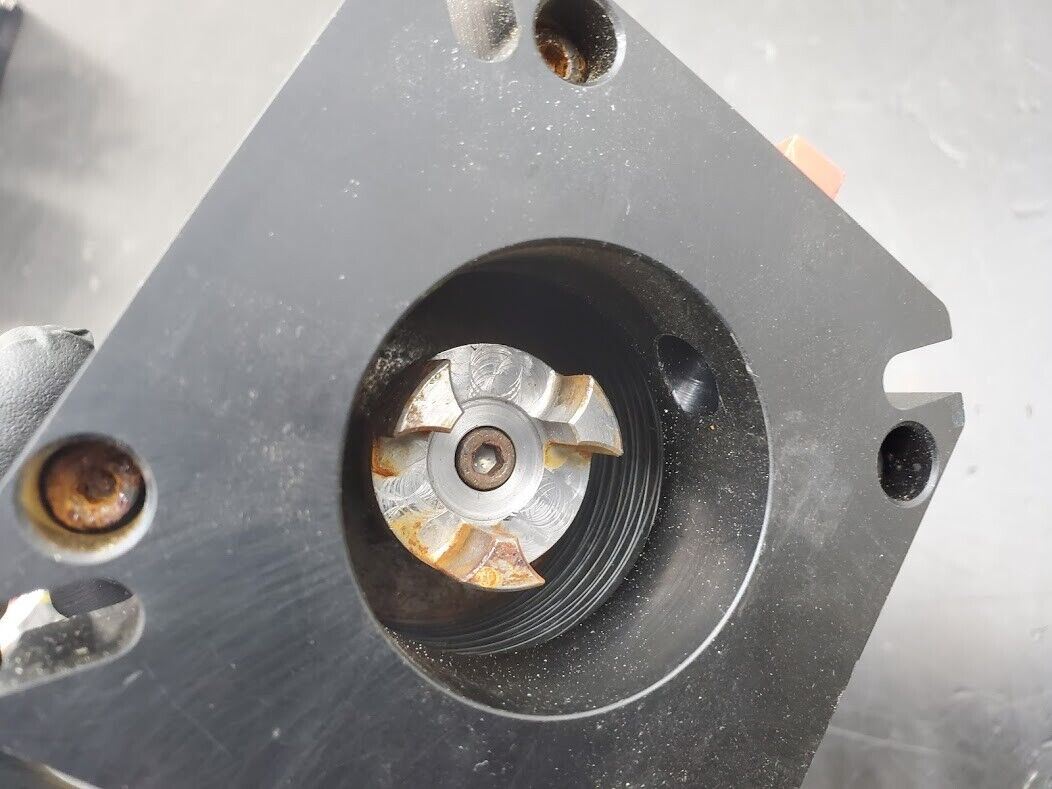

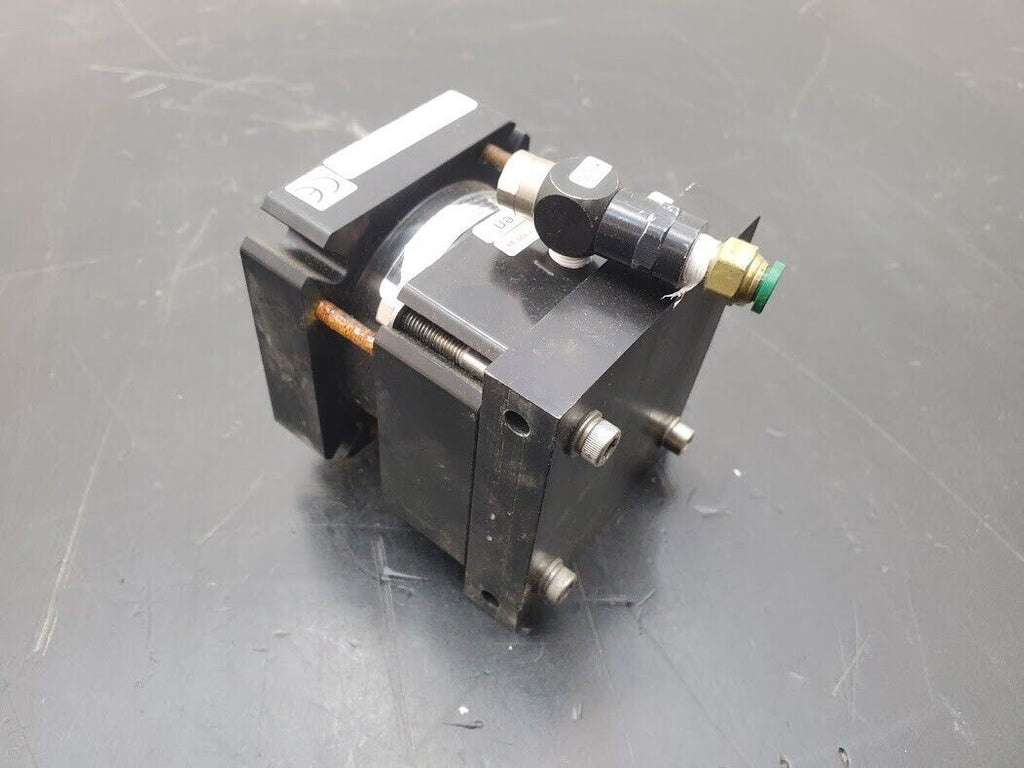

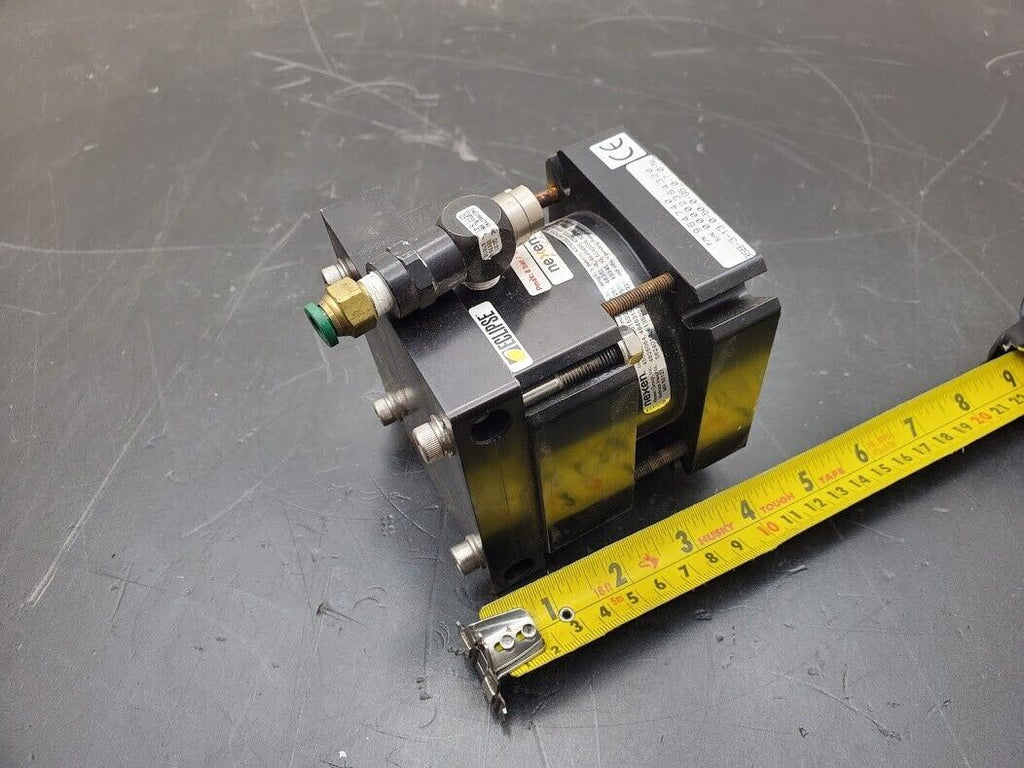

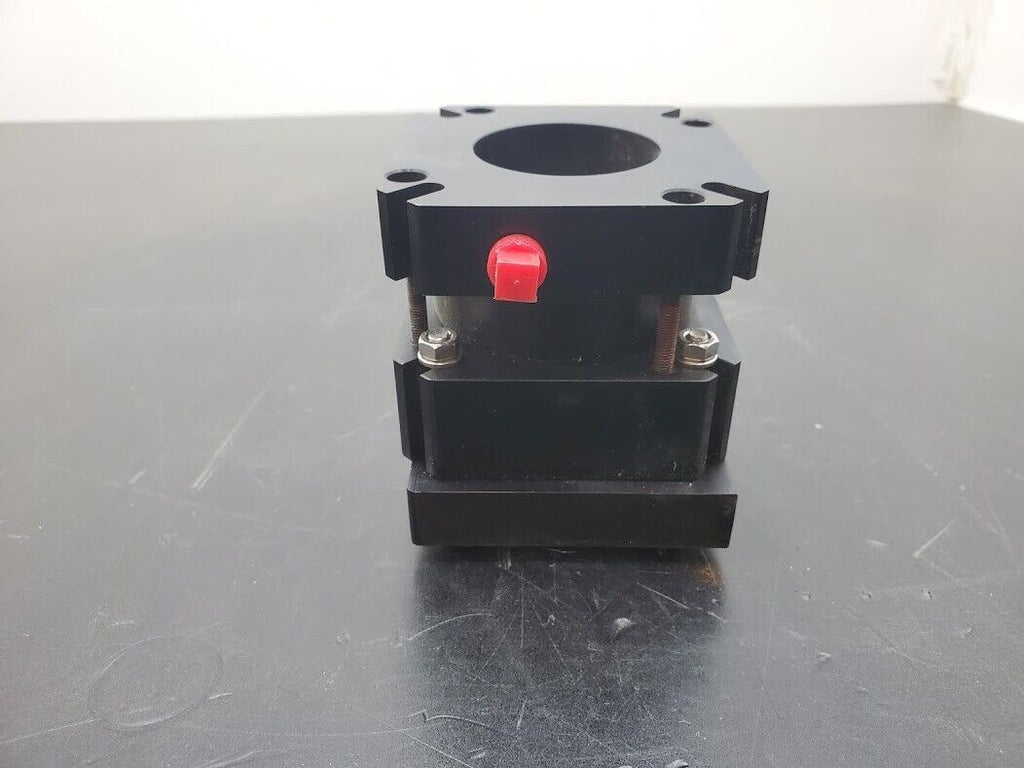

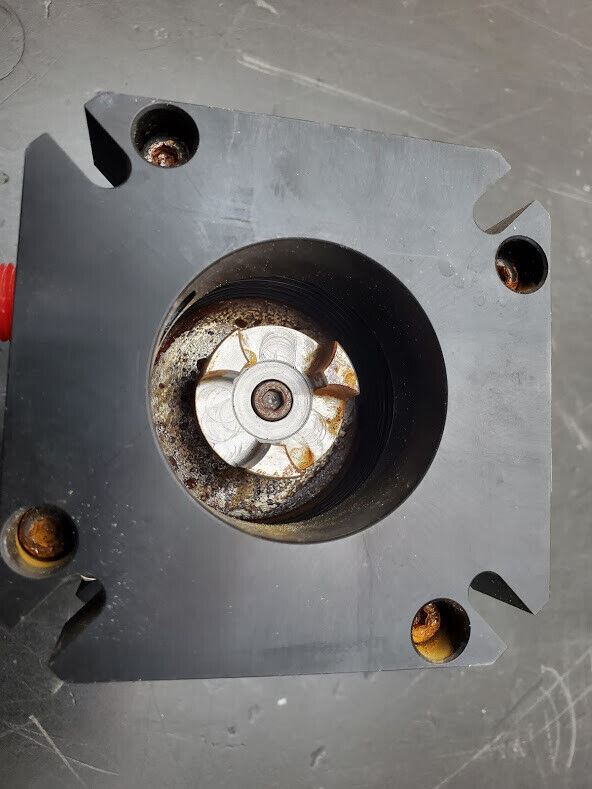

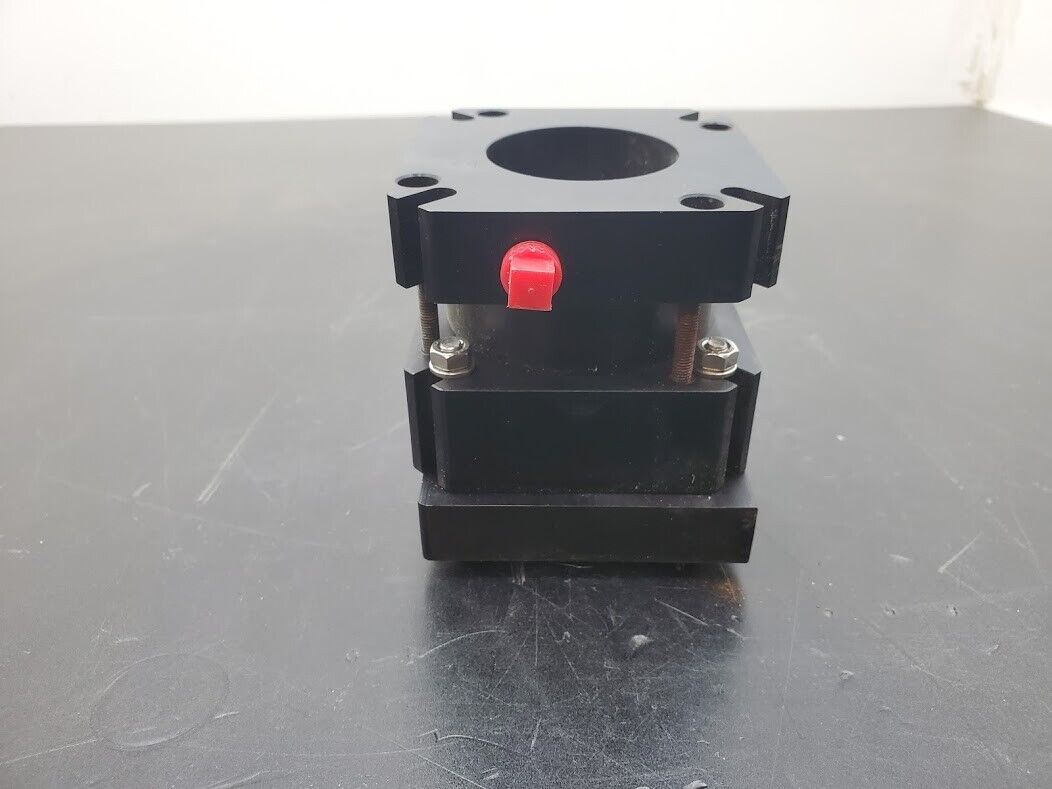

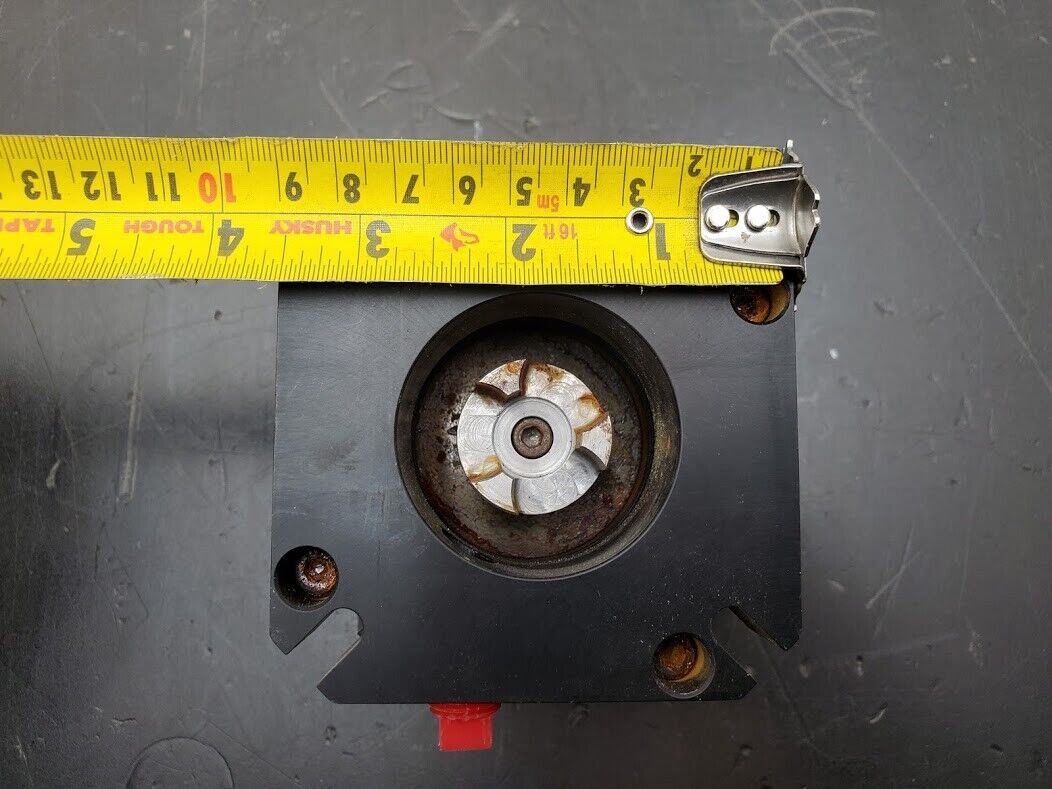

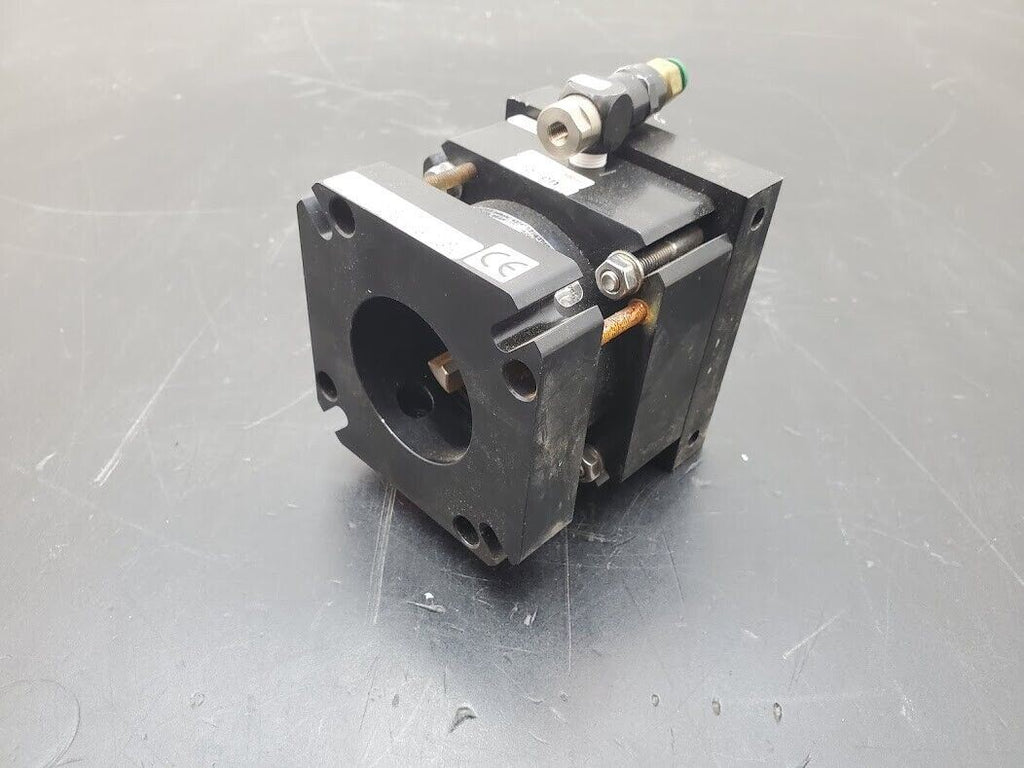

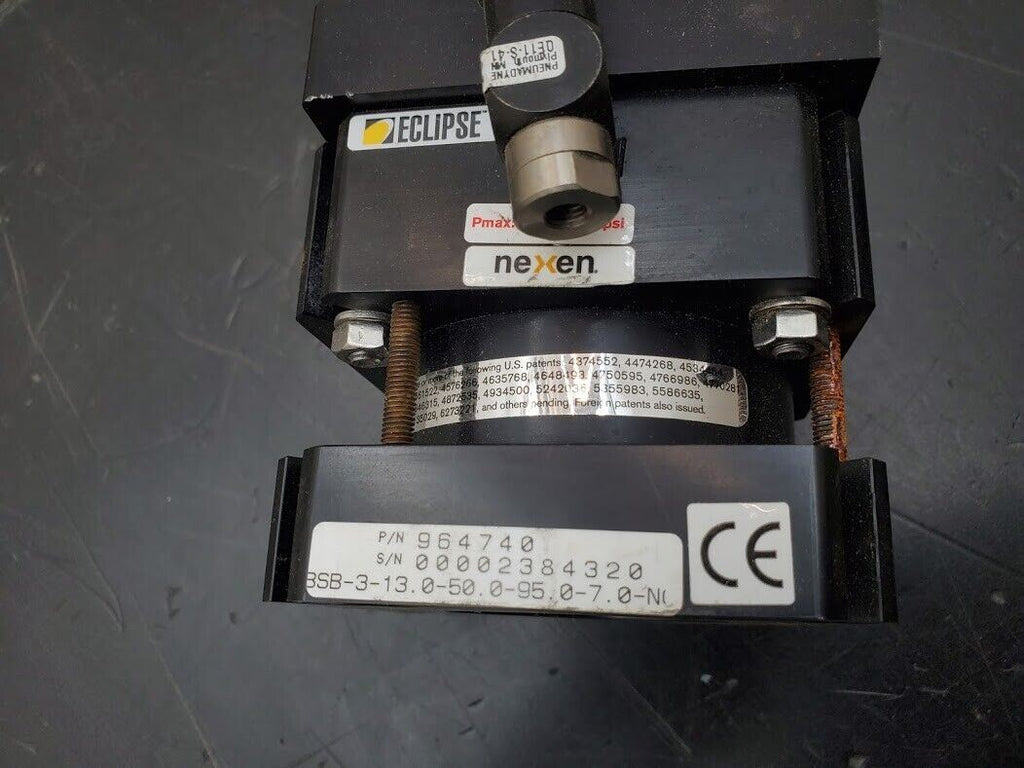

Nexen Eclipse 964740 Pneumatic Spring Applied Air Released Actuator Brake BSB-3
Nexen Eclipse 964740 Pneumatic Spring Applied Air Released Actuator Brake BSB-3
NEXEN 964740
Most brakes normally use friction between two surfaces pressed together to convert the kinetic energy of the thing that is moving though other systems of energy conversion may be applied. For instance, regenerative braking converts much of the energy to electrical energy, that might be kept for later use. Other systems convert kinetic energy into potential energy in such stored forms as pressurized oil or pressurized air. Eddy current brakes use magnetic fields to convert kinetic energy into electric current in railing, fin, or the brake disk, which can be converted into heat. Other braking systems transform kinetic energy into different types, for example by transferring the energy.
Some vehicles use a a a combination such as drag racing automobiles with both wheel brakes and a parachute, or planes with drag flaps and wheel brakes lifted into the air during touchdown.
| Features: | Mounts To Non-Driven End Of Ballscrew Providing Redundant Braking Or Load Holding |
|---|---|
| Comments: | Spring Engaged, Zero Backlash, Low Inertia, and High Torque |
| Comments: | Includes Quick Exhaust Valve For Quick Braking Response |
| Comments: | Contact Nexen For Other Mounting Flange Configurations |
| Open Or Enclosed Design: | Enclosed |
| Bore Size: | 6 - 16 mm |
| Bore Style: | Straight Bore |
| Over All Length: | 77.7 mm |
| Minimum Static Brake Torque: | 5 Nm |
| Shaft Inertia: | 0.50 kgcm² |
| Max Rpm: | 10000 |
| Input Pilot O.D.: | 50.0 mm |
| Actuation/Return: | Spring/Air |
| Port Size: | 0.125 NPT |
| Maximum Pressure: | 6.9 bar |
| Minimum Release Pressure: | 3.4 bar |
| Coupling Brand/Type: | Elastomer/Clamp Collar |
| Maximum Angular Misalignment: | 0.8° |
| Maximum Axial Float From Initial Spacing: | ± 1 mm |
| Maximum Lateral Misalignment: | 0.08 mm |
| Approximate Engagement Response Time: | 12 ms |
| Approximate Release Response Time: | 75 ms |
| Torsional Rigidity: | 600 Nm/rad With Coupling |
| Ratings: | IP67, CE, And RoHS |
| Finish: | Black Anodized |
| Order Coupling And Control Valve From Accessories To The Left | |
| Weight: | 5.0 LB |
