Jokab Safety JSHT1B Time Monitoring Delay Relay one two channel 24VDC DIN RAIL

Jokab Safety JSHT1B Time Monitoring Delay Relay one two channel 24VDC DIN RAIL

$99.99
For sale one good used condition Jokab Safety relay, comes as pictured.

Thanks for looking at our item and feel free to contact us with any questions!

Info found at Galco about the unit:

Item# 2TLA010011R1000 - Safety Timer, JSHT1B 24DC

JSHT1 Series Information
Hardwire Time Selection 5~40 seconds
Selectable Single or Dual Channel Input
Test Input
LED Indication for Supply, Inputs and Outputs
Quick Release Connector Blocks

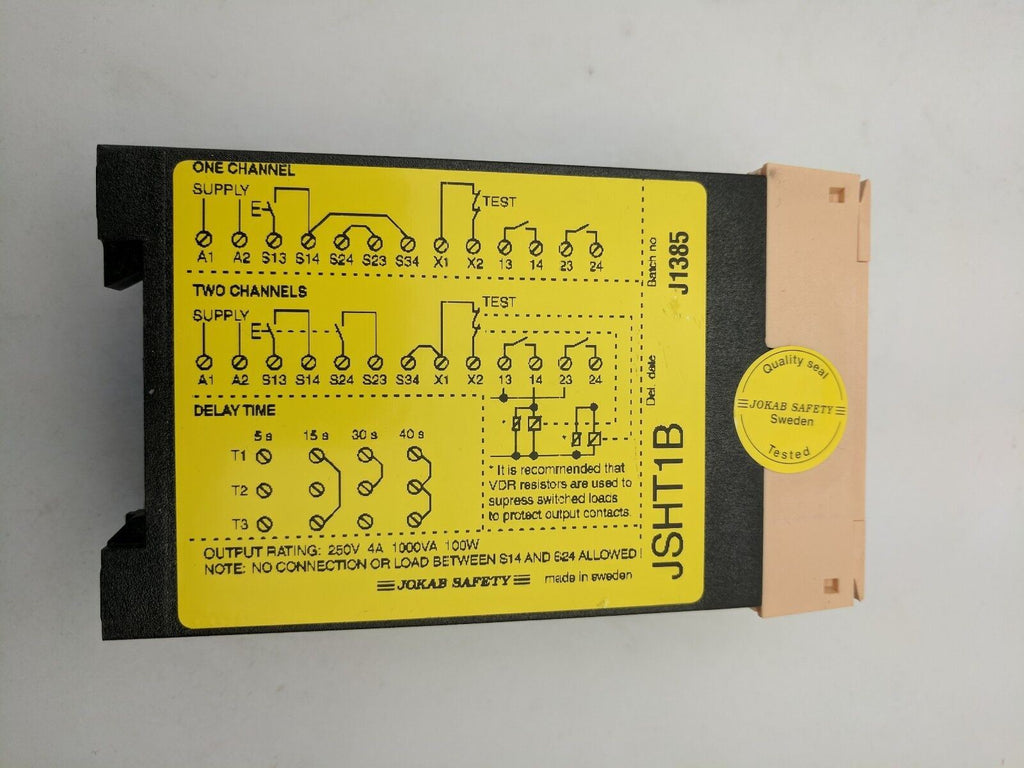

When the inputs open the output contacts close. The output contacts open when the inputs close or when the time period has expired. The time period is hardwire selectable on terminals T1, T2 and T3. The time given is the maximum time. One or two channel operation is also hardwire selectable.

Item Number:  2TLA010011R1000
UPC:   888614093546
Brand: Jokab Safety
Item Category:Safety Relays
Subcategory: Time Monitoring
Series: JSHT1
Supply Voltage: 24 VDC
Selectable Times: 5s;15s;30s;40s
Delayed Safety Contacts: 2 NO
Termination: Screw
Terminal Style: Plug-in
Mounting: DIN Rail
Standards: EN954-1;EN62061;ENISO13849
Power Consumption (DC): 1.8 Watts
Approvals: CSA;CE;TUV
H x W x D: 2.91 in x 1.77 in x 4.72 in
  Net Weight: 1 lb 12 oz
  Gross Weight: 8 OZ
