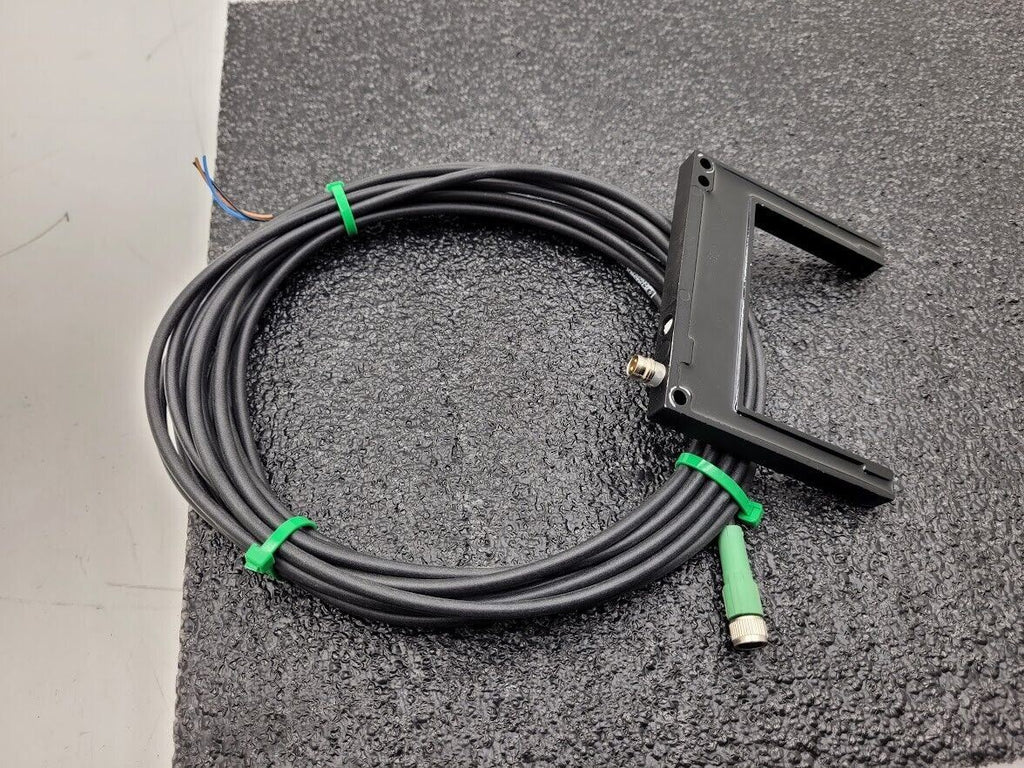

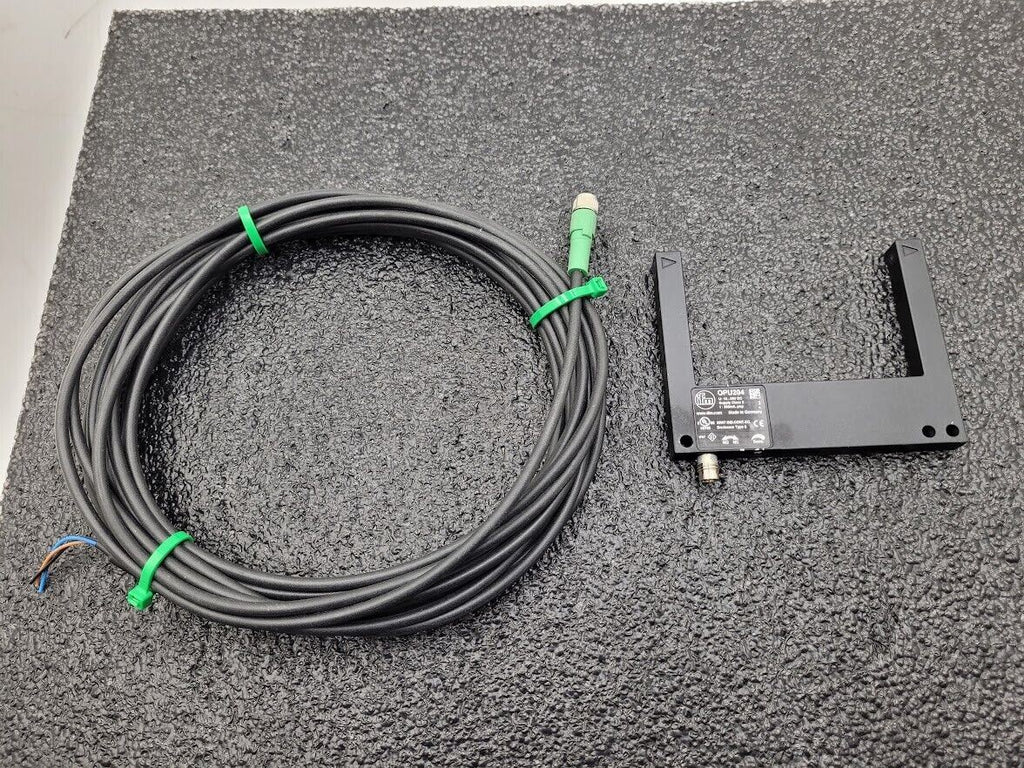

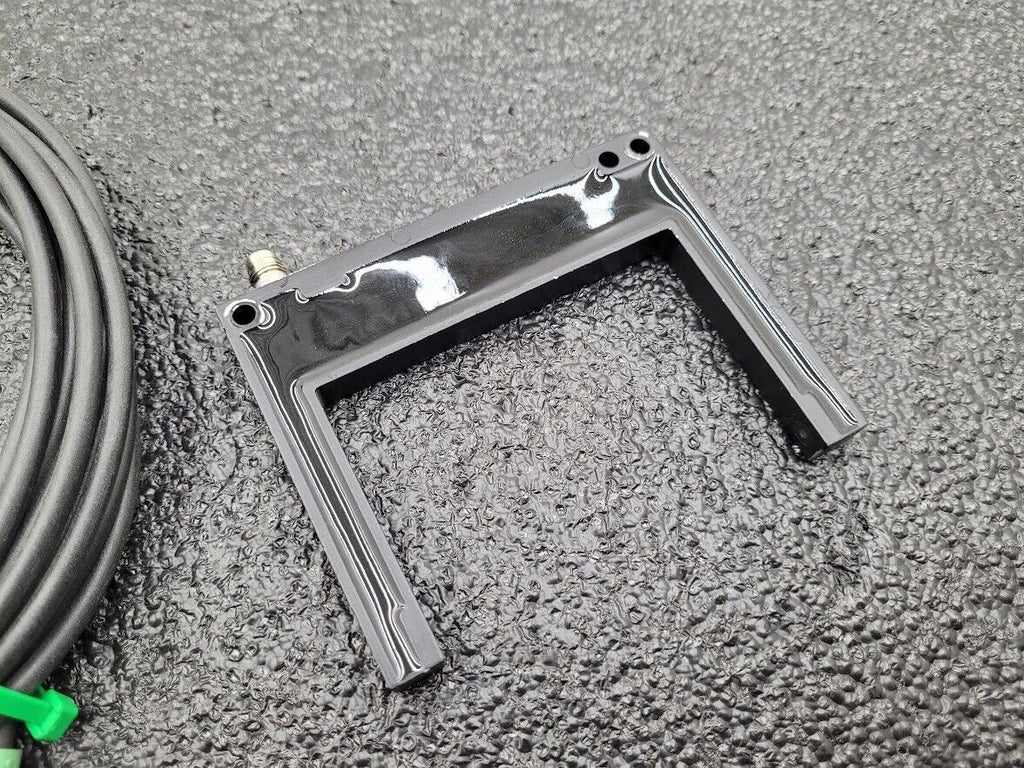

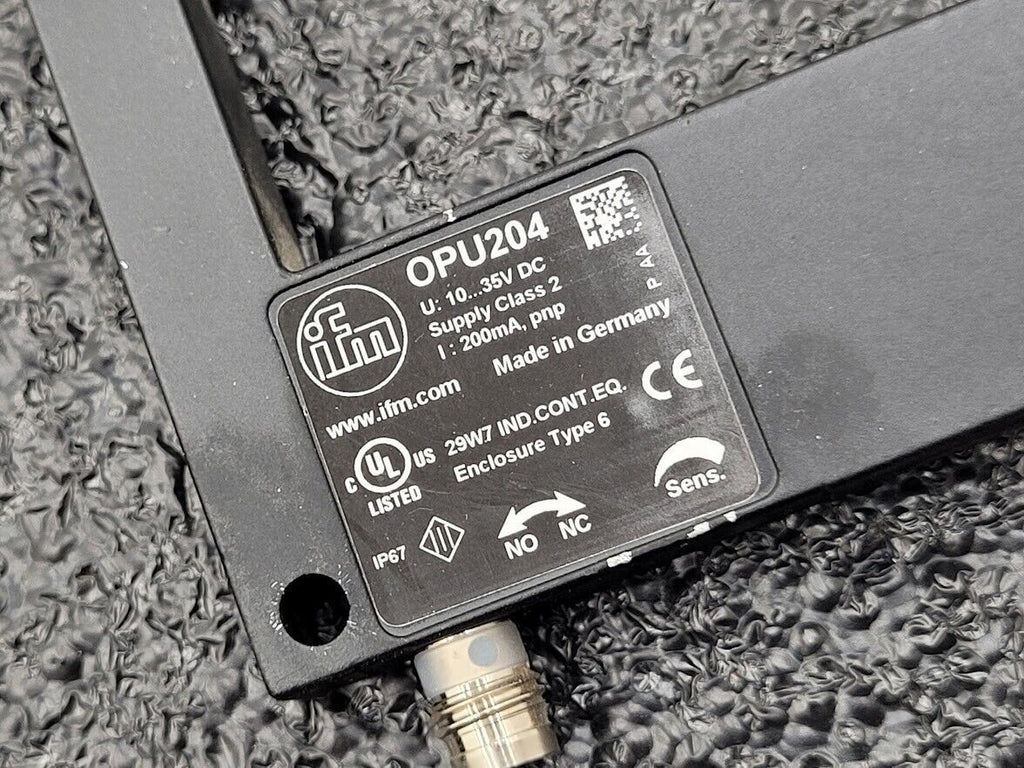

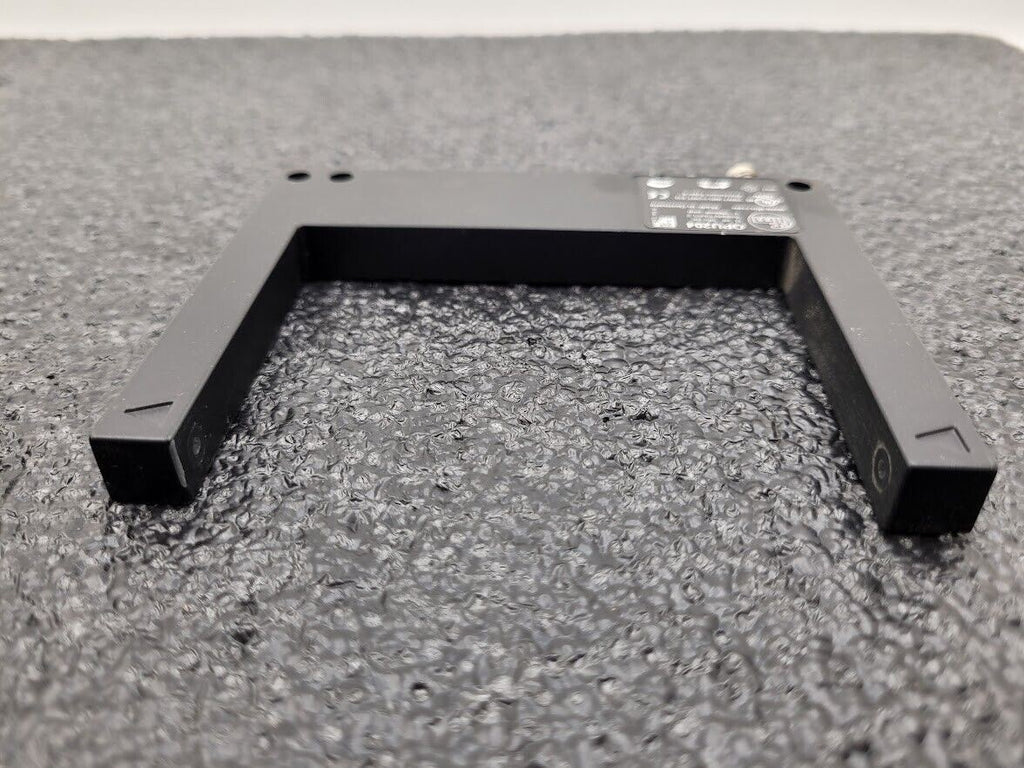

IFM Effector OPU-FCKG/IO-LINK/AS-OPU204 Photoelectric Fork Sensor 80mm Objects
$199.99
IFM Effector OPU-FCKG/IO-LINK/AS-OPU204 Photoelectric Fork Sensor >80mm Objects
Excellent used condition, pulled off shortly used machine.
Datasheet: ifm.com/us/en/product/OPU204
| Product characteristics | |
|---|---|
| Type of light | red light |
| Electrical data | |
| Operating voltage [V] | 10...30 DC; (cULus - Class 2 source required) |
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC [V] | 1 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Monitoring range | |
| Diameter of the smallest detectable object [mm] | 0.3 |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; Process Data Variable |
| SIO mode | yes |
| Required master port class | A |
| Min. process cycle time [ms] | 3.2 |
| Supported DeviceIDs | |
| Operating conditions | |
| Ambient temperature [°C] | -25...60 |
| Protection | IP 67 |
| Tests / approvals | |
| EMC | |
| MTTF [years] | 709 |
| Mechanical data | |
| Weight [g] | 170.5 |
| Dimensions [mm] | 100 x 10 x 80 |
| Fork depth D [mm] | 55 |
| Fork width W [mm] | 80 |
| Material | housing: diecast zinc black anodized; lens: glass |
| Displays / operating elements | |
| Display | |
| Remarks | |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |

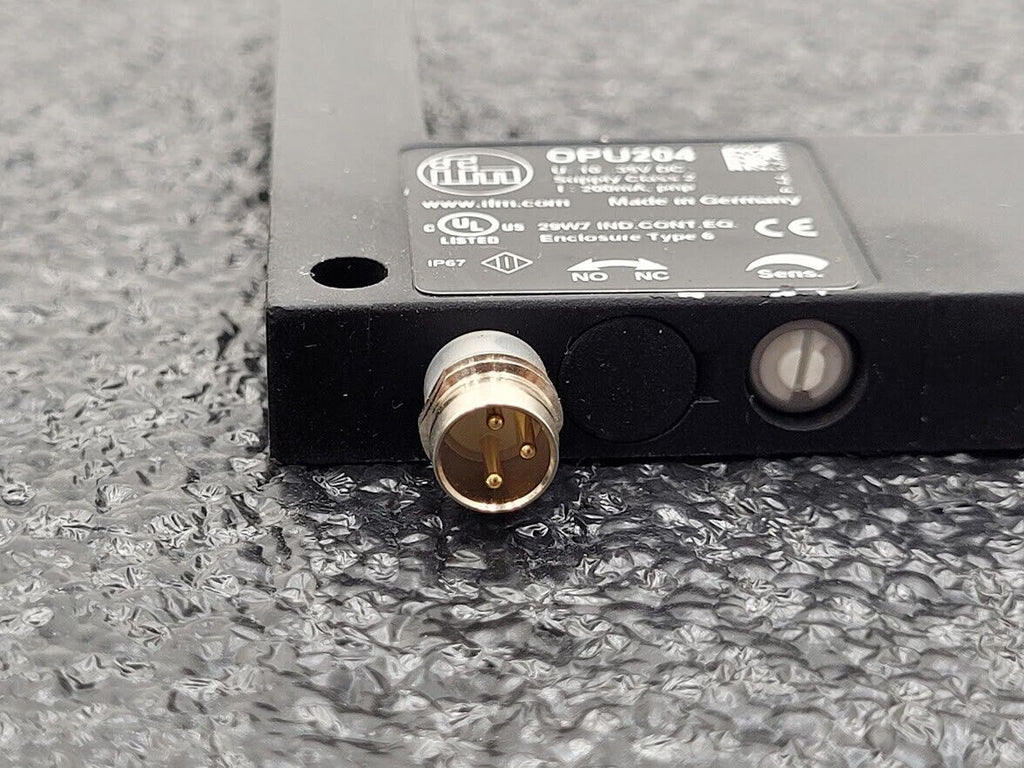

| Connection | Connector: 1 x M8; coding: A |
This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel free to contact us with any questions
Thank you for your interest and have a great day!
