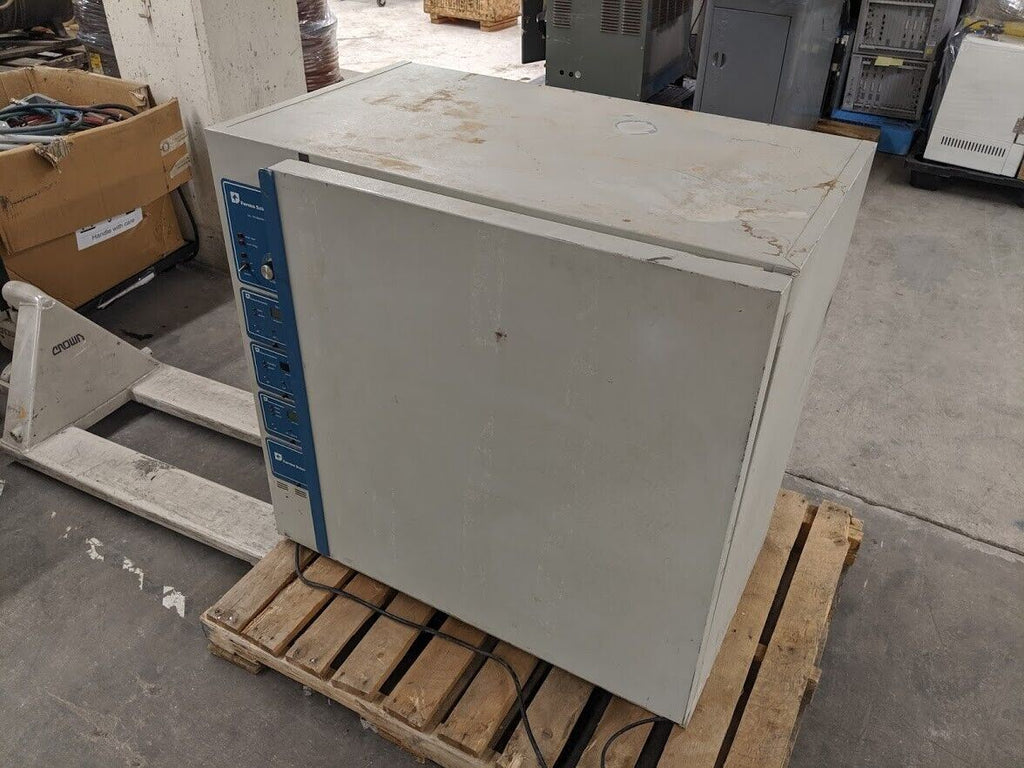

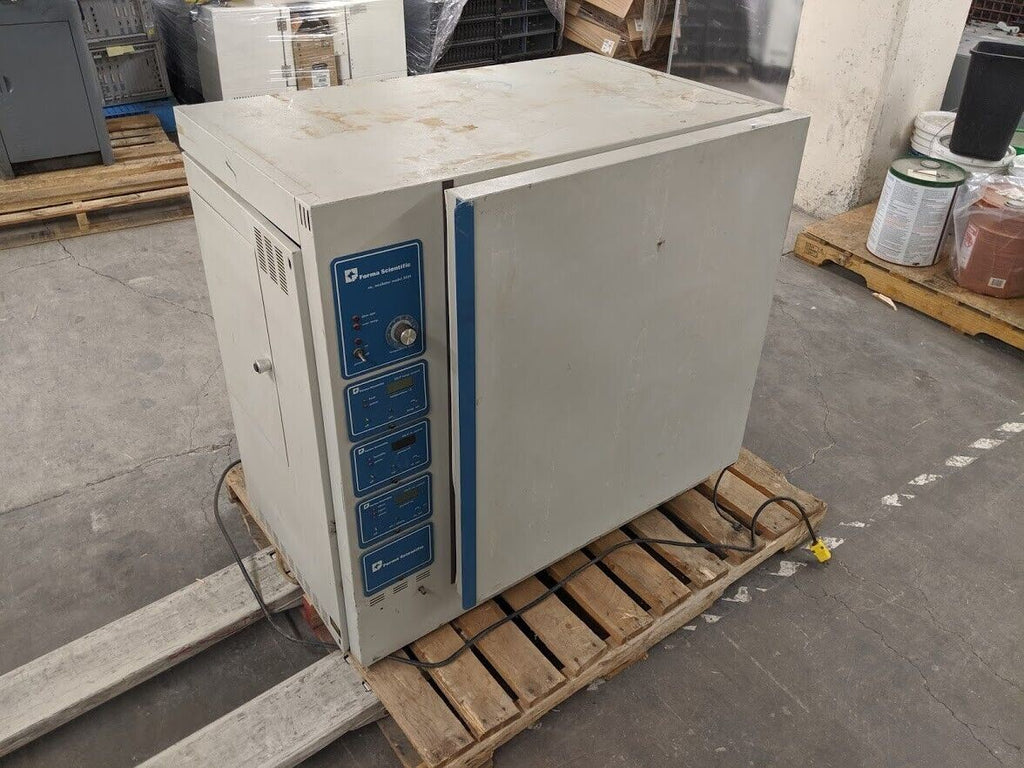

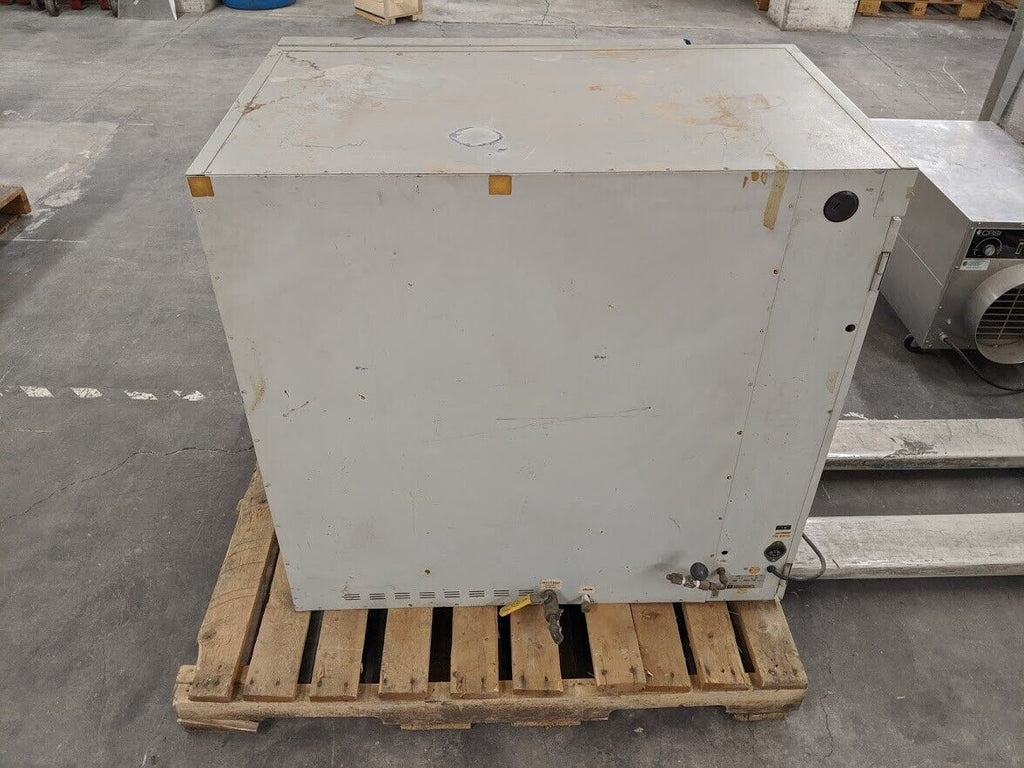

Up For sale is one Hermo / Forma Scientific 3029 Forced Draft CO2 Incubator
Hermo / Forma Scientific 3029 Forced Draft CO2 Incubator 120VAC
$749.99
Description
The Forma Scientific Forced Draft CO2 Incubator Model 3029 is a large-sized heating laboratory incubator. Temperature control up to 60C. CO2 control up to 20%. Humidity control up to 96%. It has two doors to allow quick inspection of contents.DESIGN HIGHLIGHTS
• Removable stainless steel interior to facilitate cleaning.
• 1.3" access port is provided through the chamber wall.

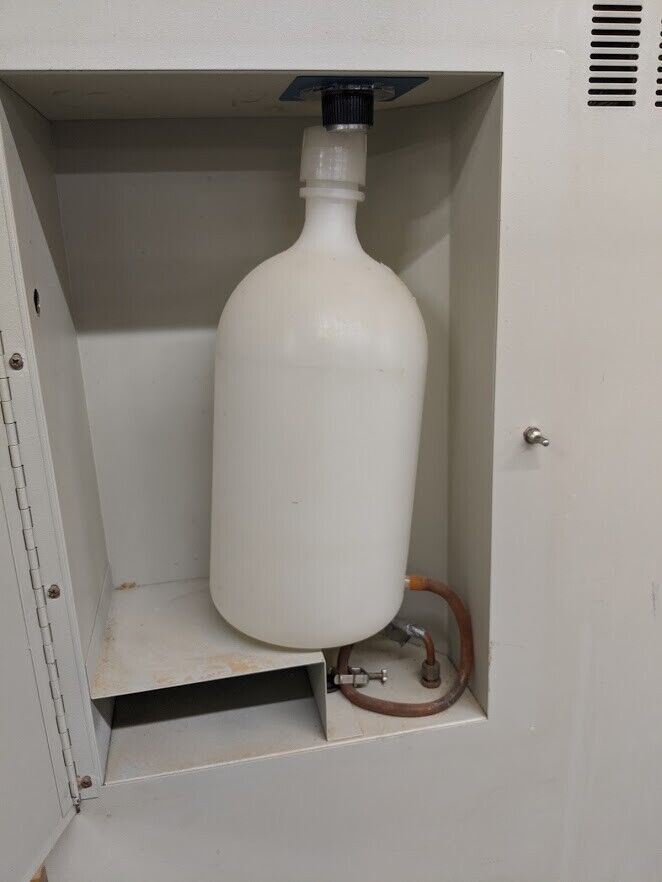

• Automatic water level control keeps humidity reservoir filled with water (sterile distilled water recommended)
from a one gallon holding bottle.
• Humidification system may also be connected to a laboratory water system for continuous supply.
• Heated outer door with independent control minimizes condensation on inner glass door.
CH/P® ELECTRONICS
• Separate modules with solid-state CH/P electronics for temperature, CO2 and
humidity display chamber conditions at all times in easy-to-read LCD.
• Setpoints can be recalled at the touch of a button.
• Independent CH/P module controls CO2
from 0-20%.
• Audible/visual alarm indicates CO2 deviation of one percent or more above or below
setpoint.
• Independent overtemperature safety/alarm activates audible and visual signals
when chamber temperature exceeds limits.
• Humidity controller computes temperature and moisture values and determines
amount of heat needed to maintain humidity setpoints.
• RH control from above ambient to 96% can be set and displayed. When less than
85% RH is desired in the top chamber, a stacking adapter is required.

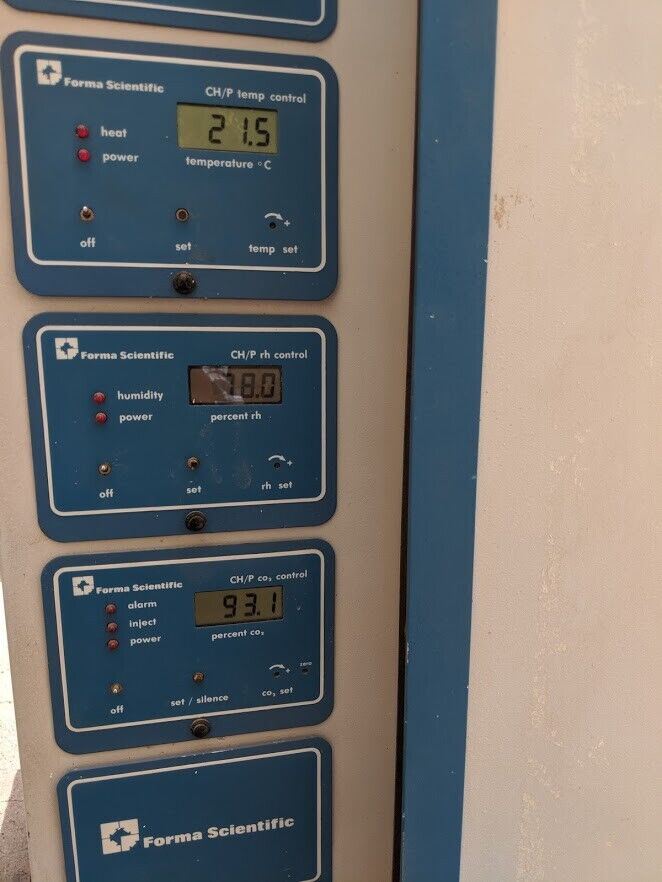

CH/P control module maintains temperature, humidity, and CO2 levels with solid state electronics. Main control includes add water, door ajar, overtemperature and power indicator lights, power switch and overtemperature safety limit. Individual modules include CH/P temperature, humidity and CO2 control with LCD digital readout, function and power indicator lights, and setpoint adjustment. CO2 module includes an alarm silence button.
Temperature
Control ±0.1°C @ +37°C (98.6oF)
Range +4°C above ambient to +60°C (140°F)
Sensor Transistor
Controller Electronic proportional
Setpoint Tamper resistant screwdriver adjust
Display Digital LCD
Readability 0.1°C
Setability 0.1°C
Uniformity ±0.2°C
Temperature Alarm
Sensor Thermostat
Controller Thermostat
Setpoint Analog reference dial
Alarm Audible/visual
CO2
CO2 Gas Control ±0.1%
Range 0-20%
Inlet Pressure 10 PSIG (.7 bars)
Filter 0.2 Micron, disposable
Sensor Thermal conductivity
Controller Electronic, digital
Setpoint Tamper resistant screwdriver adjust
Display Digital LCD
Readability 0.1%
Setability 0.1%
Alarm Differential ±1.0% (nominal) for approx. 4 min.
and Delay
Humidity
Humidity Control ±5.0%
Range To 96% in 1% increments (low limit
is a function of ambient)
Performance: 50% to 96% at +60oC
(140oF), 70% to 96% at +37oC (98.6oF)
Sensor Transistor
Controller Electronic proportional
Setpoint Tamper resistant screwdriver adjust
Display Digital, LCD
Readability 1.0%
Setability 1.0%
Humidity Reservoir 1.0 gal. (3.75 liters)

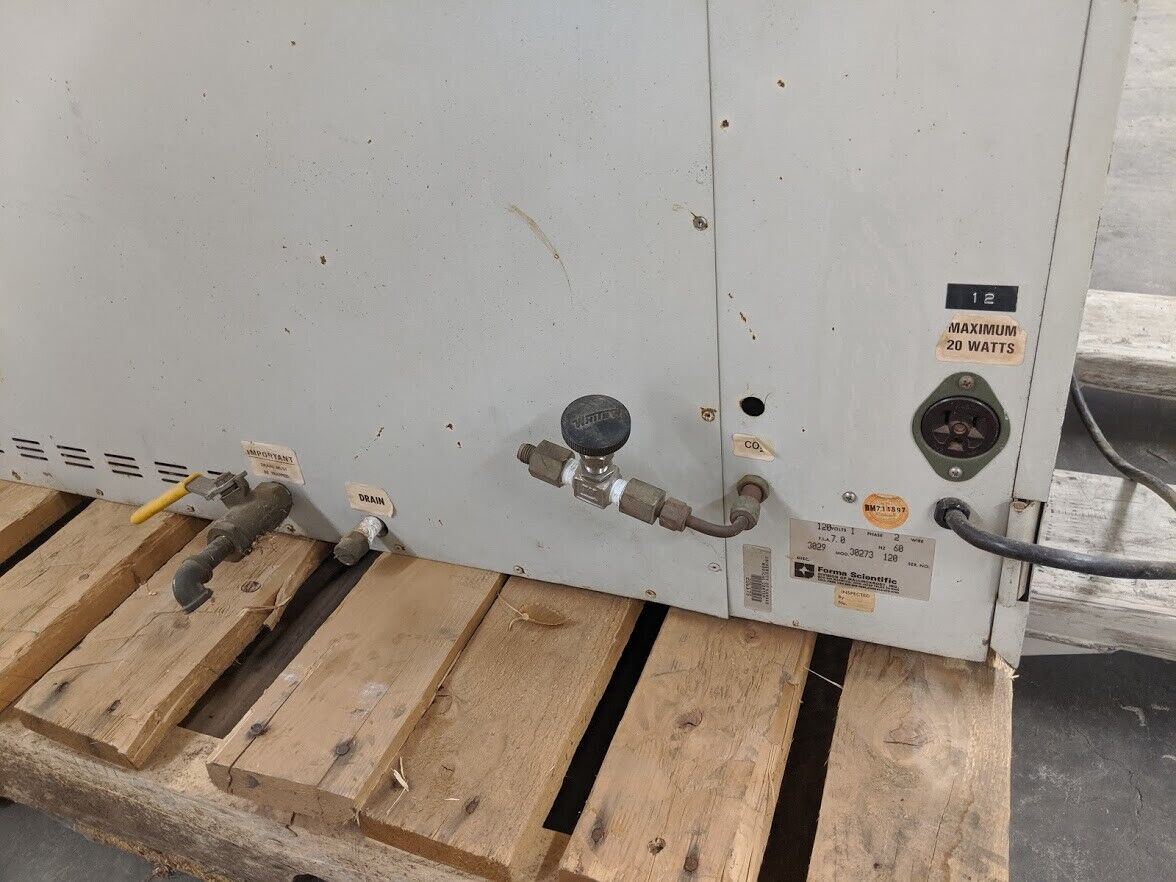

Fittings
Overflow 1/4" MPT capped
Drain Port 1/4" FPT with valve
Access Port 1.30" (3.30cm) with neoprene
removable plug
CO2 Inlet 1/4" compression fitting
Unit Heat Load
120V 750 BTUH (220 Watts)
230V 880 BTUH (260 Watts)

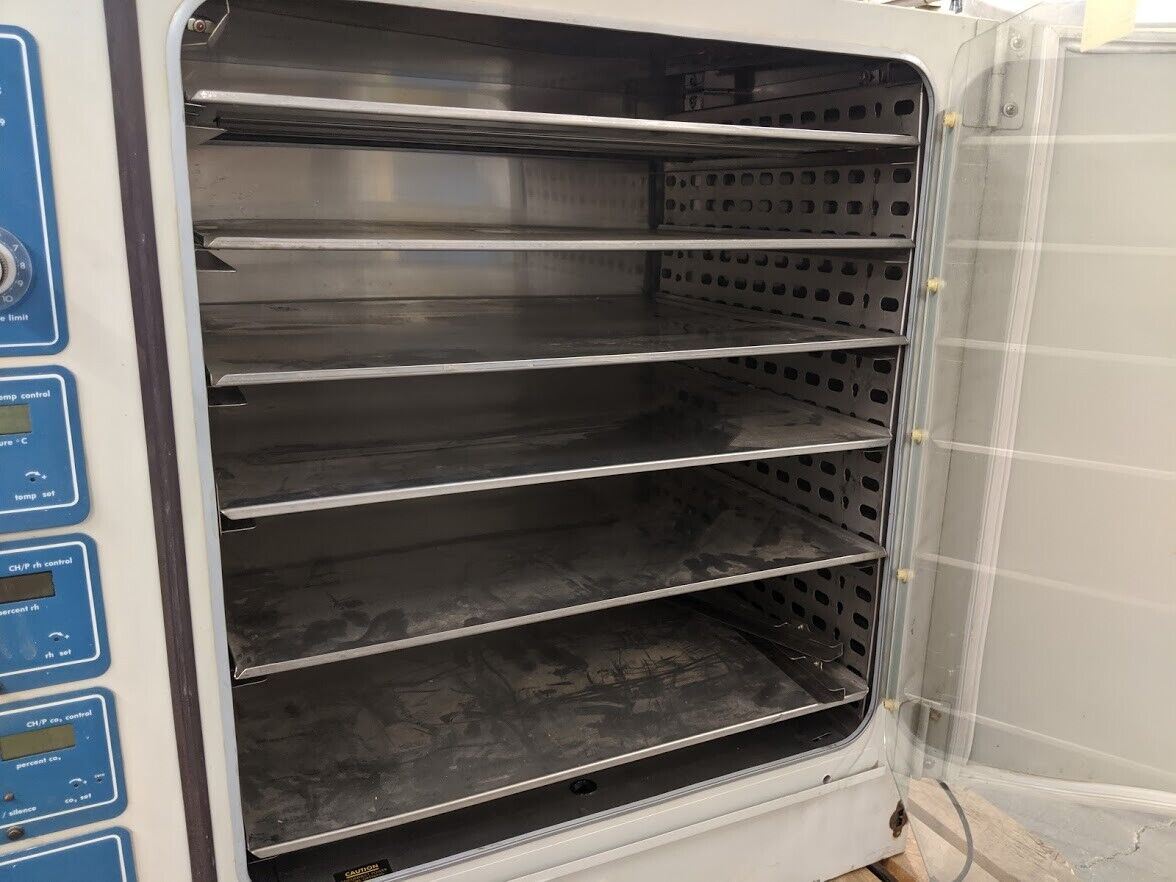

Shelves
Standard 6
Maximum 20
Dimensions 26.50"W x 21.50"F-B
(67.31 cm x 54.61 cm)
Construction Solid stainless steel
Surface Area 3.72 sq. ft. (0.345 sq. m) per shelf
Max. Per Chamber 74.4 sq. ft. (6.9 sq. m)
Clearance Adjustable on 1.0" (2.54cm) centers
Loading 35 lbs. (16 Kg) (slide in and out)
50 lbs. (23 Kg) (stationary)
Construction
Volume 10 cu. ft. (283 liters)
Interior 304 2B stainless steel
Exterior Cold rolled steel
Insulation 2" (5.1cm) fiberglass in door
1" (2.54cm) urethane in chamber
Inner Door 1/4" (0.62cm) Fully tempered
safety glass with cam action latch
Inner Door Gasket Non-porous feather edge silicone
Outer Door Gasket Four sided molded magnetic vinyl
Finish Powder coated. Salt spray test exceeds
1,000 hours per ASTM Standard B117-85

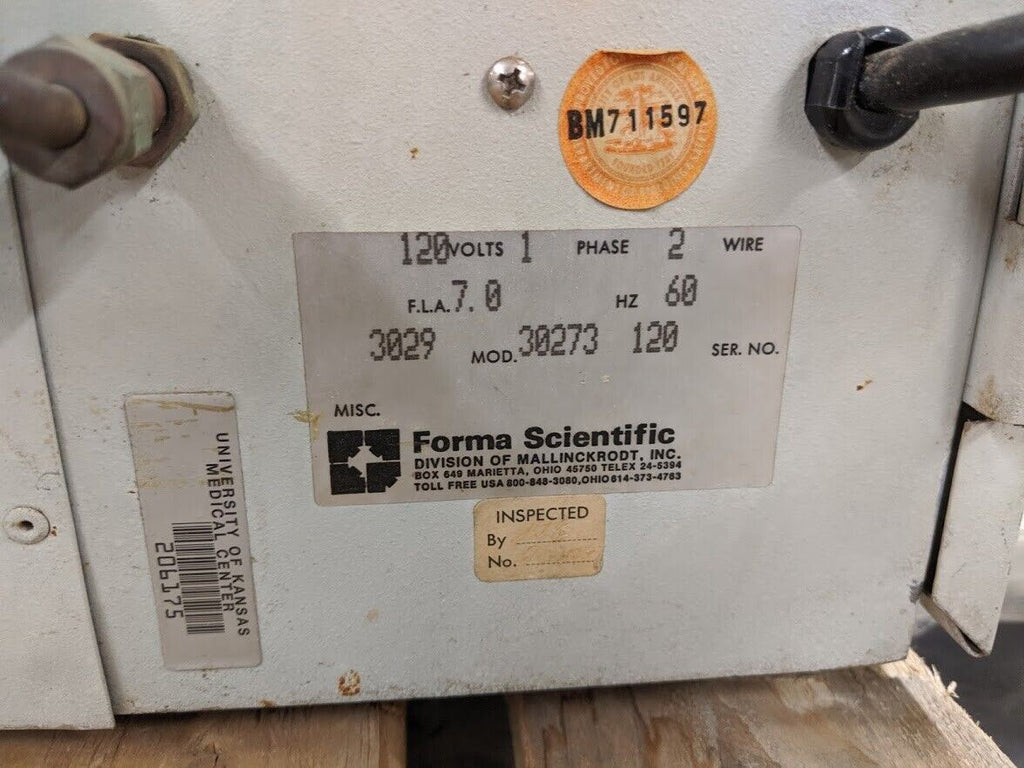

Electrical
3029 95-130 VAC, 60HZ, 1PH, 6.0 FLA
(3039) 190-250 VAC, 50HZ, 1PH, 3.0 FLA
Power Switch 2 Pole

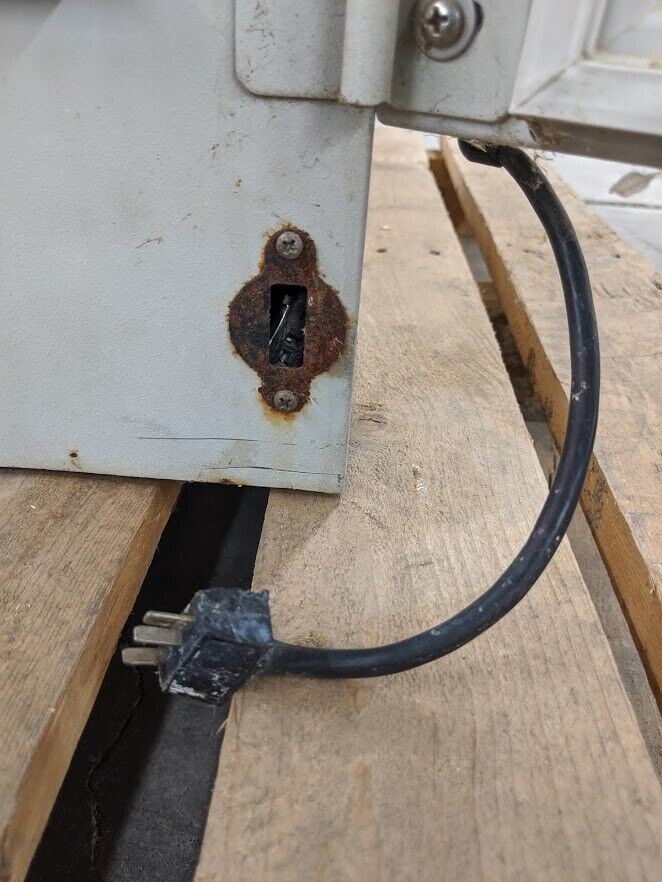

Line Cord 8 ft. hospital grade plug
Accessory Outlet 120V (20 Watts max.)
Certification
CSA Standard C22.2 No. 151 (except 3039)
Dimensions
Exterior 40.00"W x 38.50"H x 26.00"F-B
(101.60 cm x 97.79 cm x 66.29 cm)
Interior 26.90"W x 29.50"H x 21.81"F-B
(68.33 cm x 74.93 cm x 55.40 cm)
Weights
Net Operational 310 lbs. (141 Kg)
