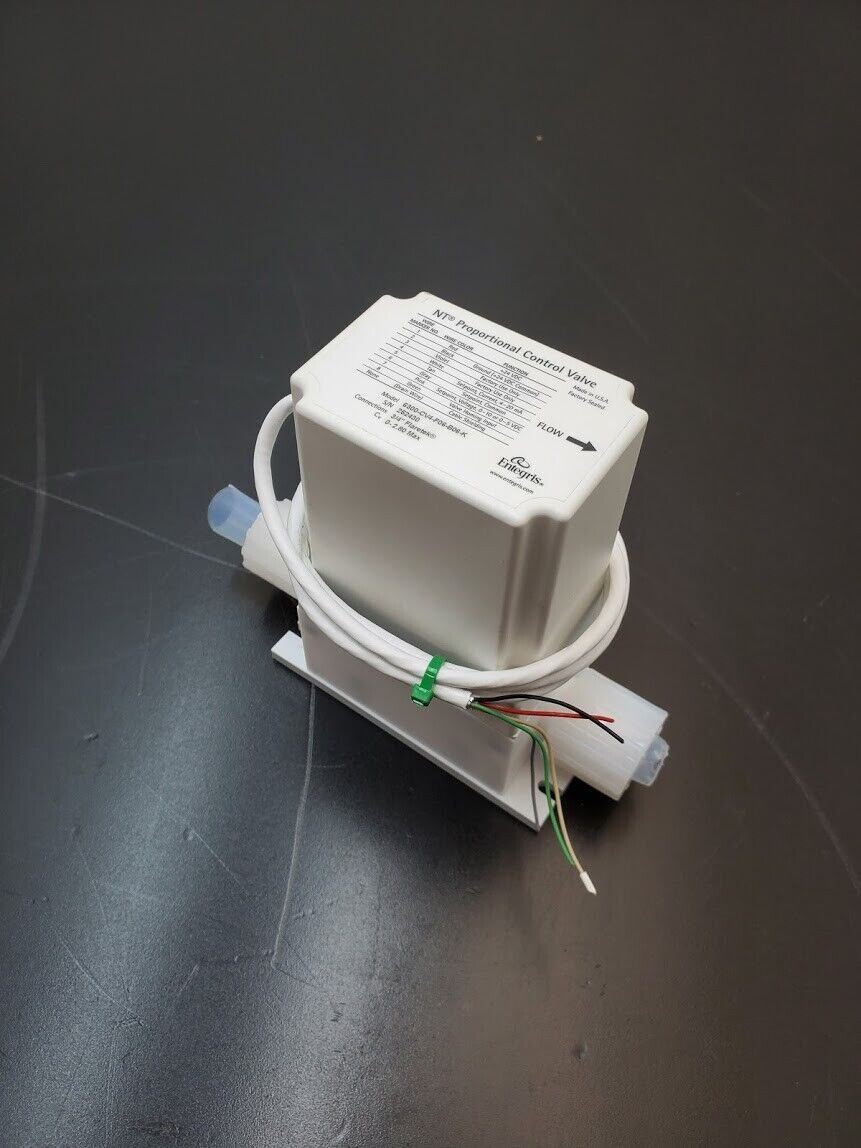

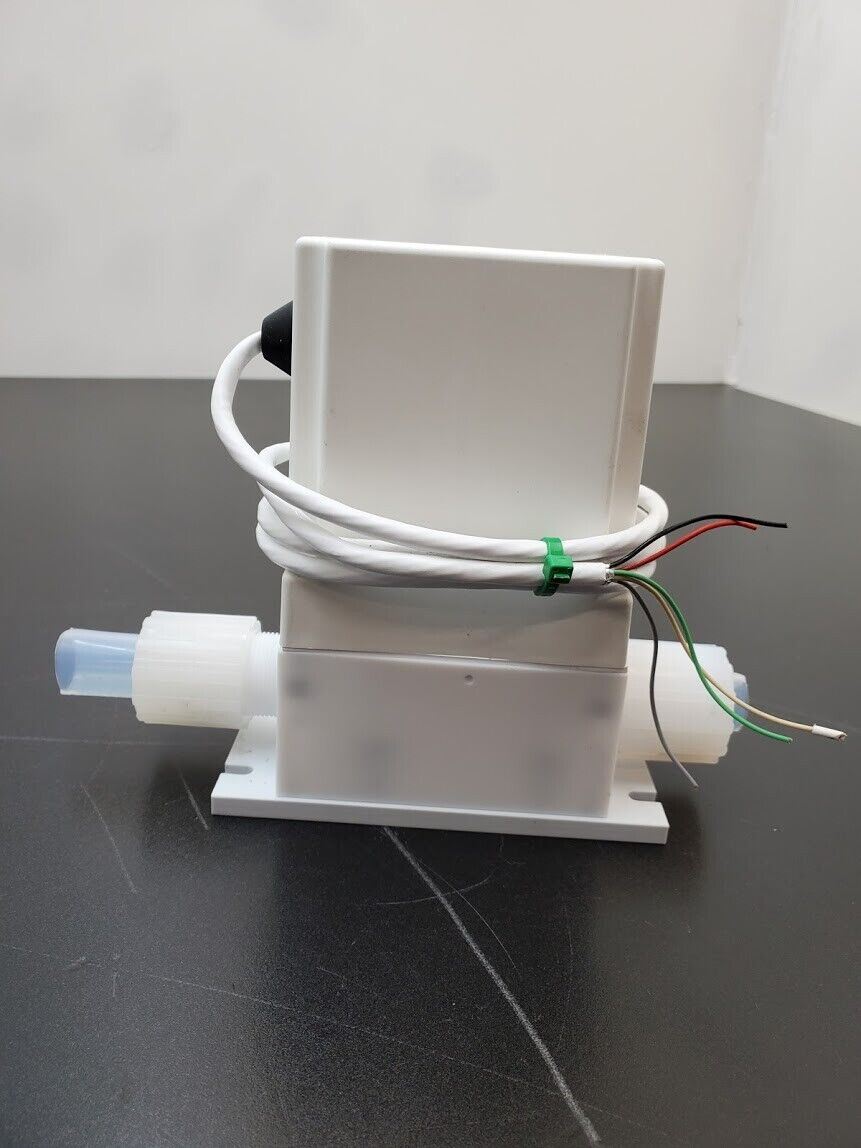

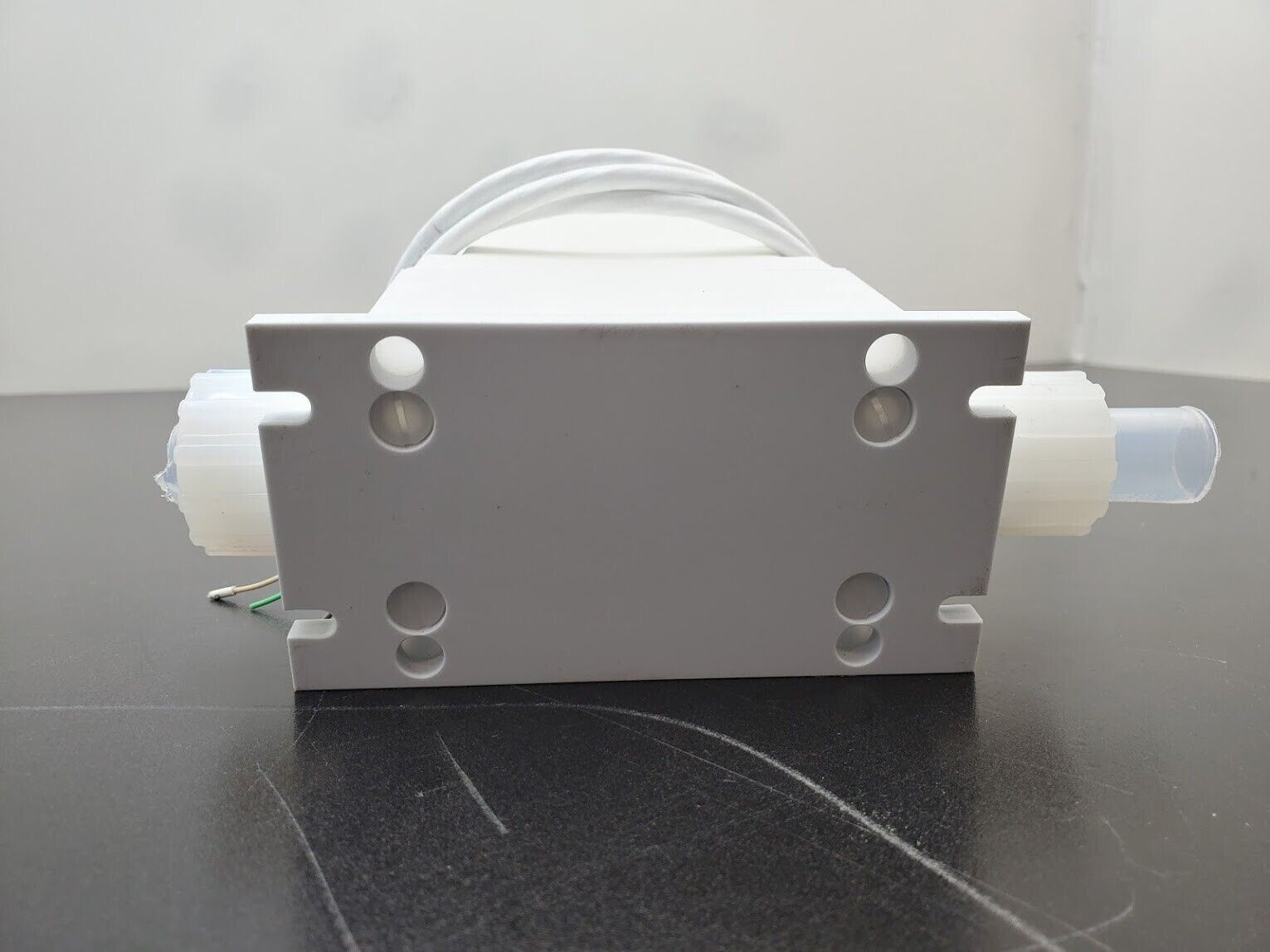

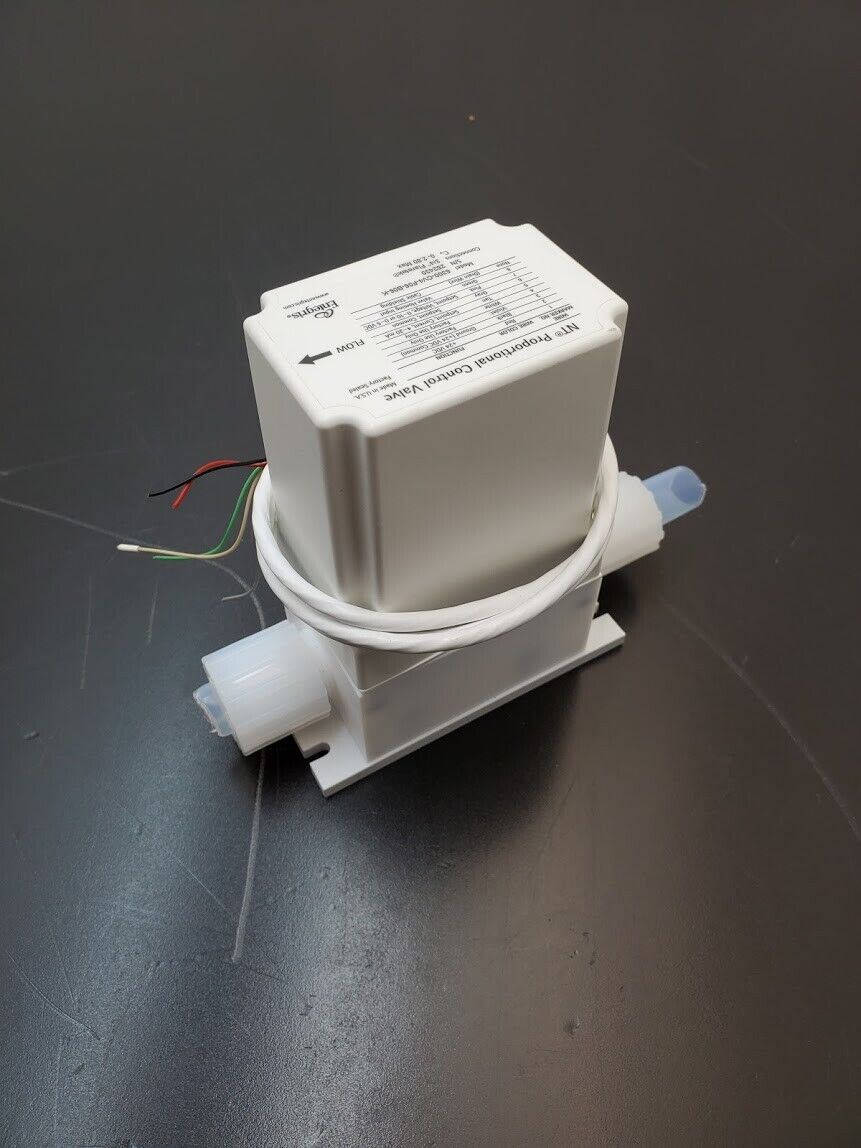

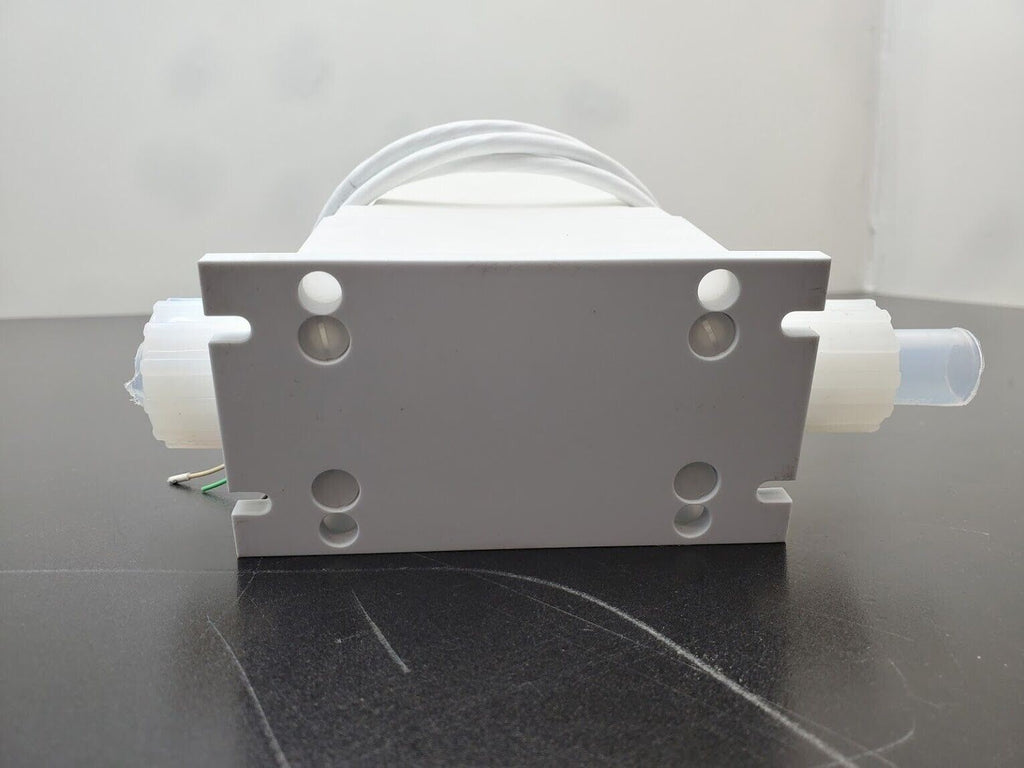

Entegris NT Proportional Control Valve 6300-CV4-F06-B06-K 3/4" Flaretek 0-2.8Cv
$999.99
Entegris NT Proportional Control Valve 6300-CV4-F06-B06-K 3/4" Flaretek 0-2.8Cv
Good used condition, pulled from working surplus machinery.
This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel Free to contact us with any questions
Thank you for your interest and have a great day!
Pulled from the Entegris User Guide here:
entegris.com/content/dam/shared-product-assets/sensing-and-control/userguide-nt-proportional-control-valve-model-6300-6260.pdf

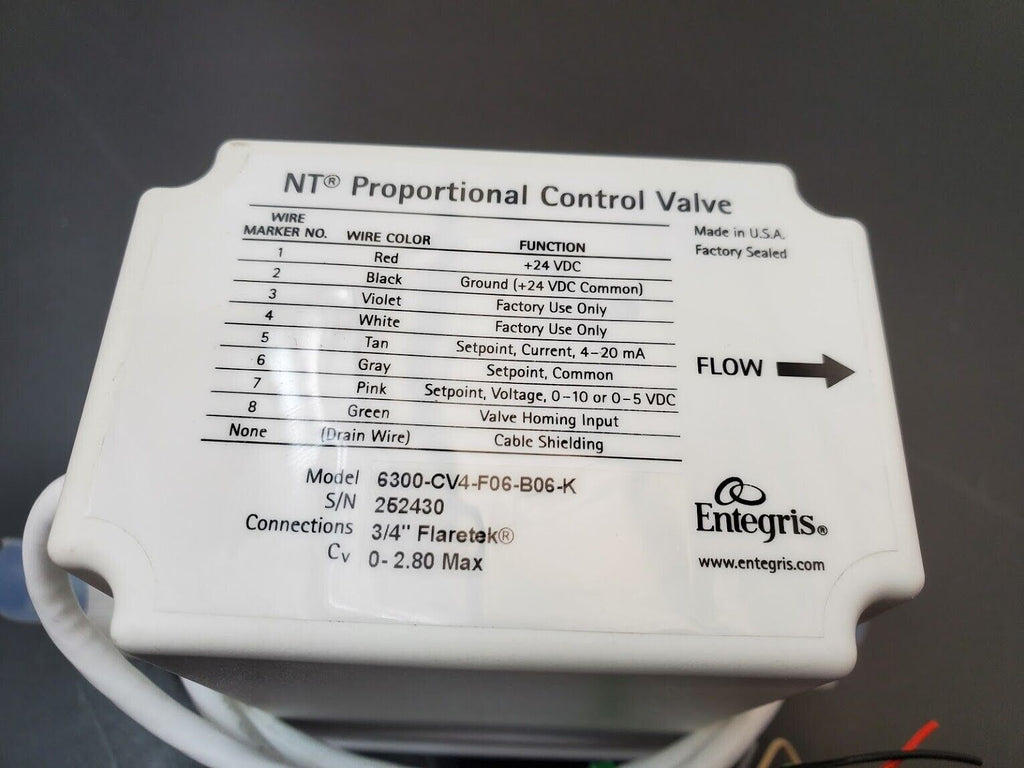

part number breakdown:
6300 - Base model
CV4 - 2.80 maximum CV (only F06/ W06)

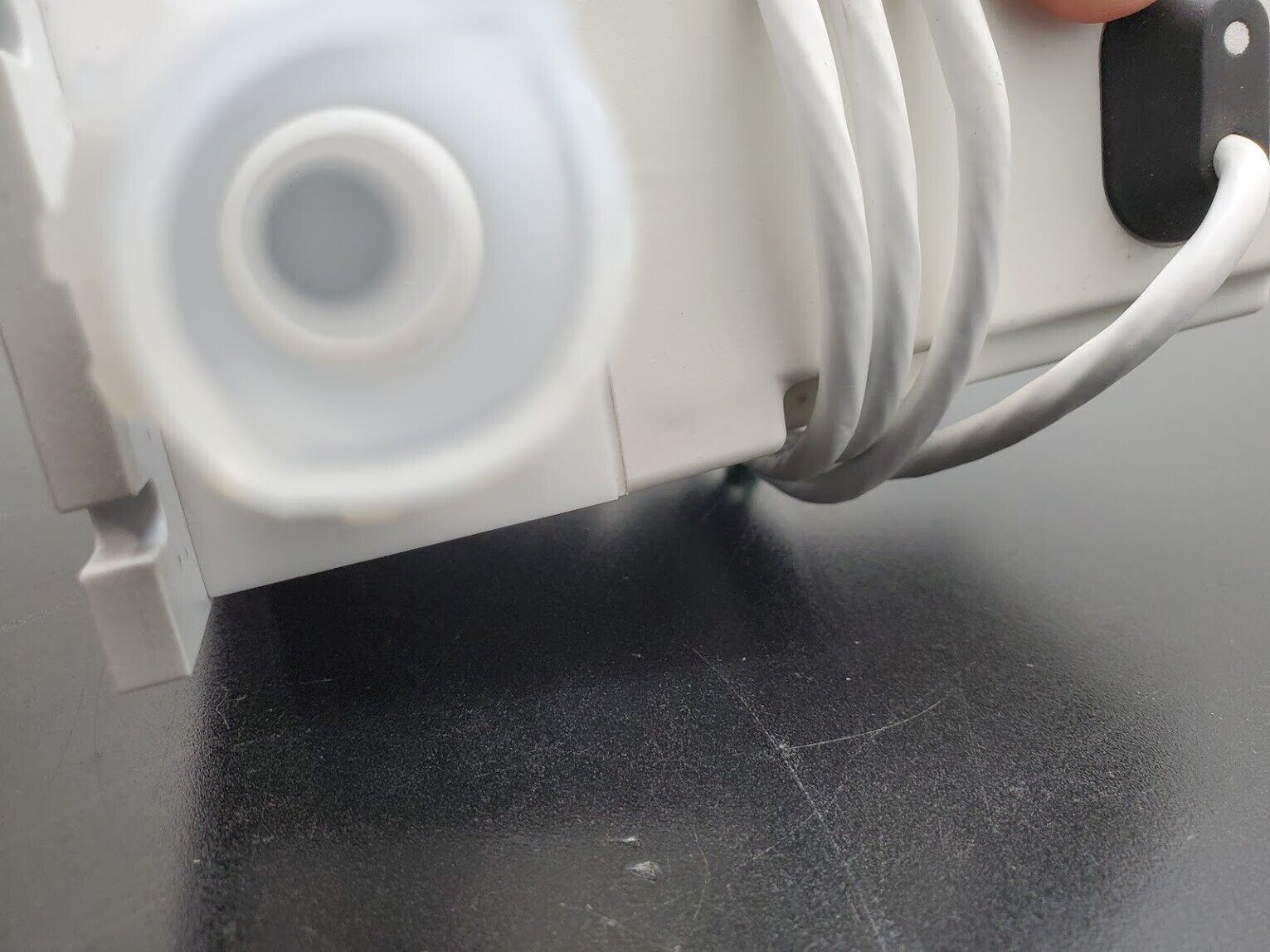

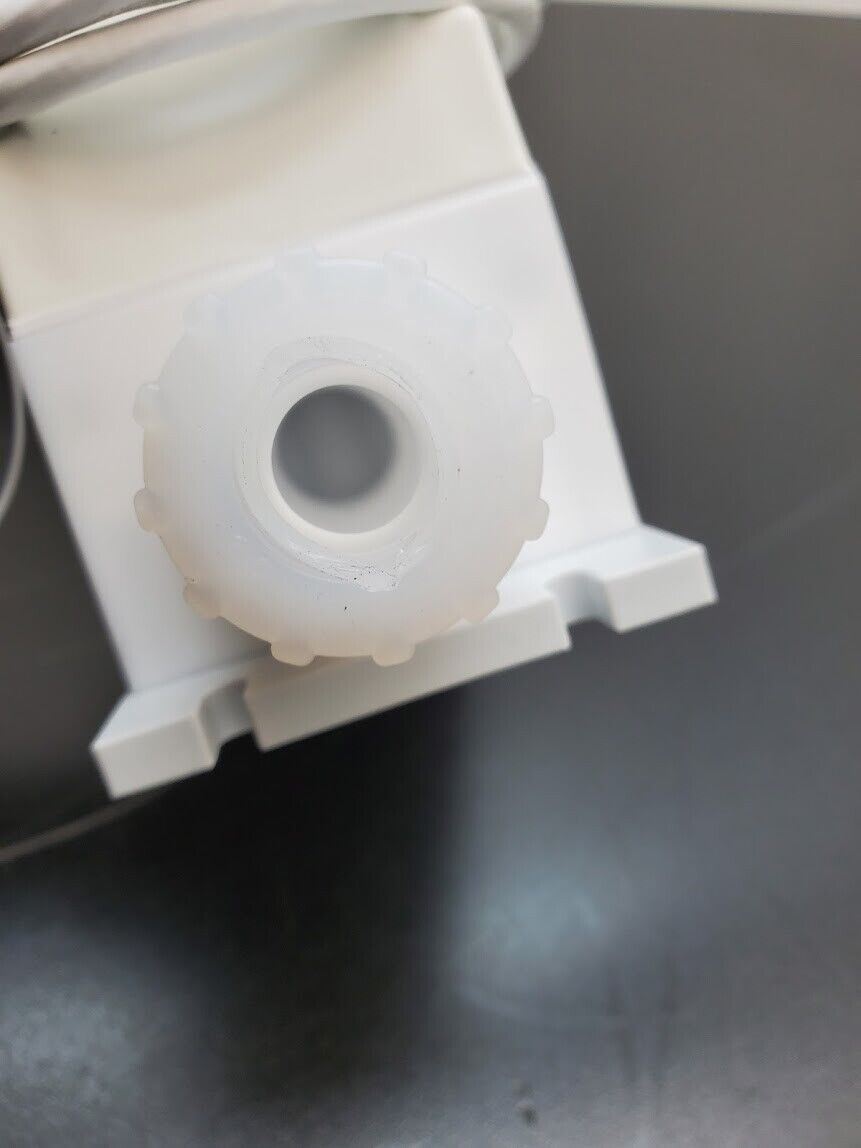

F06 - 3⁄4” Flaretek tube fitting

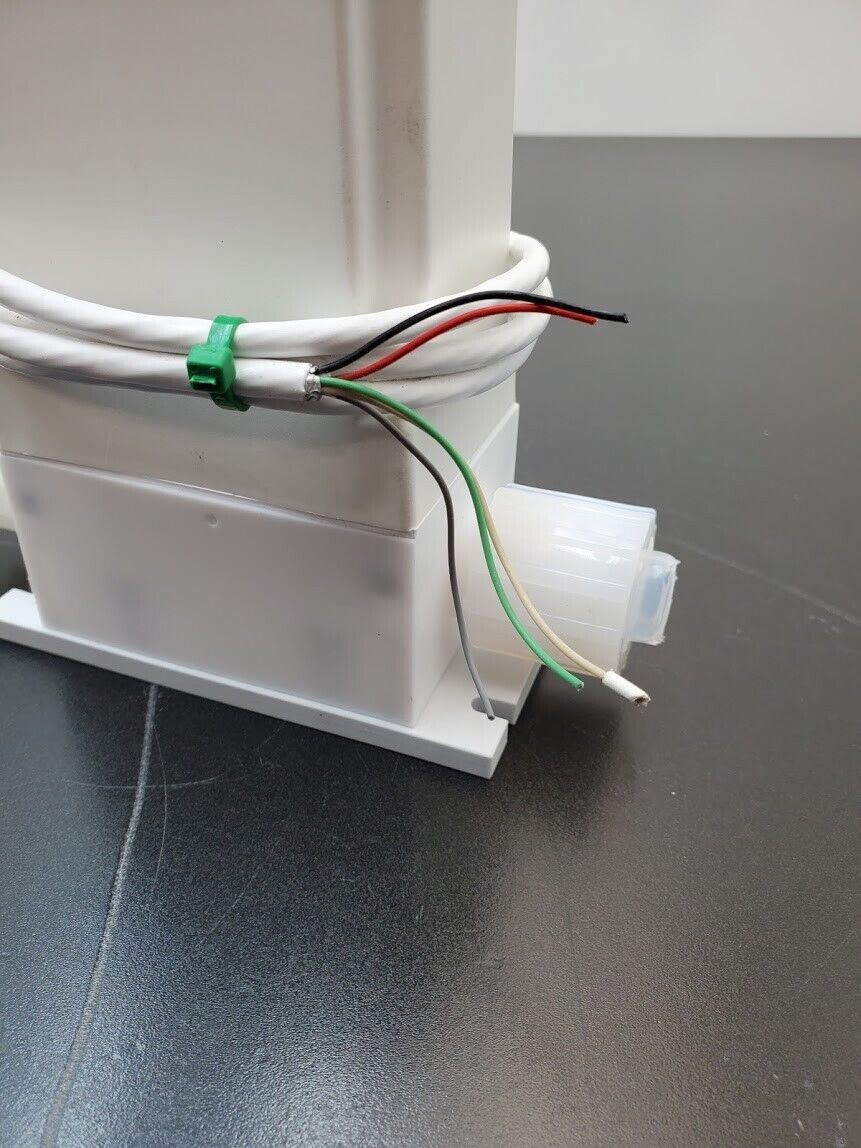

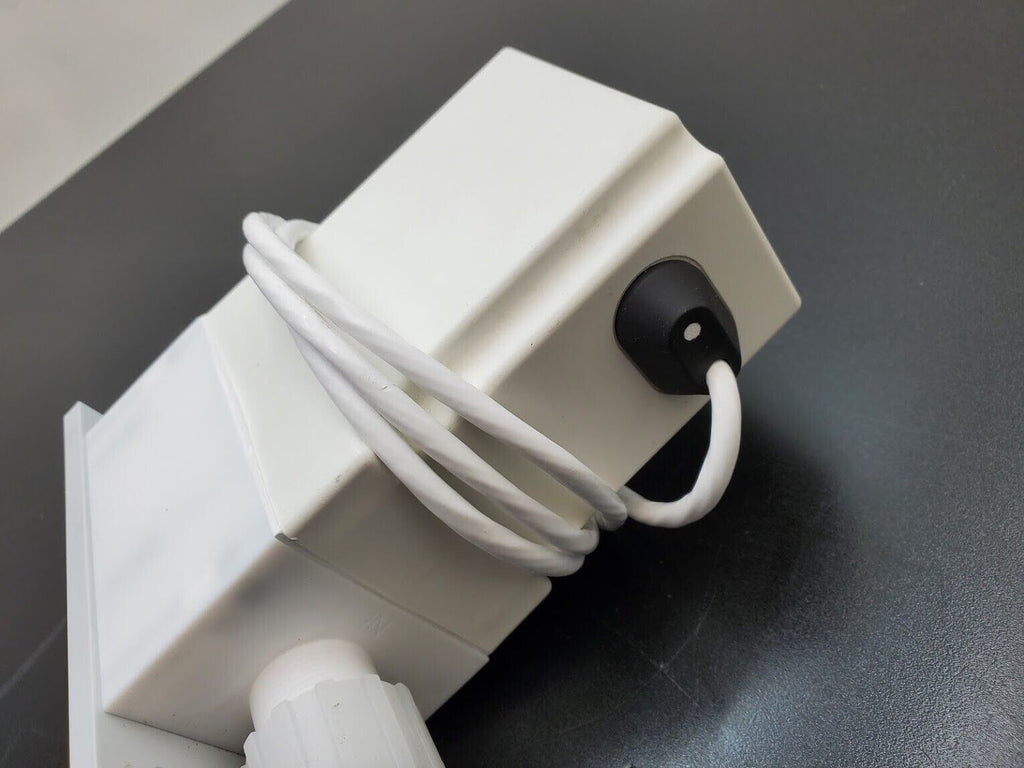

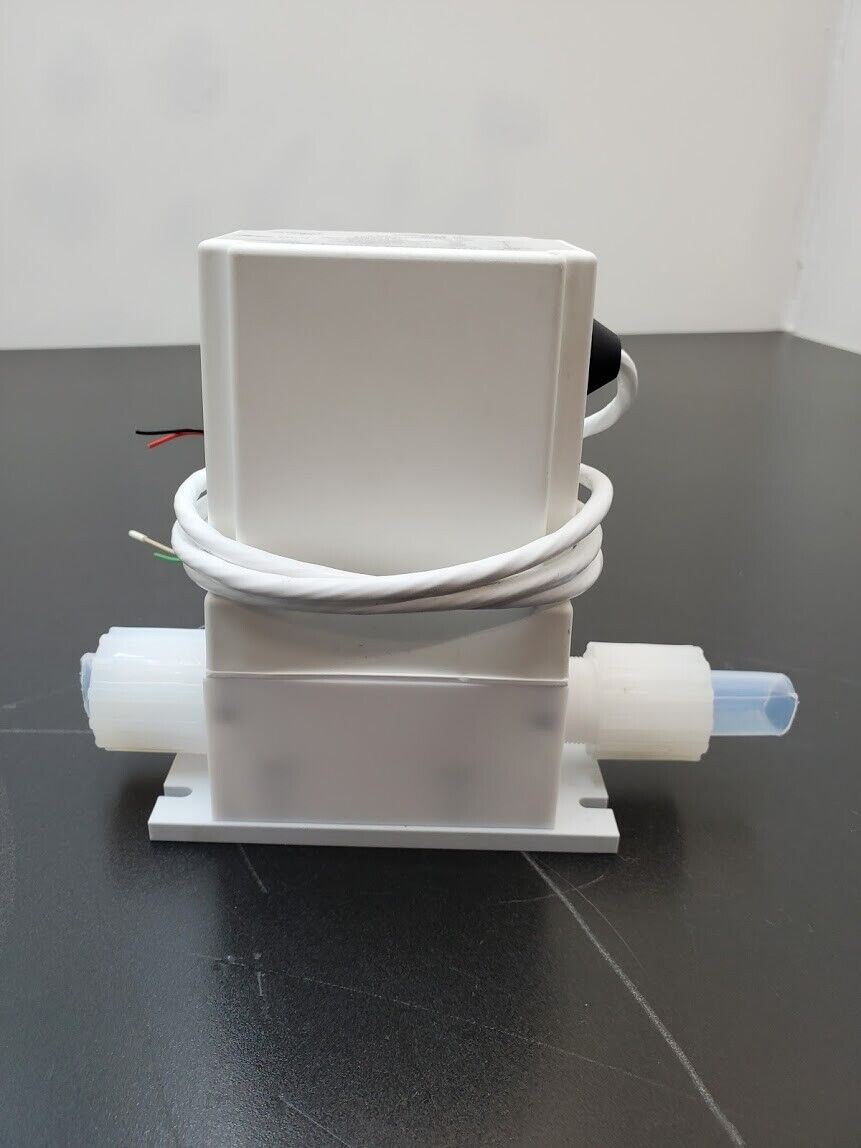

B06 - Likely just a shorter version of: (B12) FEP-jacketed 12’ pigtail electrical cable, this unit has about a 4' teflon jacketed cable as pictured.
K - 4–20 mA Setpoint Input Signal
PHYSICAL SPECIFICATIONS
—
Materials of
construction
Wetted parts Body and diaphragms PTFE or PFA
Nonwetted parts Polypropylene, Viton® , PVDF
Response time CV1 – CV4 <2 seconds from 5 – 95% full scale
CV7 – CV8 <4 seconds from 5 – 95% full scale
Pressure range* -14.5 to 60 psig
(CV1 – CV4)
-14.5 to 80 psig
(CV7 – CV8)
Over pressure limit 100 psig
Process temperature** 10° to 65°C (50° to 149°F)
Setpoint input signal 4–20 mA, 0–10 VDC, 0–5 VDC; separate homing line
also included
Enclosure NEMA 5/IP54
Connection type*** Flaretek tube fitting and Pillar Super 300 tube fitting
Approvals
Note: Preliminary specifications and features subject to change.
* Please consult the factory for pressure ranges from 60 to 80 psig.
** Please consult the factory for temperatures from 65° to 80°C (149° to 176°F).
*** For PrimeLock® connections and other options not listed, please contact Entegris.
ELECTRICAL SPECIFICATIONS
—
Input voltage 24 VDC ±10%, regulated
Input current 1.0 A nominal, 1.2 A peak
Impedance of setpoint input (voltage) 37 kOhm
Voltage drop, current setpoint input <4.6 volts @ 20 mA @ 230 ohm
Electrical connection FEP or PVC-jacketed cable
