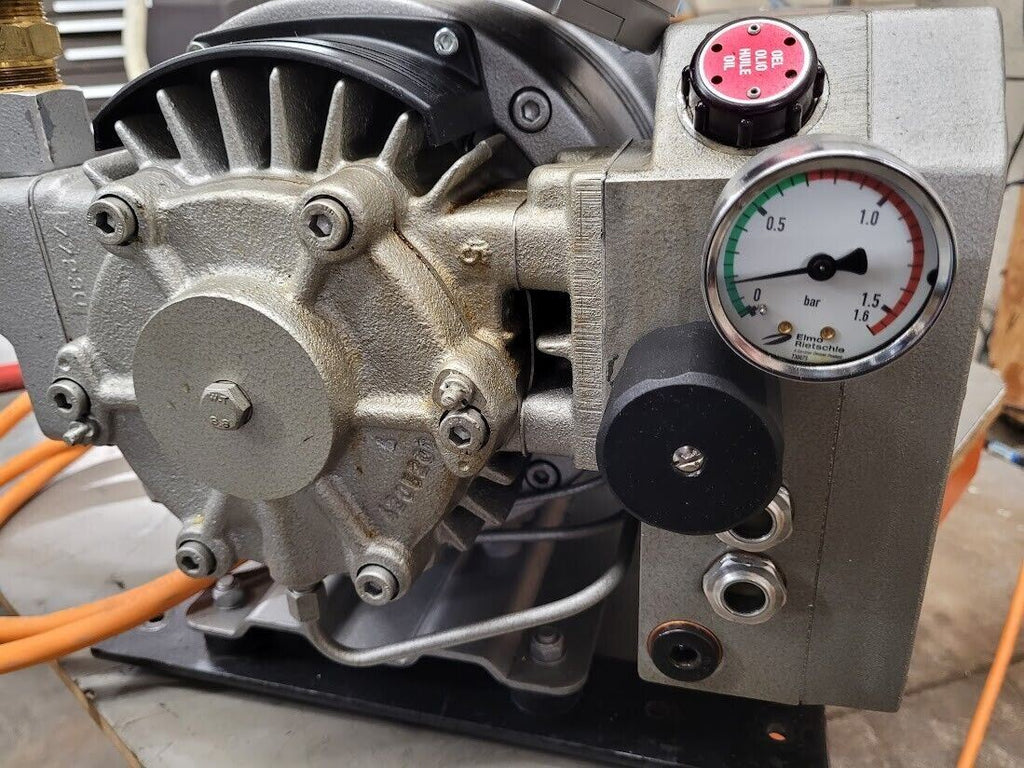

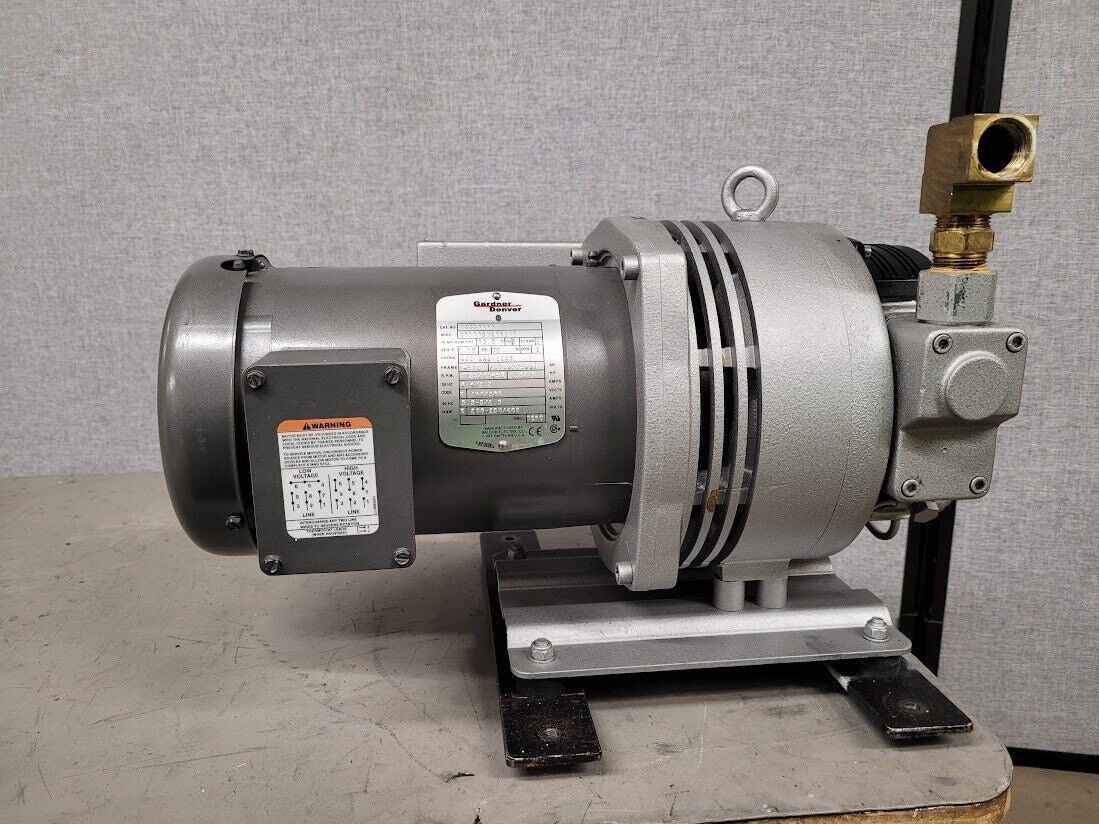

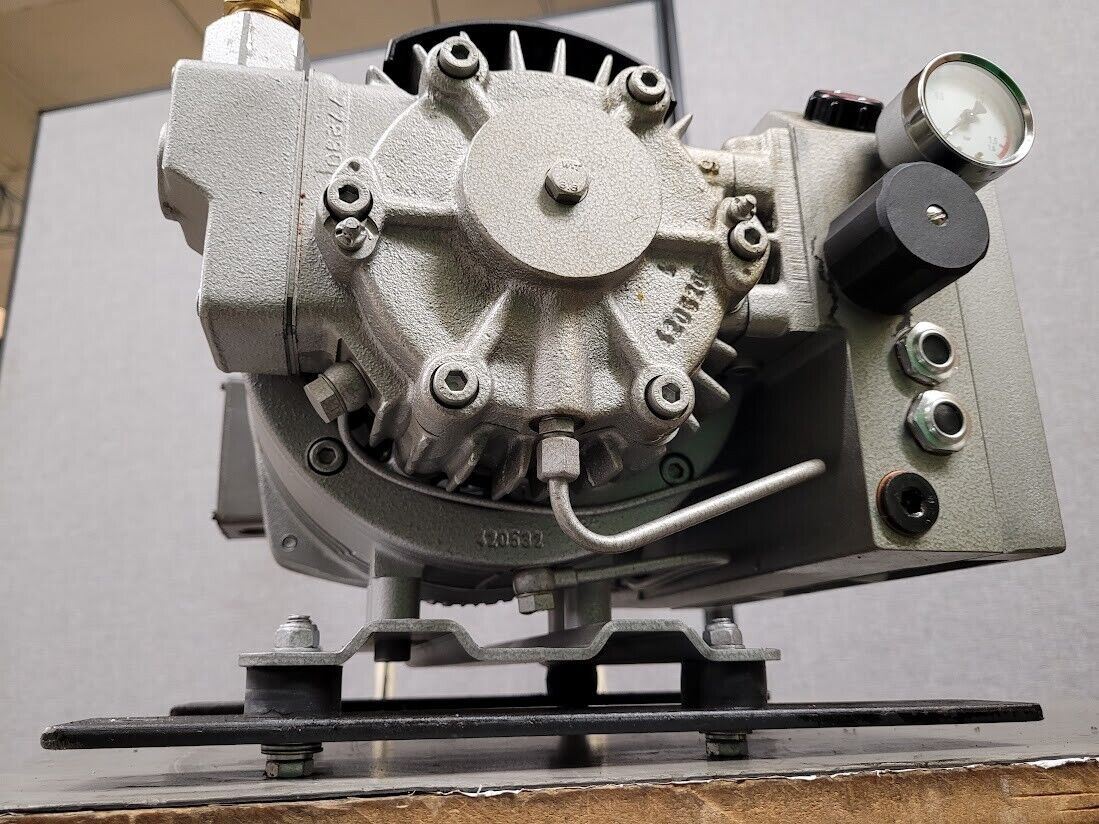

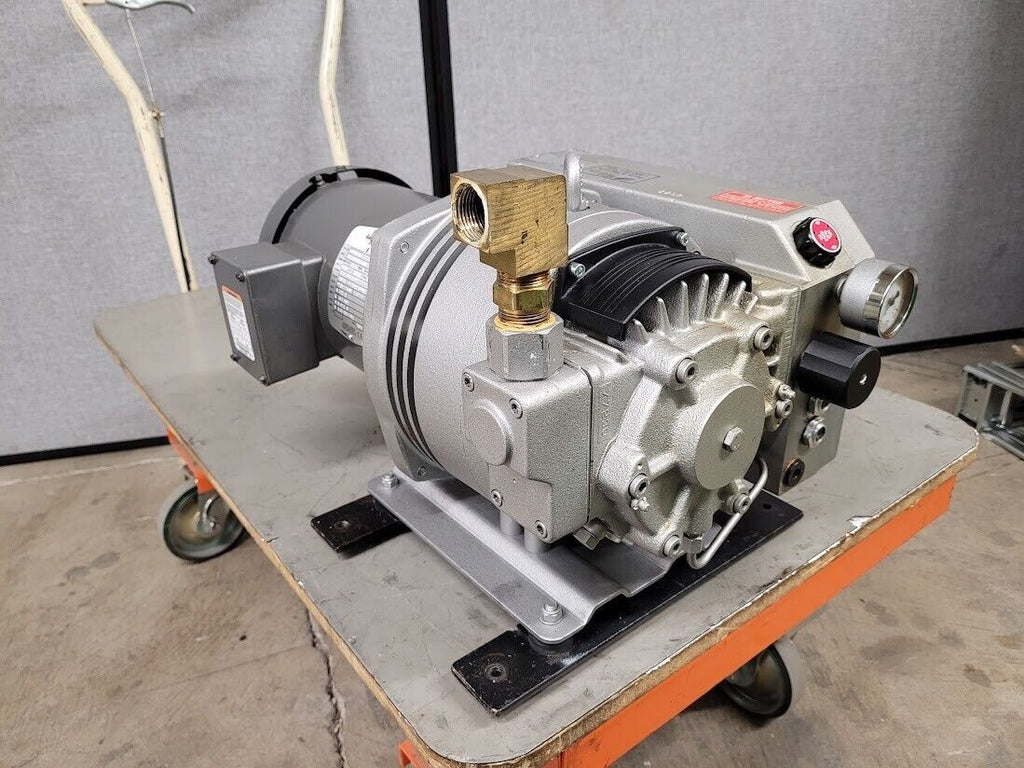

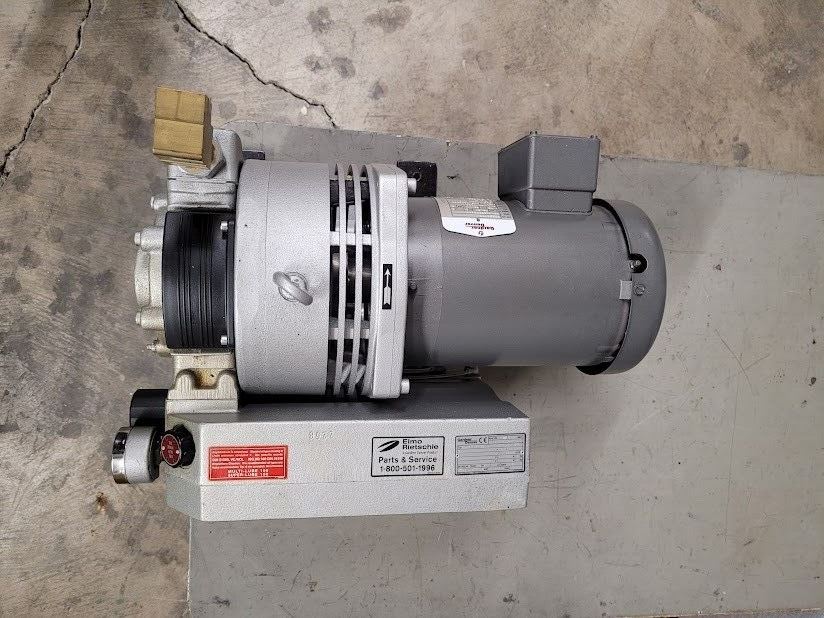

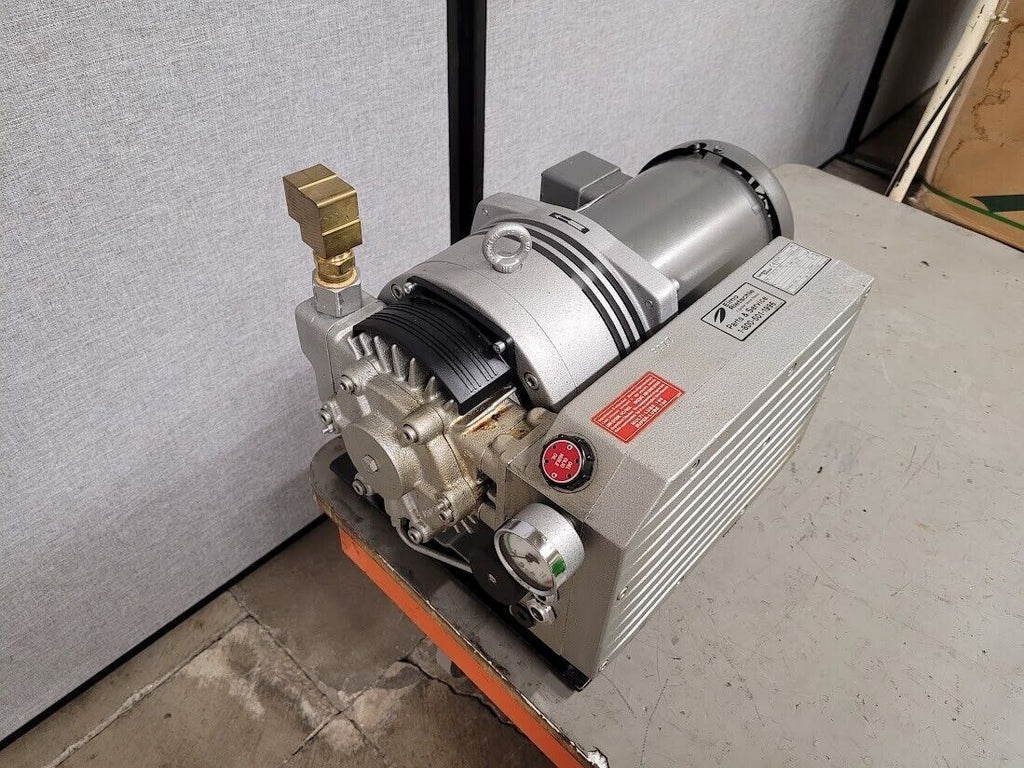

Elmo Rietschle Gardner Denver VCE-25 Rotary Vane Vacuum Pump 1.5HP 3PH 230/480V
$2,999.99
Elmo Rietschle Gardner Denver VCE-25 Rotary Vane Vacuum Pump 1.5HP 3PH 230/480V

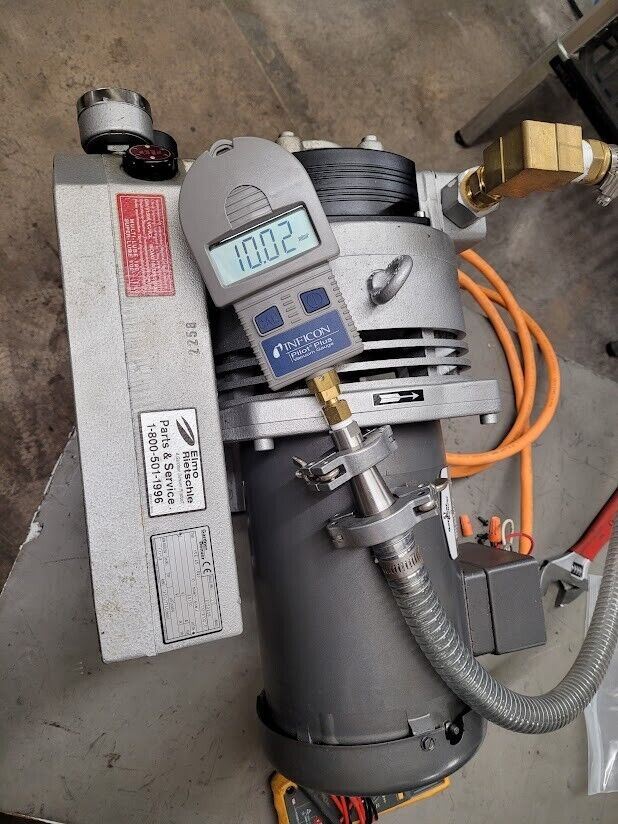

Excellent used condition, pulled from working surplus equipment. Pump powers up and is nice and quiet, runs down to specified vacuum pressure in 10 seconds or so. See video to hear/see in operation.
Technical Specs
- ItemVacuum Pump
- Output Power1.5 hp
- PhaseThree
- Voltage200V AC
- Maximum Flow Rate17.6 cfm

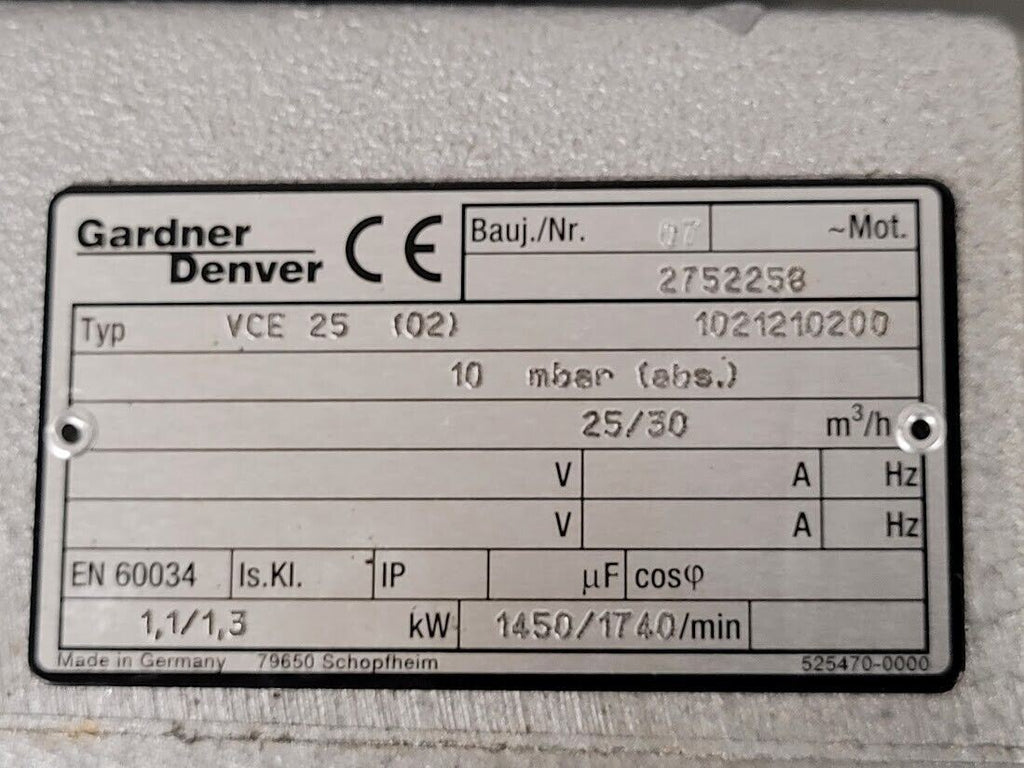

- Maximum Vacuum10 mbar
- Inlet Size3/4 in
- Inlet TypeNPT
- Outlet Size1/2 in
- Outlet TypeBSP
- ApplicationAir, Inert Gas
- Maximum Discharge Pressure10 mbar
- Maximum Operating Pressure29.63 in Hg
- Fluid CompatibilityOil
- Enclosure TypeTotally Enclosed
- Duty CycleContinuous
- Runs DryNo

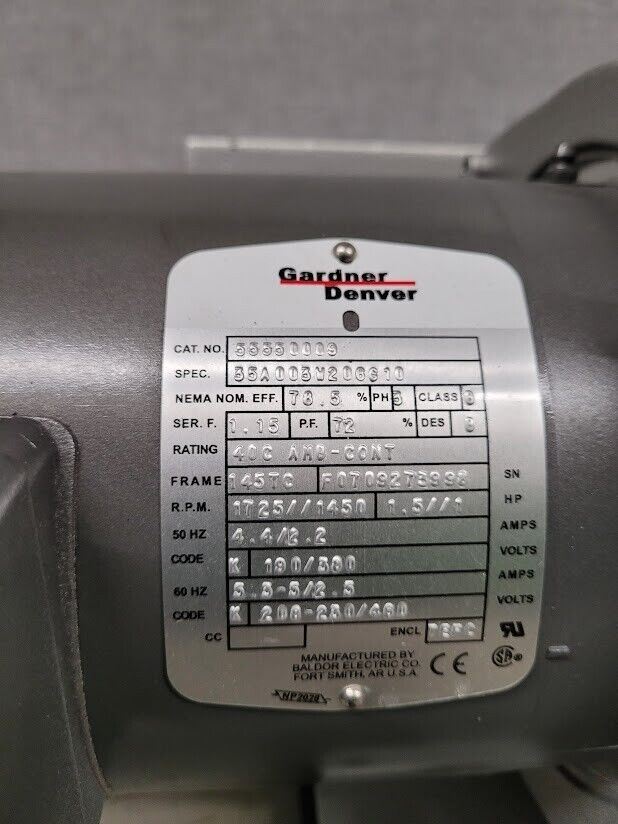

- Current Rating3.5/2.0 A, 5.3-5.0/2.5 A
- Frequency50/60 Hz
- Maximum Speed1,450 RPM, 1,740 RPM
- Sound Level57 dBA, 59 dBA
- Outlet Hose/Tube OD1/2 in
- Overall Length20.37 in
- Overall Width13.12 in
- Overall Height10 in
- Weight100 lb
- Oil Capacity16 oz
- Maximum Operating Temperature40 Degrees C
- Minimum Operating Temperature12 Degrees C
- Valve TypeGas Ballast
- FinishPaint
- Filter TypeInternal
- IncludesOil
- StandardsEN 1012-2:1996+A1:2009
- Pump TypeRotary Vane
This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel free to contact us with any questions
Thank you for your interest and have a great day!
