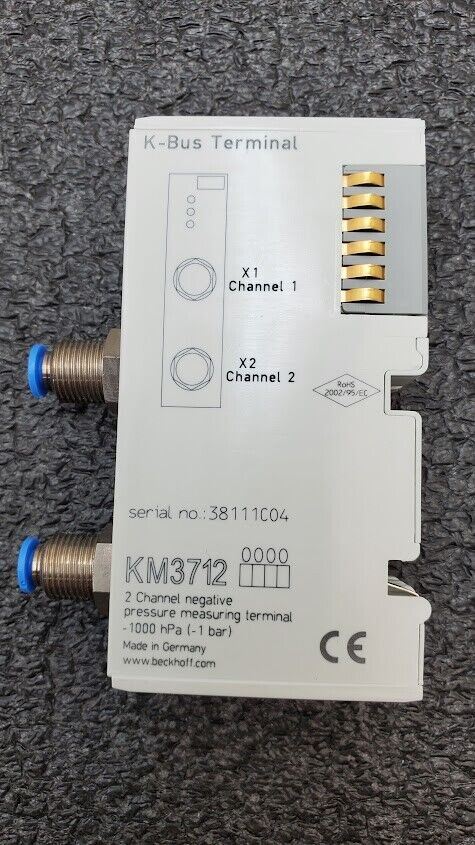

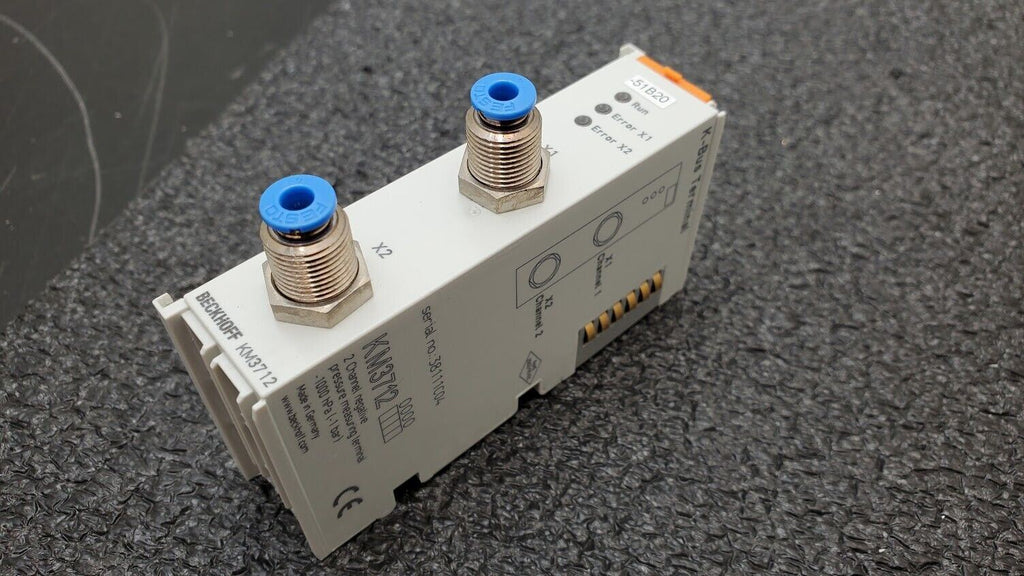

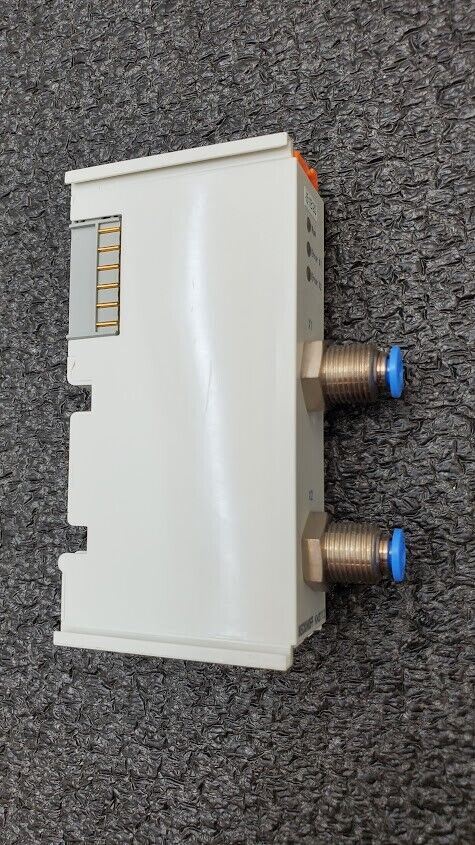

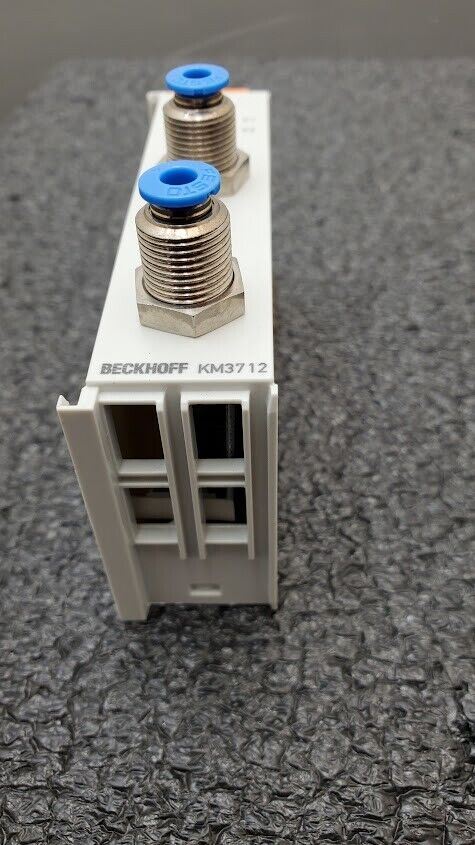

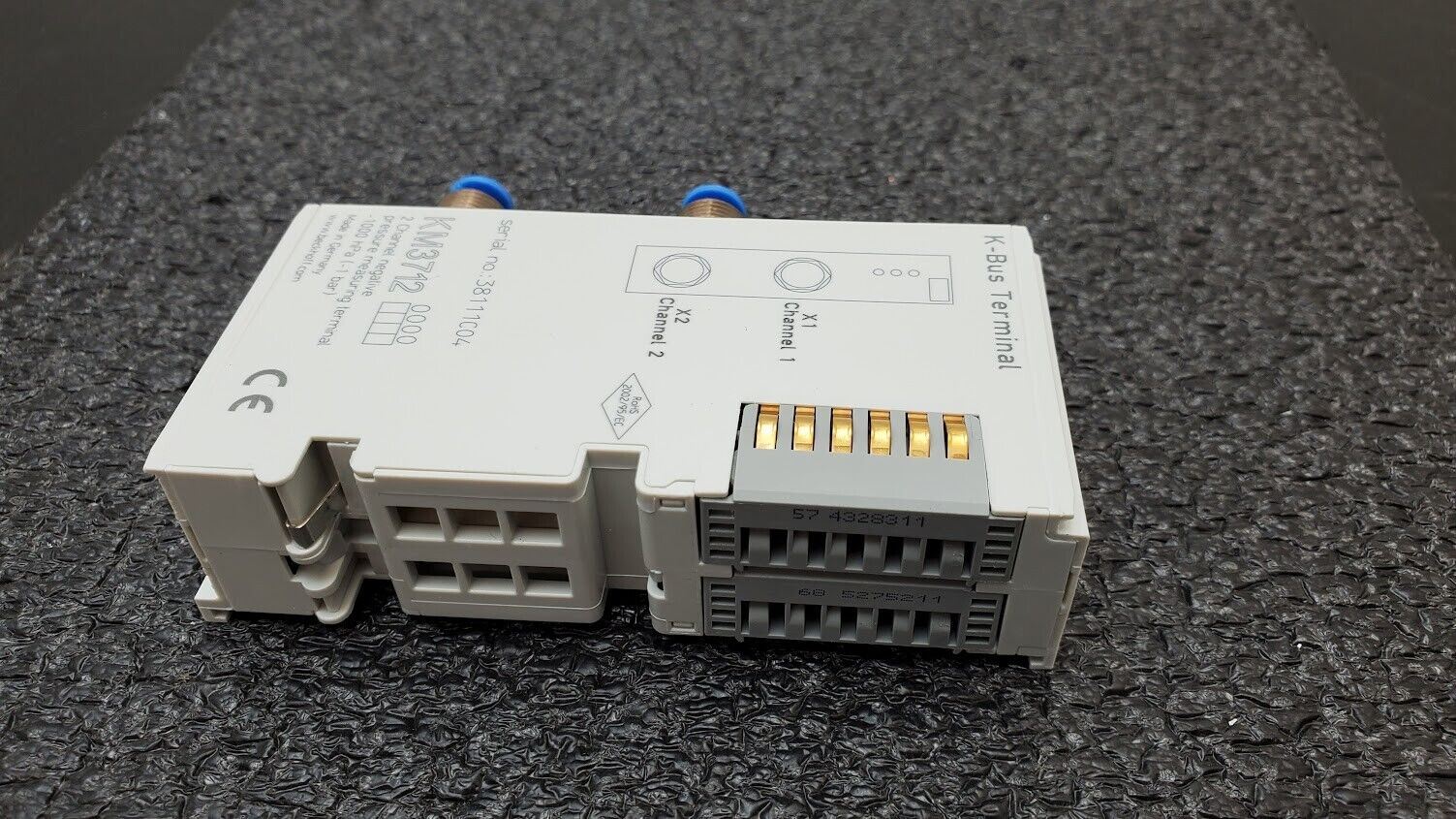

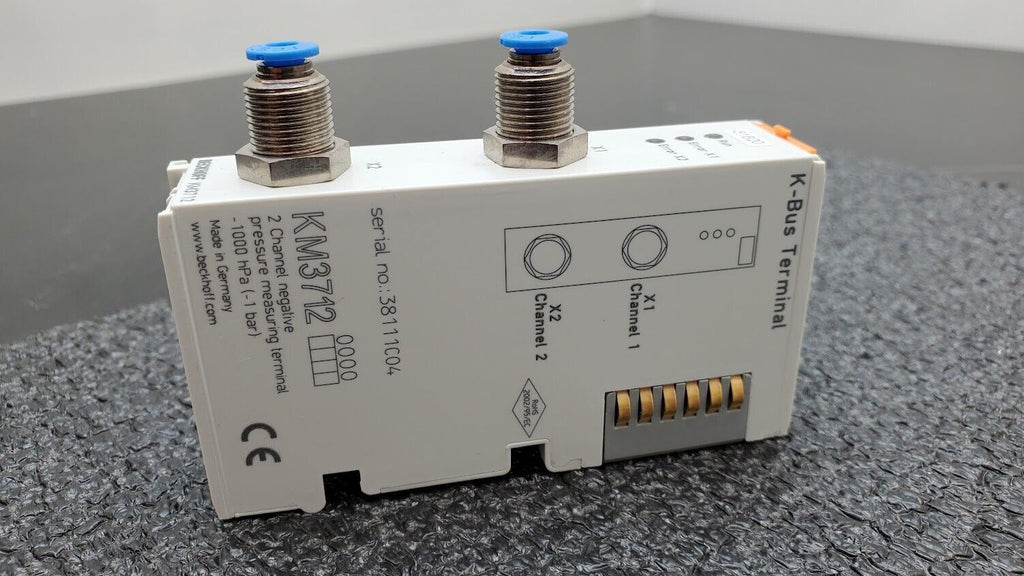

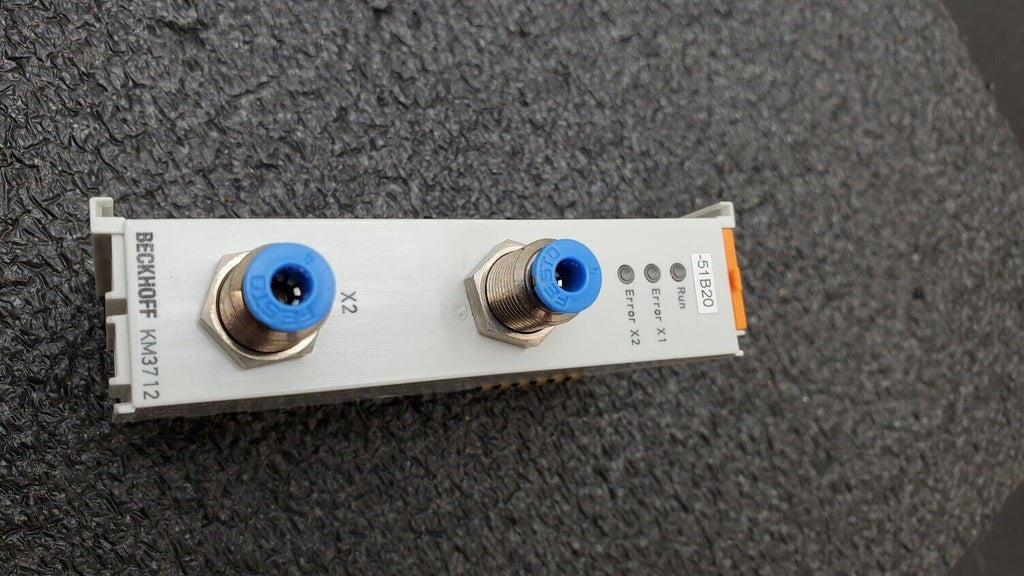

BECKHOFF KM3712 K-Bus 2 Channel Negative Pressure Measuring Terminal ±1000 hPa
BECKHOFF KM3712 K-Bus 2 Channel Negative Pressure Measuring Terminal ±1000 hPa
$149.99
In excellent "like new" condition, pulled from working equipment.
Technical Data from the Manufacturer: beckhoff.com/en-us/products/i-o/bus-terminals/kl3xxx-analog-input/km3712.html
Technology relative pressure measurement
Number of inputs 2
Measuring error 3 % (relative to full scale value)
Measuring range -1000…+1000 hPa (-1…+1 bar)
Max. overload 5000 hPa (5 bar)
Resolution 1 hPa (1 mbar) per digit
Measuring speed 5 ms typ.
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 15 mA
Bit width in the process image 2 x 3 byte input/output
Medium non-aggressive gases
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/variable
Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 24 mm x 100 mm x 52 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking –
Wiring specific push-in connection
