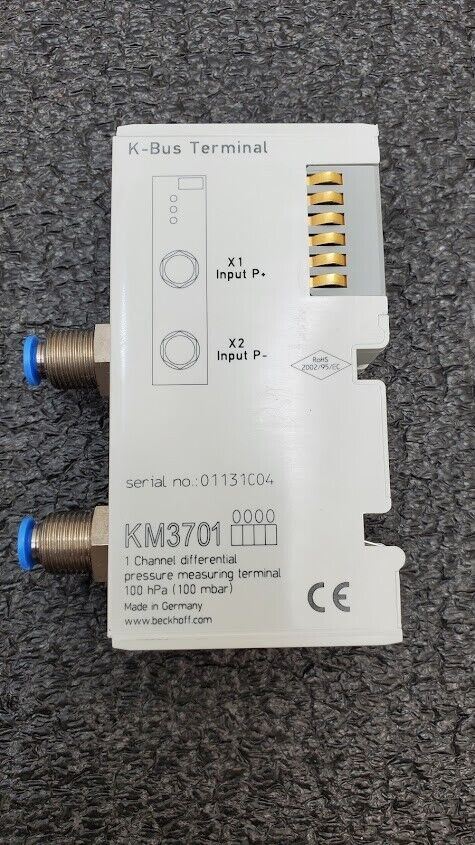

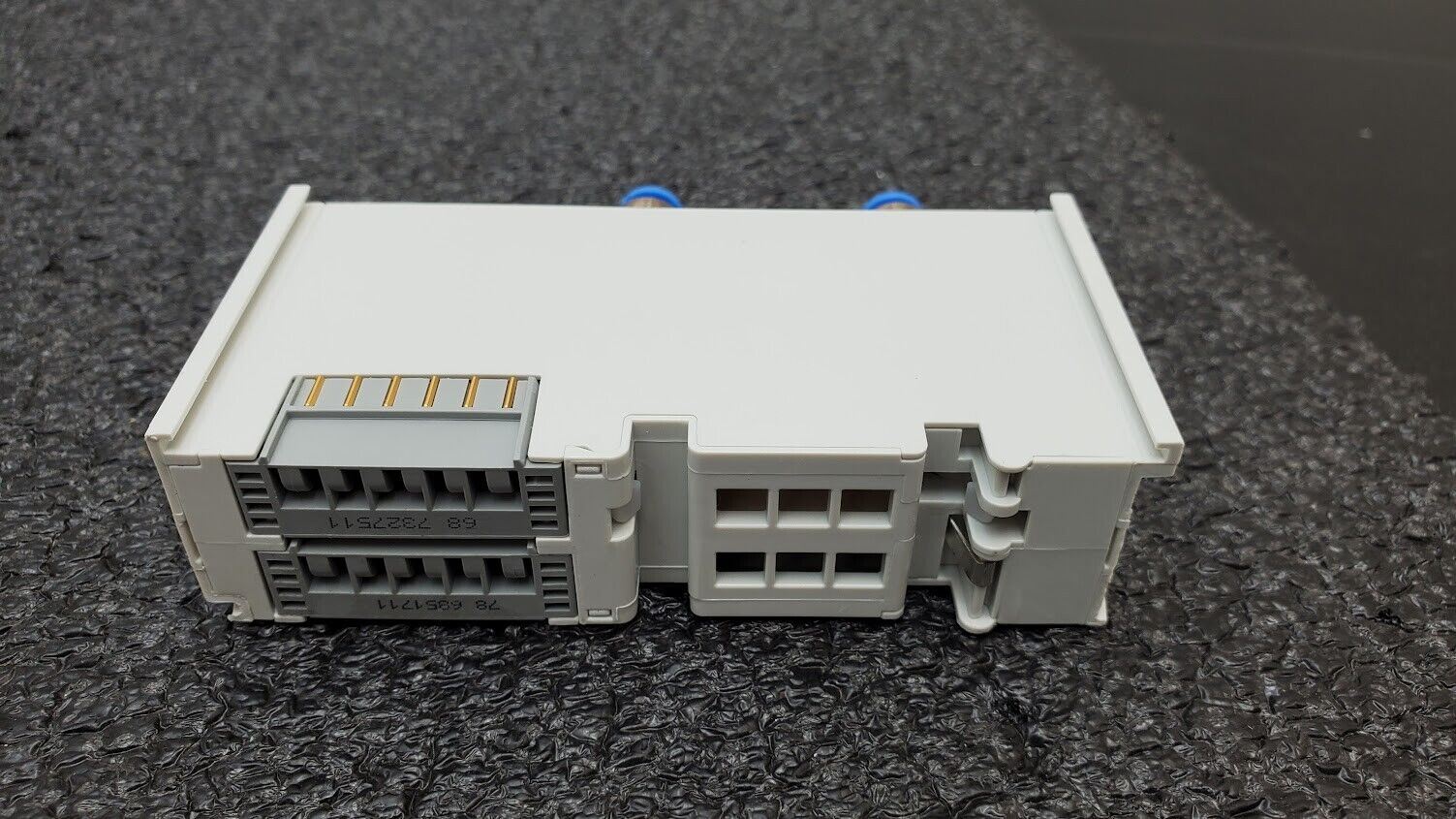

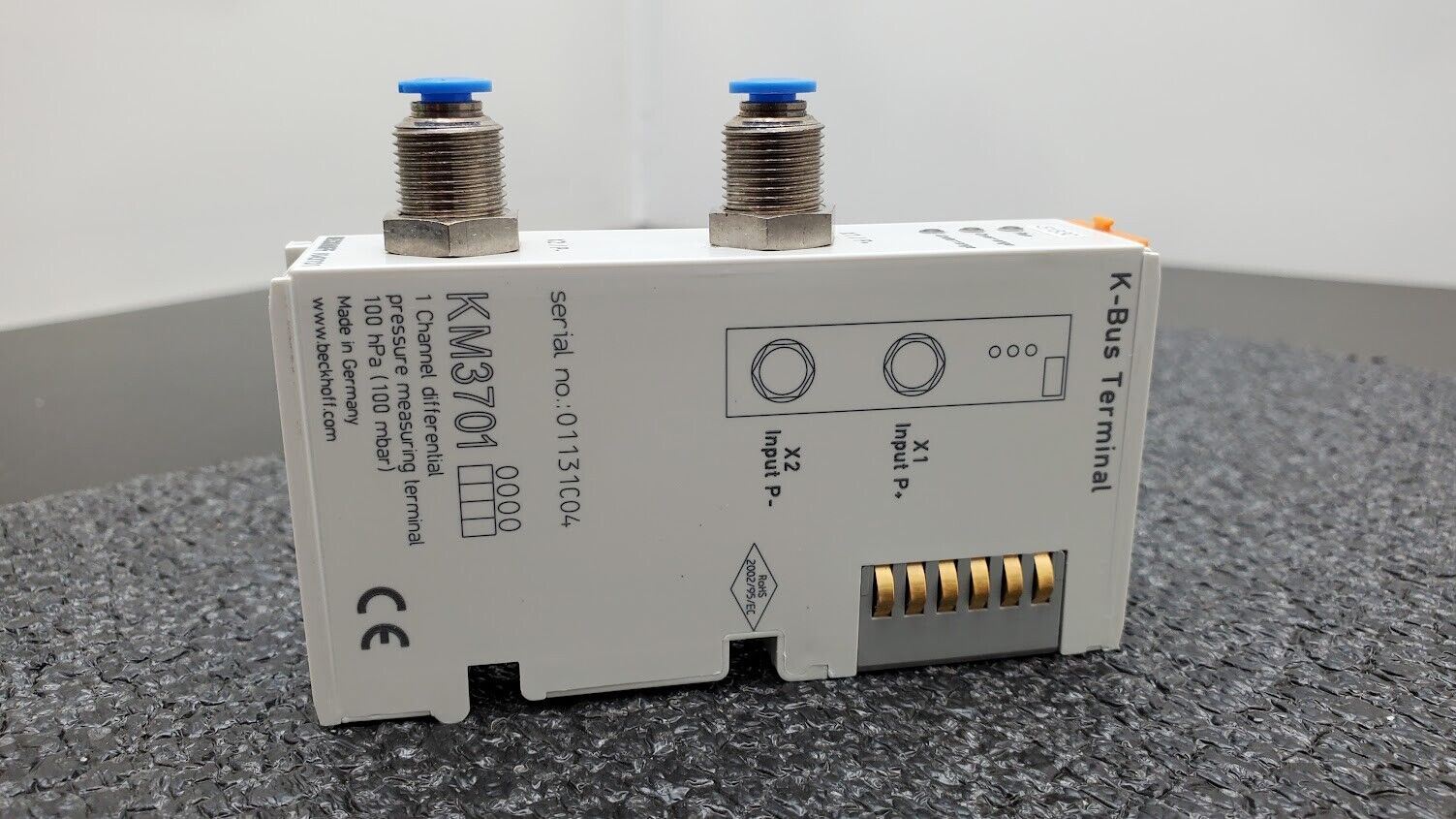

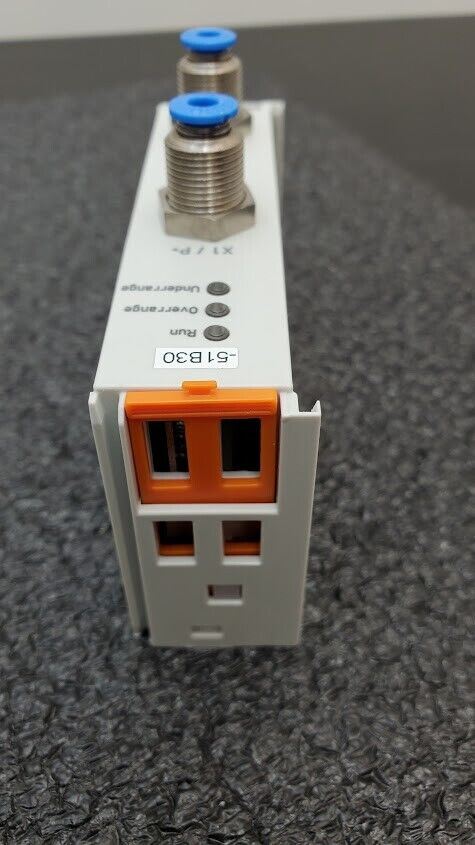

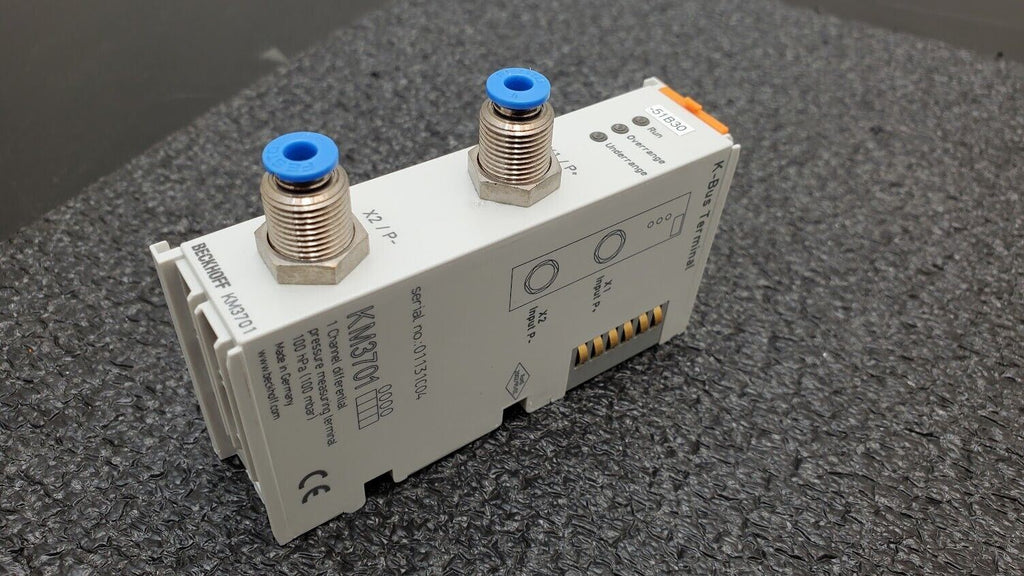

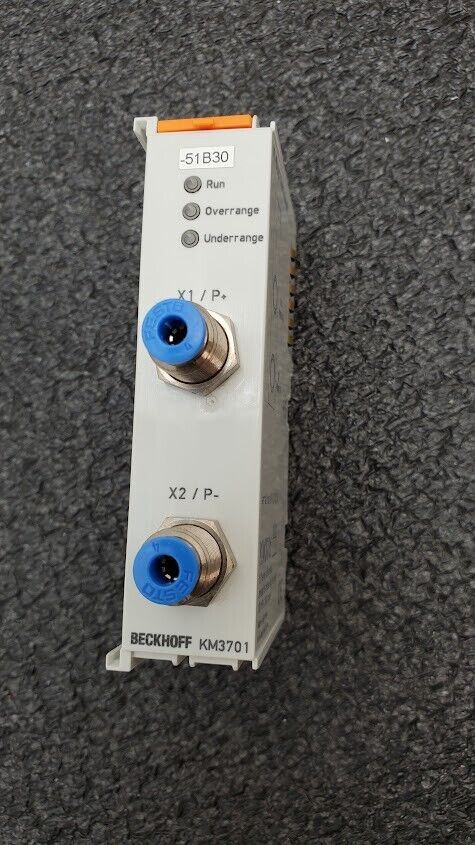

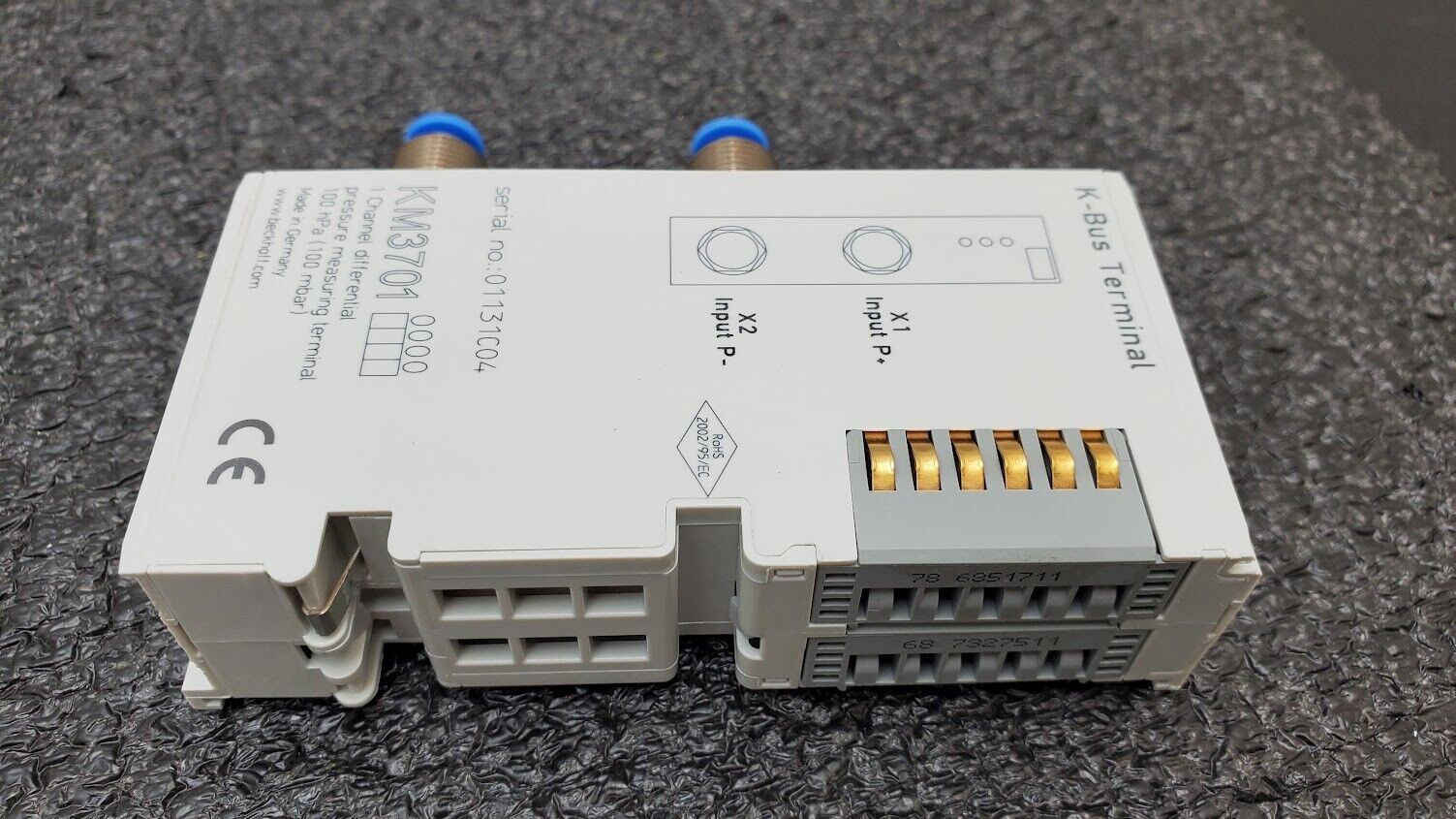

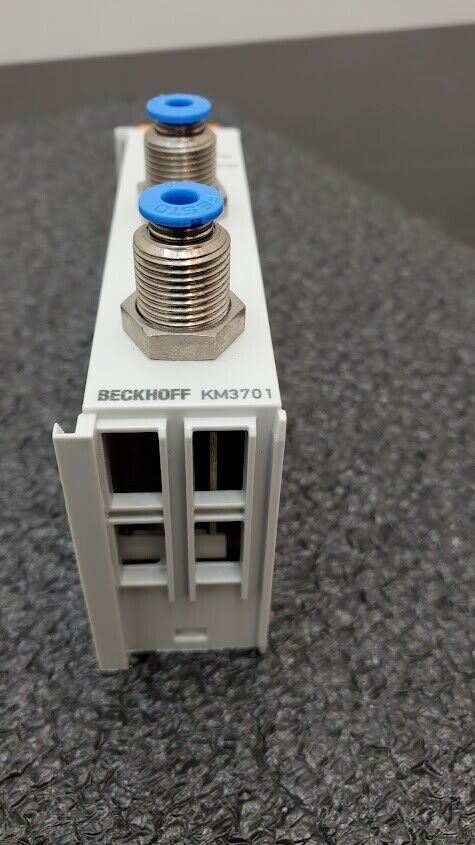

BECKHOFF KM3701 K-Bus 1 Channel Differential Pressure Measuring Terminal ±100 hPa (100 mbar)
BECKHOFF KM3701 K-Bus 1 Channel Differential Pressure Measuring Terminal ±100hPa
$99.99
In excellent "like new" condition, pulled from working equipment.
The KM3701 pressure measuring terminal enables direct measurement of pressure differences between two hose connections. The pressure difference is available in the fieldbus as a 16 bit value and can be measured between any points up to an ambient pressure of 10 bar. The status LEDs indicate proper function or errors such as over-range.
Technical Data from the Manufacturer: beckhoff.com/en-us/products/i-o/bus-terminals/kl3xxx-analog-input/km3701.html
Technology differential pressure measurement
Number of inputs 1 (differential pressure)
Measuring error 3 % (relative to full scale value)
Measuring range -100…+100 hPa (-100…+100 mbar)
Max. overload 500 hPa (500 mbar) differential, 5000 hPa (5 bar) to ambient
Resolution 0.1 hPa (0.1 mbar) per digit
Measuring speed 5 ms typ.
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 15 mA
Bit width in the process image 3 byte input/output
Medium non-aggressive gases
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/variable
Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 24 mm x 100 mm x 52 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking –
Wiring specific push-in connection
