Basler Ace acA1920-155um Area Scan Camera Sony IMX174 CMOS Mono 2.3 MP 164FPS

Basler Ace acA1920-155um Area Scan Camera Sony IMX174 CMOS Mono 2.3 MP 164FPS

$399.99

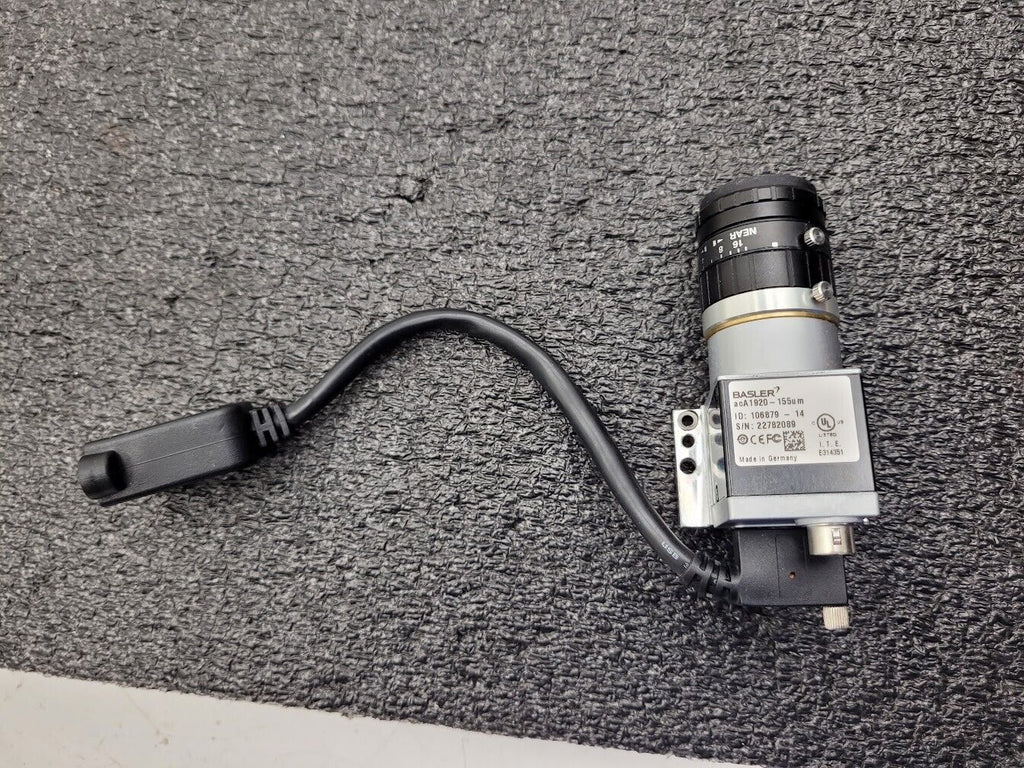

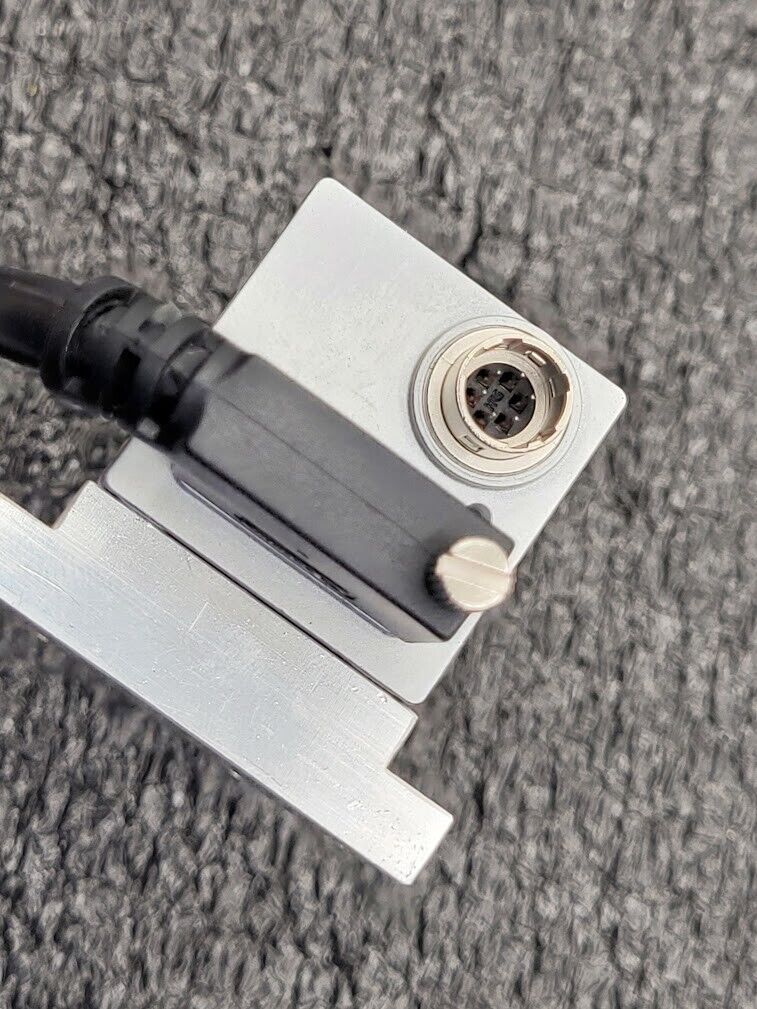

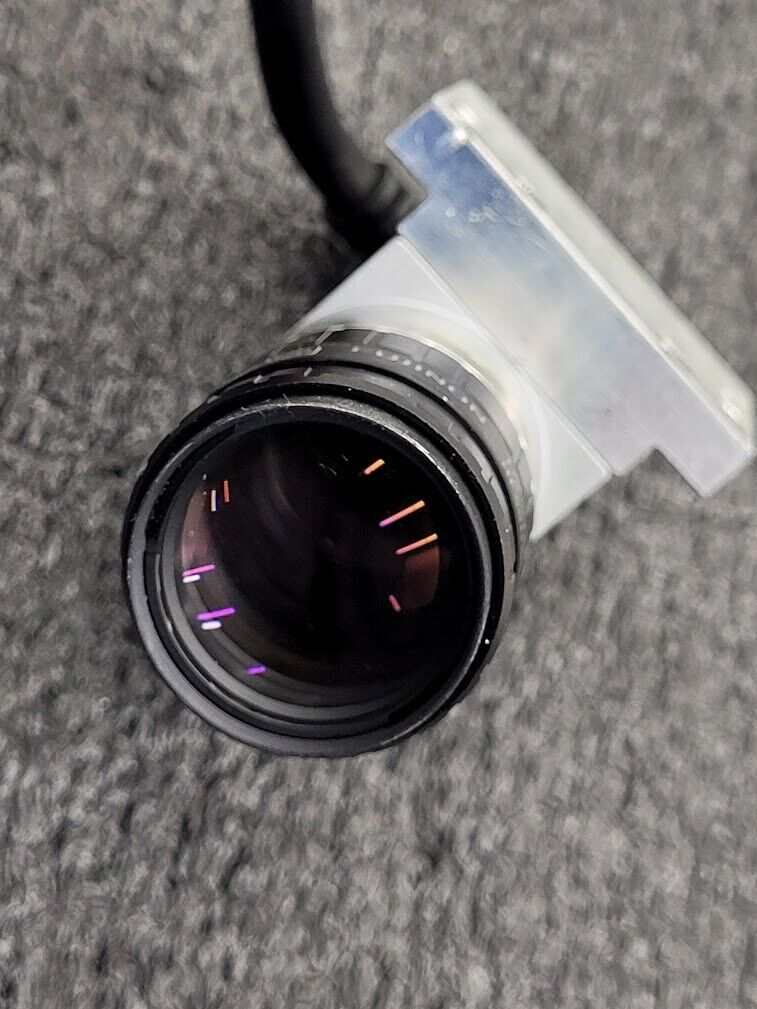

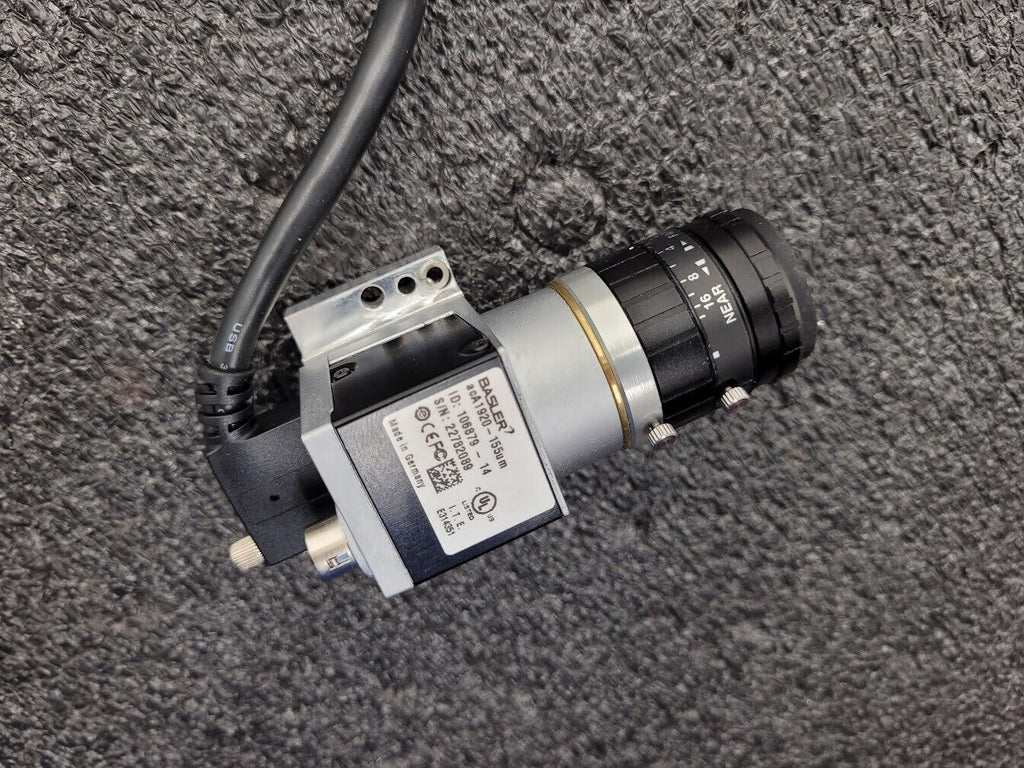

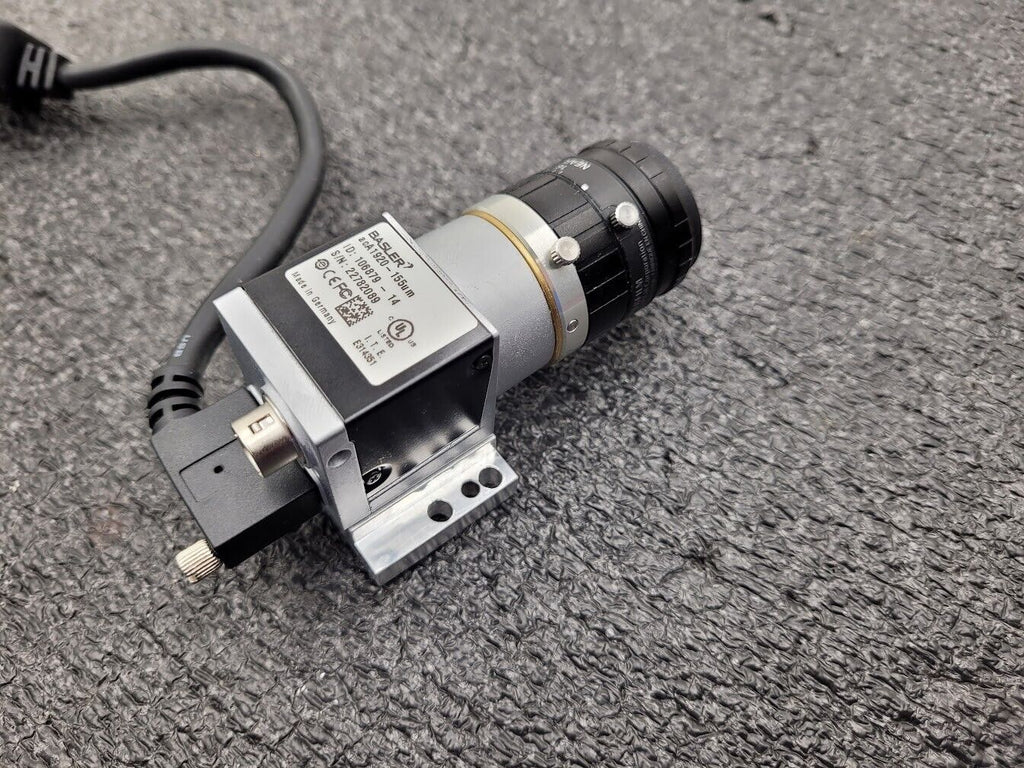

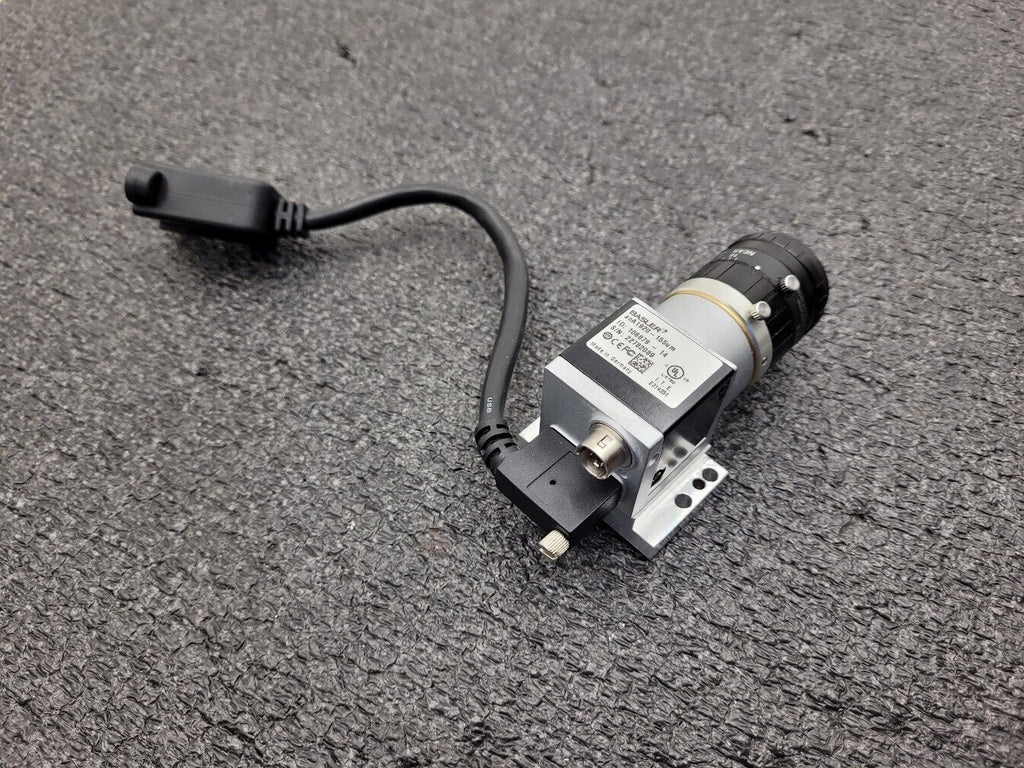

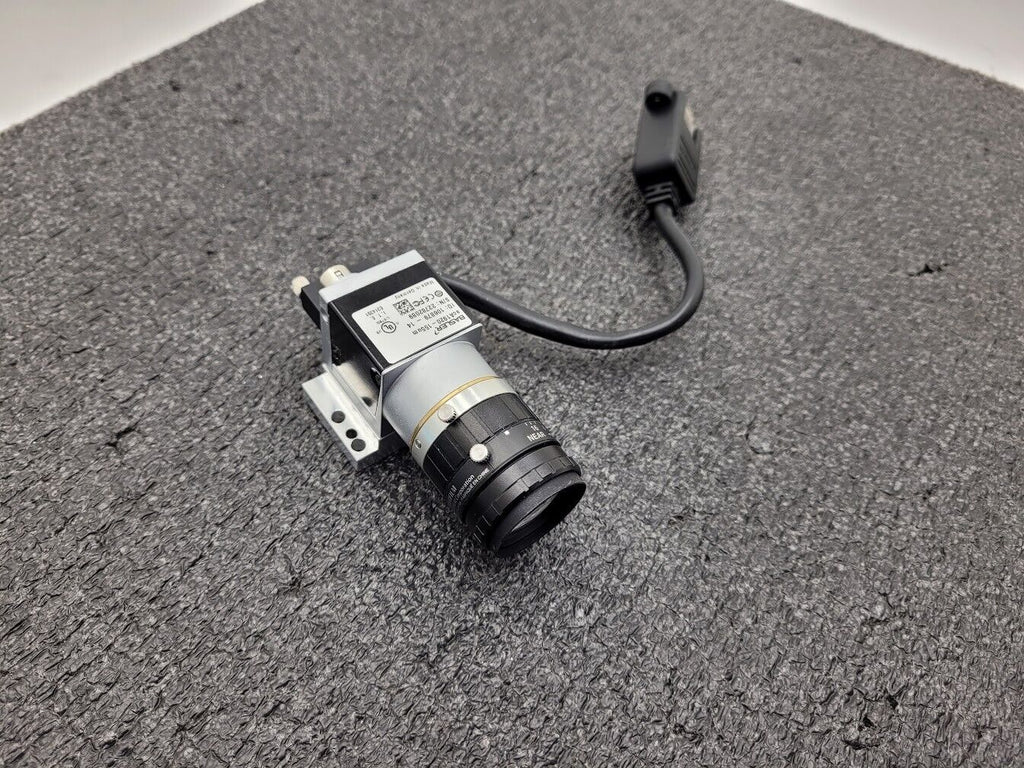

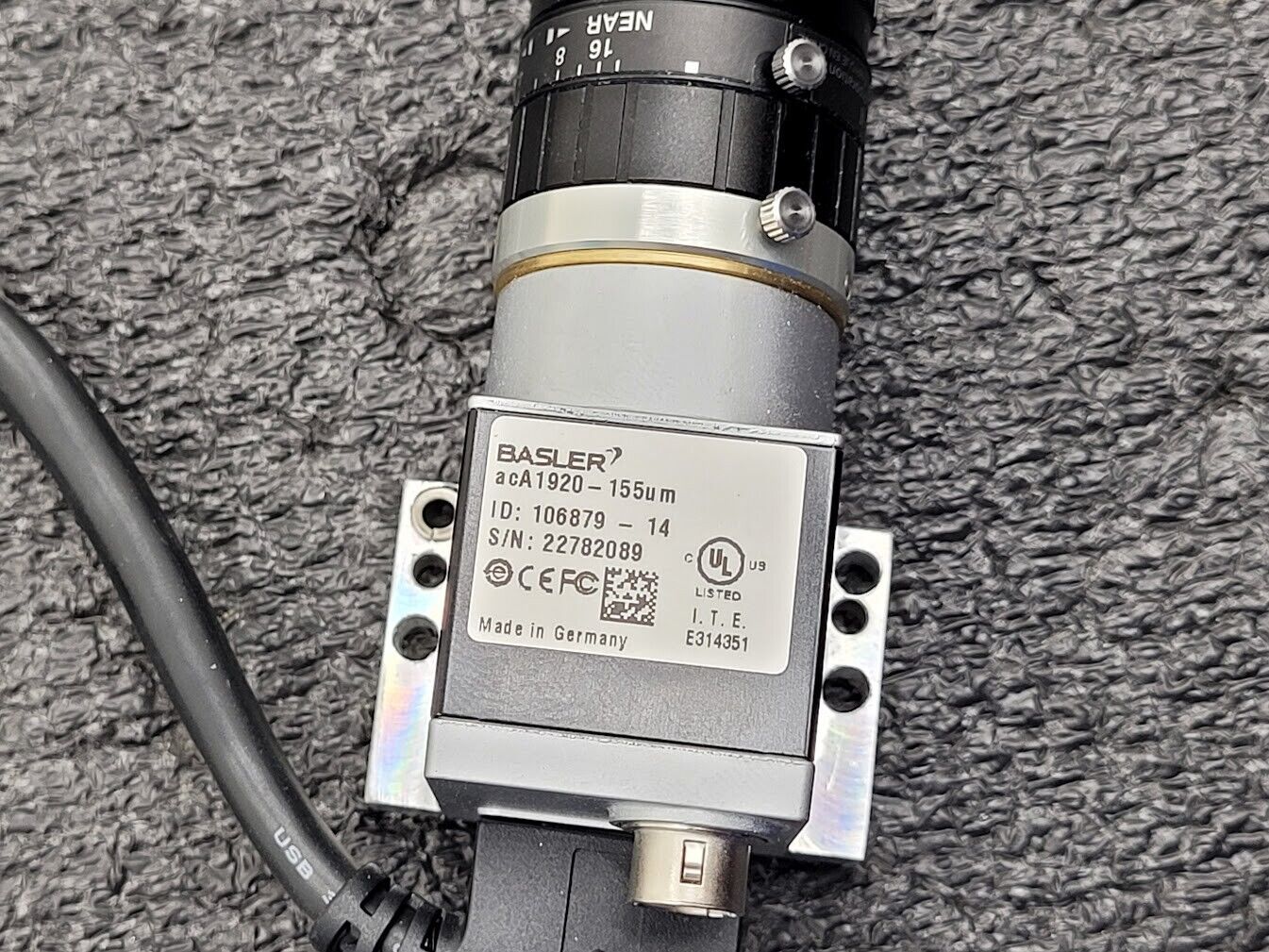

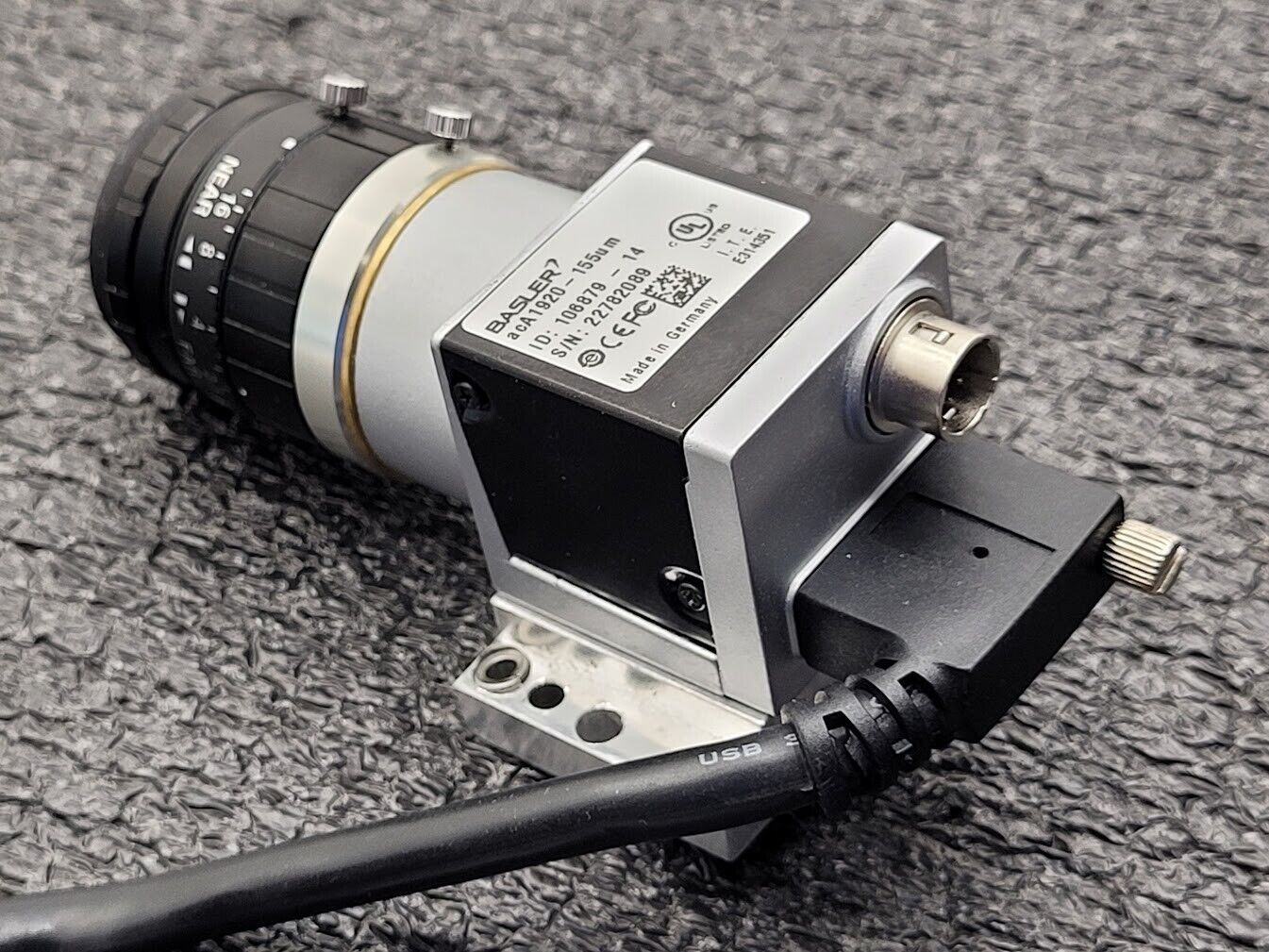

Basler Ace acA1920-155um Area Scan Camera Sony IMX174 CMOS Mono 2.3 MP 164FPS

Good used condition, pulled from working equipment.

Manufacturers info page: baslerweb.com/en/shop/aca1920-155um/

General Information

Camera Category Area Scan Camera
Manufacturer Basler
Product Family ace U
Product Line ace U
Order Number 106879

Sensor

Pixel Size (H x V) 5.86 μm x 5.86 μm
Resolution (H x V) 1920 px x 1200 px
Frame Rate 164 fps
Mono/Color Mono
Resolution 2.3 MP
Shutter Global Shutter
Sensor Size 11.33 mm x 7.13 mm
Sensor IMX174
Sensor Format 1/1.2''
Sensor Type CMOS
Sensor Vendor Sony
Spectrum Visible

EMVA Data

Dark Noise (typical/maximal) 6.6 e¯ (typical)
Dynamic Range (typical/minimal) 73.7 dB (typical)
Quantum Efficiency (typical/minimal) 70 % (typical)
Saturation Capacity (typical/minimal) 32.7 ke¯ (typical)
Signal-to-Noise Ratio (typical/minimal) 45 dB (typical)

Camera Data

Digital Input 1
Exposure Control
  • hardware trigger
  • programmable via the camera API
Power Requirements (typical) 3.4 W
Power Supply Via USB 3.0 interface
Interface USB 3.0
Pixel Bit Depth
  • 10 bits
  • 12 bits

Housing

Housing Type Box
Lens Mount C-mount
Housing Size (L x W x H) 29.3 mm x 29 mm x 29 mm
Operating Temperature 0 °C - 50 °C

Manufacturer

Basler

Conformity

  • CE
  • EAC
  • FCC
  • GenICam
  • IP30
  • KC
  • RoHS
  • UL
  • USB3 Vision

This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel free to contact us with any questions
Thank you for your interest and have a great day!
