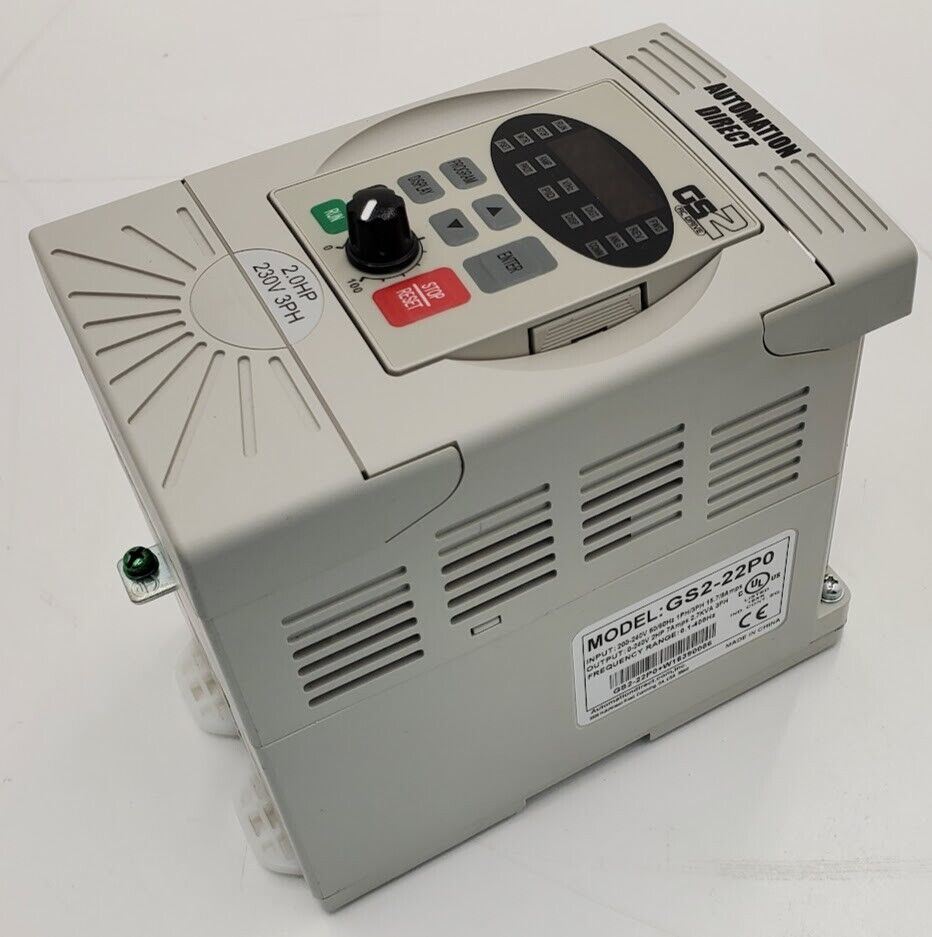

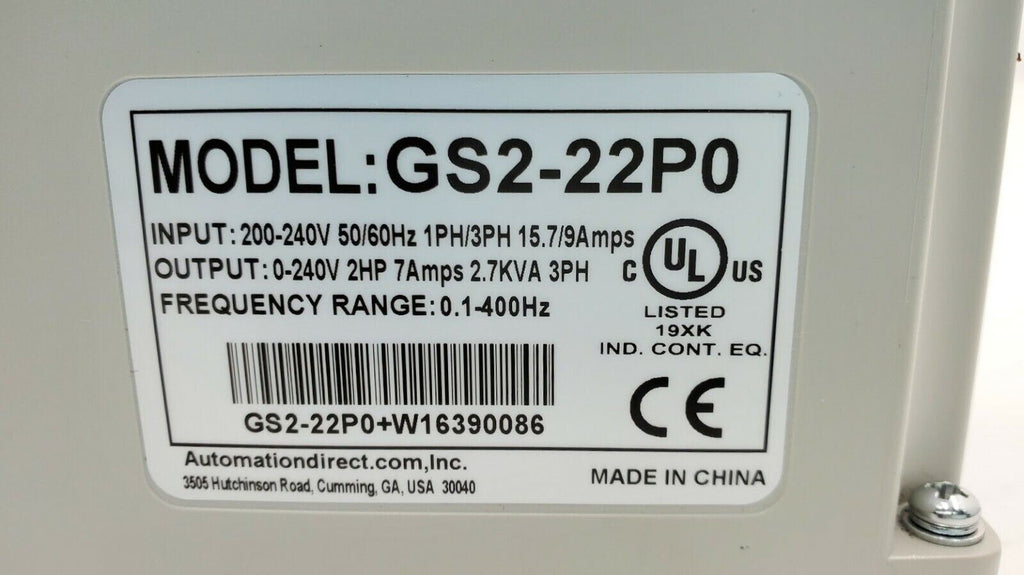

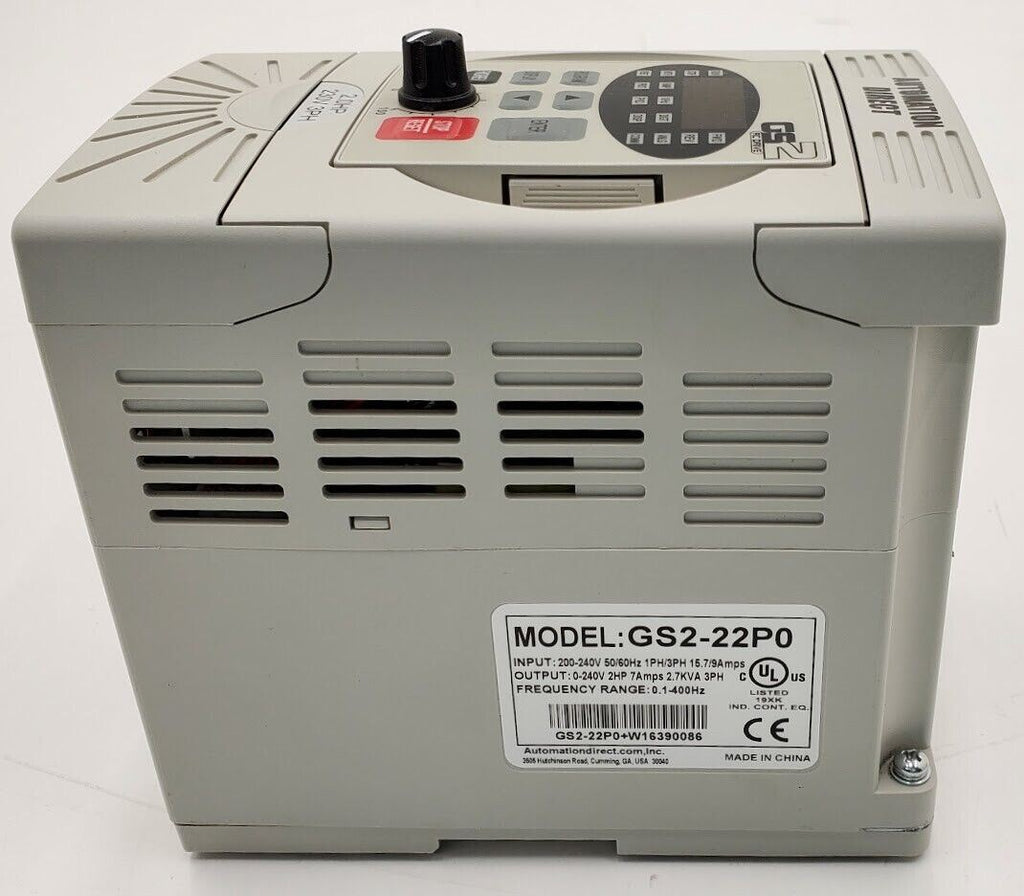

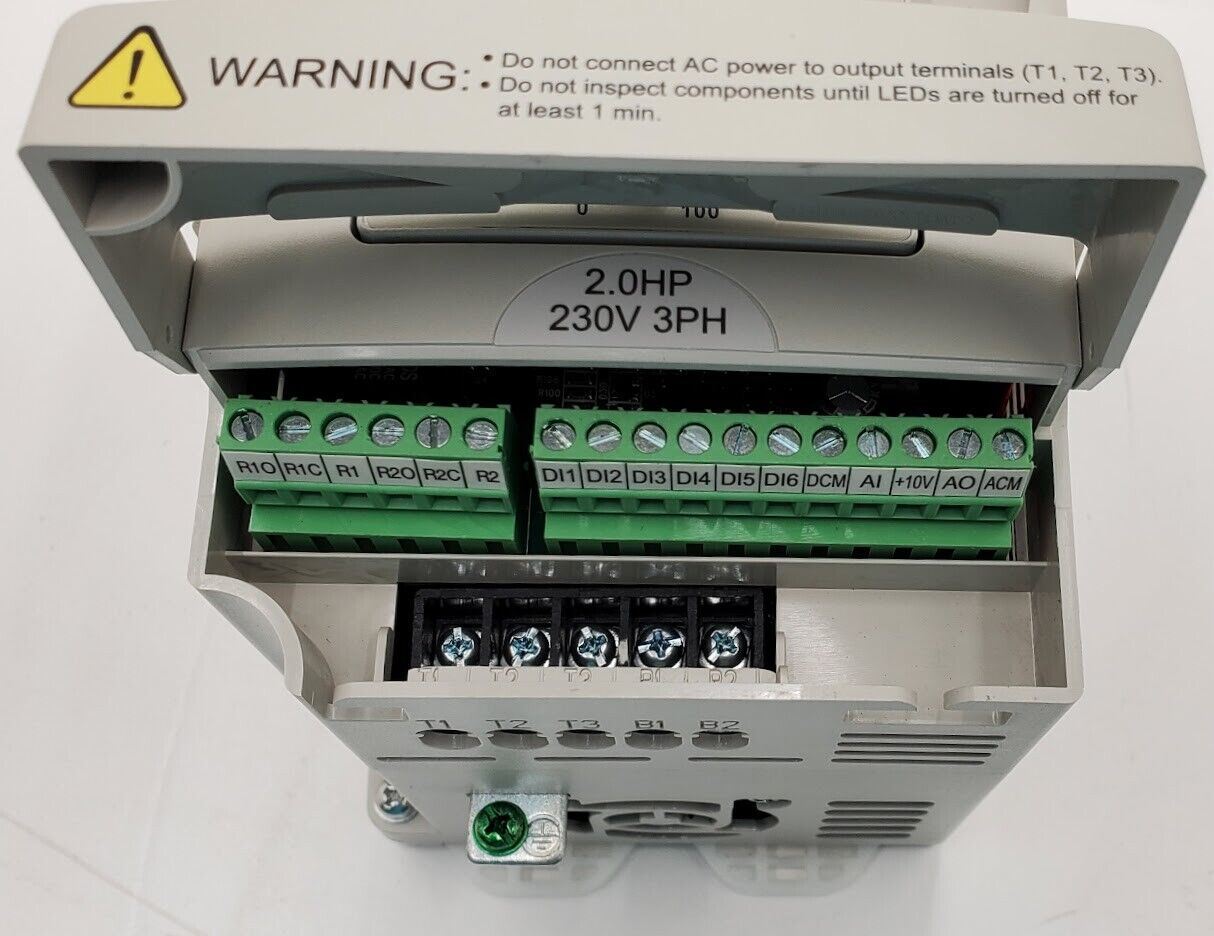

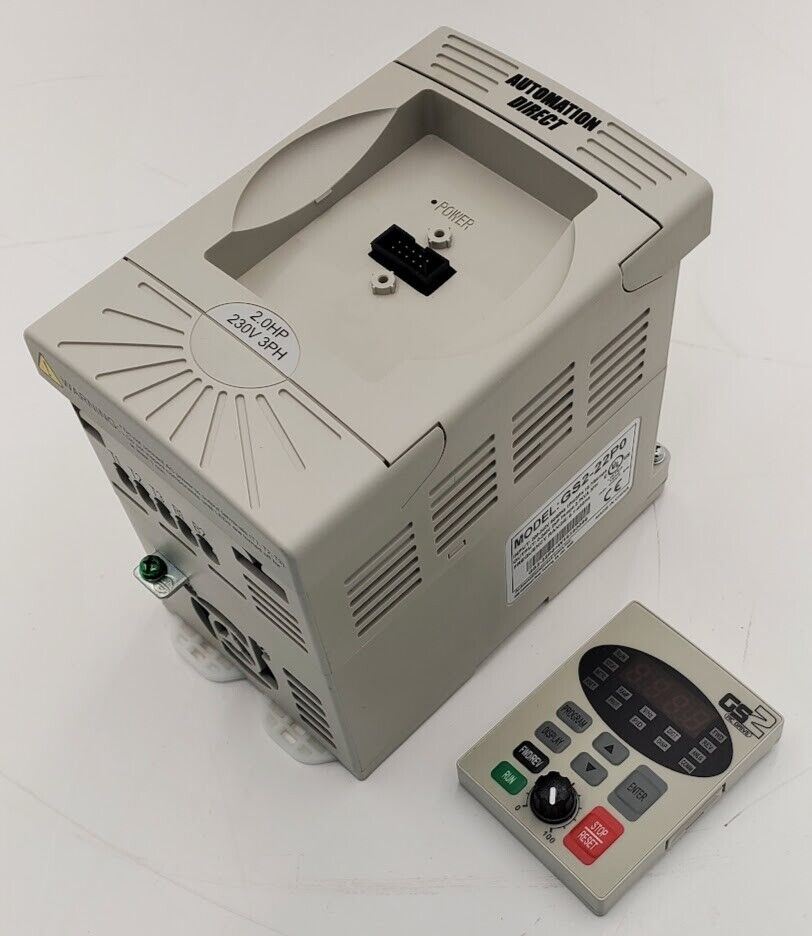

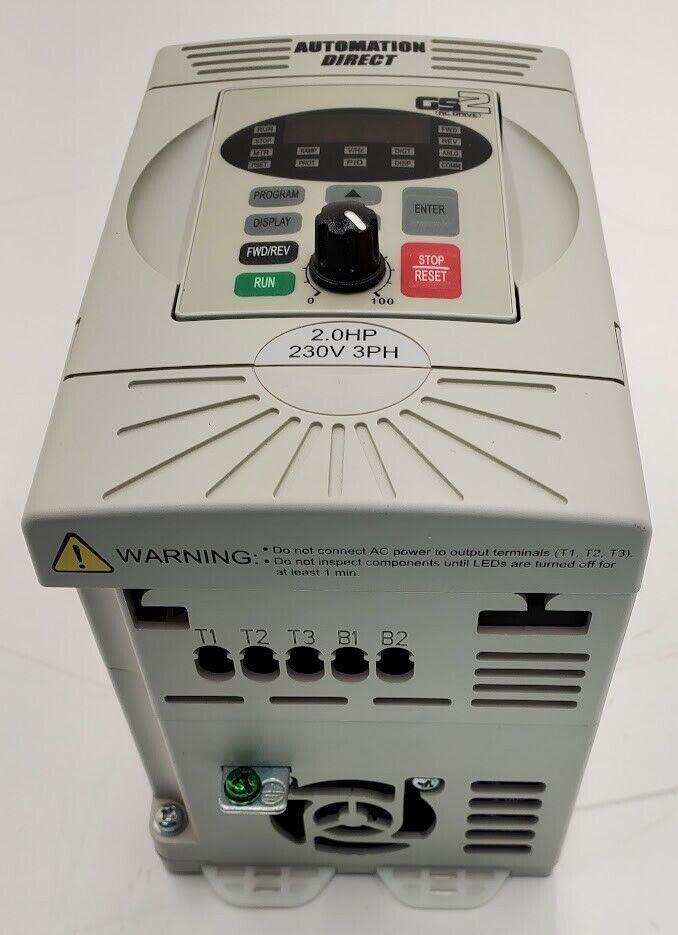

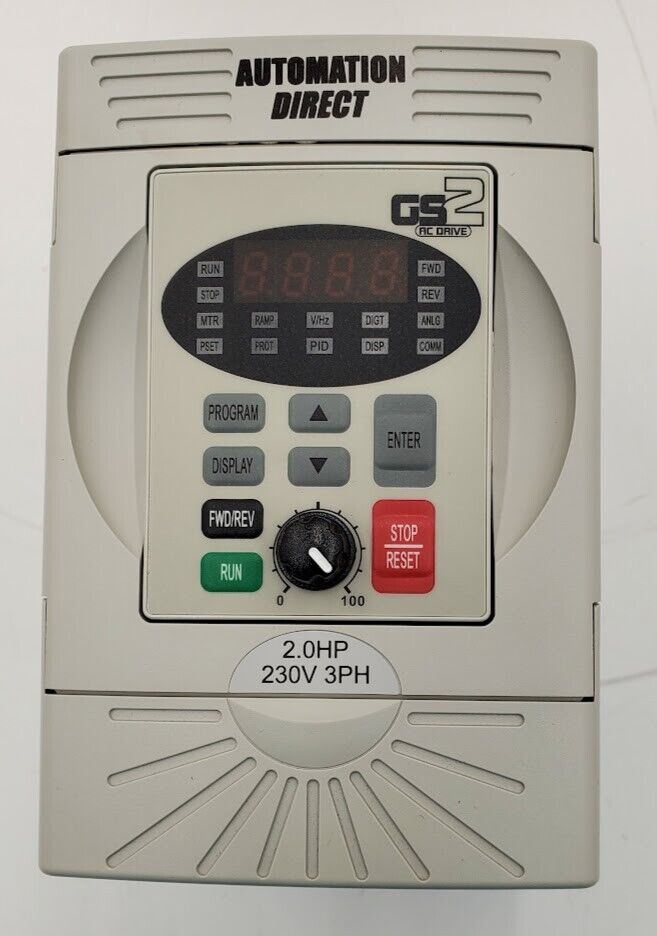

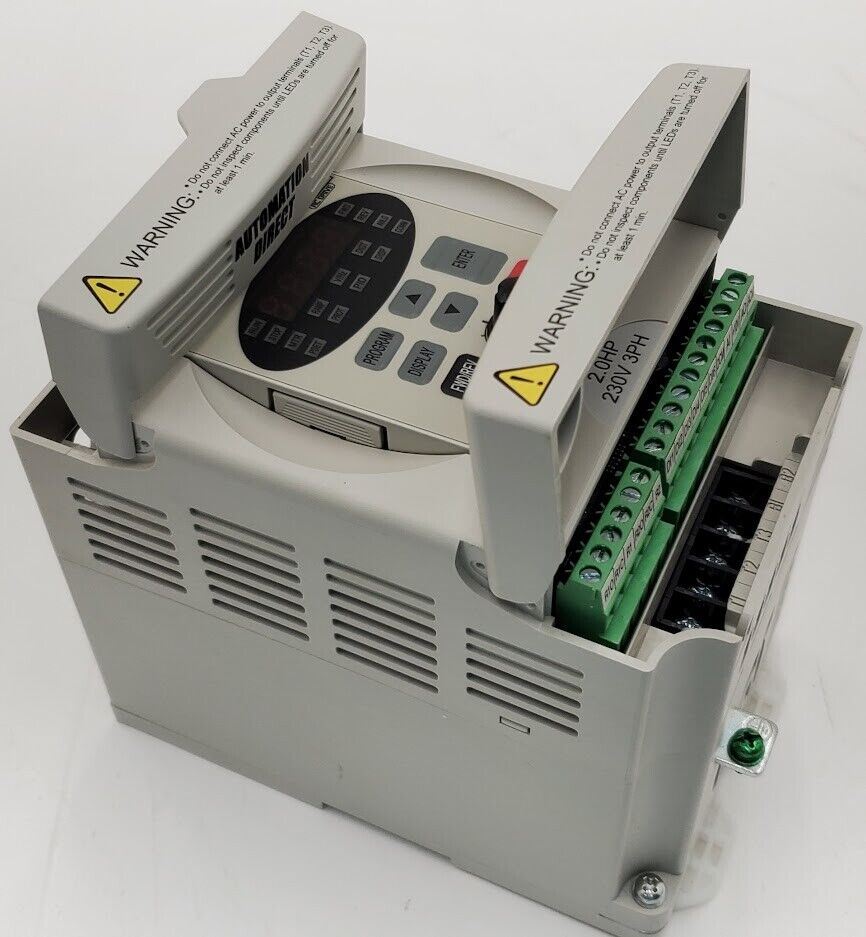

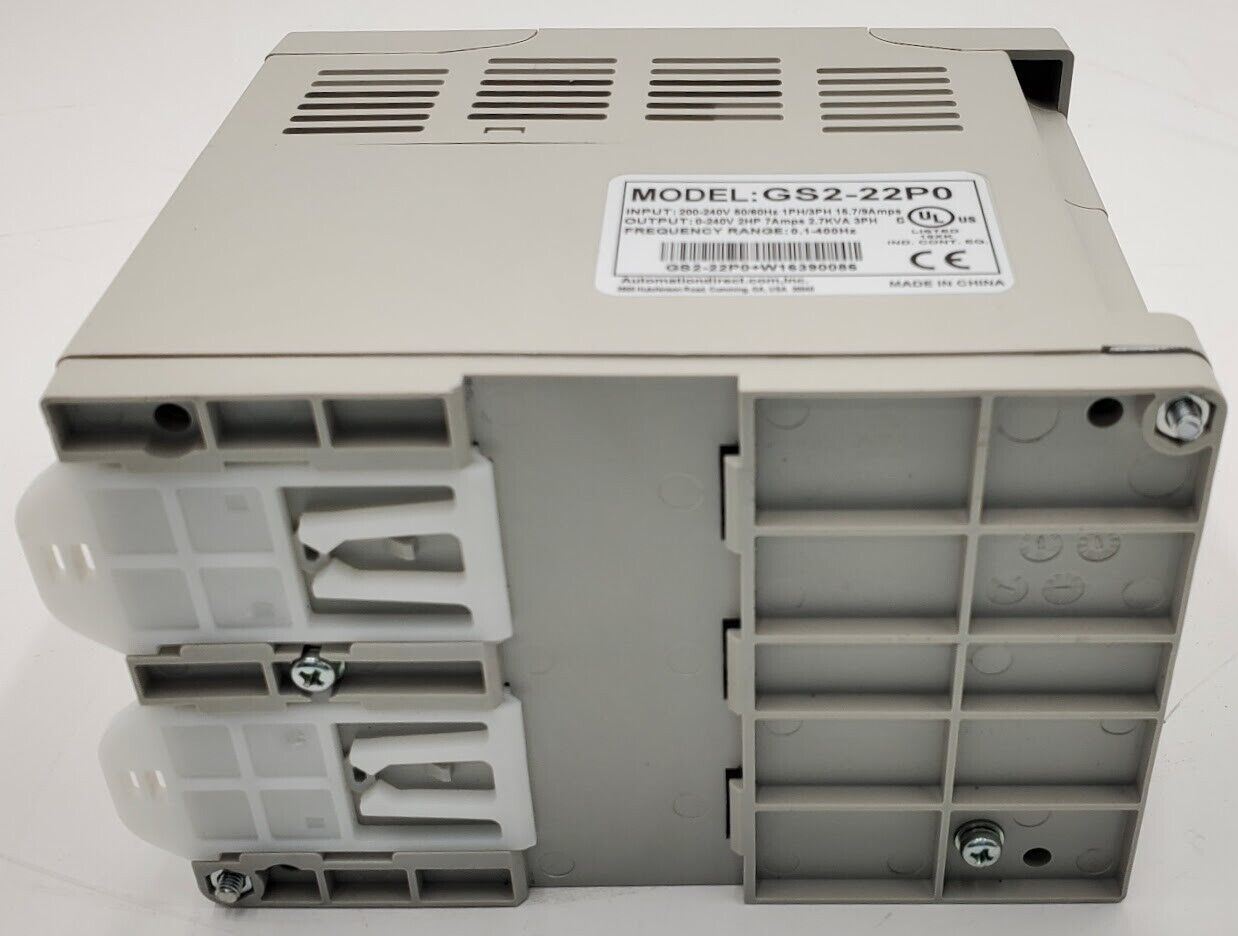

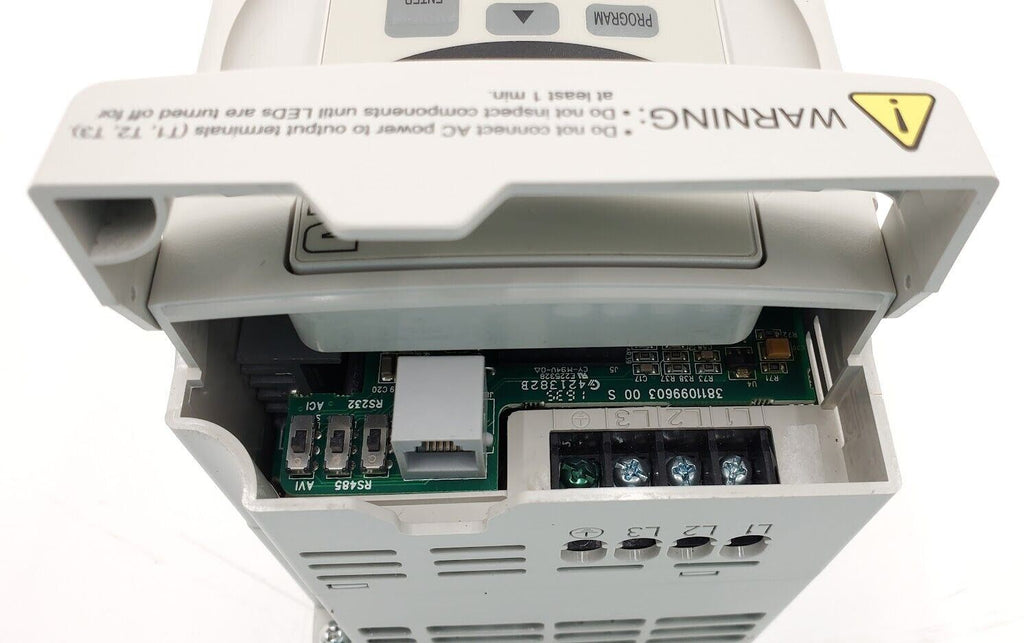

AUTOMATION DIRECT GS2-22P0 AC Micro Drive 230V 1PH In, 3PH Out, 0.1-400Hz, 2.0HP
AUTOMATION DIRECT GS2-22P0 AC Micro Drive 230V 1PH In, 3PH Out, 0.1-400Hz, 2.0HP
$499.99
In good used condition, pulled from working equipment, physical manual available upon request or downloadable here: cdn.automationdirect.com/static/manuals/gs20m/gs20m.html
Specs from the manufacturer:
DURApulse GS20 series AC general purpose drive, enclosed, 230 VAC, 2hp with 1-phase input, SVC, V/Hz, FOC or torque mode, C frame, RS-485, Modbus, 100kA SCCR
Controller Type General purpose
Series GS20
Voltage Type AC
Nominal Drive Input Voltage 230 VAC
Nominal Drive Output Voltage 230 VAC
Number of Input Phases 1
Number of Output Phases 3
Horsepower By Phase 2hp with 1-phase input
Amperage Rating 7.5A
Variable Torque Amperage Rating 8.5A
Control Mode SVC, V/Hz, FOC or torque
Safe Torque Off (STO) Yes
Temperature Rating -20 to 50 deg C
Enclosure Type Enclosed
IP Rating IP20
Mounting 35mm DIN rail, panel or wall
Frame Size C
Dynamic Braking Integrated dynamic braking unit
Communication Port and Connection Type(s)
(1) RS-485 (RJ45)
(1) USB B
Port Protocol(s)
Modbus RTU slave
Port Speed(s)
up to 115.2k baud
Input Signal 4-20 mA, voltage, potentiometer or pulse train input
Output Type PWM output
Reverse Capability Built-in
Internally Bypassed No
Carrier Frequency Range 2-15 kHz
Output Frequency Range 0.1-600 Hz
Number of Analog Input Channels 2
Number Of Input Channels 2
Analog Input Signal Type Current/voltage
Number of Non-Isolated Analog Input Commons 1
Number of Points per Analog Input Common 2
Input Resolution 10-bit and 12-bit
Input Current Signal Range 0-20 mA, 4-20 mA
Input Voltage Signal Range +/- 10 VDC
Number of Analog Output Channels 1
Number Of Output Channels 1
Analog Output Signal Type Current/voltage
Number of Non-Isolated Analog Output Commons 1
Number of Points per Analog Output Common 1
Output Resolution 10-bit
Output Current Signal Range 0-20 mA and 4-20 mA
Output Voltage Signal Range 0-10 VDC
Number of Discrete Input Points 7
Nominal Discrete Input Voltage 24 VDC
Discrete Input Type Sinking/sourcing
Number of Non-Isolated Discrete Input Commons 2
Number of Points per Discrete Input Common 4
Number of Discrete Output Points 3
Nominal Discrete Output Voltage 240 VAC and 48 VDC
Discrete Output Type Relay/sinking/sourcing
Relay Configuration (1) Form C (SPDT) relay
Number of Non-Isolated Discrete Output Commons 1
Number of Isolated Discrete Output Commons 1
Number of Points per Discrete Output Common 2
Load Current 3A/point relay, 50 mA/point discrete
Fuse Type User-supplied external fuse
Programming Language Ladder
SCCR Rating 100kA SCCR
Connector Type Spring clamp terminals
For Use With 3-phase induction and permanent magnet AC motors
