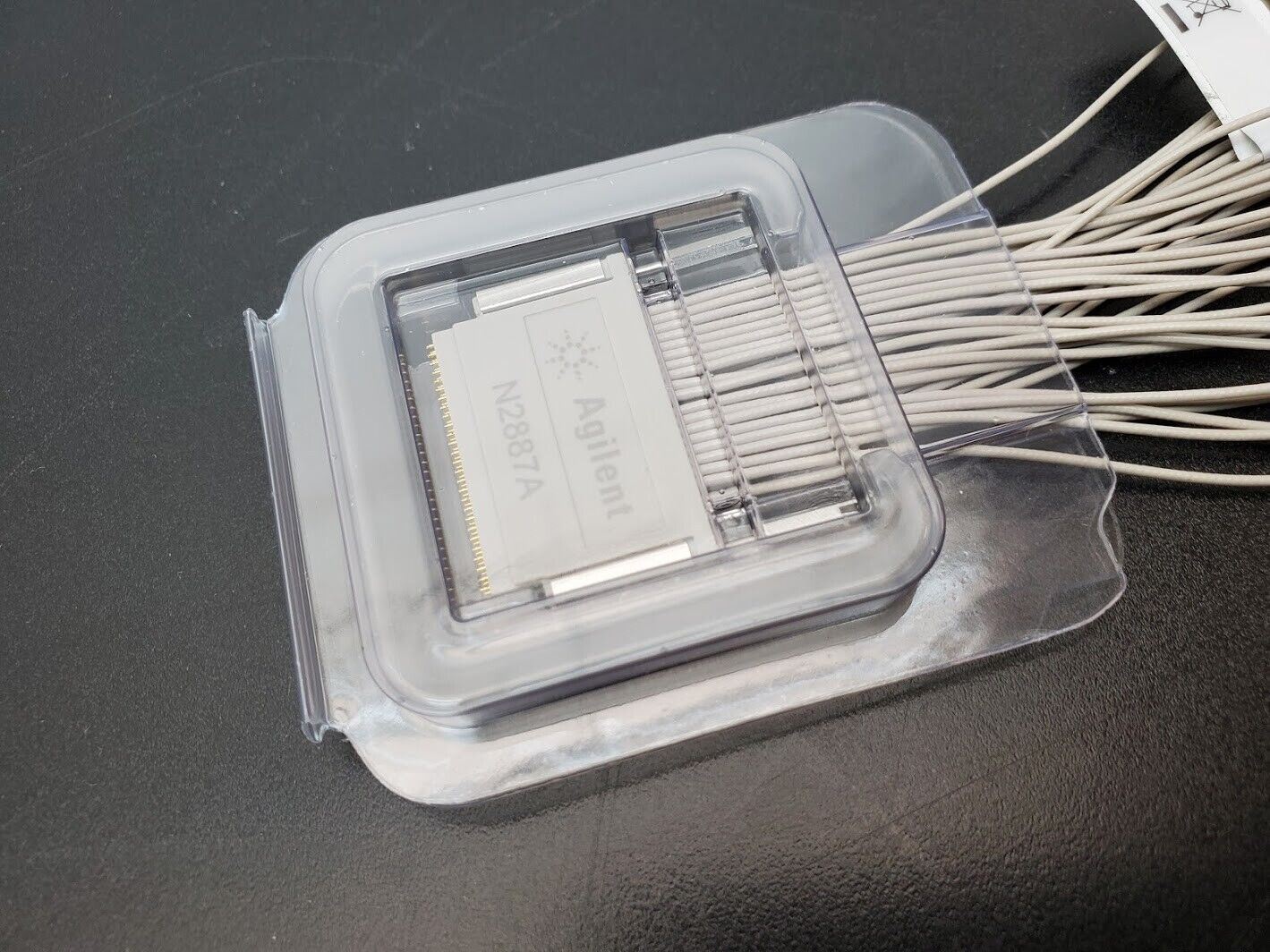

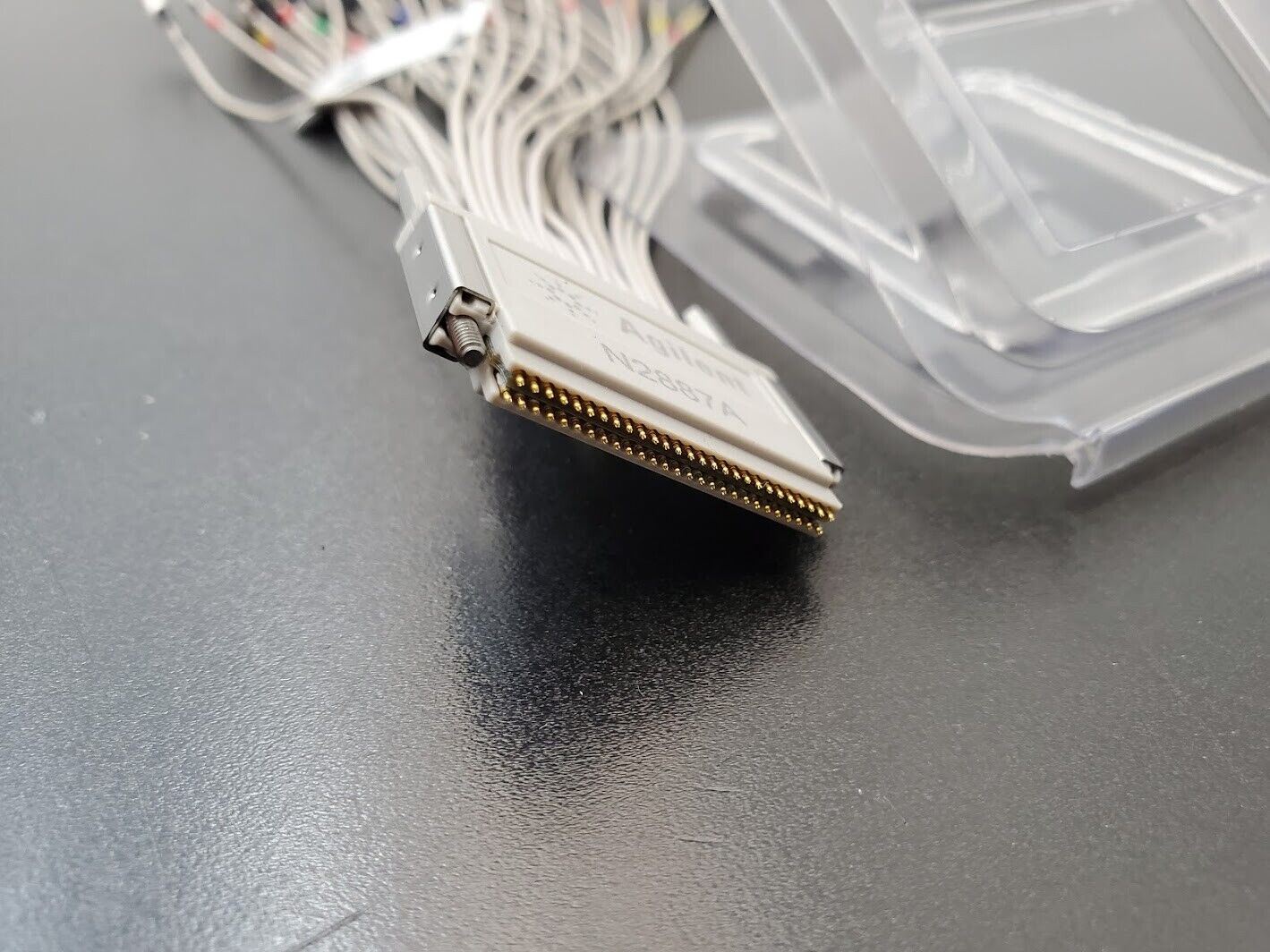

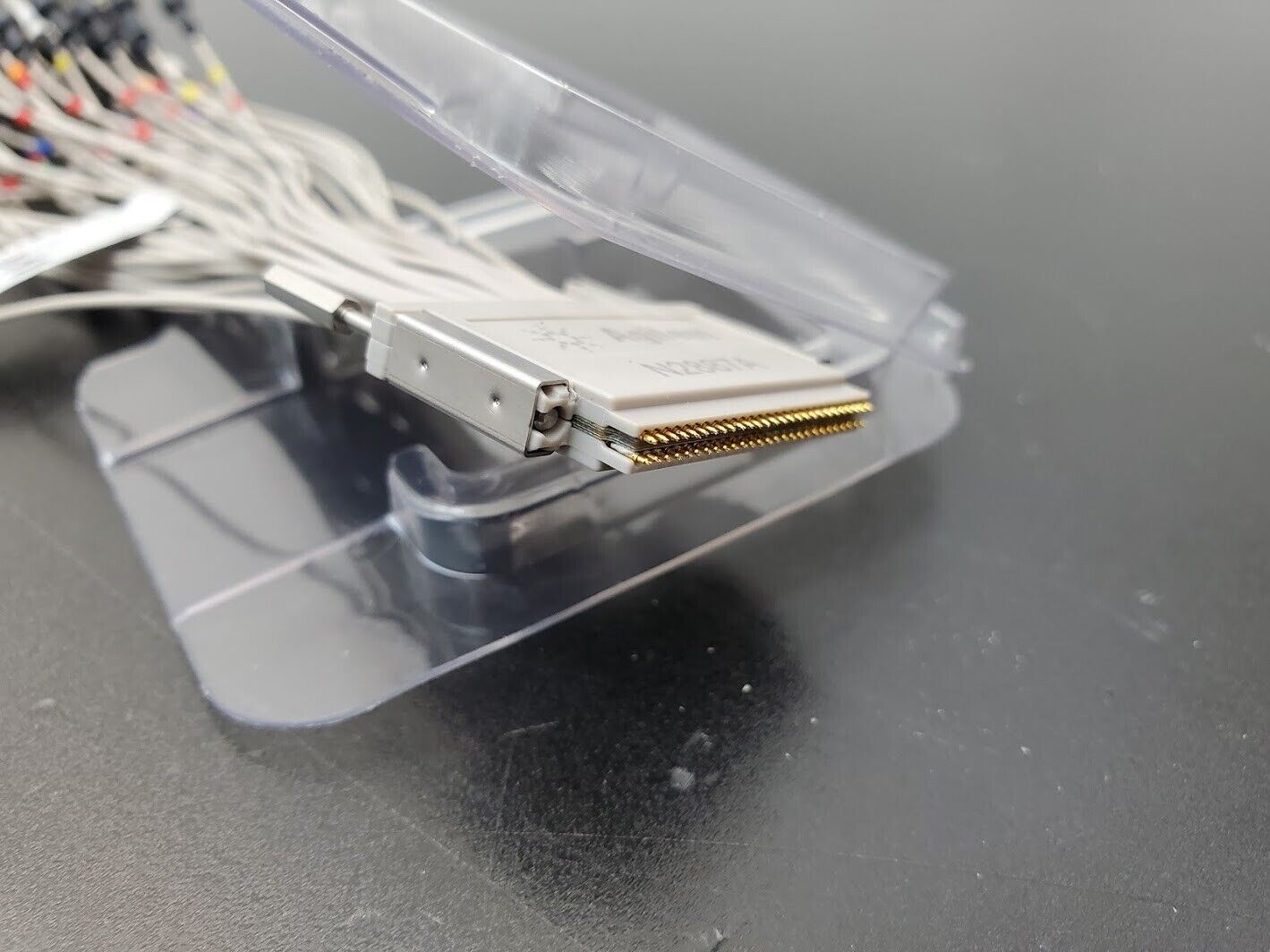

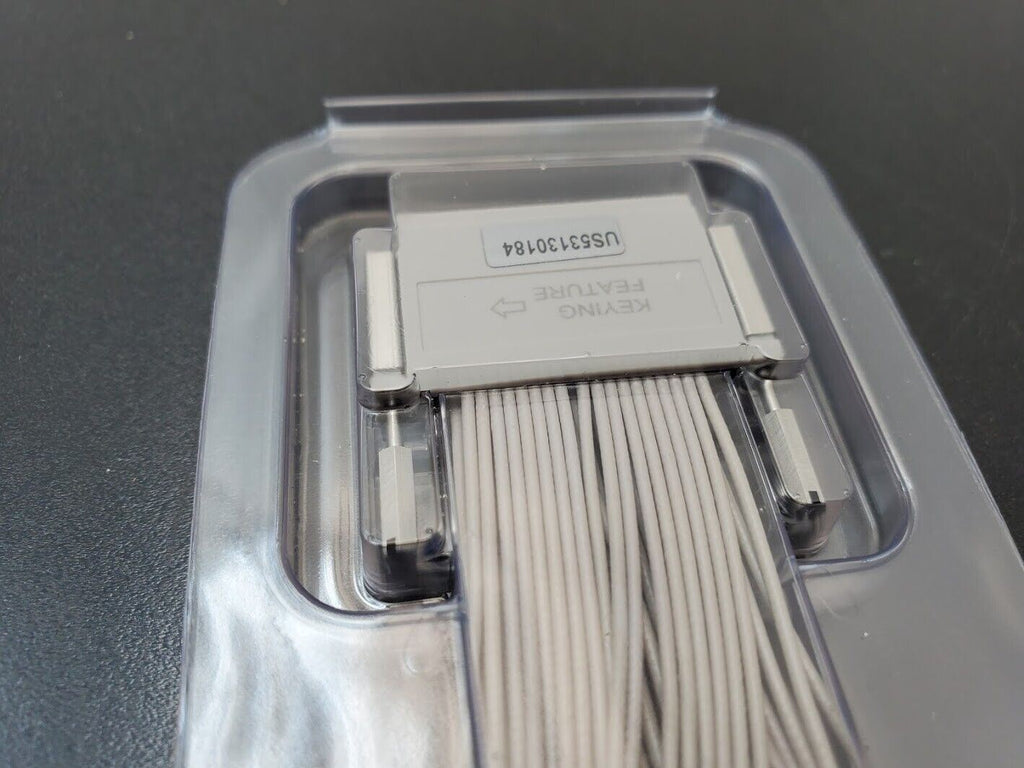

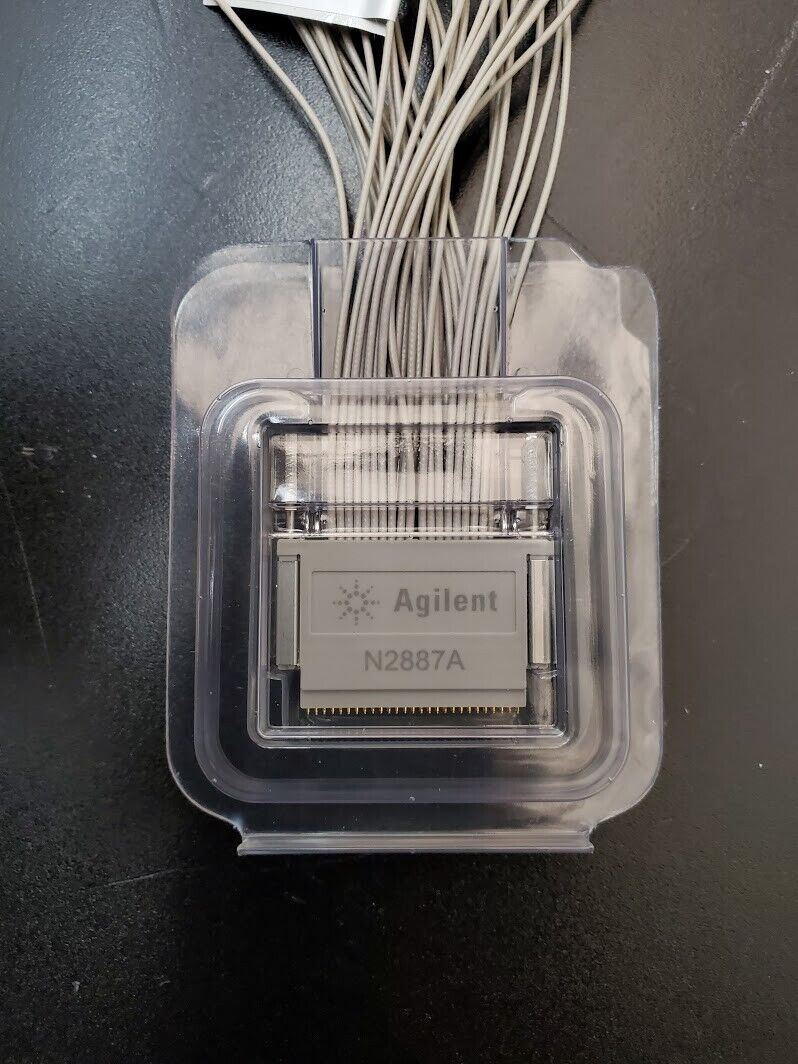

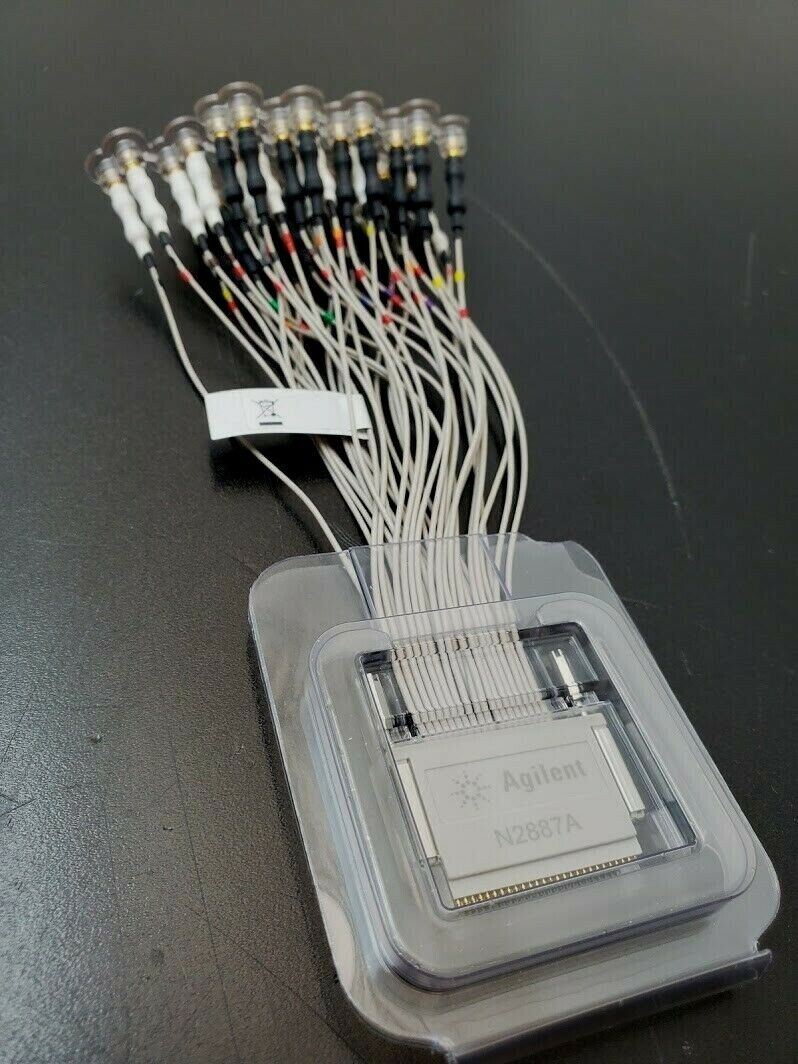

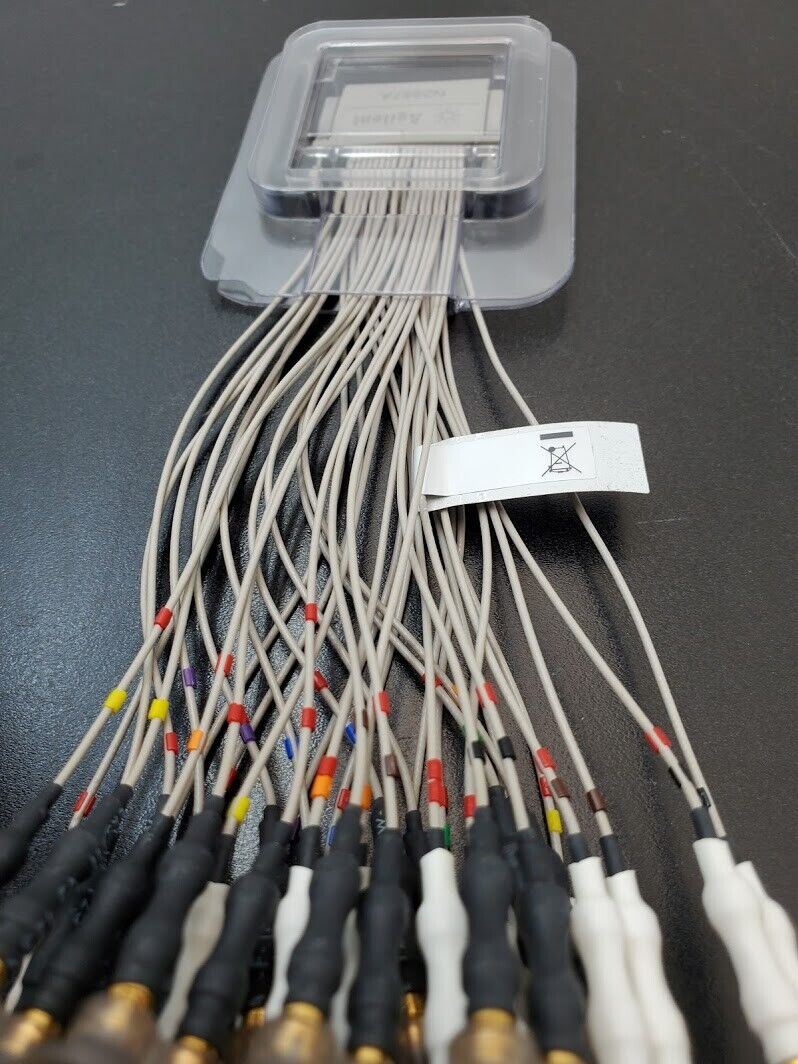

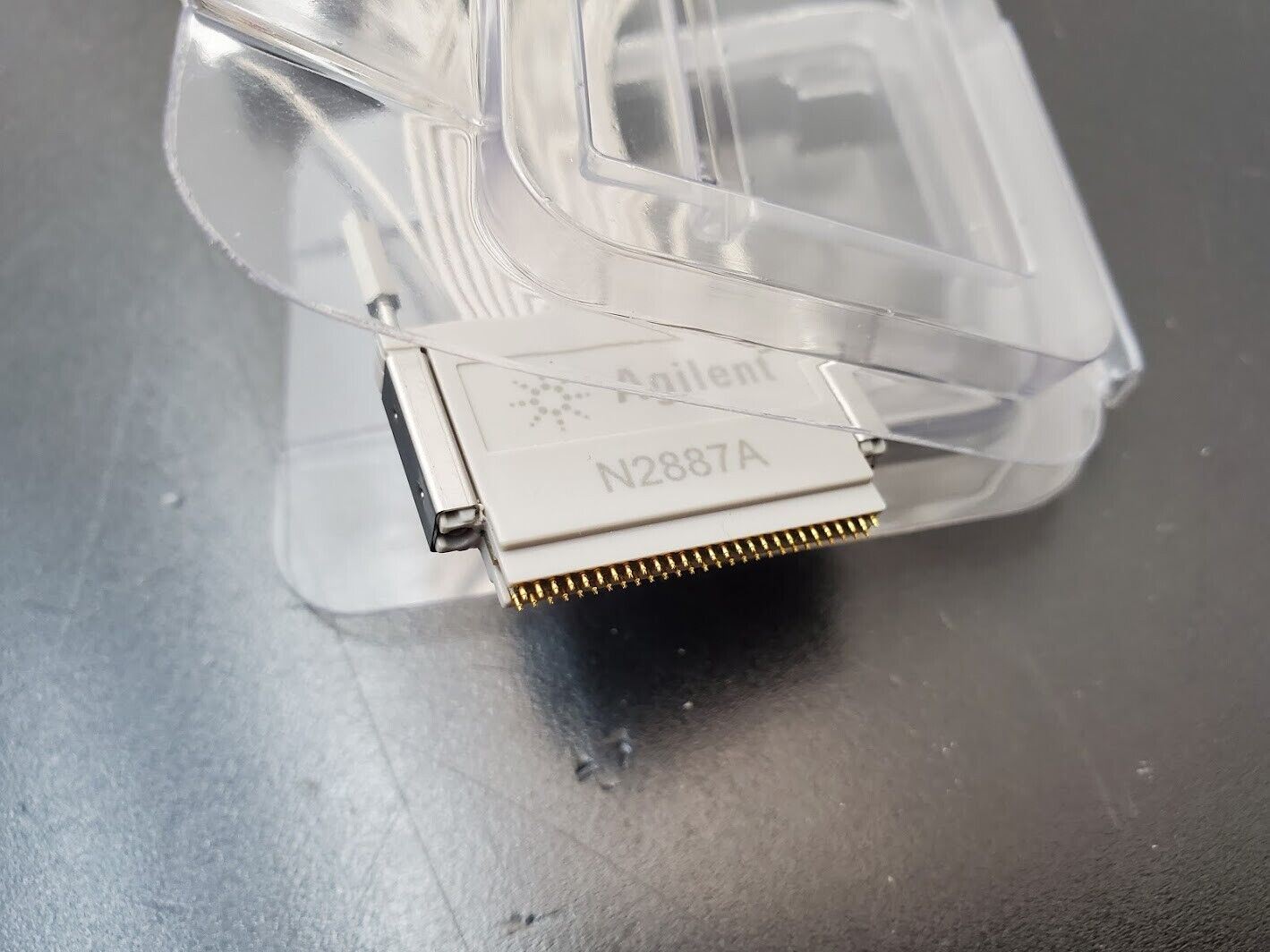

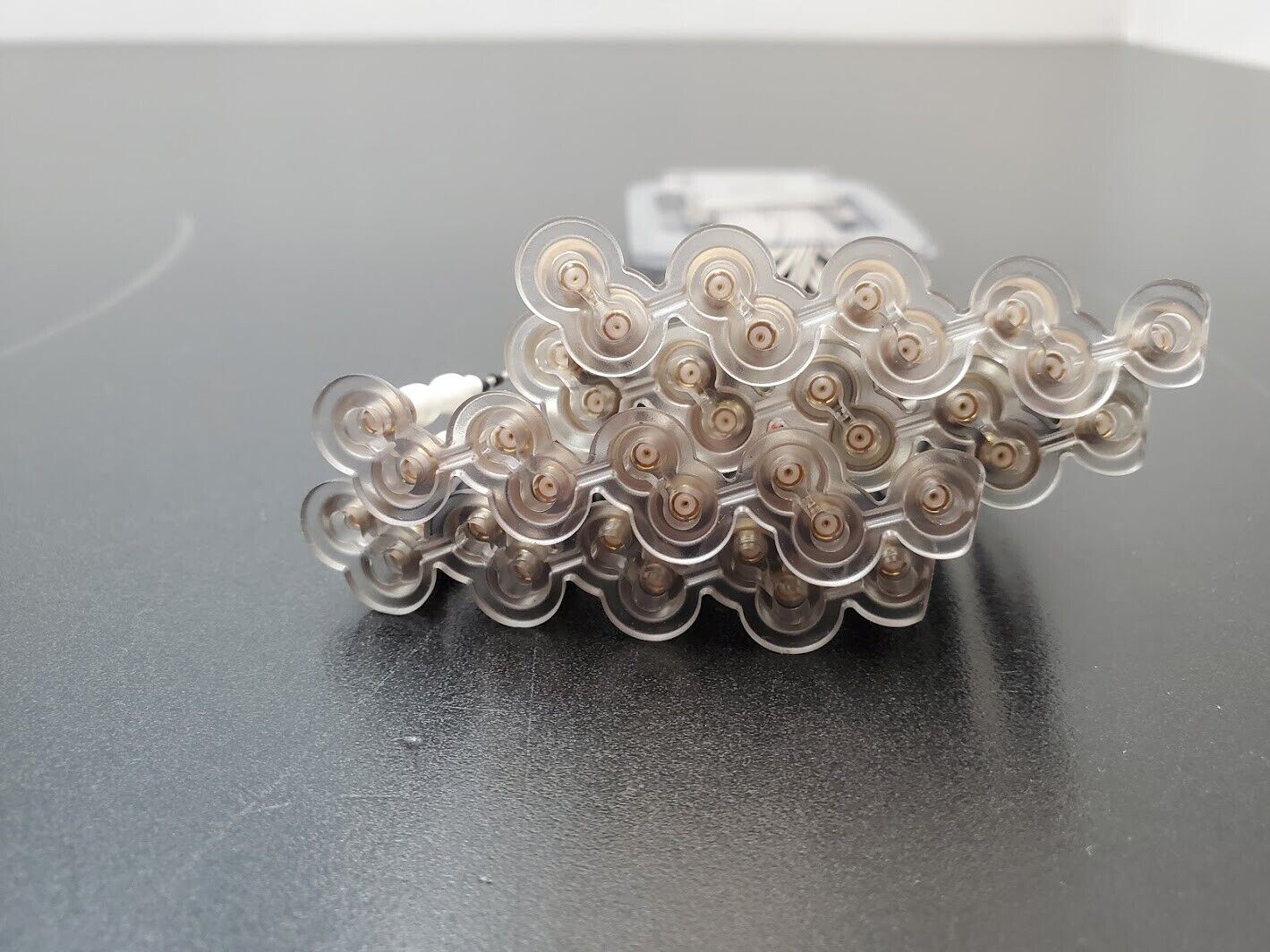

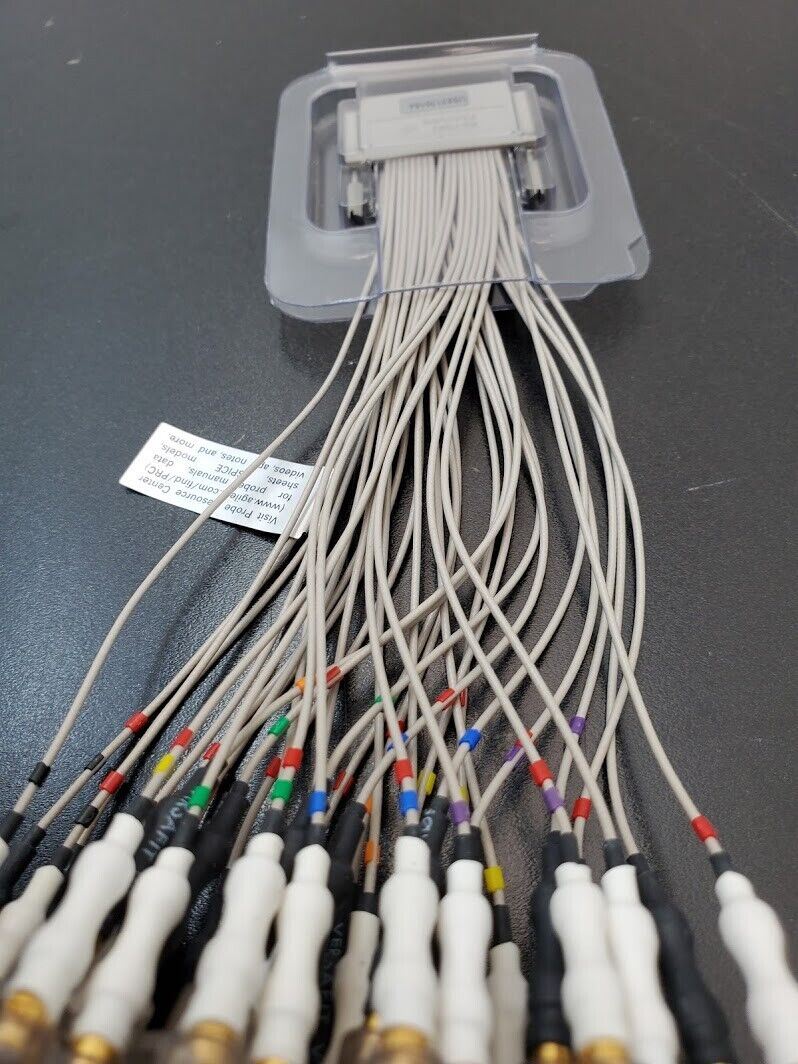

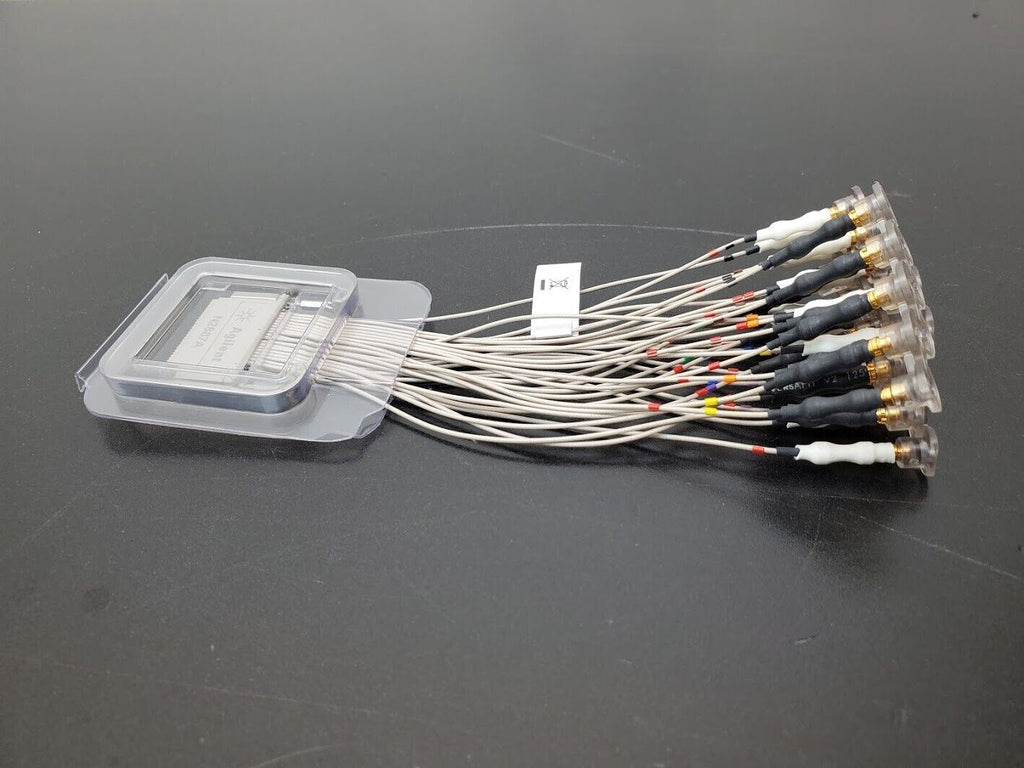

Agilent N2887A InfiniiMax Series probe adapter 36 Measurement Points with Case

Agilent N2887A InfiniiMax Series probe adapter 36 Measurement Points with Case

$1,599.99


Agilent N2887A InfiniiMax Series probe adapter 36 Measurement Points with Case

Good used condition, pulled from working environment.  Guaranteed.

Keysight Technologies E5400-Pro Series Soft Touch Connectorless Probes:

literature.cdn.keysight.com/litweb/pdf/E5404-97007.pdf?id=486222

This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel Free to contact us with any questions
Thank you for your interest and have a great day!


Key Features & Specifications

  • Adapts from the Keysight Pro Series (36 ch) Soft touch connectorless logic analyzer foot print to the Keysight InfiniiMax I & II series probe amplifier input connectors

  • Supports the Pro Series Soft touch single-ended and differential footprints and pin-outs

  • Up to 4 GHz bandwidth

  • Input R : 25 kΩ each input to ground, 50 kΩ between inputs

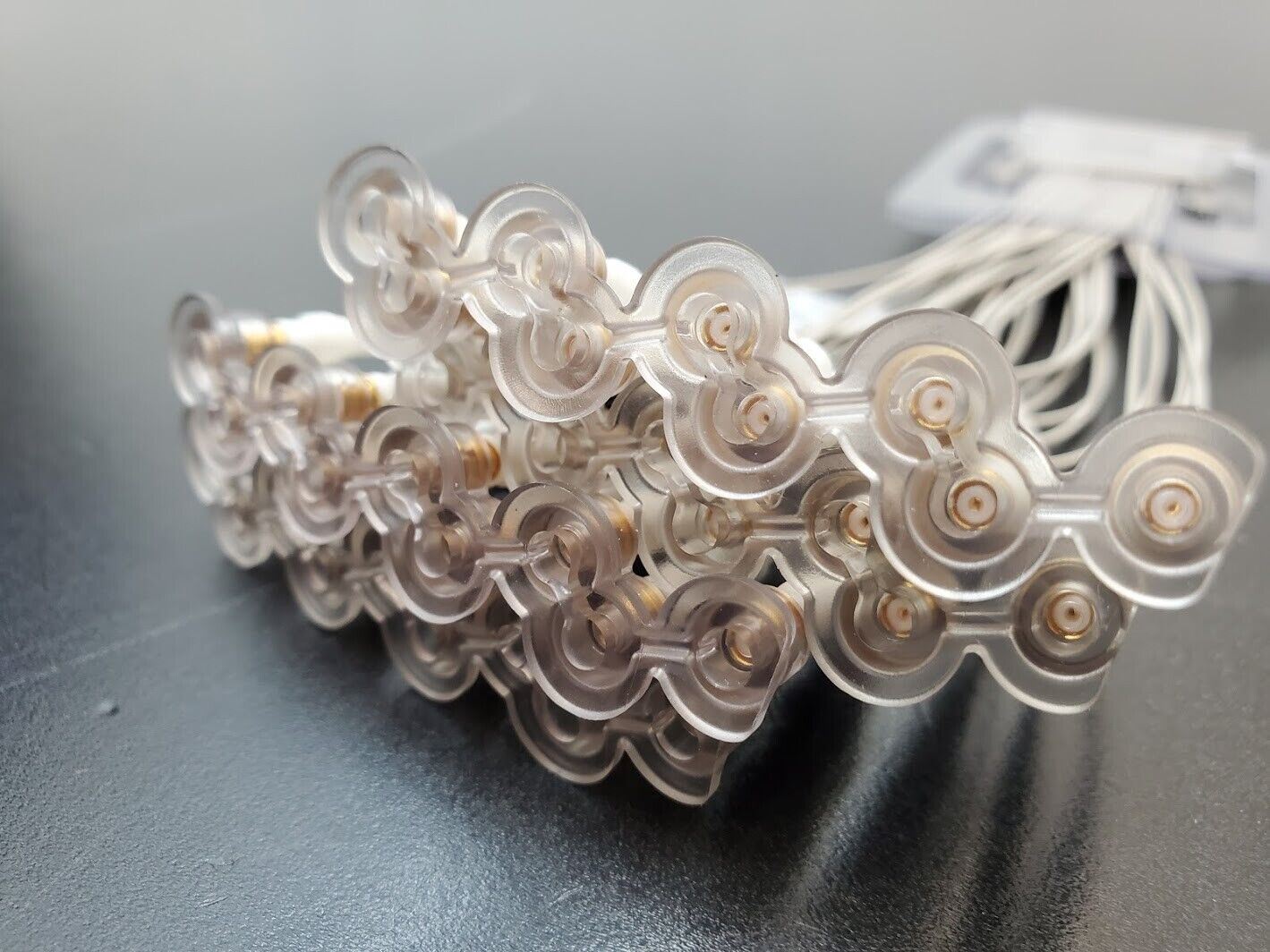

  • Comes with 5 retention modules

  • Use N2887-60002 deskew fixture to eliminate timing skew between channels

Description

Keysight has developed connectorless logic analyzer probes based on soft touch probing technology. Connectorless logic analyzer probing removes the connector that is traditionally attached to the target board and replaces it with an array of probe pods. This reduces the probe load on the target by eliminating the loading associated with the physical body of the connector.

The N2887A InfiniiMax Soft touch Pro probe head adapts from the Keysight Pro Series Soft touch foot print to the GPO input connectors of the Keysight InfiniiMax 1130A-1134A and 1168A-69A Series probe amplifier, enabling users to make a high density, multi-channel probing. Each adapter can support both the Soft Touch Single-ended and Differential footprints and pin-outs.

The N2887-60002 deskew fixture for N2887A and N2888A InfiniiMax Soft touch adapter helps eliminate timing skew between each channel down to <15 psec (typical).
