Up for sale is one Thyro-P communication enabled SCR thyristor power controller. Feel free to ask any questions and have a great day!

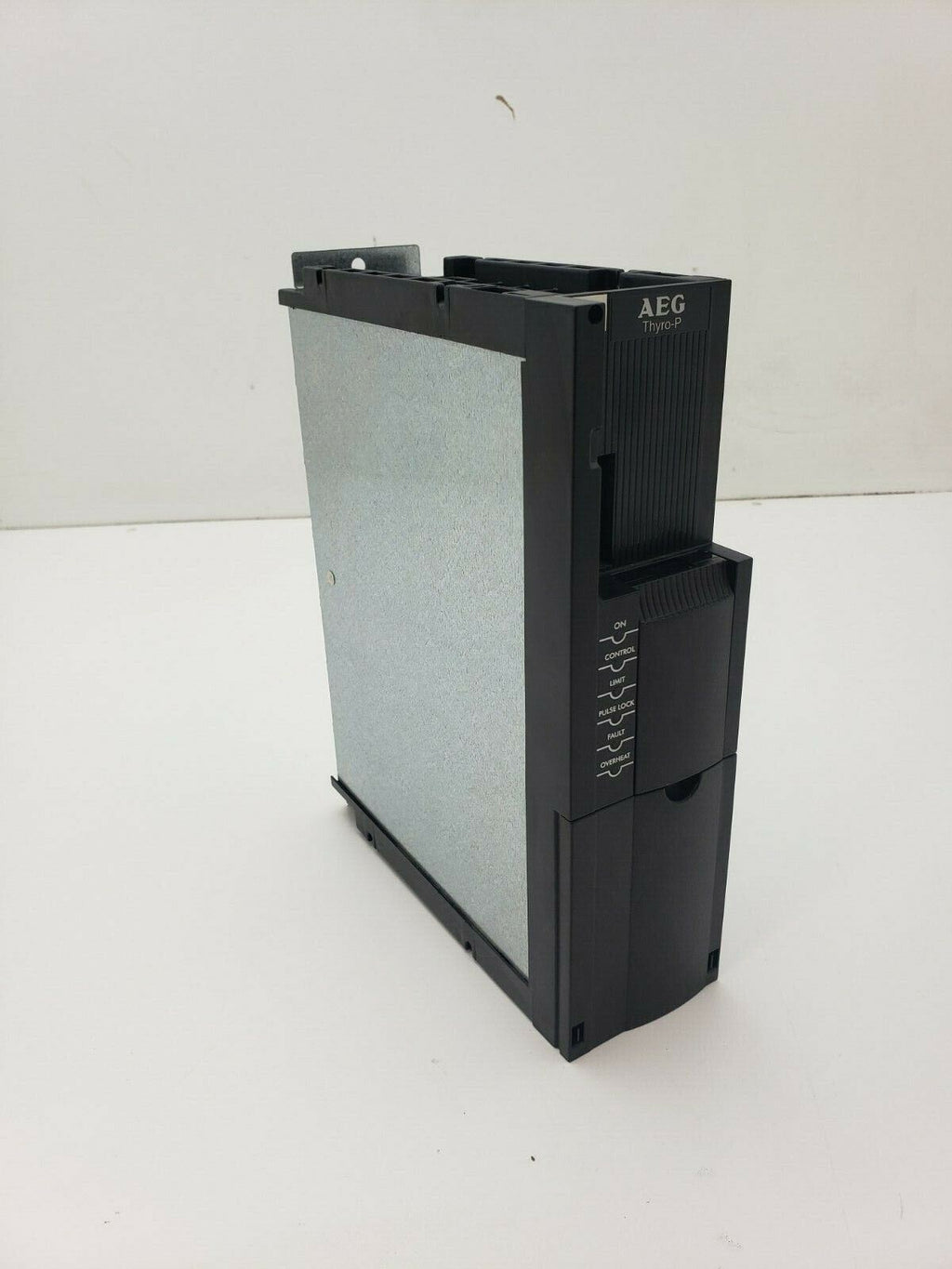

AEG Thyro-P Communication Enabled SCR Thyristor Power Controller
$224.99
The following is information from the manual we got from AEG (Can be found here:advancedenergy.com/globalassets/products/scr-legacy-product-page/operating-instructions/thyro-p/thyro-p-om-en.pdf)
GENERAL
Thyro-P is a communication enabled SCR thyristor power controller. Below, it is also referred to
simply as power controller. The Thyro-P power controller can be installed everywhere where voltages, currents or power have to be controlled precisely in 1- or 3-phase networks. Several modes of
operation and control, good coupling ability to process and automation technology, high control
precision by application of a 32 bit processor and simple handling ensure that Thyro-P is also suitable for new applications.
Thyro-P offers new ways for mains load optimization:
• In operating mode TAKT, the optional digital mains load optimization of dASM ensures that multiple power controller applications can be used in an optimal way for the network so that system
perturbations are mainly avoided.
• For applications which have to use phase angle firing due to required high dynamic, Thyro-P...VSC
offers to minimize significantly harmonics by its VSC technology.
Thyro-P is suitable in particular for
• direct supply of ohmic loads
• for loads with large Rhot/Rcold ratio
• as primary power controller for a transformer with subsequent load
Due to use of high quality thyristors, the Thyristor Power Controller Thyro-P has a type range
up to 2900A, the nominal design loads reach up to about 2860kW.
SPECIFIC CHARACTERISTICS
Thyro-P is characterized by a multitude of specific characteristics, for instance:
• easy handling
• menu-driven user interface (options: LBA-2 with touch display, Thyro-Tool Family)
• type range 230-690 Volts, 5-2900A, single, double, triple phase
• broadband power supply AC 200-500V, 45-65Hz
• ohmic load and transformer load
• as well as load with large Rhot/Rcold for 1P and 3P
• soft start function for transformer load
• load circuit monitoring
• automatical rotating field recognition for 2P and 3P
• U, U2
, I, I2
, P control as well as without control
• operating modes TAKT, VAR, VSC_VAR, SSSD, MOSI (optional sub operating mode of TAKT and
VAR)
• mains load optimization dASM for applications with multiple power controllers in operating
mode TAKT
• control of analog set points or via interfaces
• fiber optic and RS232 interfaces as standard
• electrical separation according to EN 50178 chap. 3
• Measured values are given at analog outputs
• 4 set point channels incl. motor potentiometer to set parameters
The specific characteristics especially include the following options:
• LBA-2 local touch display with integrated process data recorder of up to 6 channels
• LBA-2 is downward compatible with LBA and can replace it.
• Cabinet installation kit (SEK) for LBA-2 with touch display. The SEK allows the installation of
LBA-2 in cabinet doors. It comes with wiring and installation frame.
• Bus connection via bus adaptor cards to plug into the Thyro-P Power Controller, coupling to
different bus systems, for instance Profibus, other bus systems upon enquiry.
• The PC-Software Thyro-Tool Family for effective commissioning and simple visualization tasks.
Functions are for instance loading, storing, modification, comparing and printing of parameters,
set points and actual value processing, line diagrams of process data (including printing and
storing option), bar diagrams, simultaneous display of process data from different power controllers, simultaneous connection of up to 998 Thyro-P Power Controllers.
• Patented ASM procedure for dynamic mains load optimization. The ASM procedure (automated
synchronization of multiple power controller applications) is used for dynamic mains load optimization. It reacts to changes in load and set point, minimizes mains load peaks and associated mains
feedback. Minimizing of mains load peaks means cost savings in operating and investment cost.
• For new systems it is recommended to use the high performance dASM instead of ASM.
