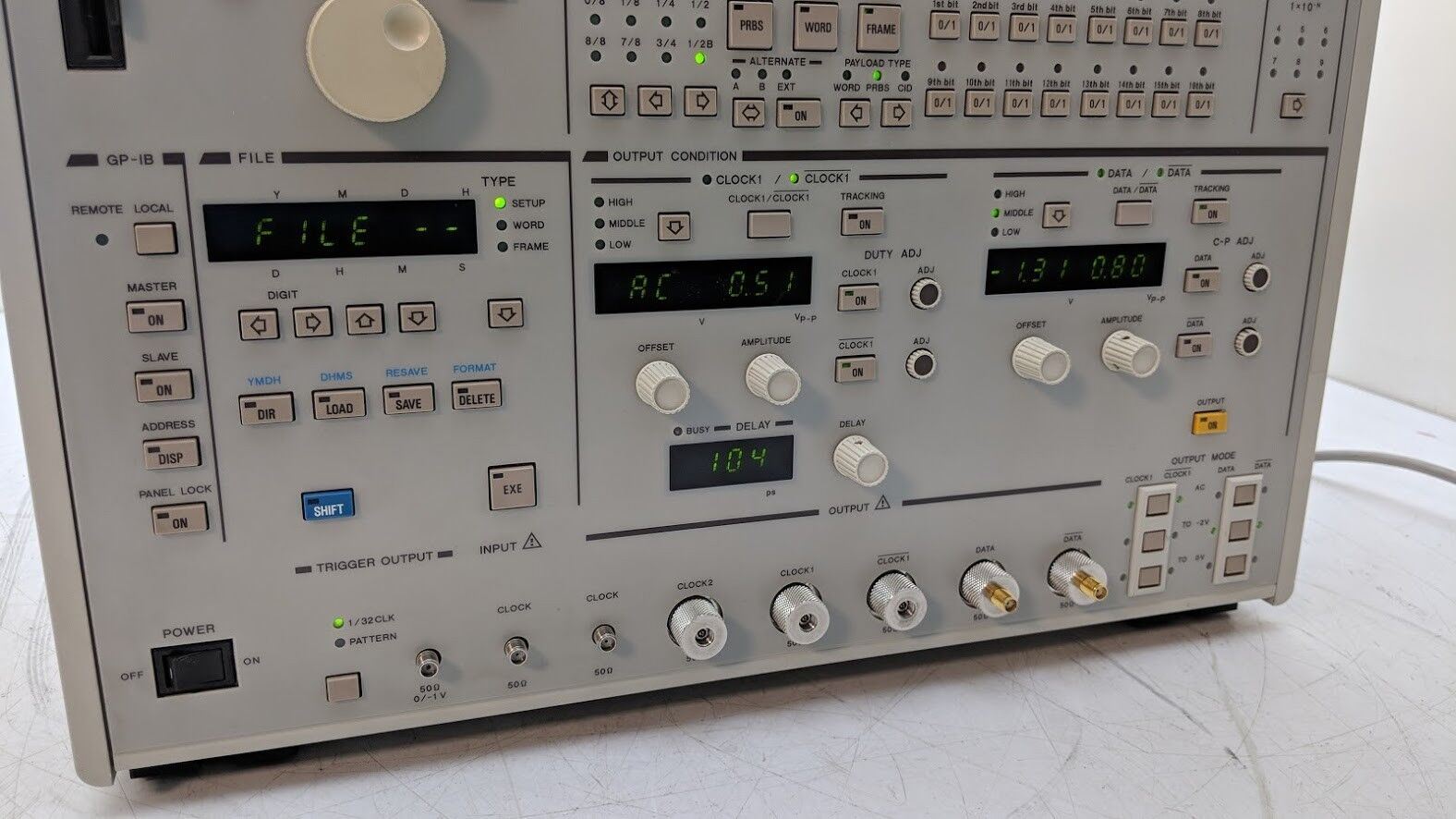

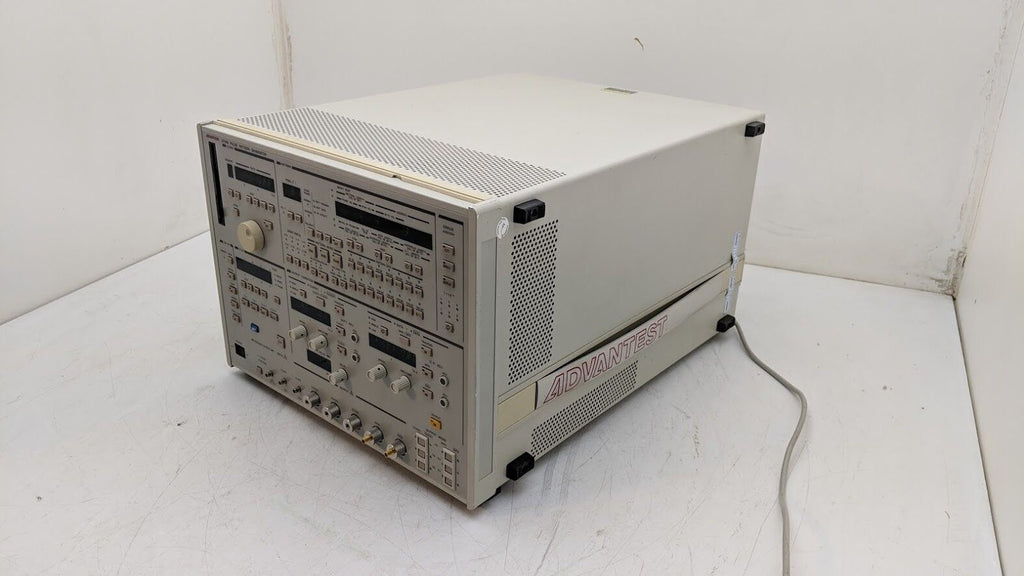

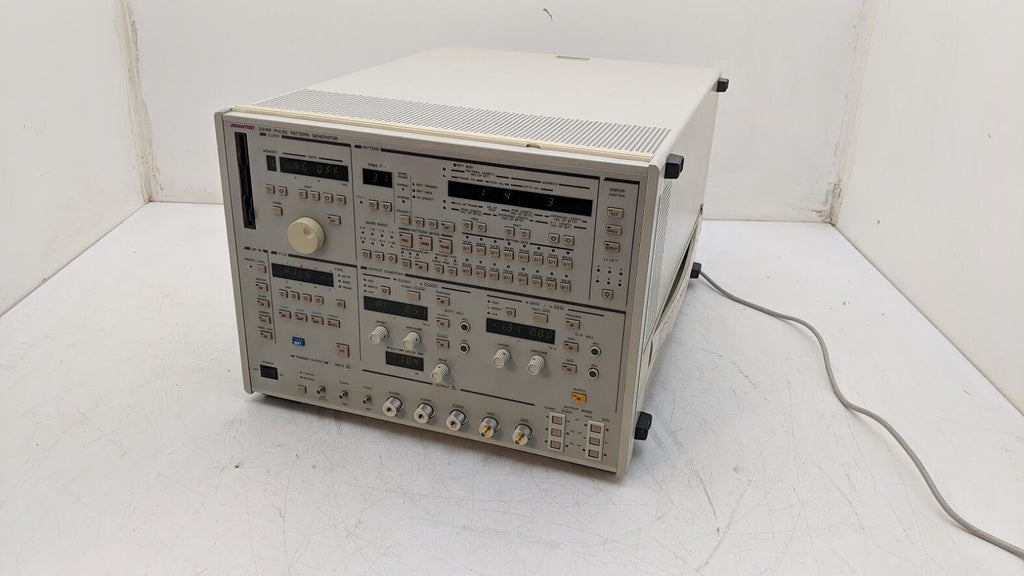

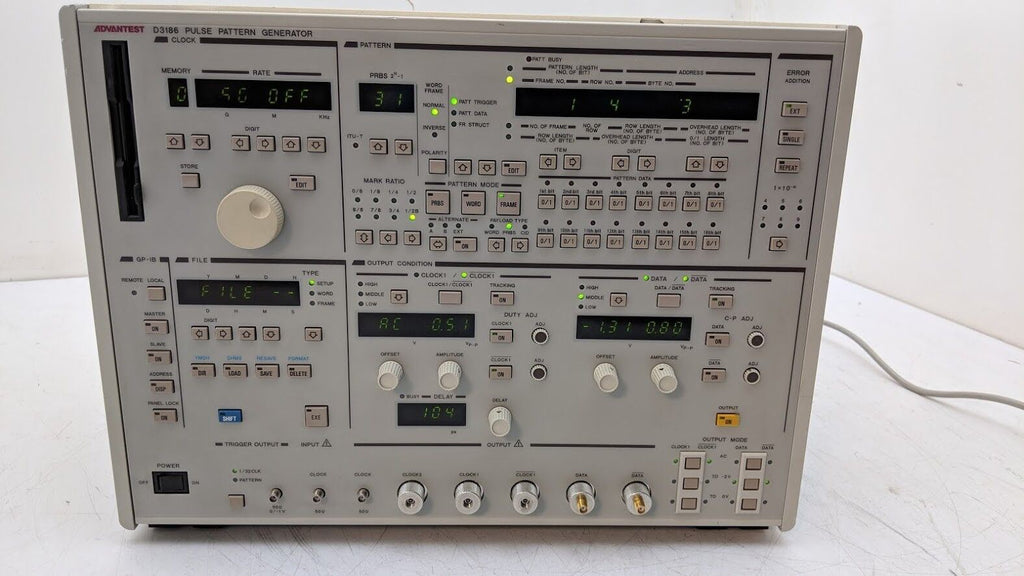

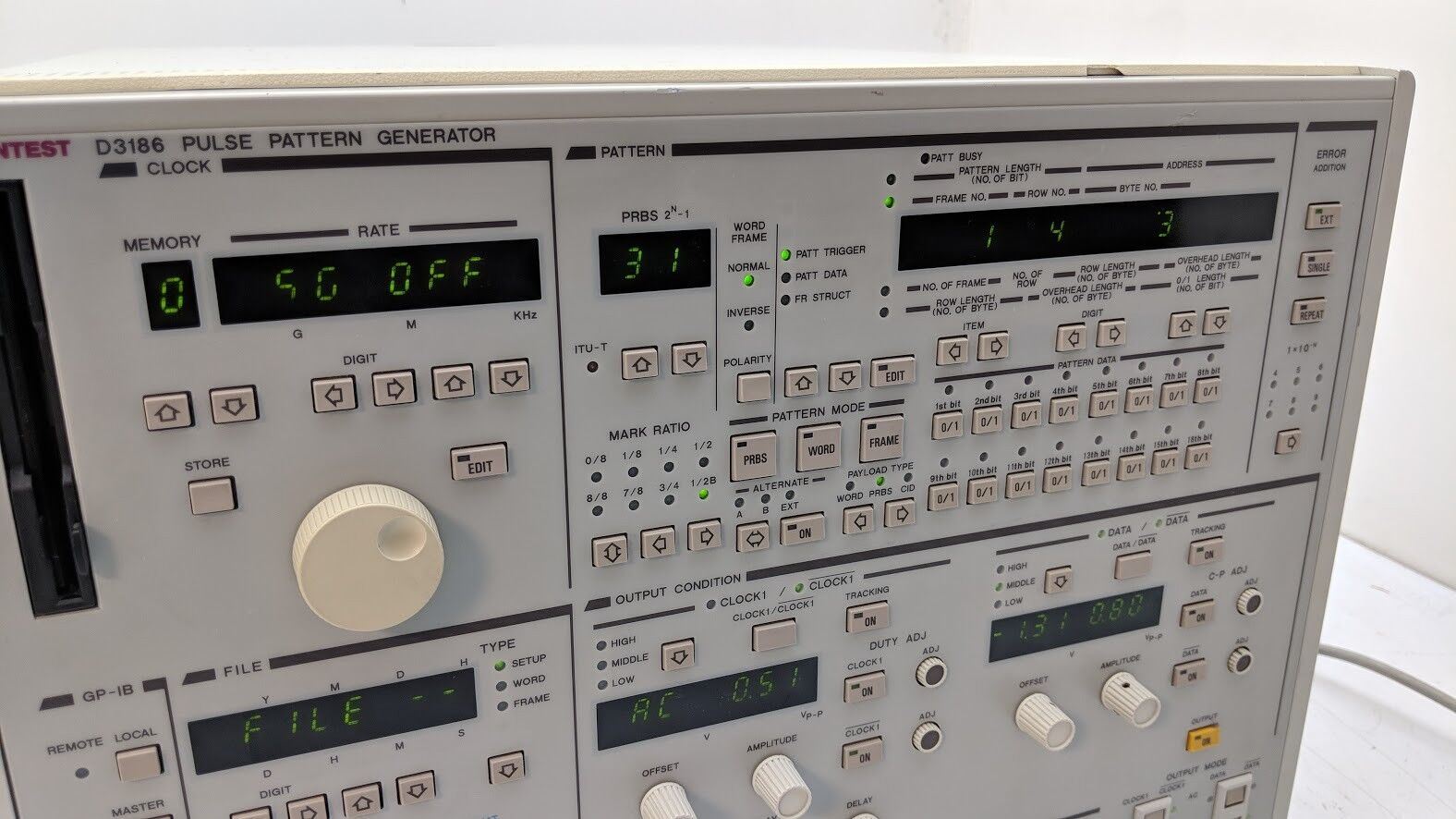

Advantest D3186 Pulse Pattern Generator Error Detector Option 70 FRAME
$1,199.99
Advantest D3186 Pulse Pattern Generator Error Detector Option 70 150Mbps-12Gbps

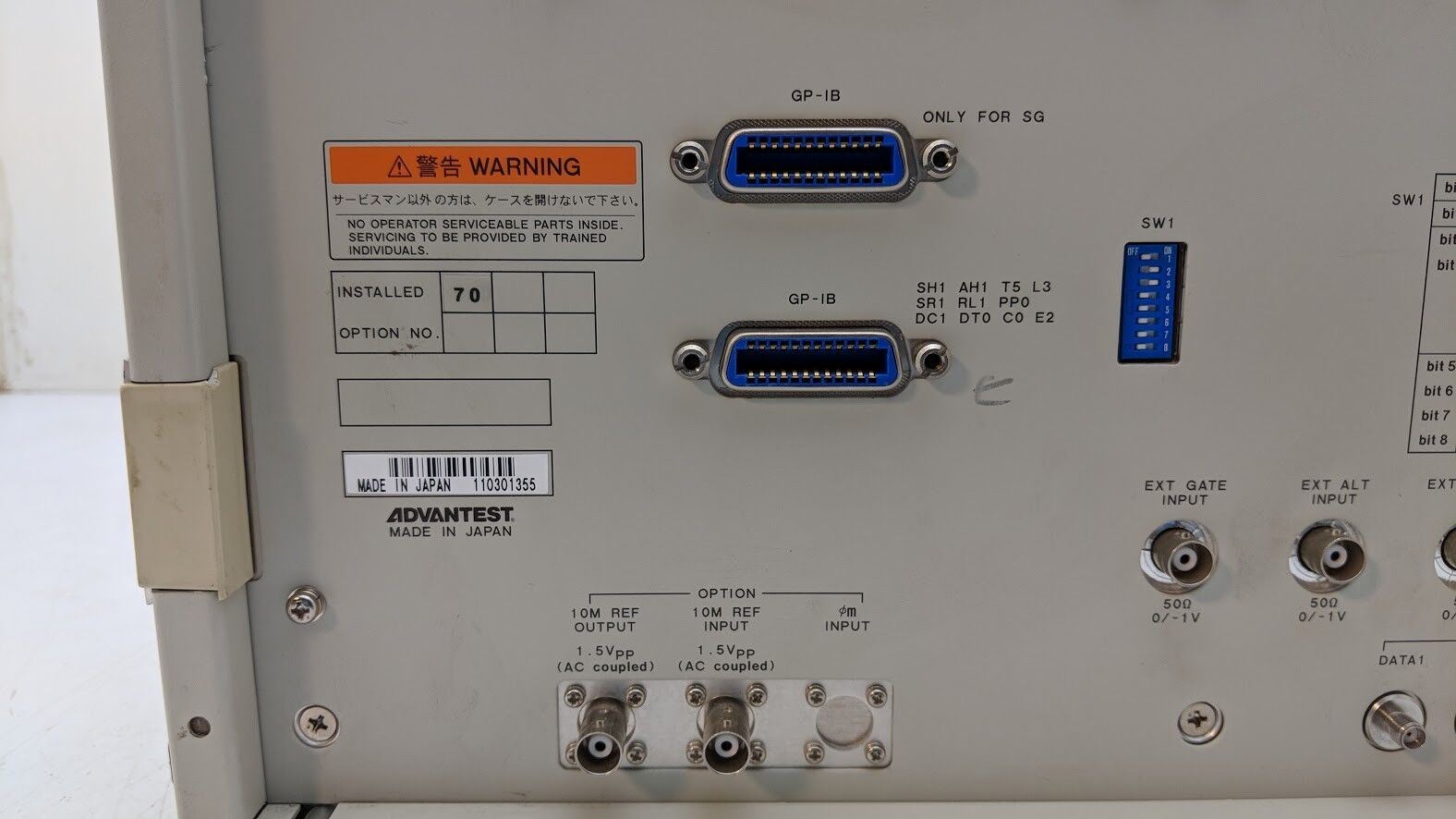

This unit does not have an internal clock based on the options.

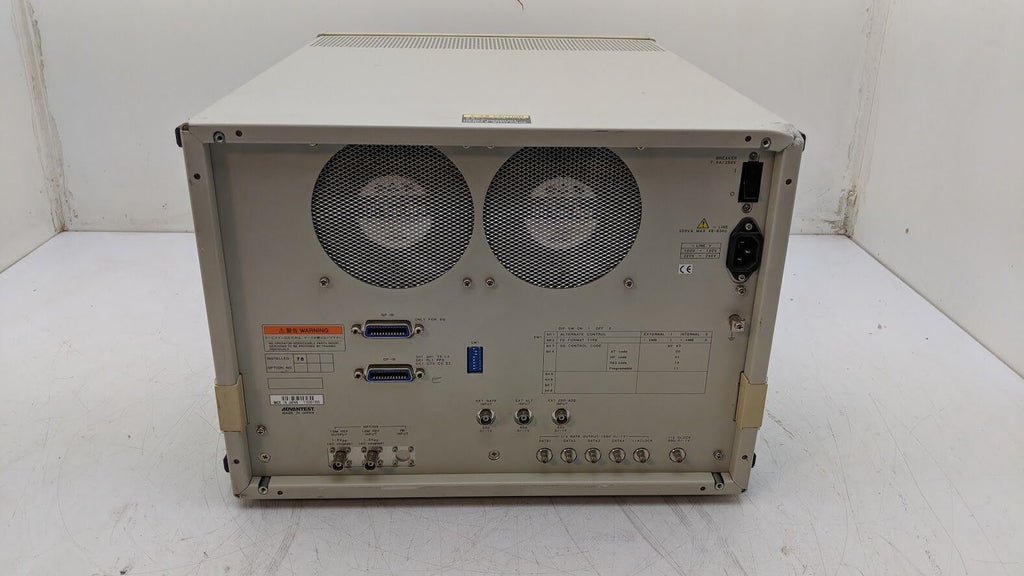

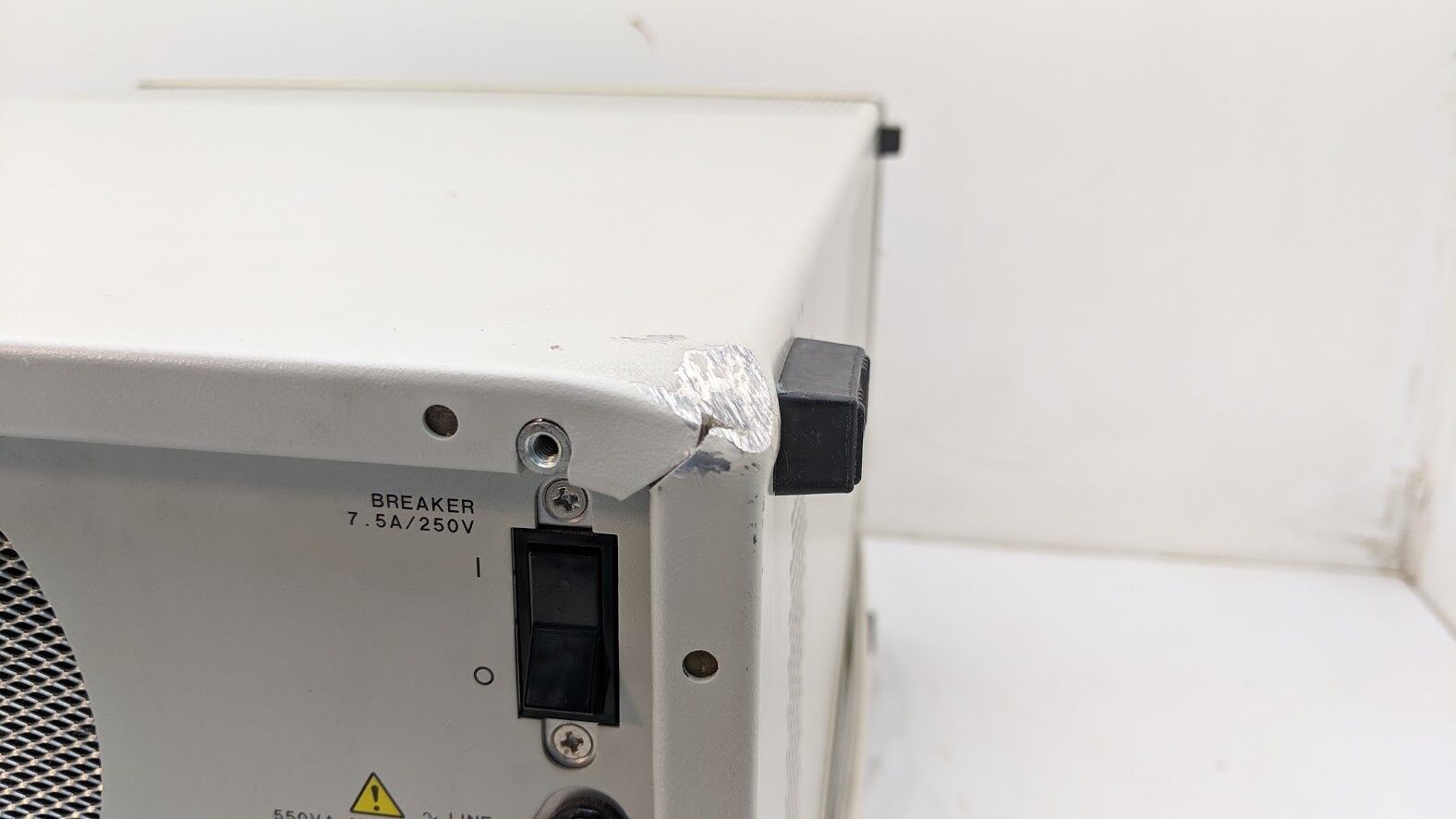

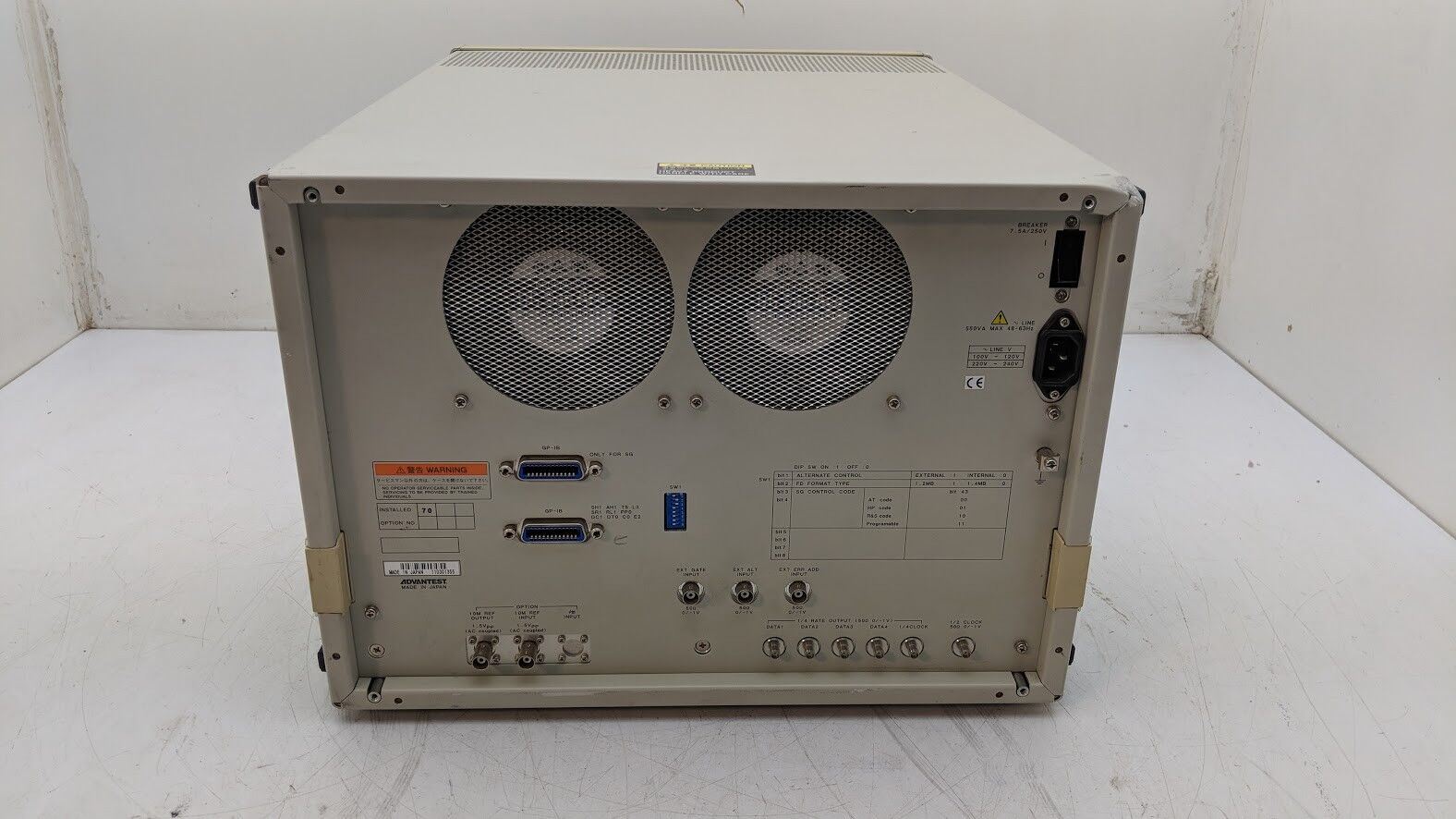

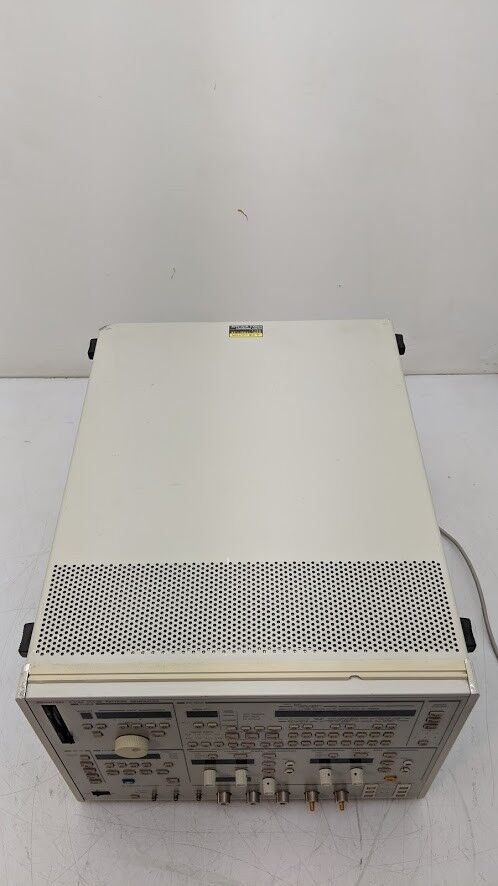

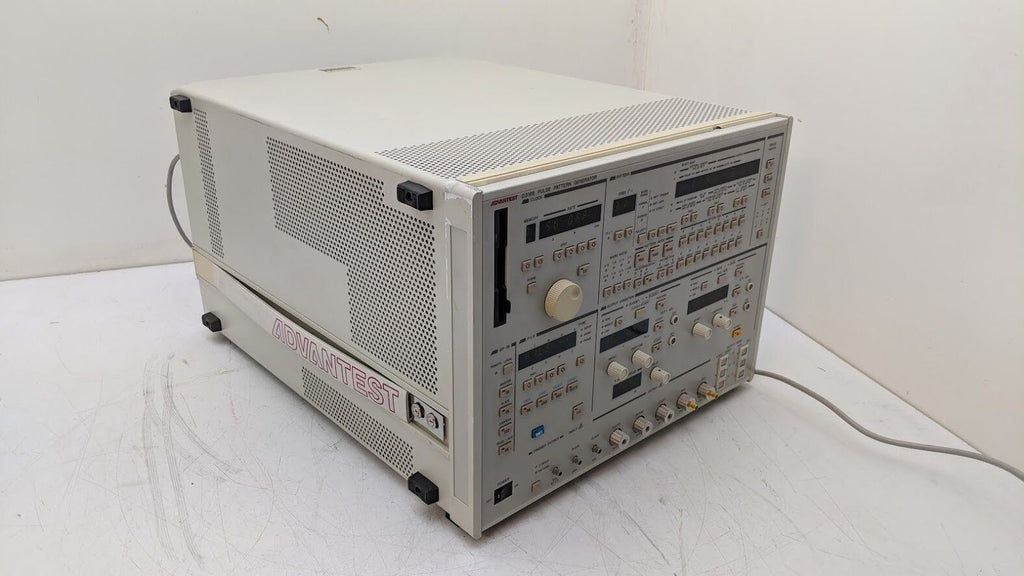

Good used condition, power on tested, see pictures for a couple cosmetic problems, a cover missing from one end of an handle and some top corner damage where the case has been pushed in slightly.
Web info we found on the unit:
To accommodate transmission of large capacity information in the coming multimedia generation, ultra high speed digital telecommunications networks are being constructed. For evaluation and analysis of O/E and E/O modules and ultra high speed logic devices used for multiplexers and repeaters for telecommunications systems, a signal source with high speed and high quality is necessary.
The D3186 Pulse Pattern Generator/D3286 Error Detector offers excellent waveforms with high speed and high quality and diverse error detecting functions in an operating frequency range from 150 Mbps to 12.5 Gbps. In addition, with the 8 M-bit large capacity memory and ADVANTEST's unique frame pattern generation function, the D3186/D3286 is a new generation of error performance test system which is compatible with STM-1 (155.52 Mbps) to STM-64 (9.95 Gbps) in SDH/SONET.
Here is a manual:
artisantg.com/info/PDF__416476616E746573745F44333138365F4D616E75616C.pdf
And a datasheet:
testequipmenthq.com/datasheets/ADVANTEST-D3186-Datasheet.pdf
Excellent waveform quality
8M-bit memory, 31 stages for PRBS

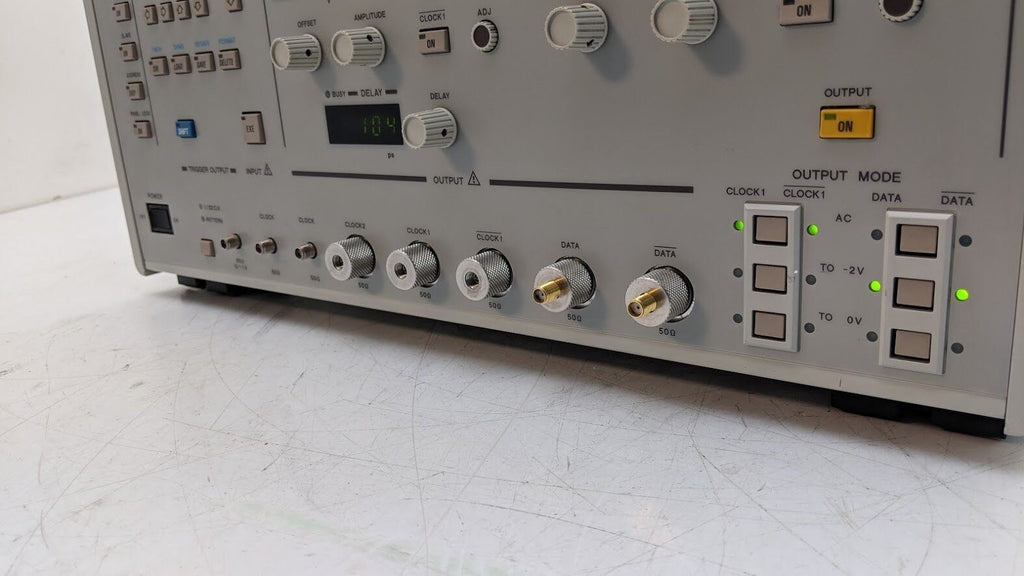

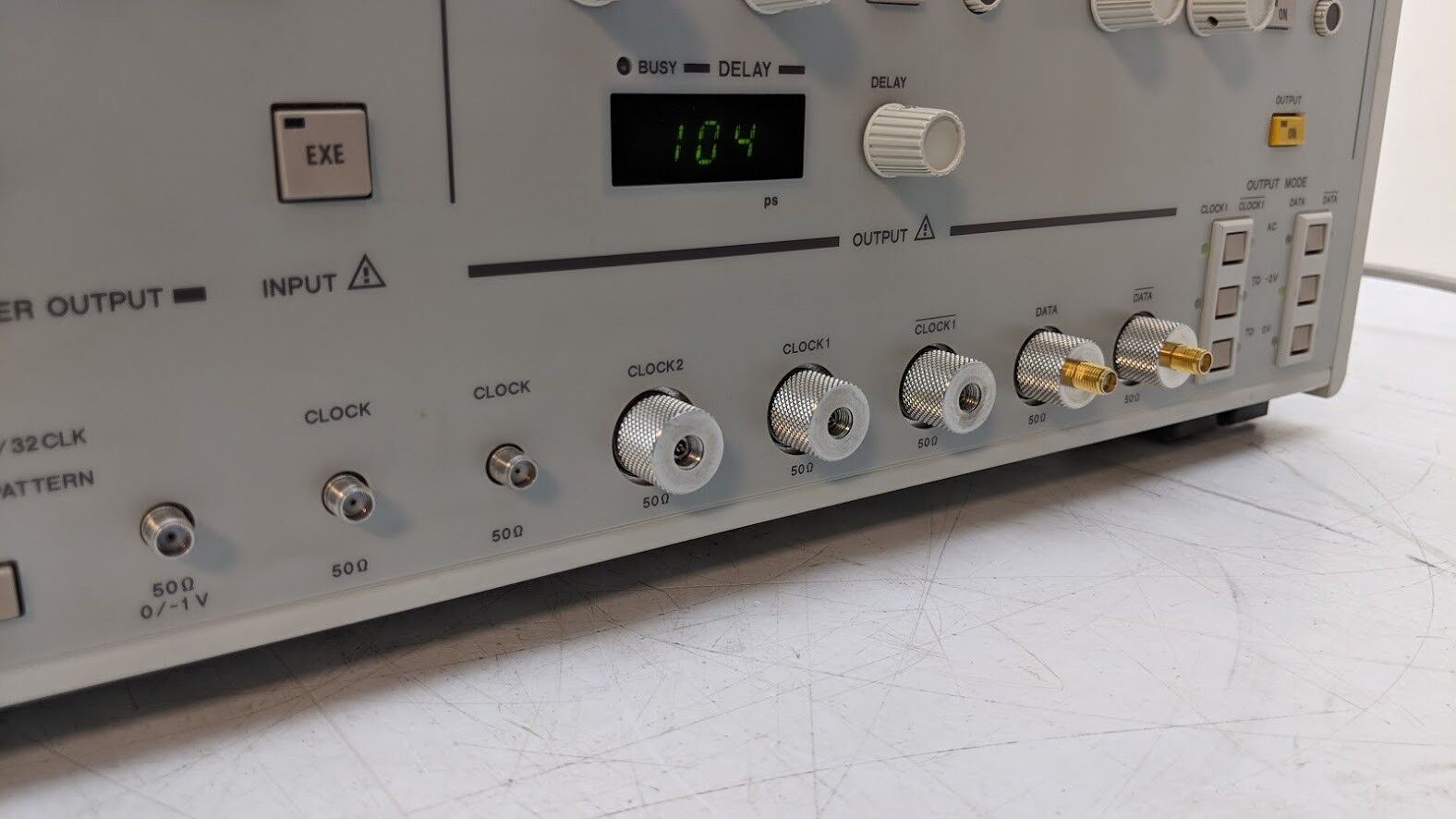

Multi-channel output : 2 data channels, 3 clock channels, and 7 sub-rate channels
Cross point variable for output waveform
Burst signal output
3 Vp-p outputs, effective for EA modulators, etc. (option)
The Advantest D3186 is used in the Generation of SDH/SONET frame patterns (mixed patterns) which are close to actual data.
