Fast Breaking Time (2.5-3.5 ms)
Finger Safe Terminals
Suitable for Reverse Feed
UL 1077 Supplemental Protective Device
Maximum Operating Voltage UL/CSA: 480Y/277 VAC

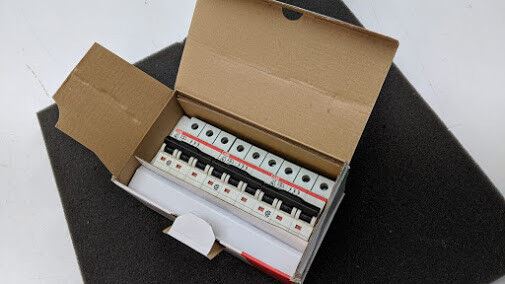

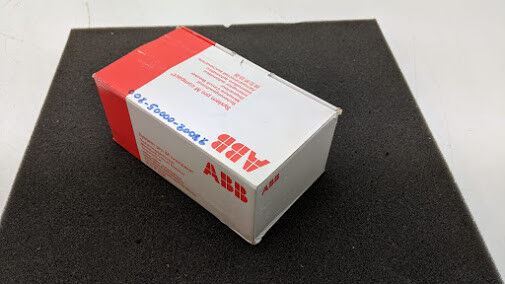

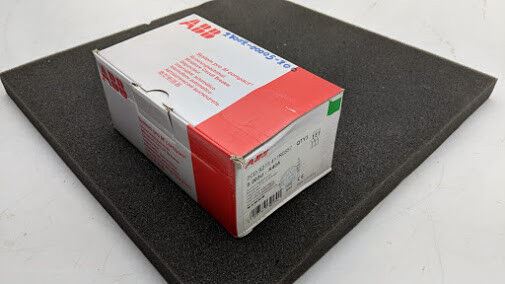

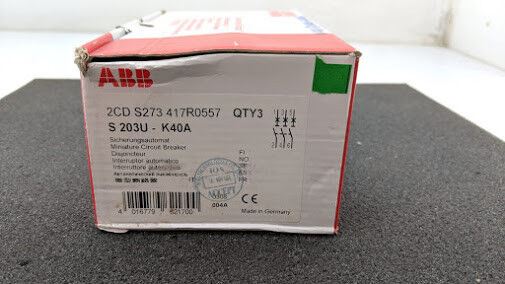

ABB Circuit Breaker S203U-K40A 3-Pole 40A DIN Mount - Box of 3
$99.99
Specifications
| Actuator Type | : | Toggle |
| Characteristic | : | K Curve |
| Current Rating | : | 40 A |
| Dimensions | : | 88 H x 52.5 W x 69 D mm |
| Mounting Type | : | DIN Rail |
| Number of Poles | : | 3 Pole |
| Overload | : | Thermal/Magnetic |
| Primary Type | : | Miniature Circuit Breaker |
| Series | : | S200 Series |
| Special Features | : | Finger-Safe Terminals |
| Standards | : | UL1077 Recognized |
| Termination | : | Screws |
| Time, Trip | : | 2.5 to 3.5 ms |
| Type | : | UL1077 |
| UPC Code | : | 66201917169 |
| Voltage Rating | : | 400 VAC |
Overview
ABB S200 Series - Miniature Circuit Breakers:
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short-circuit protection. They are available in different characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking capacities (up to 6 ka at 230/400 VAC) and rated currents (up to 63 A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/En 60947-2, UL 1077 and CSA 22.2 No. 235. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Features:
