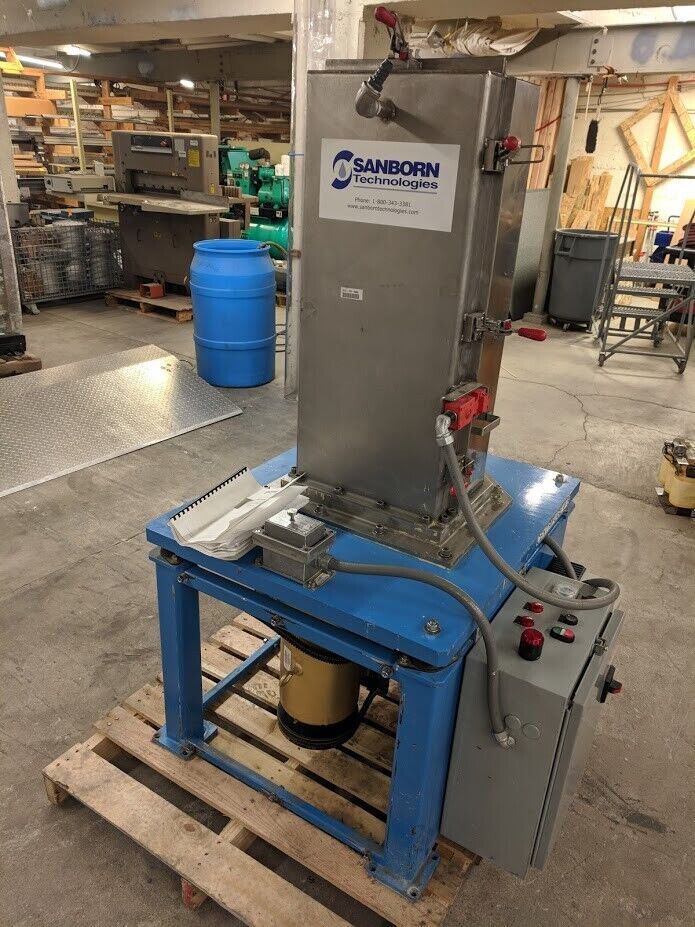

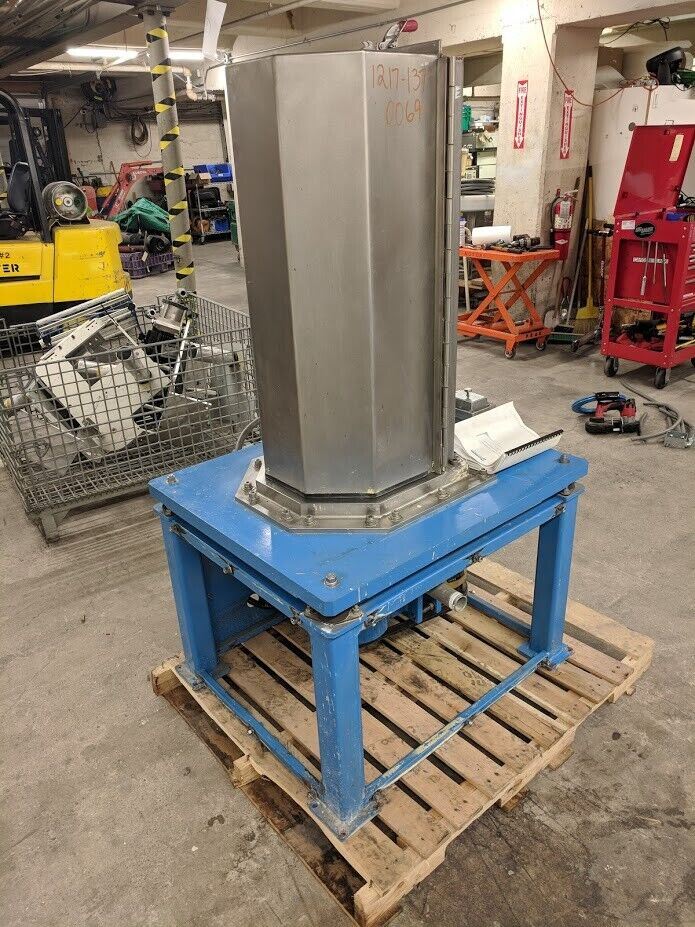

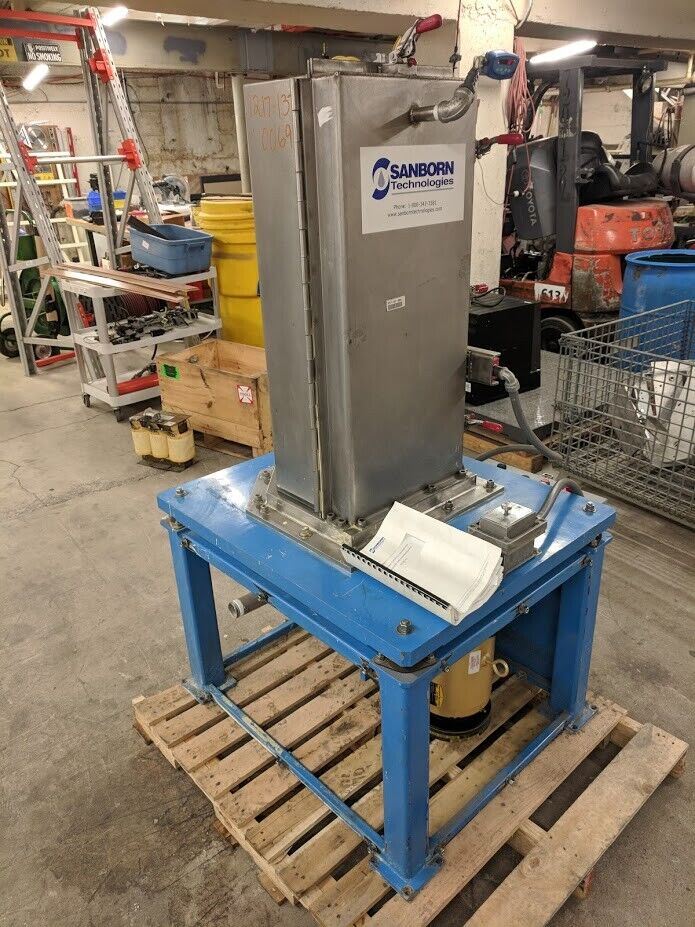

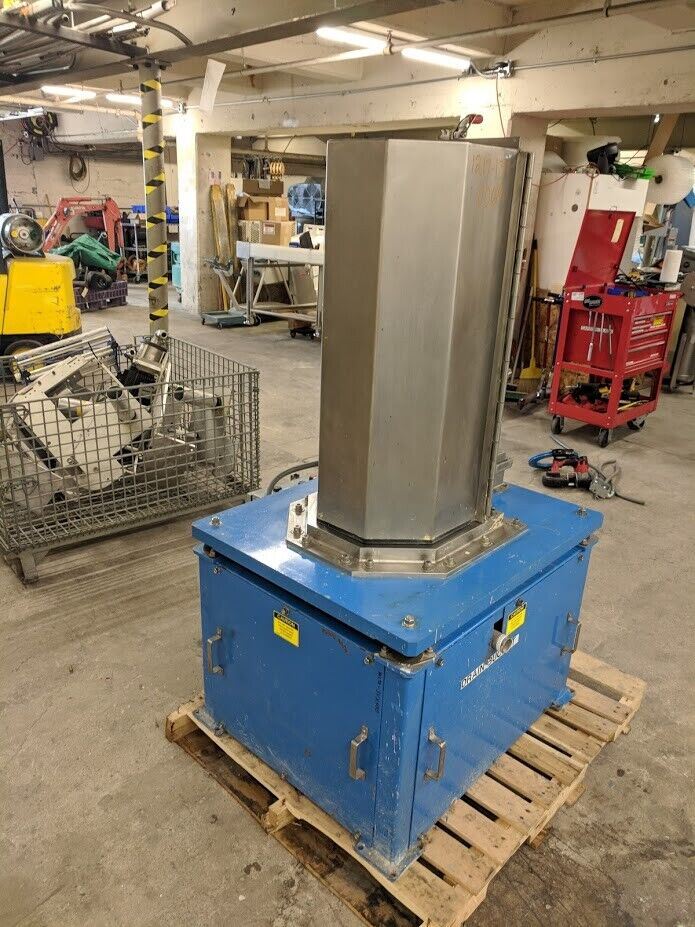

Up For sale is one Sanborn Vertical Casting Centrifuge.
Sanborn Vertical Casting Centrifuge For Iridium Oxide Casting Free Freight
$2,499.00
This unit was made for Umicore Indium Products. It was "designed to produce centrifugal castings of iridium oxide"

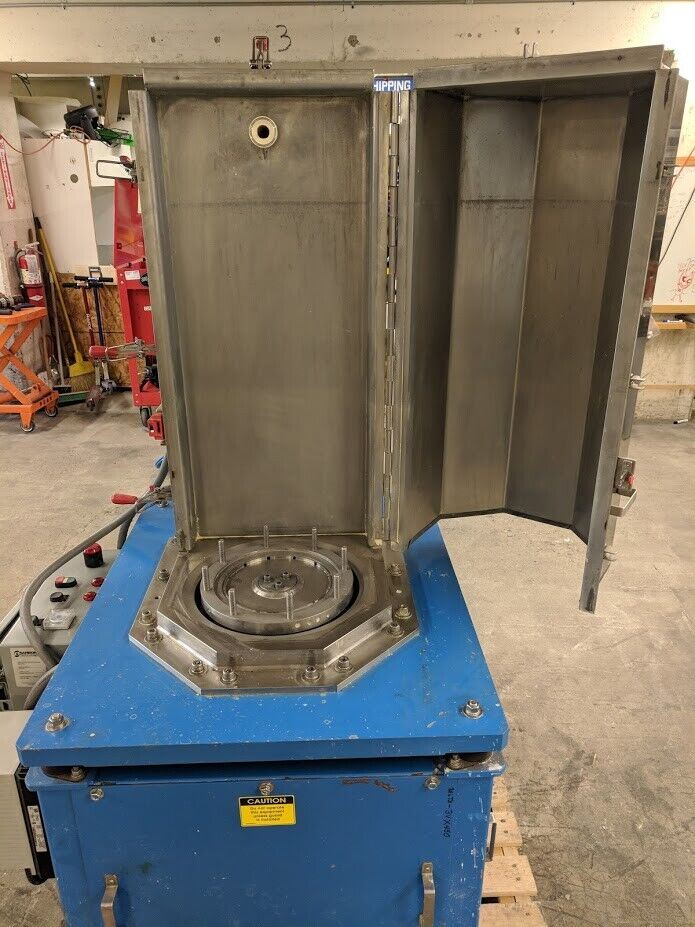

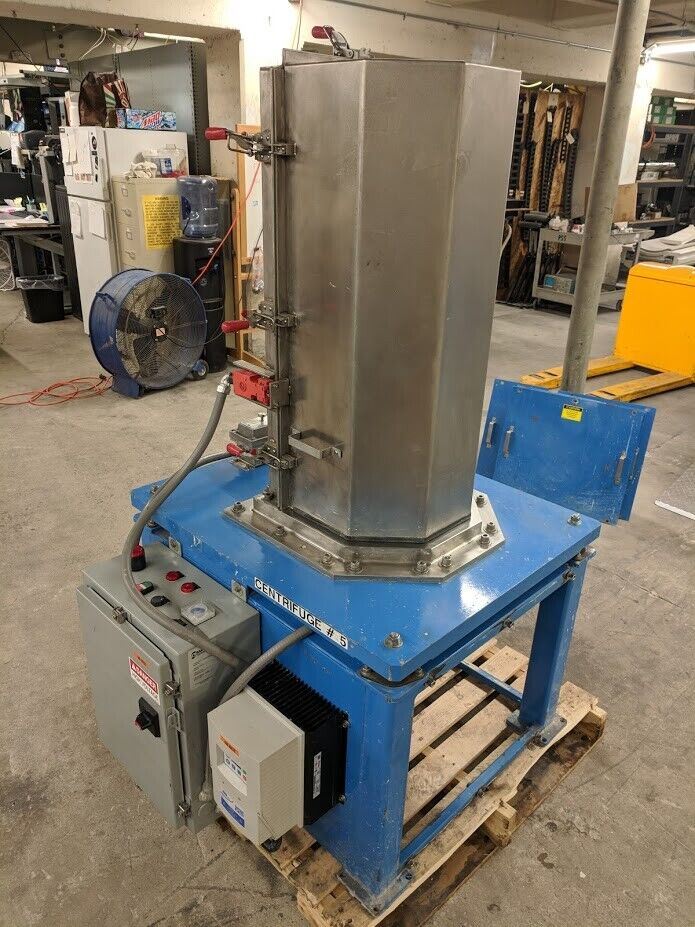

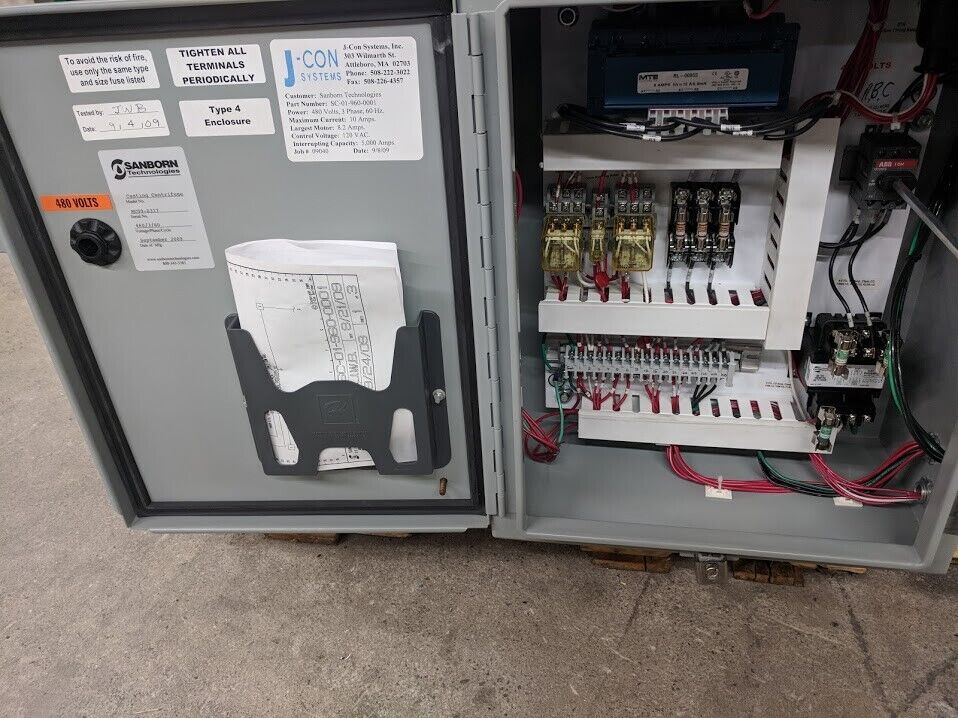

Although it was used for castings of iridium oxide, looking at the construction of the machine it could be used as a vertical centrifuge to spin anything you would want. Just about everything on this is overkill. The machine has seen better days cosmeticly but it is so well built that is still runs as if it was just installed brand new. Even the belt used to drive it seems like it was recently replaced and the motor looks brand new still. The main chamber door swings very easily. When we got the unit the control box and motor drive were mounted on a separate piece of wood and we re-mounted them back on the side of the unit and replaced the watertight conduit going to the vibration sensor on the machine base.
We also have the full operation and maintenance manual to go with the unit.
Below are the main specs from the operators manual:
Serial Number MC09-0317
Date shipped: September 28, 2009
Max RPM: 5000
Max Mold ID: 185 mm
Max Mold Height: 700 mm
Max Casting Weight: 70 Lbs.
Machine Weight: 1400 Lbs.
Motor HP: 5
Motor Rpm: 1750
Belt Ratio: 2.67
Speed Ratio: 1Hz= 78 Rpm
Construction:
Rotor: 304 Stainless
Mold: 6061-T6 Aluminum, Hardcoated
Lower Cap: 304 Stainless
Upper Cap: 6061-T6 Aluminum
Case: 304 Stainless

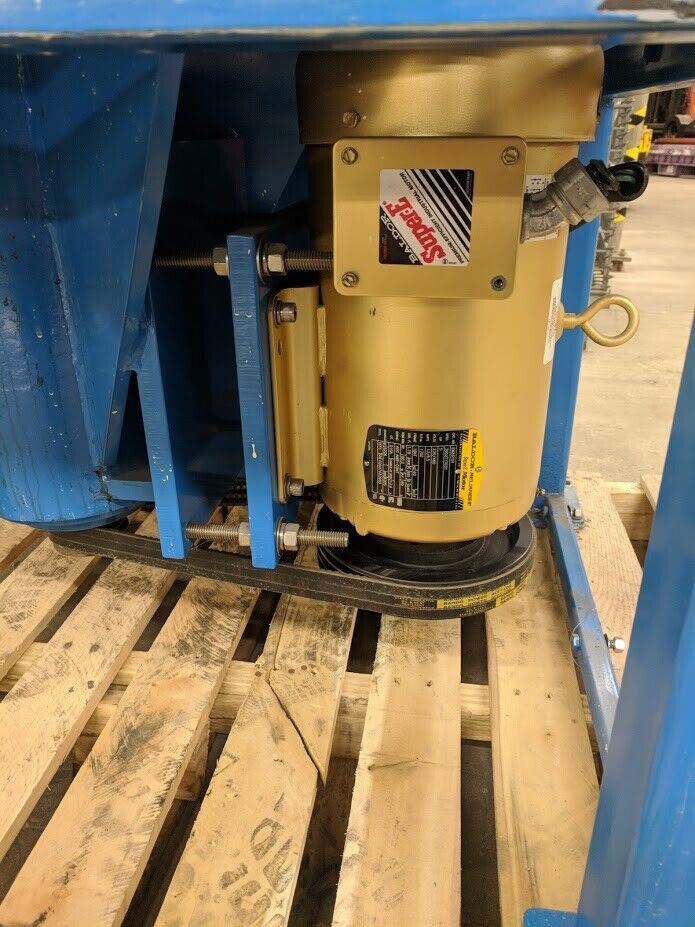

Baldor Motor Specs:
Output5.000 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage460 V
230 V
230 V
Frame MaterialSteel
Frame184T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current13.9 A @ 208 V
13.4 A @ 230 V
6.7 A @ 460 V
13.4 A @ 230 V
6.7 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load89.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps6.7 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeJ
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 16 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3642M
Number of Poles4
Overall Length18.05 in
Power Factor78
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.125 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,750 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

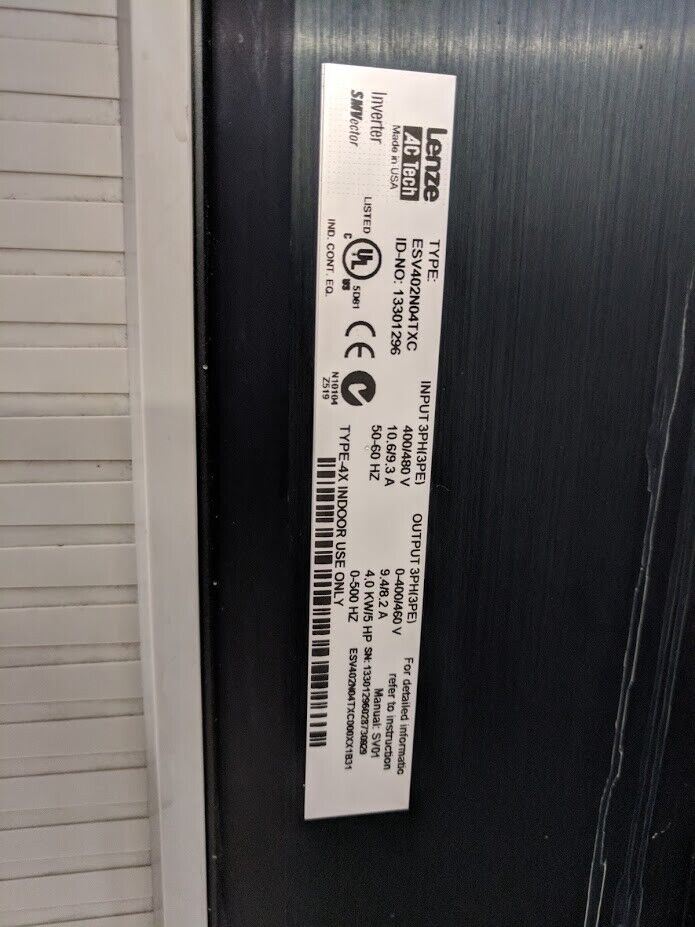

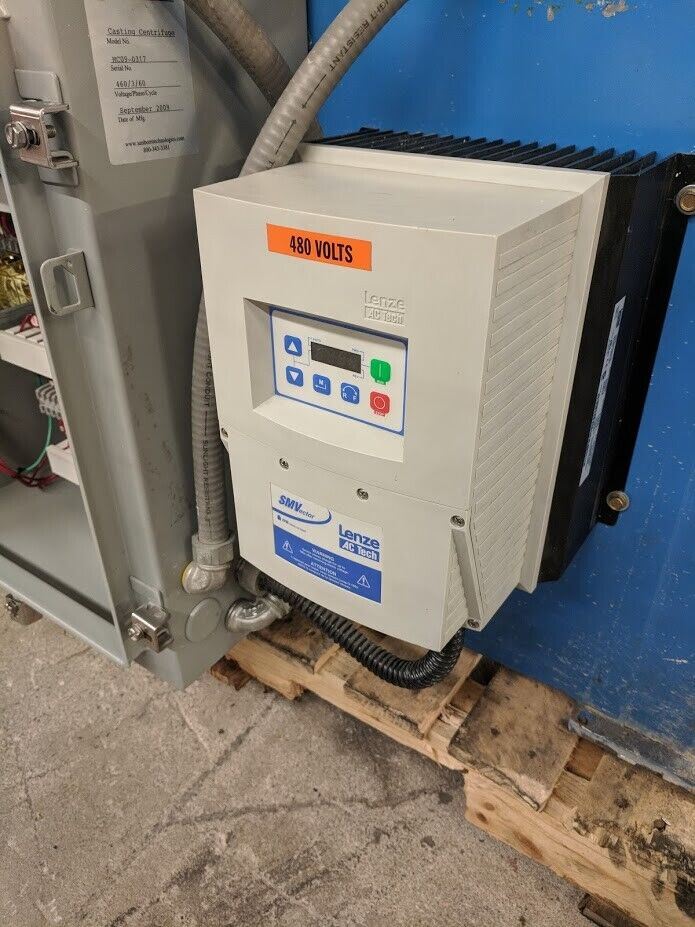

Below is the specs for the motor drive:
| SKU | ESV402N04TXC |
|---|---|
| Alternate Part Number | 13471656 |
| Input Voltage | 400/480V, 3 Phase |
| Horsepower | 5 hp |
| Output | 3 Phase Output |
| Housing/Enclosure | NEMA 4/4X (IP66) |
| Type of Drive | Volts per Hertz (V/Hz) |
| Options | No Special Options |
| Availability | Please Contact Us |
| Product Series | SMVector NEMA 4X |
| Weight - lbs. | 12.4000 |
| Manufacturer | AC Tech |
Rated Input Voltage
- 400-480V±10%
- 3 phase
- 50/60Hz ±2Hz
Rated Output Current
- 3 phase
- 400V: 9.4 amps
- 480V: 8.2 amps
Dimensions
- Height: 10.00 in
- Width: 9.00 in
- Depth: 8.00 in
Weight
- 13 lbs
Housing
- NEMA 4X
This item is free shipping to the lower 48 States
Feel Free to contact us with any questions
Thank you for your interest and have a great day!
