Prosilica Allied Vision GC2450 GigE Industrial Inspection Camera 2/3" CCD
$2,199.99

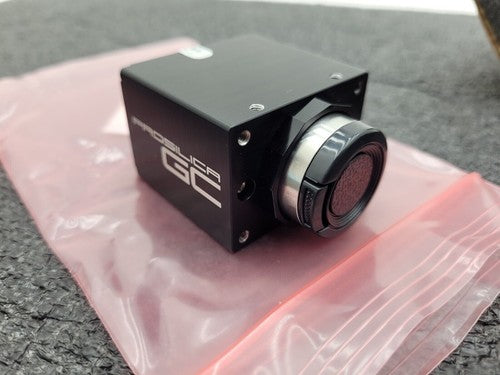

Prosilica Allied Vision GC2450 GigE Industrial Inspection Camera

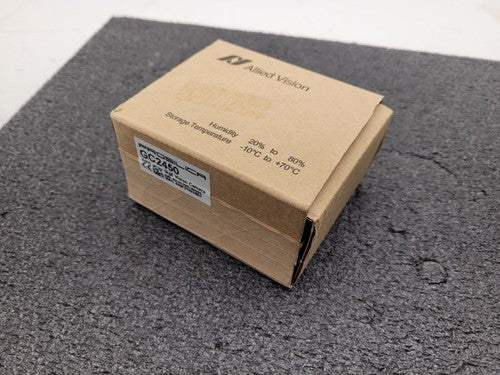

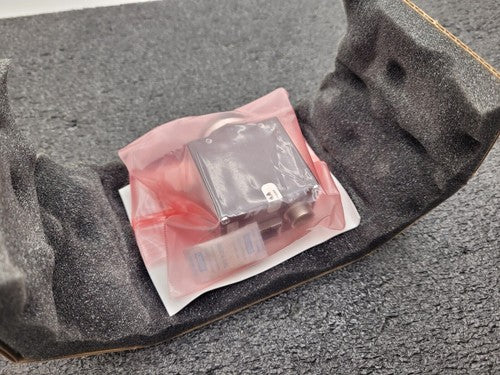

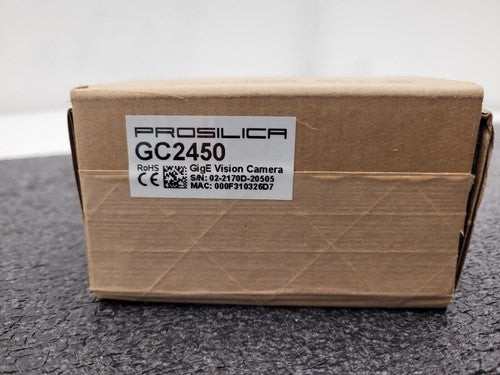

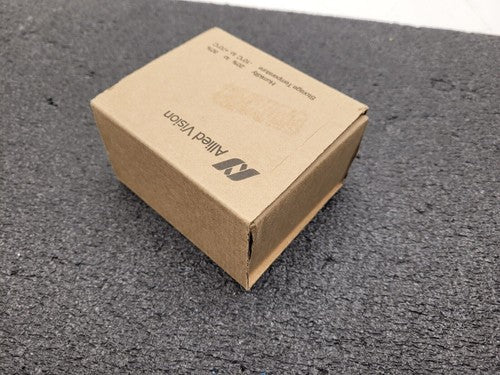

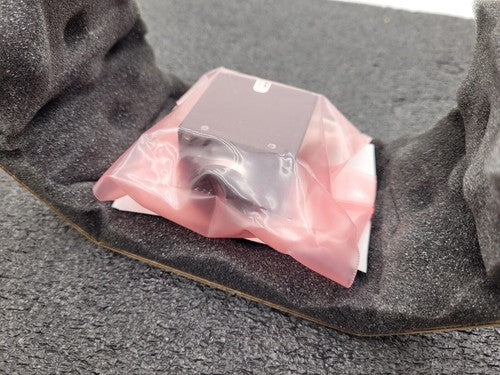

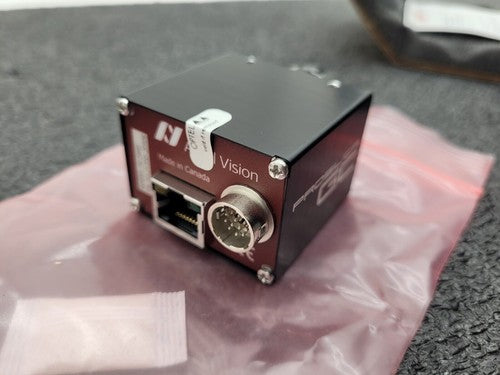

Unit removed from packaging for pictures, still new, unused condition.
Video Output:
GigE
Type:
Monochrome Camera
Manufacturer:
Allied Vision
Mounting Threads:
¼-20 with Tripod Mount Adapter #63-432
Image Buffer:
64MB
Note:
C-Mount features adjustable back focus
Camera Family:
Prosilica GC
Model Number:
GC2450

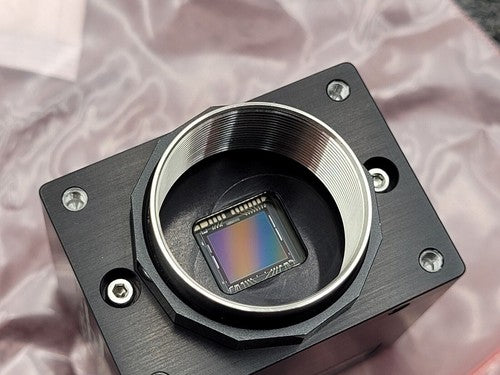

Imaging Sensor:
Sony ICX625
Type of Sensor:
Progressive Scan CCD
Type of Shutter:
Global
Camera Sensor Format:
2/3"
Resolution (MegaPixels):
5.00
Pixels (H x V):
2,448 x 2,050
Pixel Size, H x V (μm):
3.45 x 3.45
Sensing Area, H x V (mm):
8.4 x 7.0
Frame Rate (fps):
15.00
Pixel Depth:
12 bit
Exposure Time:
25μs - 60s

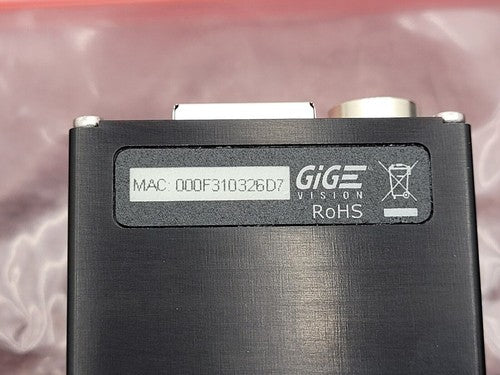

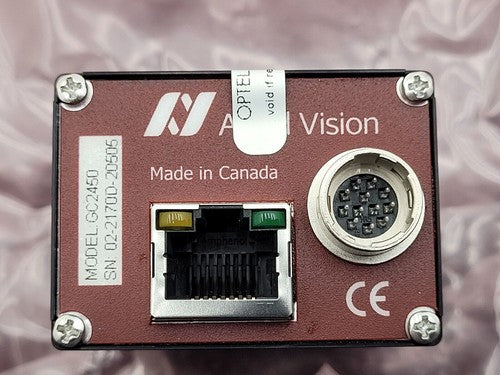

Connector:
GigE, RJ45
Power Supply:
Power Supply Required and Sold Separately:
USA: #15-281
USA: #15-281
Power Consumption (W):
3.8 (12VDC External Power Supply)
GPIOs:
1 opto-isolated input, 1 opto-isolated output, 1 non-isolated input, 1 non-isolated output
Synchronization:
Hardware Trigger (GPIO) or Software Trigger
Dimensions (mm):
45.7 x 42.9 x 33 (excludes connectors and lens mount)
Weight (g):
106
Mount:
C-Mount
Housing:
Full
Interface Port Orientation:
Back Panel
Operating Temperature (°C):
0 to +50
Storage Temperature (°C):
-10 to +70
GPIO Connector Type:
12-pin Hirose (HR10)
Machine Vision Standard:
GigE Vision v1.2, GenICam SFNC V1.2.1
This item is free shipping to the lower 48 States, contact us for a quote elsewhere.
Feel free to contact us with any questions
Thank you for your interest and have a great day!
International buyers - please note: Import duties, taxes, and charges are not included in the item price or postage cost. These charges are the buyer's responsibility.
