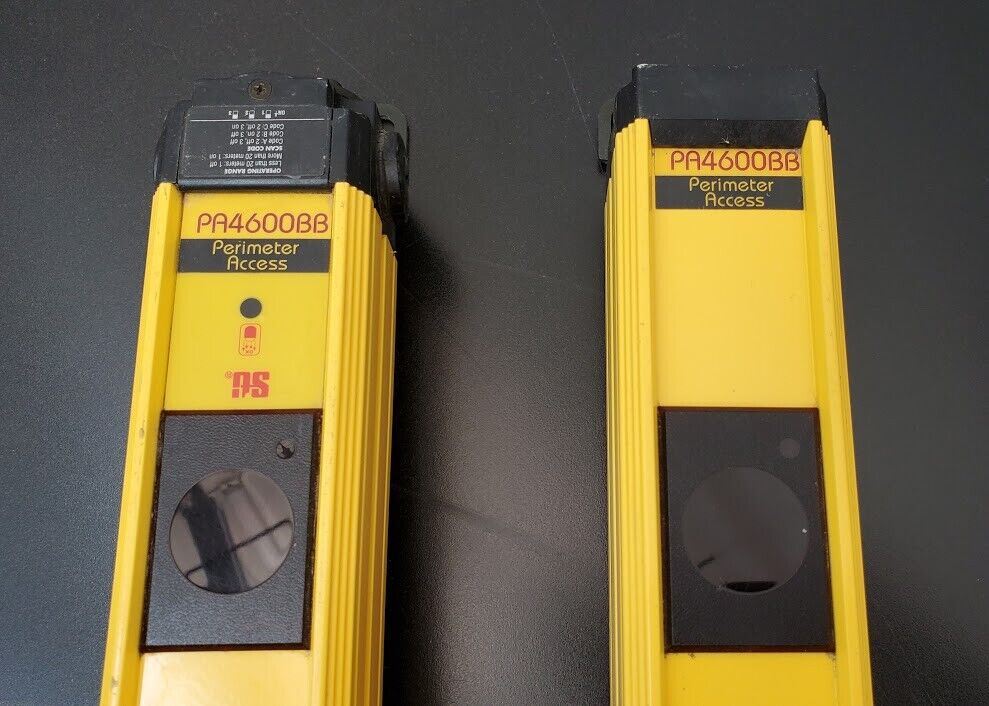

Omron STI PA4600 BB Perimeter Entry/Exit Access Guarding Device Bounce Back Active and Passive Units with 600MM Beam Spacing
Omron STI PA4600 BB Perimeter Access Guard Bounce Back Active / Passive Units
$349.99
Models:

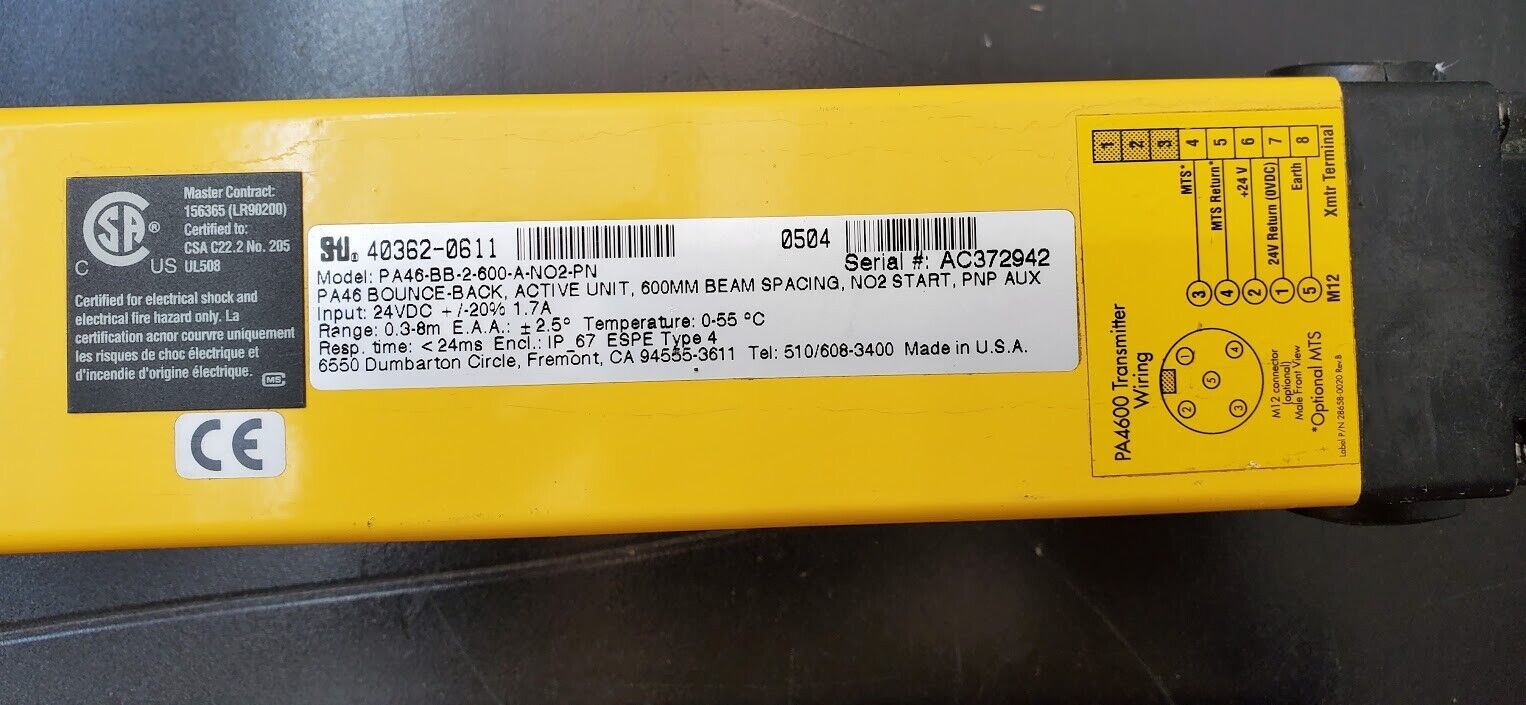

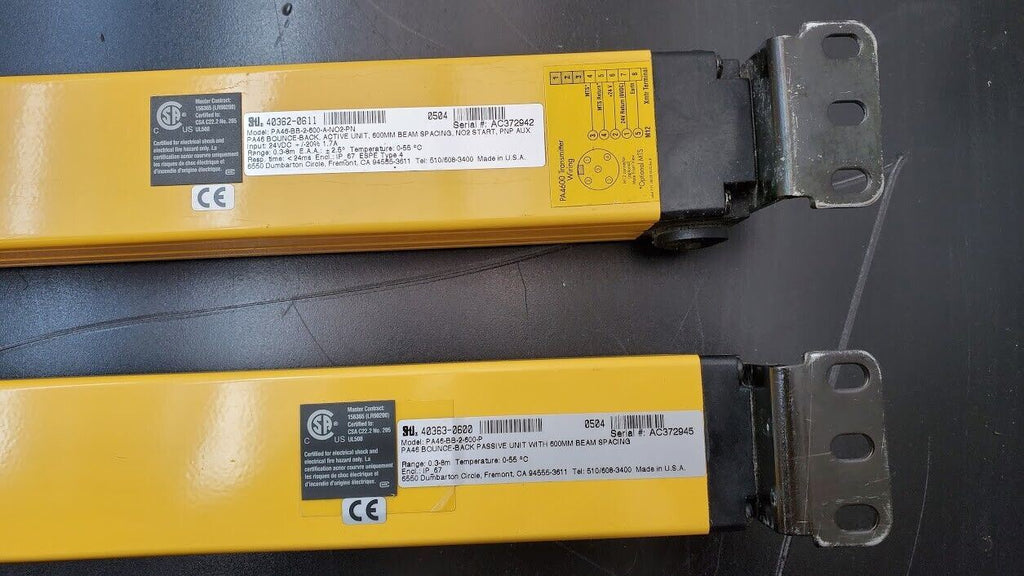

PA46-BB-2-600-A-NO2-PN Bounce-back active unit

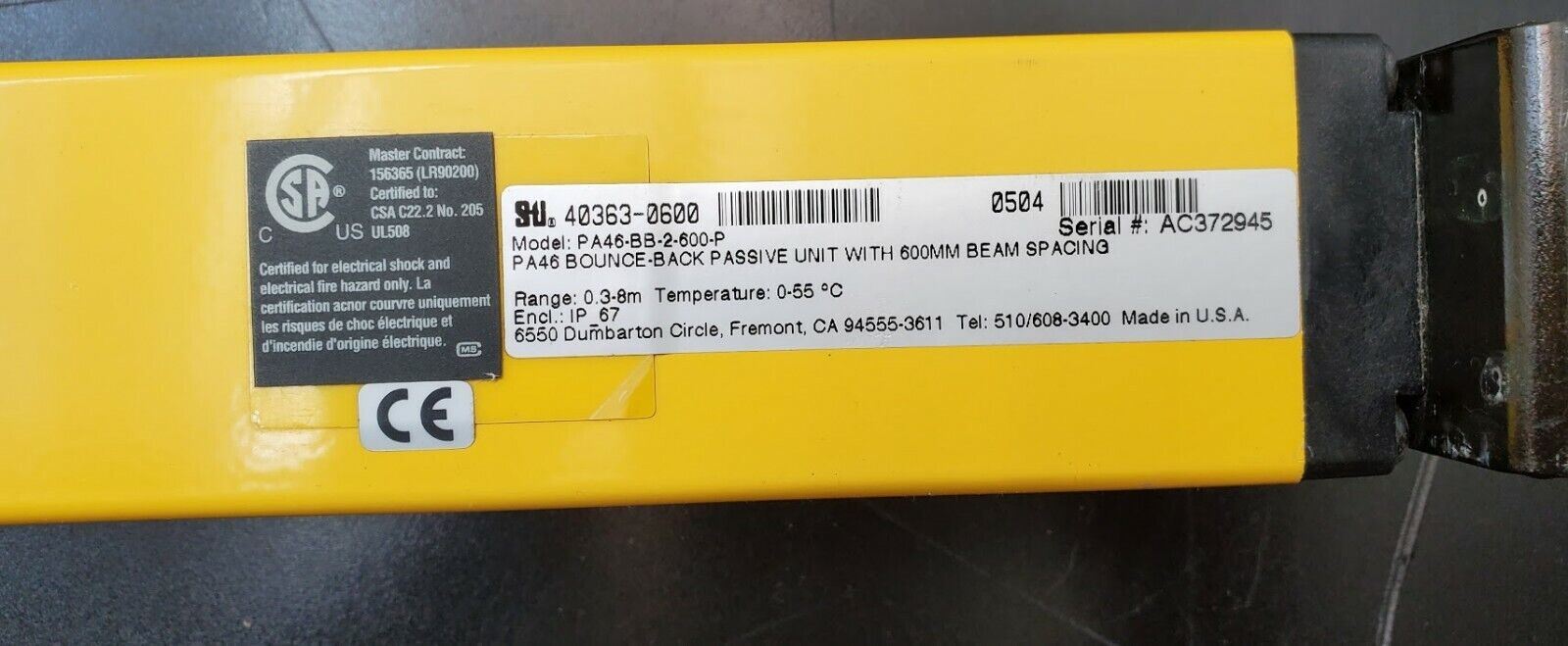

PA46-BB-2-600-P Bounce-back passive unit

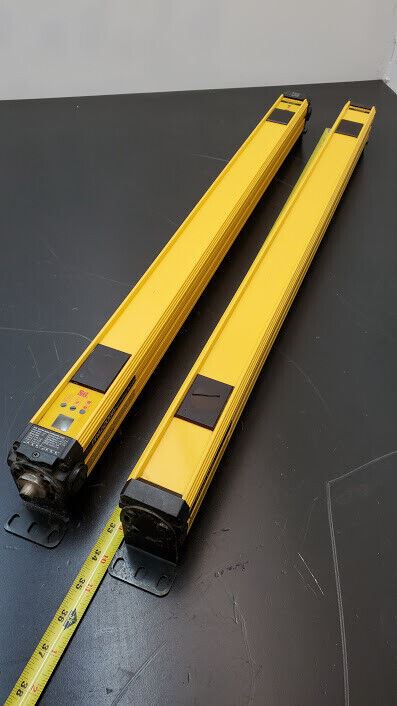

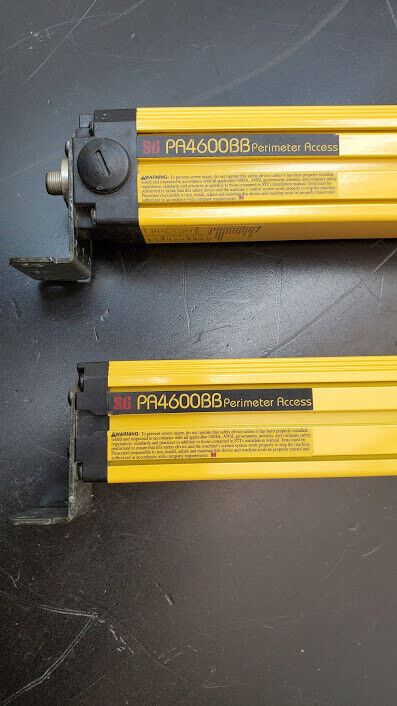

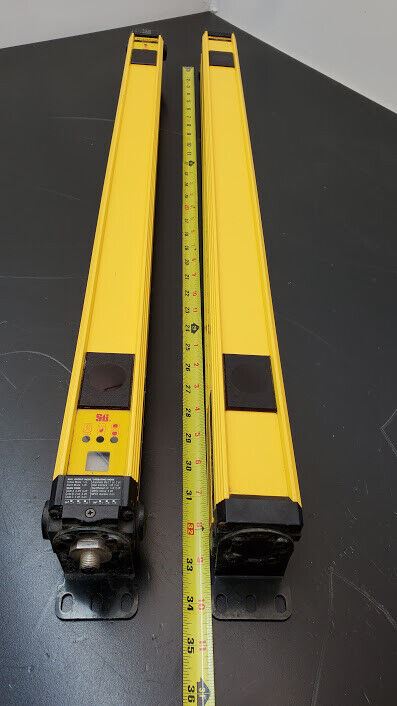

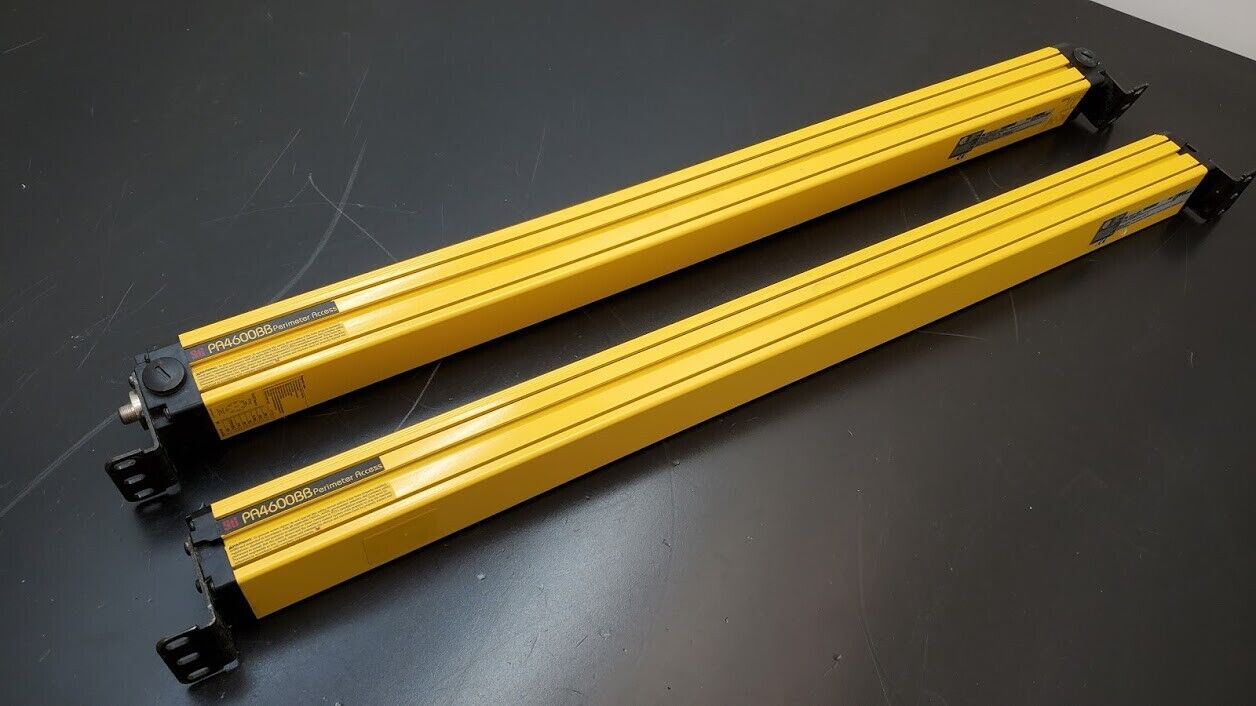

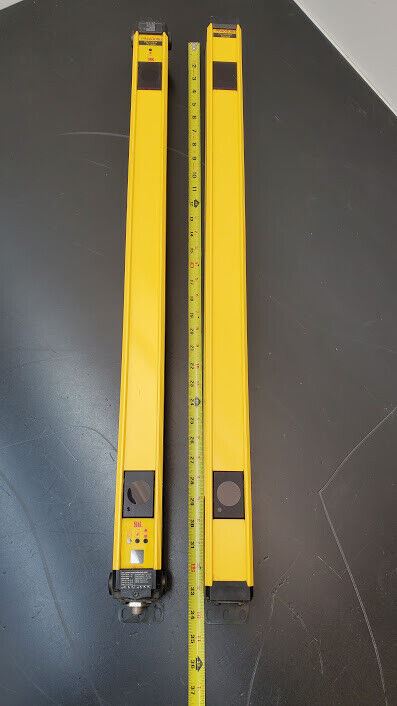

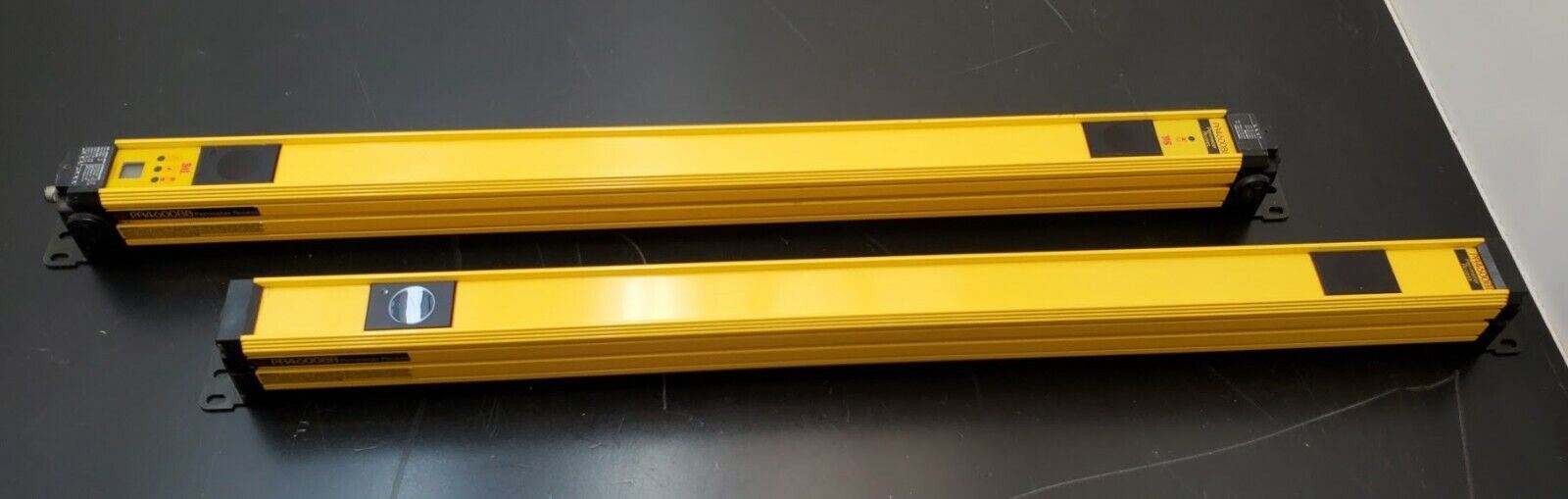

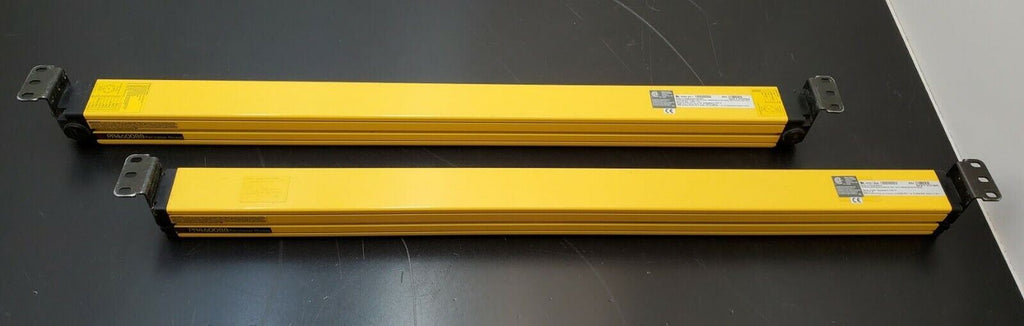

This is a used device, comes as pictured.
Description:
PA4600-BB is a short range, two-beam safeguarding device. It is suited to detect the torsos of personnel entering a hazardous area. Installation and alignment is simplified with Individual Beam Indicators, which glow red when the beam is out of alignment or blocked. The separate Scan Codes allow the installer to select unique scan frequencies that eliminate cross-talk with adjacent PA4600 systems. Diagnostics are greatly enhanced with the LED status indicators and numeric displays. The active-passive design simplifies the electrical connections, as no connections are needed at the Passive (mirror) assembly.
Specifications:
Protective Height: 500 and 600 mm
Operating Range: 0.8 to 8 m
Response Time: Transmit Code A: <24 ms; Transmit Code B: <20 ms; Transmit Code C: <16 ms
Safety Output: Two PNP, each output sourcing 625 mA @ 24 VDC, short circuit protected (See note 1 below)
Auxilliary (Non-Safety ) Output: One NPN output sinking 100 mA @ 24 VDC or PNP output sourcing 100 mA @ 24 VDC. Both available in follow or fault operating modes.
External Device Monitoring: 50 mA @ 24 VDC steady state (See note 2 below)
Start/Restart: N.O. input. Momentary contact (10 mA consumption)
Effective Aperture Angle: ± 2.5° maximum, transmitter and receiver at operating range greater than 3 m per IEC 61496-2
Light Source: Infrared light emitting diode, 880 nm

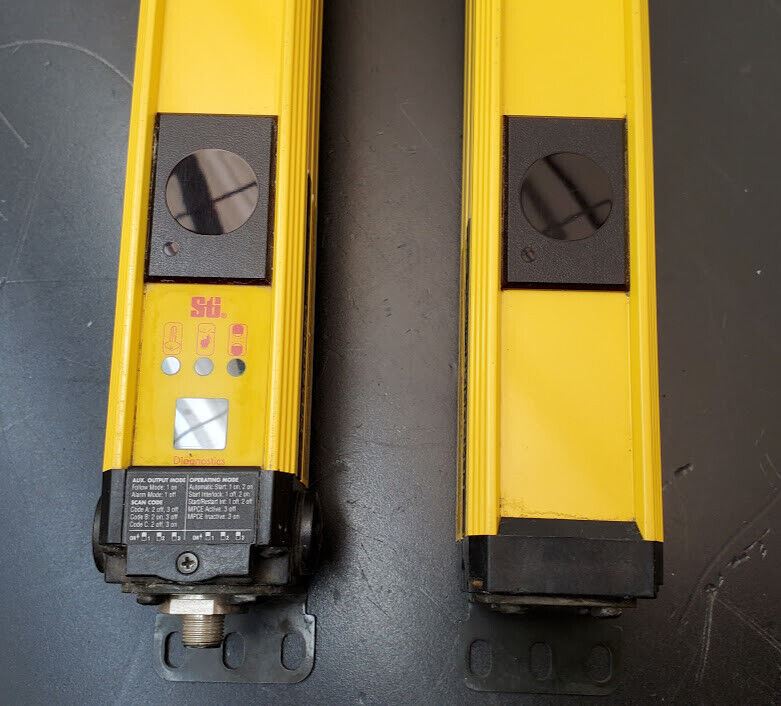

Transceiver Indicator Lights: Machine run (green), machine stop (red), interlock/fault (yellow), active (yellow), individual beam and two 7-segment displays (red)
Electrical:
Power Input: Transceiver: 24 VDC ± 20% 1.6 A max. (transceiver 250 mA + OSSD1 625 mA max. + OSSD2 625 mA max. + auxiliary 100 mA max.). Power Supply must meet requirements of IEC 60204-1 and IEC 61496. STI part number 42992 or equivalent.
Mechanical:
Construction: Polyester powder-painted aluminum
Connection Type: M-12, 8-pin connector
Environmental:
Enclosure Rating: IP67
Operating Temperature: 0 to 55°C (32 to 131°F)
Relative Humidity: 95% maximum, non-condensing
Approvals:
ESPE Type 4 (IEC 61496-1/ -2) Category 4 / PL e (EN ISO 13849-1) SIL3 / SIL3 CL3 (IEC 61508 / EN 62061) UL508, UL1998, CAN/CSA-C22.2 No. 14, CAN/CSA-C22.2 No. 0.8, CAN/CSA-C22.2 No 0, CAN/CSA-C22.2 No 205
