Name: Lot of 46x Orix DC Brushless MDS1225-24M-F28 24VDC Fan 24VDC 0.34A 3000RPM
Brand: Oriental Motor Orix
SKU: 013400
Price: 249.99 USD
Availability: InStock

Lot of 46x Orix DC Brushless MDS1225-24M-F28 24VDC Fan 24VDC 0.34A 3000RPM

$249.99

1/16

Lot of 46x Orix DC Brushless MDS1225-24M-F28 24VDC Fan 24VDC 0.34A 3000RPM

$249.99

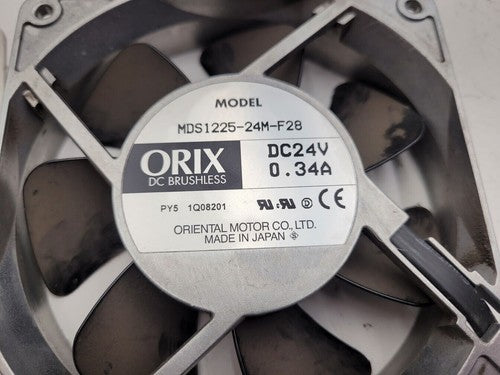

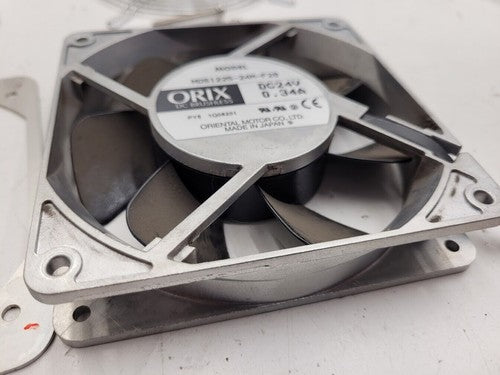

Oriental Motor Orix DC Brushless MDS1225-24M-F28 24VDC Fan 24VDC 0.34A 3000RPM

Product Line	ORIX®
Fan Type	Axial Fan

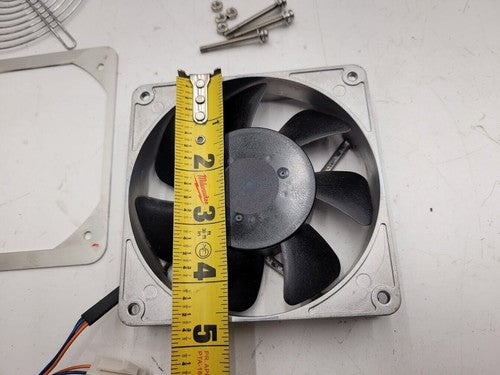

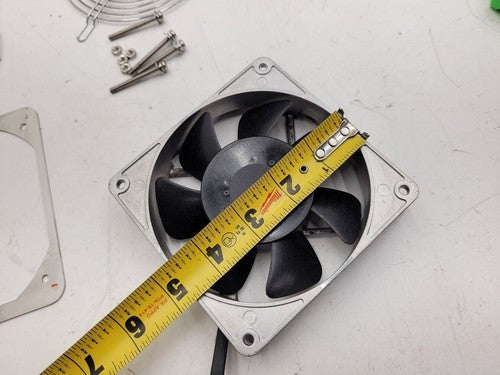

Frame Size	4.69 in

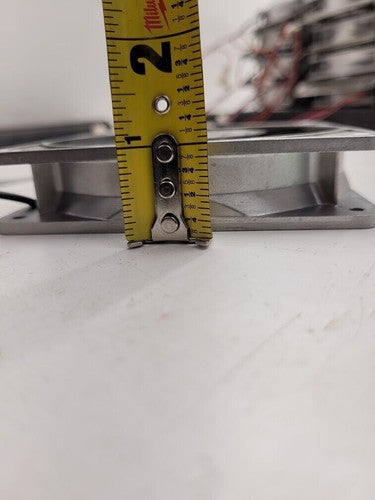

Thickness	1 in.
Power Supply	24 VDC
Current	0.34 A
Function	Low Speed Alarm - Electronic
Connection Type	Lead Wire
Type	Standard Speed
Speed (r/min)	3000
Max. Air Flow	95.3 CFM
Max. Static Pressure	0.281 inH₂O
Noise Level	46 dB (A)
RoHS Compliant " style="border: 1px solid rgb(197, 197, 197); background: rgb(209, 209, 209); border-radius: 0px; width: 17px; float: left; margin: 5px;">	These products do not contain substances that exceed the regulation values in the RoHS Directive.
Safety Standards Click Here for a List of Safety Standard Approved Products UL Standards (United States) UL, or Underwriters Laboratories Inc. Standards are used for common items such as electronic equipment, motor-powered devices and electronic parts. The most important aspect to the UL standards for a manufacturer is that legal provisions in many American states require such products must have passed the relevant UL safety tests and be listed in the UL Directory before being offered for sale. Also, UL has been accredited as a verification agency by the Standards Council of Canada (SCC) and is recognized by all Canadian provinces. Products that are recognized as conforming with Canadian safety standards can display the c-UL mark, and their sales and use is permitted in Canada. CSA Standards (Canada) CSA stands for "Canadian Standards Association". To protect human life and property from fire hazard and accidents, provincial laws in Canada forbid the sale and use of any electrical machinery, electrical parts, and so on, unless its safety has been confirmed by CSA. For this purpose, CSA has established standards detailing mandatory tests and requirements to ascertain component safety. Also, the CSA has been accredited by the U.S. Occupational Safety and Health Administration (OSHA) as a national research and testing lab (NRTL). Products that are recognized as conforming with American safety standards may display the CSA mark with the NRTL added, and their sale and use is permitted in the U.S. EN Standards (EU member states) The European Union continues to coordinate the industrial and safety standards of individual member states under the aegis of the Council of European Standardization (CEN) and the Council of European Electrical Standardization (CENELEC). The unified standards for all of Europe are called the Harmonized Standards. The numbers for Harmonized Standards all begin with an "EN". EN standards apply to the design and manufacture of products exported to the EU area. (IEC and VDE standards apply when an EN standard has not yet been enacted.) Certification is given by private inspection organization such as VDE, DEMKO, TÜV Rheinland. Qualifying products may display the various safety marks. China Cumpulsory Certification Mark (CCC) Chinese requirements for safety and quality certification are not new. Since 1989, China has had a safety licensing system, which included the CCIB Safety Mark, required for products in 47 product categories, and the CCEE "Great Wall" Mark, for electrical commodities in seven product categories. As the certification system grew through the 1990s, many companies exporting to China raised concerns about the dual certification systems, redundant testing, and differential treatment of domestic products and imported products. The CCC Mark is administered by the Chinese government agency Certification and Accreditation Administration (CNCA). The China Quality Certification Center (CQC) is designated by CNCA to process CCC mark applications. CE Marking (EU member states) To distribute equipment within the European Union, the CE marking is mandatory certifying that the equipment complies with EC Directives (safety). JET (Japan) Japanese Safety Standards for Electrical Equipment Certified by Japan Electrical Safety & Environment Technology Laboratories. " style="border: 1px solid rgb(197, 197, 197); background: rgb(209, 209, 209); border-radius: 0px; width: 17px; float: left; margin: 5px;">	IECULCSAENCE
CE Marking	EMC Directives
Insulation Resistance	10 MΩ or more when 250 VDC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Strength	Sufficient to withstand 500V at 50Hz applied between the windings and the frame for 1 minute under normal ambient temperature and humidity.
Temperature Rise	18ºF (10ºC) or less measured by the thermometer method after the temperature of the case has stabilized after continuous operation under normal ambient temperature and humidity.
Insulation Class	Class E (248ºF [120ºC]), Recognized as Class A (221ºF [105ºC]) by UL and CSA standards.
Overheat Protection	Built-in Overheat Protection Circuit
Ambient Temperature Range	14ºF ~ 140ºF (-10ºC ~ 60ºC)
Ambient Humidity	85% or less (noncondensing)
Alarm Type	Electronic
Alarm Activation Speed	2100 ± 400 r/min
Output Mode	Open-collector output
Output Condition	Normal operation: L level (Internal transistor ON) Alarm output: H level (Internal transistor OFF)
Maximum Rating	Maximum applied voltage: 30 VDC max. Maximum current: 15 mA max.
Delay Function	Built-in starting delay time: 10 sec. max. (The alarm function starts monitoring within 10 seconds after the power is turned on.)

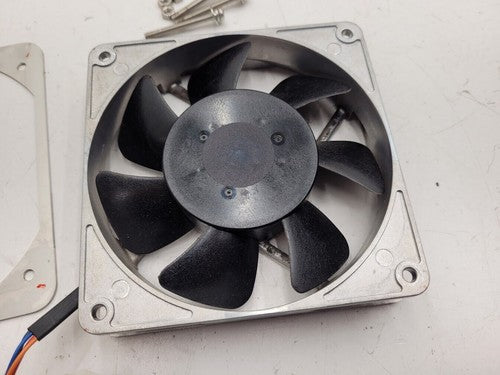

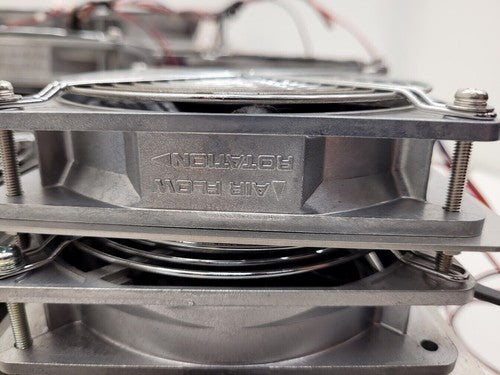

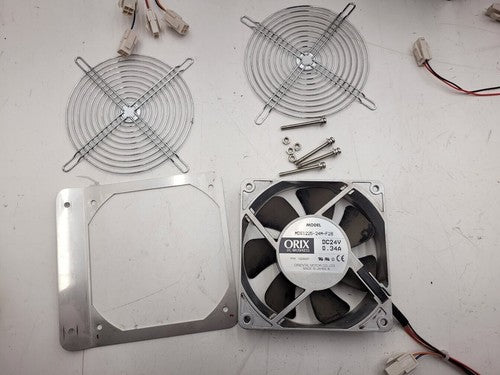

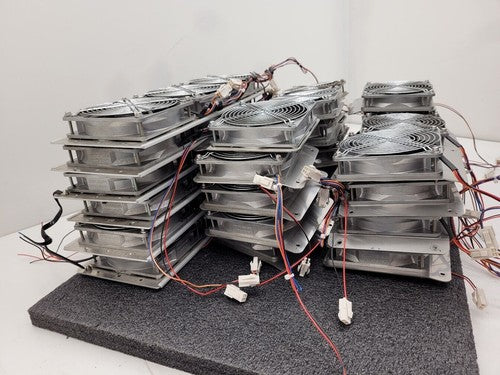

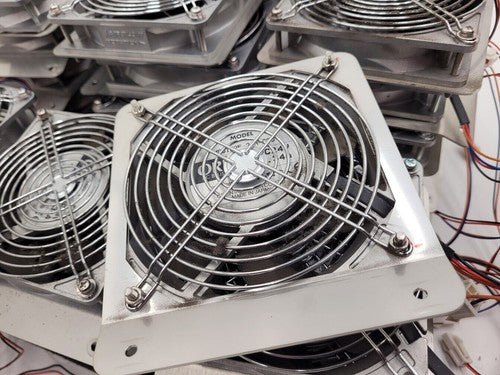

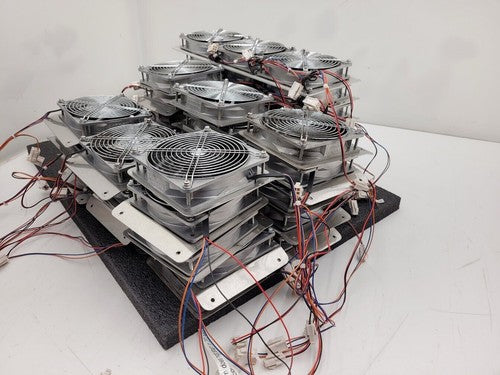

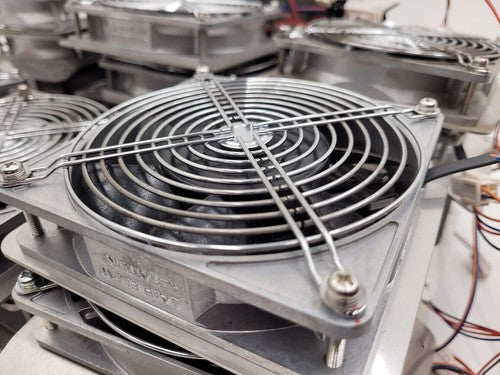

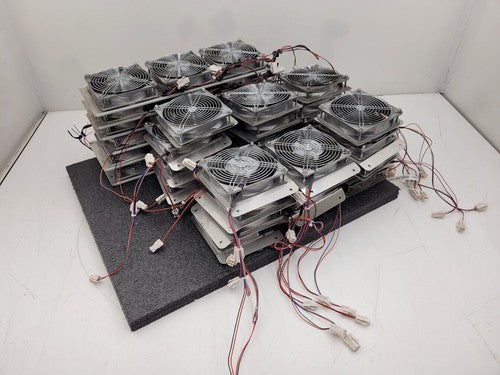

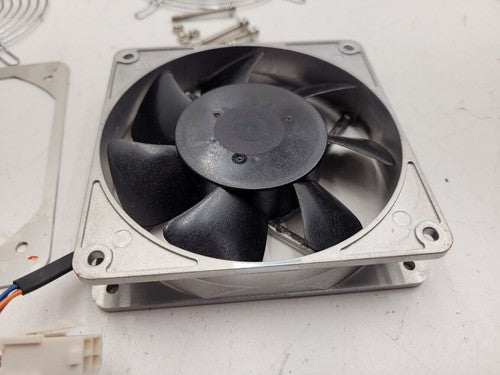

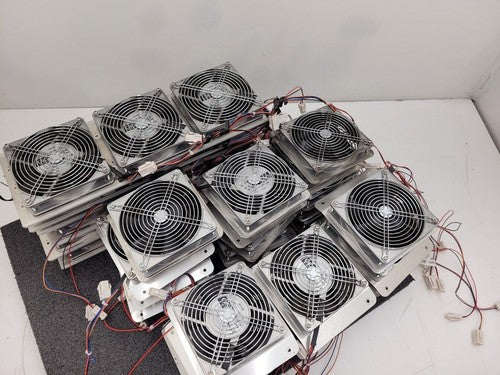

Good used condition, a little dirty but fully functional. Pulled from test fixture that was used in an engineering environment. 18 of them are on 3-fan mounts, the rest are singular. All fans include front and back fan shroud.

This item is free shipping to the lower 48 States, contact us for a quote elsewhere.

Feel free to contact us with any questions

Thank you for your interest and have a great day!
